Fuji Electric MICREX-SX Series SPH Bedienungsanleitung

USER’S MANUAL

Conformance with Standards

FEH249

SERIES

<Notes>

1. This manual may not be reproduced in whole or part in any form without prior written approval by the manufacturer.

2. The contents of this manual (including specifications) are subject to change without prior notice.

3. If you find any ambiguous or incorrect descriptions in this manual, please write then down (along with the manual

No. Shown on the cover) and contact FUJI.

Thank you very much for purchasing the FUJI MICREX-SX Series SPH.

This users' manual describes operational instructions and restrictions on MICREX-SX Series products that conform to

various standards (CE marking, Lloyd's Register of Shipping, etc.)

Please read this manual carefully to correctly use your device.

If your MICREX-SX Series product does not need to conform to CE marking or Lloyd's Register of Shipping, there is no

need to execute the content of this manual. There will be no problem with performance and functionality.

If your MICREX-SX Series product is required to conform to those standards, you must execute the content of this manual.

Note that this manual deals with MICREX-SX Series products of "basic structure," and therefore additional measures

may be necessary depending on the configuration of your system, the structure of the control panel, or the product's work

environment.

Preface

*Manual No. is shown on the cover.

Revision

Printed on *Manual No. Revision contents

May.2000 FEH249 First edition

Contents

Preface

Revision

Contents

Section1 Standards Conformed Product

1-1 Standards conformed products list ...................................................................................... 1-1

Section2 Conformance with CE marking

2-1 CE marking ............................................................................................................................. 2-1

2-2 Method for adapting to CE marking ..................................................................................... 2-2

2-2-1 Metal Enclosure .............................................................................................................................. 2-2

2-2-2 How to lay the SX bus cable ............................................................................................................ 2-3

2-2-3 Adaptation of individual module ...................................................................................................... 2-4

(1)T-link master / interface module (NP1L-TL1/RT1) ............................................................................. 2-4

(2)OPCN-1 master module ( NP1L-JP1) .................................................................................................. 2-5

(3)FL-net ( OPCN-2 ) module ( NP1L-FL1 ) ............................................................................................. 2-5

(4)Precautions for using the "AS-i" master module ( NP1L-AS1 ) ............................................................ 2-6

(5)DeviceNet master module ( NP1L-DN1 ) ............................................................................................ 2-6

(6)Measures for the positioning modules ................................................................................................. 2-7

Seciton3 Adaptation to UL standard / Lloyd's Resister of Shipping / NK

3-1 Adaptation to UL standard .................................................................................................... 3-1

3-2 Adaptation to Lloyd's Resister of Sipping / NK .................................................................... 3-1

Section4 Installing the PC & Wiring of power supply

4-1 Installing PC units .................................................................................................................. 4-1

4-2 Wiring of power supply ......................................................................................................... 4-2

1-1

1-1 Standards conformed products list

( Continued on next page )

Section1 Standards Conformed Product

Component Type Specification

CE UL cUL LR NK

CPU module

NP1PS-74 High-performance CPU module

Program memory:74K steps

yes no no no no

NP1PS-32 High-performance CPU module

Program memory:32K steps

yes yes yes yes yes

NP1PH-08 Standard CPU module

Program memory:8K steps

yes yes yes yes yes

NP1PH-16 Standard CPU module

Program memory:16K steps

yes yes yes yes yes

Power supply

module

NP1PS-22 100/200V AC yes yes yes yes yes

NP1PS-42 24V DC yes yes yes yes yes

Base board NP1BS-06 No.of slots:6 yes yes yes yes yes

NP1BS-08 No.of slots:8 yes yes yes yes yes

NP1BS-11 No.of slots:11 yes yes yes yes yes

NP1BS-13 No.of slots:13 yes yes yes yes yes

NP1BP-13 No.of slots:13

No.of processor buses:10

yes yes yes yes yes

SX bus

expansion

cable

NP1C-P3 Cable length:30cm yes yes yes yes yes To adapt to CE

marking, the

measures described

in 2-2-2 need to be

taken.

NP1C-P6 Cable length:60cm yes yes yes yes yes

NP1C-P8 Cable length:80cm yes yes yes yes yes

NP1C-02 Cable length:2m yes yes yes yes yes

NP1C-05 Cable length:5m yes yes yes yes yes

NP1C-10 Cable length:10m yes yes yes yes yes

NP1C-25 Cable length:25m yes yes yes yes yes

SX bus T-branch

uint

NP8B-TB For SX bus T-branch yes yes yes yes yes

Digital input

module

NP1X1606-W 24V DC, 16 points yes yes yes yes yes

NP1X3206-W 24V DC, 32 points yes yes yes yes yes

NP1X3202-W 5/12V DC, 32 points yes yes yes yes yes

NP1X3206-A 24V DC, 32 points

High-speed counter 4 channels 20kHz

yes yes yes no no

NP1AX6406-W 24V DC, 64 points yes yes yes yes yes

NP1X0810 100 to 120V AC, 8 points yes yes yes yes yes

NP1X1610 100 to 120V AC, 16 points no no no yes yes

NP1X0811 200 to 240V AC, 8 points yes yes yes yes yes

Digital

output

module

NP1Y08T0902 Tr sink 12 to 24V DC, 8 points yes yes yes yes yes

NP1Y16T09P6 Tr sink 12 to 24V DC, 16 points yes yes yes yes yes

NP1Y32T09P1 Tr sink 12 to 24V DC, 32 points yes yes yes yes yes

NP1Y64T09P1 Tr sink 12 to 24V DC, 64 points yes yes yes yes yes

NPY32T09P1-A Tr sink 24V DC, 32 points

Pulse train output function

yes yes yes no no

1-2

Section1 Standards Conformed Product

( Continued on next page )

( Note )To adapt to CE marking, the measures described in 2-2-3 need to be taken.

Component Type Specification CE UL cUL LR NK

Digital output

module

NP1Y08U0902 Tr source 12 to 24V DC, 8 points yes yes yes yes yes

NP1Y16U09P6 Tr source 12 to 24V DC, 16 points yes yes yes yes yes

NP1Y32U09P1 Tr source 12 to 24V DC, 32 points yes yes yes yes yes

NP1Y64U09P1 Tr source 12 to 24V DC, 64 points yes yes yes yes yes

NP1Y06S Triac 100 to 200V AC, 6 points yes yes yes yes yes

NP1Y08S Triac 100 to 200V AC, 8 points no no no yes yes

NP1Y08R-04 Ry 110V DC,240V AC, 8 points yes yes yes yes yes

NP1Y16R-08 Ry 110V DC,240V AC, 16 points no no no yes yes

Digital input/output

module

NP1W1606T input : sourse type24V DC, 8 points

output : Tr sink12 to 24V DC, 8 points

yes yes yes yes yes

NP1W3206T input : source type24V DC, 16 points

output : Tr sink12 to 24V DC, 16 points

yes yes yes yes yes

NP1W1606U input : sink type24V DC, 8 points

output : Tr source12 to 24V DC, 8 points

yes yes yes yes yes

NP1W3206U input : sink type24V DC, 16 points

output : Tr source12 to 24V DC, 16 points

yes yes yes yes yes

Multi-range Analog

input module

NP1AXH4-MR 4 channels, Resolution : 14bits yes yes yes yes yes

NP1AX04-MR 4 channels, Resolution : 10bits yes yes yes yes yes

NP1AX08-MR 8 channels, Resolution : 10bits yes yes yes no no

Multi-range Analog

output module

NP1AYH2-MR 2 channels, Resolution : 10bits yes yes yes yes yes

NP1AY02-MR 2 channels, Resolution : 10bits yes yes yes yes yes

General purpose

communication

module

NP1L-RS1 RS-232C : 1 channel, RS-485 : 1 channel yes yes yes yes yes

NP1L-RS2 RS-232C : 1 channel yes yes yes yes yes

NP1L-RS4 RS-485 : 1 channel yes yes yes yes yes

FL-net ( OPCN-2 )

module

NP1L-FL1 FL-net (OPCN-2 ) : 1 channel yes no no no no ( Note )

P-link module NP1L-PL1 P-link : 1channel no yes yes no no

PE-link module NP1L-PE1 PE-link : 1 channel no yes yes no no

OPCN-1 master

module

NP1L-JP1 OPCN-1 : 1 channel yes yes yes yes yes To adapt to CE

marking, the

measures

described in 2-

2-3 need to be

taken.

OPCN-1 interface

module

NP1L-RJ1 interface module to expansion OPCN-1 yes yes yes yes yes

DeviceNet master

module

NP1L-DN1 DeviceNet : 1 channel yes no no no no

AS-i master module NP1L-AS1 AS-i master : 1 channel yes no no no no

T-link master

module

NP1L-TL1 T-link master : 1 channel yes yes yes yes yes

T-link interface

module

NP1L-RT1 interface module to expansion T-link yes yes yes yes yes

PC card interface

module

NP1F-PC2 General purpose PC card : 1 channel

memory card : 1 channel

yes no no no no

Memory card

interface module

NP1F-MM1 SRAM memory card : 1 channel yes no no no no

1-3

Section1 Standards Conformed Product

Component Type Specification CE UL cUL LR NK

Dummy module NP1F-DMY substitute for the failed module yes no no no no To adapt to

marking,

the

measures

described

in 2-2-3

need to be

taken.

High-speed counter

module

NP1F-HC2 2 channels 500kHz yes no no no no

NP1F-HC8 8 channels 50kHz yes no no no no

Pulse train output

module NP1F-HP2 Pulse train command, 2 channels 250kHz

Forward pulse + reverse pulse yes no no no no

Pulse train multiple

module NP1F-MP2 Positioning control multiple module

2 axes, Pulse train command yes no no no no

Analog

multiplemodule NP1F-MA2 Positioning control multiple module

2 axes, Analog command yes no no no no

Signal converter NP2F-LEV Convert signal level, From open collector signal to

RS-485 or vice versa yes no no no no

D300win cable

NP4H-CNV Personal computer cable for loader with converter yes yes yes yes yes

NP4H-CA2 Personal computer cable for loader yes yes yes yes yes

Simulative-input swich NP8X-SW 16 points yes yes yes yes yes

Data backup battery NP8P-BT Lithium primary battery yes yes yes yes yes

User ROM card NP8PMF-16 User ROM card 16k steps Dedicated to standard

CPU yes yes yes yes yes

CPU mode selection

key swich NP8P-KY For CPU mode selection yes yes yes yes yes

Base board mounting

stud NP8P-ST For DIN rail (in pairs) yes yes yes yes yes

SX bus terminating

plug NP8P-BP For SX bus terminating yes yes yes yes yes

T-link connector,

JPCN-1 connector FCT120T yes yes yes yes yes

P/PE-link connector FTC120P yes yes yes yes yes

T-link/JPCN-1

terminating resistor FRT120A100 100Ω/1W yes yes yes yes yes

P/PE terminating

resister FRT220A75 75Ω/1W yes yes yes yes yes

I/O connector,

Positioning control

module connector

NP8V-CN Soldered socket type,connector cover

(Fujitsu Co.,Ltd.) yes yes yes yes yes

2-1

Section2 Conformance with CE marking

2-1 CE marking

IEC 61131-2

EMI = CISPR11, Gr. 1, Class A

EMS = IEC 61000-4-2 to -6, -8 and -12

Enclosed type equipment, which is defined as follows:

"To prevent accidents due to a charged or operating part coming into contact with the human body, the

product should be installed in a metal enclosure when used."

Overvoltage Category II

Zone B, which is defined as follows:

"An environment where power from an external power supply, which supplies power to the factory (the build-

ing in which the device is installed), is used after doubly protecting against surge voltage with an insulating

transformer or the like.

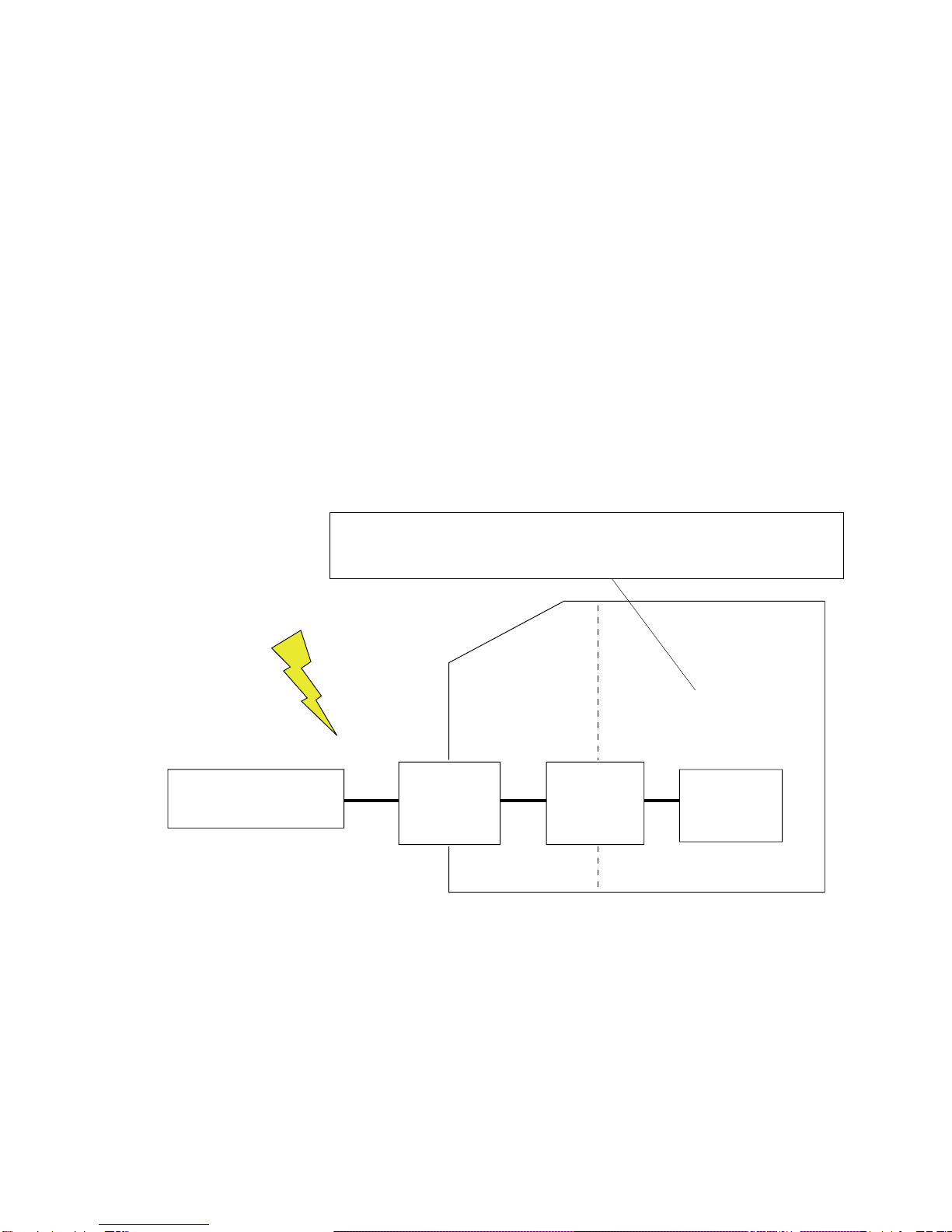

3-phase power supply Primary

protection

Secondary

protection

Factory

Zone C Zone B

Lightning

PLC

MICREX-SX

An environment that is doubly protected against surge voltage, but in

which the superimposition of industrial environment noise may occur.

Section2 Conformance with CE marking

2-2

2-2 Method for adapting to CE marking

2-2-1 Metal Enclosure

MICREX-SX Series products are classified as "enclosed type" equipment. "Enclosed type" means equip-

ment that is designed on the condition that it is installed in an enclosure such as a metal enclosure, so that

electric shock or other accidents do not occur due to the human body coming into contact with the product

(MICREX-SX). In other words, there may be danger of an electric shock, etc., if the product is not accom-

modated in an enclosure. (For example, a steel wire may be inserted in one of the cooling slots provided

on the product body.)

MICREX-SX Series products also need to be installed in a metal enclosure in order to control the electro-

magnetic radiation noise (EMI) they emit. Basic specifications for the metal enclosure are as follows.

Material : SPCC (high-tensile-strength steel)

Plate thickness: Min. 1.6 mm

Power supply : Power supplied to the control panel should be protected from external surge voltage with

an insulating transformer.

Remarks : Should be structured so that an electromagnetic radiation noise does not leak from the

enclosure.

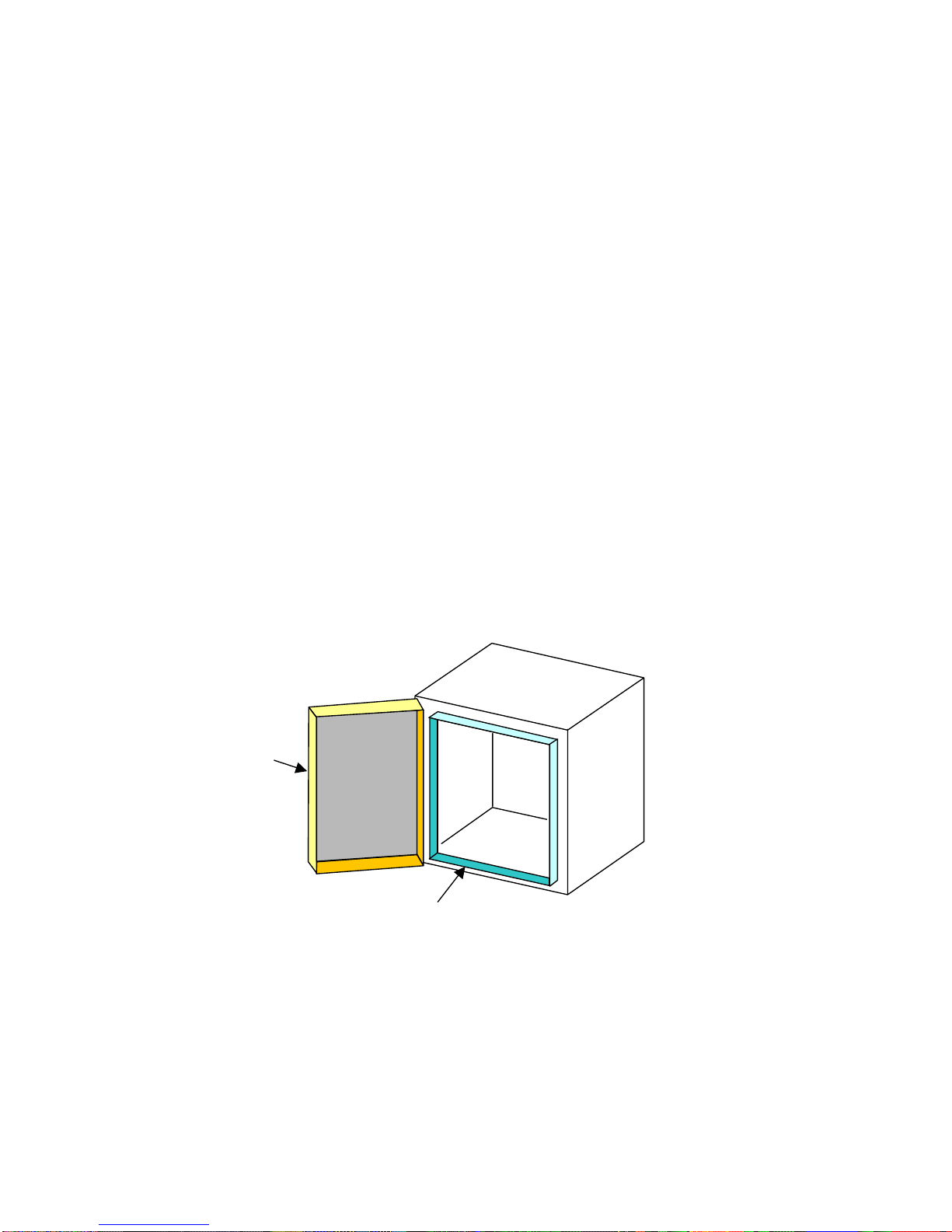

For example, in the figure below, a box-type door is used, and the enclosure has an eave-

like protrusion that overlaps on the side faces of the door when closed.

The important point here is that the overlap of the door and the enclosure's main body

effectively prevents electromagnetic radiation noise from leaking out of the enclosure.

扉

ひさし

Door

Eave

2-3

Section2 Conformance with CE marking

2-2-2 How to lay the SX bus cable

A high-speed electric signal flows through the SX bus cable. Therefore, high-frequency noise is emitted

from the SX bus cable, making it impossible for the product to conform to the EMC directive concerning CE

marking.

To solve this problem, a ferrite core is mounted at the base of the SX bus cable.

Mount the ferrite core according to the figure below.

When affixing the SX bus cable to the metal enclosure, be sure to secure a 1-cm or wider gap so that the

SX bus cable does not come into contact with the metal plate.

On the one hand, the metal enclosure provides an effective shield fromelectromagnetic radiation noise; on

the other hand, it becomes an effective antenna that electromagnetic radiation noise if a cable as a noise

source is nearby or comes into actual contact with it. Not only the SX bus cable, but also other high-speed

signal transmission cables need to be kept away from the metal walls of the enclosure.

Commendable ferrite core

: ZCAT 3035-1330 from TDK

Andere Handbücher für MICREX-SX Series SPH

Inhaltsverzeichnis

Andere Fuji Electric Steuereinheit Handbücher

Fuji Electric

Fuji Electric IGBT-IPM X Series Gebrauchsanweisung

Fuji Electric

Fuji Electric MICREX-SX Series SPH Bedienungsanleitung

Fuji Electric

Fuji Electric M653 Series Benutzerhandbuch

Fuji Electric

Fuji Electric P642 Series Gebrauchsanweisung

Fuji Electric

Fuji Electric X Series Gebrauchsanweisung

Fuji Electric

Fuji Electric ALPHA7 Bedienungsanleitung

Fuji Electric

Fuji Electric Small-IPM Series Gebrauchsanweisung

Fuji Electric

Fuji Electric EconoPACK+ Benutzerhandbuch

Fuji Electric

Fuji Electric MICREX-SX Series SPH Bedienungsanleitung

Fuji Electric

Fuji Electric MICREX-SX series Bedienungsanleitung

Fuji Electric

Fuji Electric MICREX-SX series Bedienungsanleitung

Fuji Electric

Fuji Electric P633C Series Gebrauchsanweisung

Fuji Electric

Fuji Electric MT5F33743 Bedienungsanleitung

Fuji Electric

Fuji Electric P633A Series Benutzerhandbuch

Fuji Electric

Fuji Electric P642 Series Benutzerhandbuch

Fuji Electric

Fuji Electric FRENIC-Multi OPC-E1-DEV Bedienungsanleitung

Fuji Electric

Fuji Electric OPC-E2-ADP1 Bedienungsanleitung

Beliebte Steuereinheit Handbücher anderer Marken

Festo

Festo Compact Performance CP-FB6-E Stücklistenhandbuch

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Bedienungsanleitung

JS Automation

JS Automation MPC3034A Bedienungsanleitung

JAUDT

JAUDT SW GII 6406 Series Kurzanleitung

Spektrum

Spektrum Air Module System Bedienungsanleitung

BOC Edwards

BOC Edwards Q Series Bedienungsanleitung

KHADAS

KHADAS BT Magic Bedienungsanleitung

Etherma

Etherma eNEXHO-IL Bedienungsanleitung

PMFoundations

PMFoundations Attenuverter Bedienungsanleitung

GEA

GEA VARIVENT Bedienungsanleitung

Walther Systemtechnik

Walther Systemtechnik VMS-05 Bedienungsanleitung

Altronix

Altronix LINQ8PD Montageanleitung

Eaton

Eaton Powerware Series Bedienungsanleitung

WAGO

WAGO 750-407/040-000 Bedienungsanleitung

Sony

Sony CCU-590 Bedienungsanleitung

Graco

Graco 25D614 Bedienungsanleitung

Task Force Tips

Task Force Tips YE-RF-900 Programmierhandbuch

Shini

Shini SPV-U Series Bedienungsanleitung
