FujiFilm Apeos 2560 Bedienungsanleitung

Prepared by Customer Training Team

Quick Reference Notes –Daily Care

簡易操作 -日常保養

Apeos 2560 / 3560



CONTENTS
目錄
1Clear Paper Jam 夾紙排解....................................................................................................1
1.1 Duplex Automatic Document Feeder / 自動雙面送稿裝置 .............................................1
1.2 Inside Upper Left Cover 左上蓋內.................................................................................2
1.2.1 Fusing Unit (A1) 熔著部 (A1)..................................................................................2
1.2.2 Duplex Unit (A2) 雙面元件(A2)...............................................................................3
1.3 In Bottom Left Door 左下蓋內.........................................................................................4
1.4 Standard Trays 標準紙盤...............................................................................................4
1.5 Bypass Tray 手送紙盤 ...................................................................................................5
2Replacing Toner 更換碳粉匣.................................................................................................6

Page 1 of 7

1 CLEAR PAPER JAM 夾紙排解

1.1 DUPLEX AUTOMATIC DOCUMENT FEEDER /自動雙面送稿裝置

1. Pull up the front handle of the cover and

open the cover until it stops.

1. 提起護蓋前的把手，開啟護蓋直到停止位

置。

2. Remove the document.

2. 清除原稿。

3. If you cannot find the document, open the

Document Cover, grip the handle to open

the Side 2 scanner, and then remove the

document.

3. 找不到原稿時，打開原稿蓋，抓著拉桿，

開啟反面掃描部，取出原稿。

4. Lift the Document Feeder Tray and

remove the document.

4. 提起送稿台，清除原稿。

Page 2 of 7

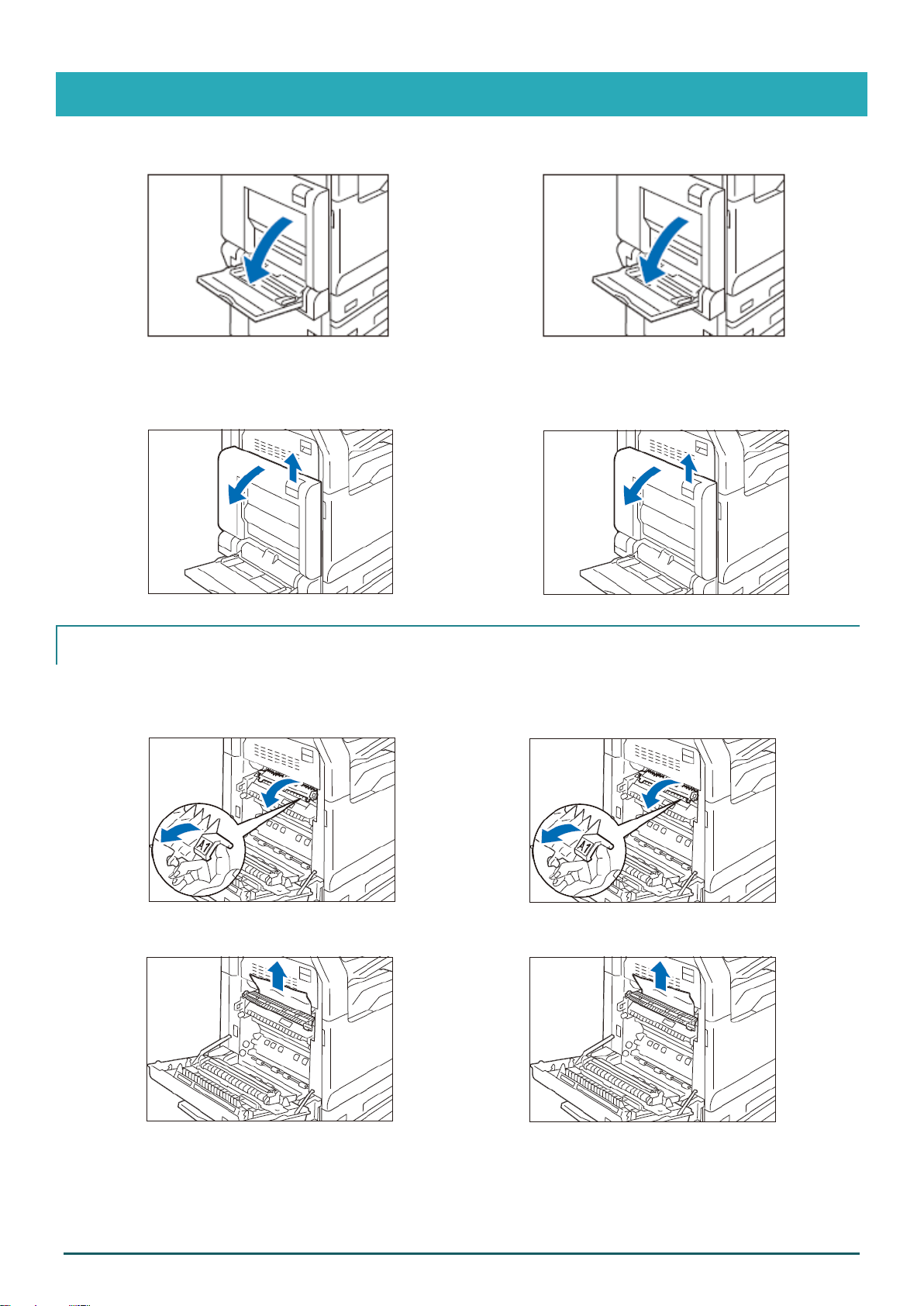

1.2 INSIDE UPPER LEFT COVER 左上蓋內

1. Open the Paper Tray 5 (Bypass).

1. 開啟紙盤 5 (手送)。

2. While lifting up the Release Handle, open

the Upper Left Cover.

2. 提起釋放拉桿，開啟左上蓋。

1.2.1 Fusing Unit (A1) 熔著部 (A1)

1. Pull the handle [A1].

2. 拉出拉桿【A1】。

2. Remove the jammed paper.

3. 清除卡住的紙張。

Page 3 of 7

1.2.2 Duplex Unit (A2) 雙面元件(A2)

1. While holding the handle [A2], remove the

jammed paper.

1. 抓著拉桿【A2】，清除卡紙的紙張。

2. Return the handle [A2] to the original

position.

2. 拉桿【A2】歸回原位。

Page 4 of 7

1.3 IN BOTTOM LEFT DOOR 左下蓋內

1. Open the Lower Left Cover.

1. 打開左下蓋

2. Remove the jammed paper.

2. 清除卡住的紙張。

1.4 STANDARD TRAYS 標準紙盤

1. Pull out the Paper Tray where the paper

jam occurred until it stops.

1. 將發生卡紙的紙盤完全拉出。

2. Remove the jammed paper.

2. 清除卡住的紙張。

Page 5 of 7

1.5 BYPASS TRAY 手送紙盤

1. Remove the jammed paper.

1. 清除卡住的紙張。

Page 6 of 7

2 REPLACING TONER 更換碳粉匣

1. Make sure that the device is not

operating, then open the front cover.

2. Grasp the toner cartridge and pull it out

slowly.

3. Take the new toner cartridge from the

box and remove all packaging.

1. 先確定裝置已經停止運作，然後開啟前蓋。

2. 握住您要更換的碳粉匣的把手，然後將它慢

慢地拉出來。

3. 輕輕搖晃新碳粉卡匣。

Page 7 of 7

4. Gently shake the new cartridge from

side to side ten times to loosen the

toner.

5. Holding the cartridge with the arrow

facing up, push it slowly into the device

until it clicks into place.

6. Close the front cover.

4. 輕輕來回搖晃新碳粉匣 4 到5 次，讓碳粉均

勻散開。

5. 箭頭朝上握住碳粉匣，然後將碳粉匣慢慢地

推入裝置直到卡至定位。

6. 關上前蓋。
