FujiFilm ASK-300 Bedienungsanleitung

Fourth Edition

November2011

First Step Guide

for FUJIFILM Dye-sublimation Compact Kiosk System

Quick Print Station

This “First Step Guide” is important. Please read this guide when initially setting the system.

Please see manuals of each product for detail operation.

【Necessary Items】

-Thermal photo printer “FUJIFILM ASK-300”: with OPERATION MANUAL/DETAILED MANUAL

-Set of ink ribbon and paper for ASK-300 :6 x 4 inch for RK-CF800, 5 x 3.5 inch for RL-CF900,

5 x 7 inch for R2L-CF460, 6 x 8 inch for R68-CF400

* You can print two of 6 x 4 inch images on one sheet, but when you order

with an odd number, a half of 6 x 8 inch ribbon will be wasted.

-Photo Kiosk ”FUJIFILM DPC Portable” and User Manual/Service Manual

Note:The service application “order-it portable” has already been installed to kiosk along with ”Manual order-it portable“.

-Two power cables for each set *Not included in the standard package.

-USB cable (Connector: A to B) *Not included in the standard package.

【Optional Items】

-Wireless module (Bluetooth & Wireless LAN) * When installing this module, consult your technical representative.

-DVD/CD player (external USB device for reading only)

-Wall mount bracket

-Receipt printer (external USB device) *This device is not manufacture’s option. You can purchase it from your area.

(EPSON TM-T70 is recommended by FUJIFILM.)

Ref. No. PP3-B1381E4

< Contents >

1. Unpacking and confirming items

1-1. Printer

1-2. Paper and ink ribbon

1-3. PC

2. Printer setting

3. PC setting and printer connection

3-1. USB cable

3-2. Power cable

3-3. Wireless module(manufacture’s option)

3-4. DVD/CD player(manufacture’s option)

3-5. Receipt Printer（not manufacture‘s option）

4. Application setting

4-1. First setting

4-2. Administrator operation

4-3. Basic setting

(Language, Country, Currency, Password, Price)

4-4. Option setting

(Bluetooth, DVD/CD player, Receipt printer)

5. Test printing

6. Troubleshooting

order-it portable version:

V8.4.5 or later

- 1 -

1. Unpacking and confirming item

1-1. Printer

1-1-1. Unpack the printer box and take the printer out as described below.

- 2 -

1-1-2. Remove the protective tapes and sheets as described below.

1-2. Paper and ink ribbon

Open the box of the paper and ink ribbon set, and take out each roll of paper and ink ribbon.

1-3. PC

1-3-1. Open the box of PC and take out the PC and the accessory box.

1-3-2. Confirm the items in the box:

PC, AC adaptor, angle stand, screws x 4, user/service manual, and this guide

1-3-3. Lift up the panel, and position the angle stand. Fasten it with the four screws using a

screwdriver.

When installing the kiosk, consult your technical representative.

- 3 -

2. Printer setting

2-1. Setting the paper and ink ribbon to the printer

- 4 -

3. PC setting and printer connection

3-1. USB cable

Connect between PC and printer with the USB cable.

NOTE The USB ports on the PC are for the printer and other device. You can connect 4 printers

(max).If you want to make network with several PCs, please see “order-it” manual(chapter

5.) which is in Windows desktop for more details.

3-2. Power cable

Connect the power adapter and cable to the PC. If you have not option items, turn on the power.

If you have option items, please refer to 3) 4) 5) before turning on the power.

3-3. Wireless module (manufacture’s option)

If you have “Wireless module”, attach the module to DPC Portable according to next procedure.

A Mini PCI-e card and two antenna cables and antennas are supplied as the Wireless module.

When installing this module, consult your technical representative.

3-3-1. Remove the two screws on the back cover of the panel and the four screws on the bottom.

Power button

- 5 -

3-3-2. Rotate the screws to loosen the angle stand.

3-3-3. Take off the bottom cover with angle stand.



To avoid injuring hands, do not put down the panel when cover is opened.

3-3-4. Take the Wireless module and cables from the box, and connect one end of the cable to the

Wireless module. Remove the washers and a screw on another side of the cable.

3-3-5. Insert the Wireless module into the Mini PCI-e connector on the middle of the motherboard.

- 6 -

3-3-6. Tighten the screws as shown below.

3-3-7. Using a screwdriver to poke out the two holes for Wireless module terminals.



Do not hit the HDD inside with the screwdriver.

3-3-8. Insert the cables into the two antenna holes in the rear panel.

3-3-9. Use a screwdriver to tighten the washers and screws on the antenna cables. Place the

washers in first, and then tighten the screws.

- 7 -

3-3-10. Connect the antennas with the antenna cables.

3-3-11. Place the Wireless cables on the edge of the motherboard.

3-3-12. Close the bottom cover with angle stand.

3-3-13. Tighten the six screws shown below to complete the installation of the Wireless module.

3-4. DVD/CD player (manufacture’s option)

If you have “DVD/CD player” option, connect the USB cable of player to DPC Portable.

- 8 -

3-5. Receipt Printer (not manufacture’s option)

If you have “Receipt Printer” option, connect the USB cable of printer to DPC Portable and turn on the

power of printer. You have to install the driver to PC according to the manual of printer.

- 9 -

4. Application setting

*Please see the order-it manual in the it-Manuals folder on Desktop for details of the application.

4-1. First setting

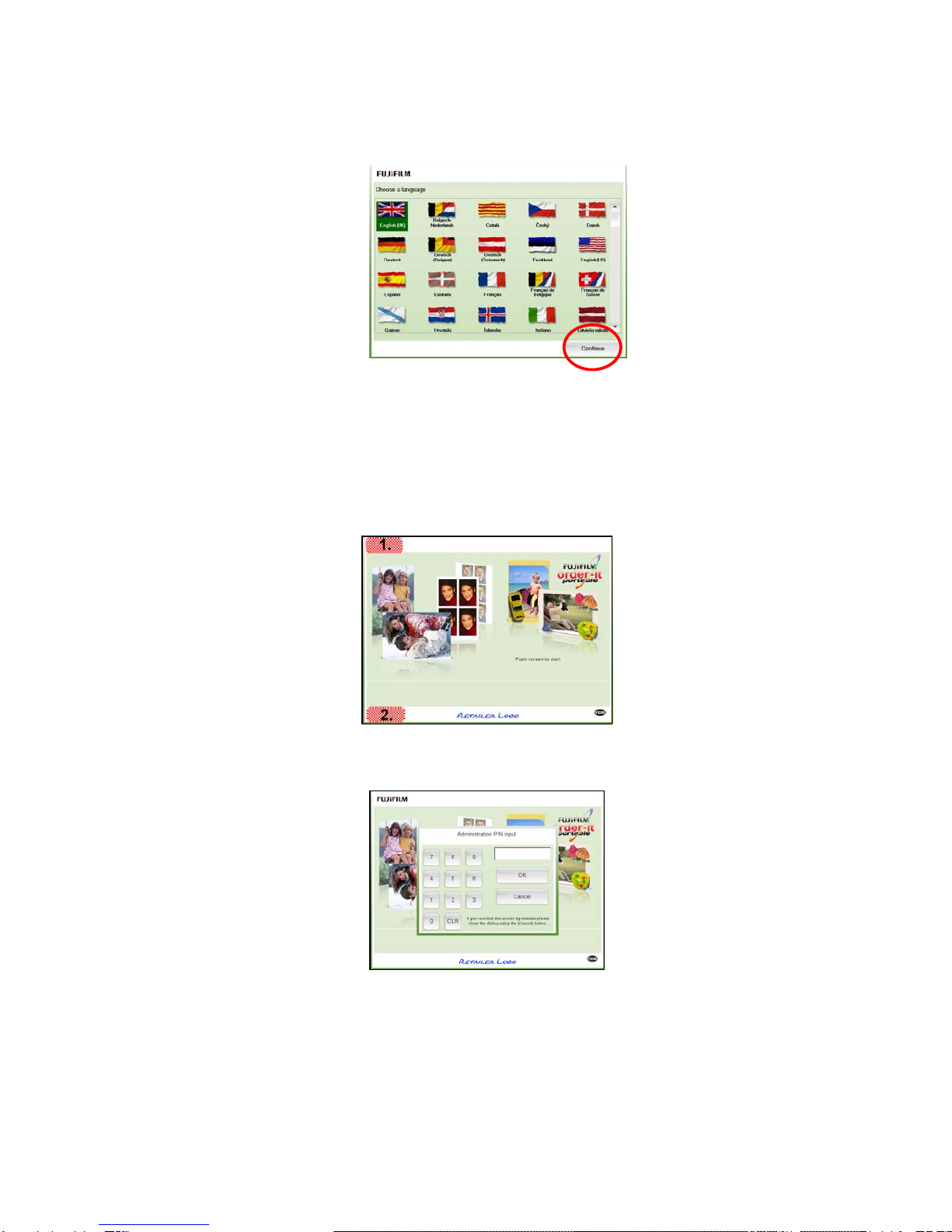

1) In a newly delivered DPC Portable, the [Choose a language] screen appears at the start.

2) Select the default language and press [Continue].

4-2. Administrator operation

4-2-1. How to access the Administration Menu

The administration menu of “order-it” can be reached by pressing two invisible buttons on the

“order-it” start screen and inserting a PIN afterwards. These two buttons are invisible in order to avoid

that customers invoke the PIN input screen. Proceed as follows:

4-2-1-1.Press, first, the invisible button [1] and, immediately afterwards, the invisible button [2].

4-2-1-2. Asecurity PIN input pad appears. Input the pin.

The default PIN is ’123456’. It is normally changed during the first configuration of order-it portable.

4-2-1-3. Press the [OK] button.

4-2-1-4. Administrator screen is available. It comprises four buttons leading to particular function

groups:

• Order maintenance

• Kiosk maintenance

• Set time

• Exit Kiosk
