Fujitsu Siemens Computers AMILO Xi 3650 Bedienungsanleitung

Quick Start Guide

Published by

Fujitsu Siemens Computers GmbH

Mies-van-der-Rohe-Straße 8

80807 München, Germany

Contact

www.fujitsu-siemens.com/support

Technical data subject to modi cations and delivery subject

to availability. Any liability that the data and illustrations are

complete, actual or correct is excluded. Designations may be

trademarks and/or copyrights of the respective manufacturer,

the use of which by third parties for their own purposes may

infringe the rights of such owner. For further information see

http://www.fujitsu-siemens.com/terms_of_use.html

AMILO Notebook Xi 3650

Getting started

SAP: 10600969197

FSP: 440N00694

English

Lietuviškas

Latviski

Pycckuй

AMILO_Notebook_Xi_3650_Cover.ind1 1 22.07.2008 10:38:20

Video

Audio-R

Audio-L

AMILO_Notebook_Xi_3650_Cover.ind2 2 22.07.2008 10:38:22

AMILO Notebook Xi 3650

First-time setup

English

Lietuviškas

Latviski

Pycckuй

Microsoft, MS Windows and Windows Vista are registered trademarks of the Microsoft Corporation.

Adobe Reader is a trademark of Adobe Systems Incorporated.

MultiMediaCard is a registered trademark of Inﬁneon Technologies AG

Sony and Memory Stick are registered trademarks of Sony Electronics, Inc.

All other trademarks referenced are trademarks or registered trademarks of their

respective owners, whose protected rights are acknowledged.

or similar methods, either in part or in whole.

Non-compliance is subject to compensation for damages.

Subject to availability and technical modiﬁcations.

Contents

English

Contents

Thankstoinnovativetechnology ....................................................... 1

Hybridgraphics ......................................................................... 2

Change graphics mode . . . . . . ........................................................... 2

SecondharddriveinRAIDgroup ........................................................ 3

Intel®CallupMatrixStorageManagerandHelpfunction ............................... 3

Furtherinformation ...................................................................... 4

"AMILO Notebook" Operating Manual . . . . . ............................................ 4

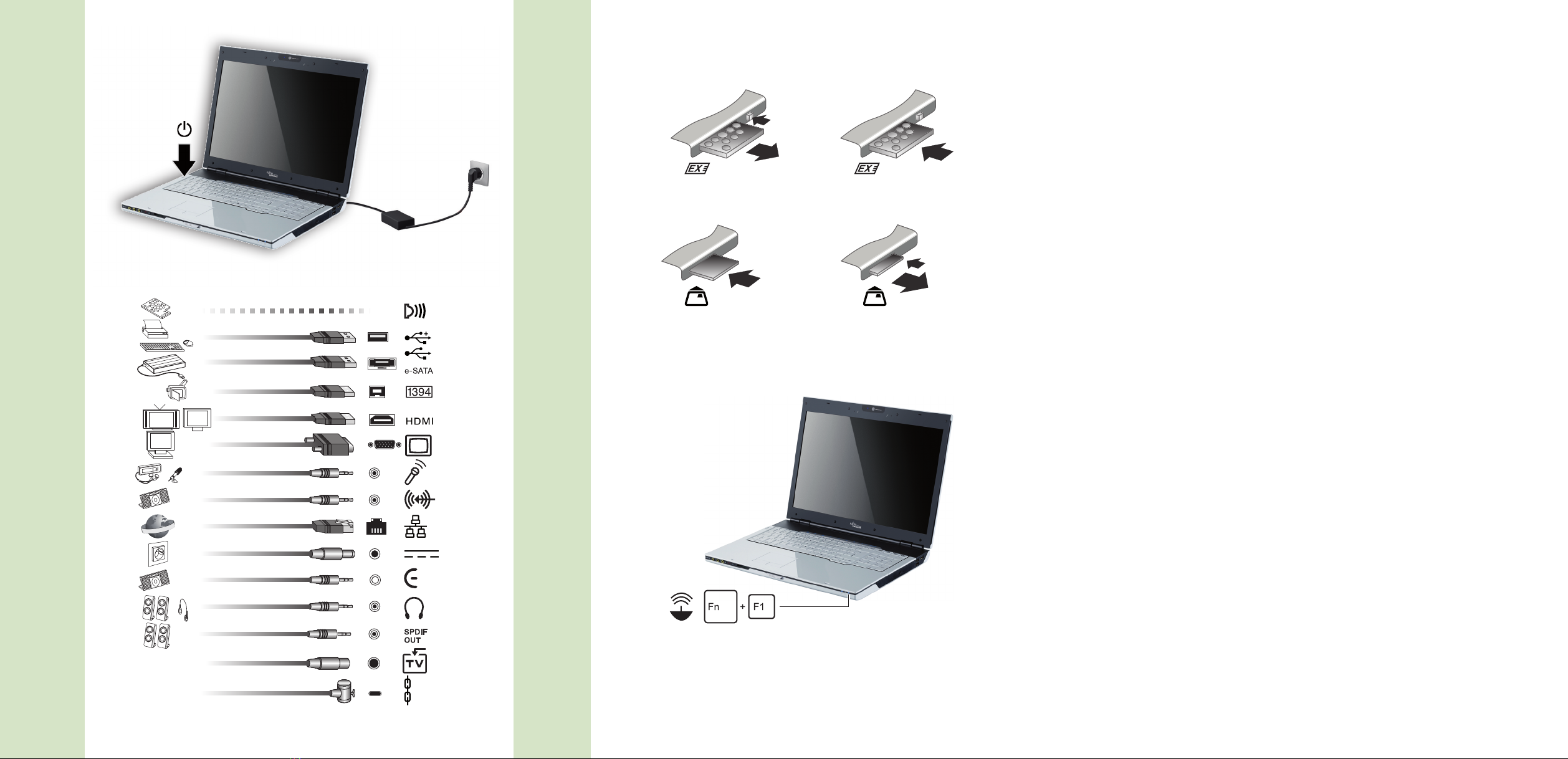

Portsandoperatingelements .......................................................... 5

Importantnotes ........................................................................ 7

Preparing yournotebookforuse ....................................................... 8

Unpacking and checking your notebook ................................................... 8

Selectingthelocation ................................................................... 9

Connecting the mains adapter ........................................................... 10

Switching the notebook on for the ﬁrsttime ................................................ 11

Technicaldata ......................................................................... 12

Notebook . . . . . .......................................................................... 12

Mains adapter .......................................................................... 12

10600969197, edition 1 English

Contents

English 10600969197, edition 1

Thanks to innovative technology

... and ergonomic design, your AMILO Notebook Xi 3650 is reliable and convenient.

If you have purchased a notebook with a Microsoft Windows operating system, this is pre-installed and

optimally conﬁgured for you. The notebook is ready to use immediately the ﬁrst time you switch it on.

Your notebook features the very latest technology so that you get the best

performance from your computing experience.

• A drive for reading and writing CDs/DVDs and, depending on your particular

model, for reading Blu-ray discs.

• Three USB ports, providing simple expansion options for game pads, printers and more

• A combined eSATA/USB port for connecting an external SATA hard disk or another USB device

• A Wireless USB (WUSB) interface (optional, cannot be retroﬁtted) for speedy data transfer

in accordance with the USB standard without a troublesome cable

• LAN and Wireless LAN for Internet and network access

• Depending on the device, there might be a second hard disk so you can operate

your notebook with two hard disks in the RAID group.

• A FireWire port for speedy data exchange with multimedia devices

• An HDMI port for all-digital transfer of audio and video data

• An integrated webcam and digital microphones for a wide variety of multimedia applications

• A multi-format card reader for rapid transfer of digital photos, music and

video clips onto your notebook

• An integrated audio controller, stereo loudspeaker, and a bass loudspeaker

(subwoofer) for optimum audio enjoyment.

• Bluetooth 2.1 for wireless operation of different accessories

• in addition, input and output ports for high-quality audio accessories

• An integrated TV tuner (optional, cannot be retroﬁtted) for receiving

terrestrial television programmes

• A keyboard with separate number block

• An on-screen display for visual control of the key settings of your notebook

• Hybrid graphics for full performance and battery-saving working mode

for less demanding applications

• A multi-connector interface (optional, only in conjunction with the TV Tuner) to receive

audio and video signals from external multimedia devices.

The user-friendly "BIOS Setup Utility" offers powerful password protection functions which can be

used to control your notebook’s hardware and protect your system better against unauthorised use.

This Operating Manual tells you how to get your AMILO Notebook up and

running and how to operate it in daily use.

10600969197, edition 1 English - 1

Thanks to innovative technology

Hybrid graphics

Your notebook is equipped with a hybrid graphics system. By clicking the Quick Start

button, you can switch between battery-saver and performance mode.

Use the graphics unit integrated in the chip set for applications which are

less graphics-intensive, such as video playback, e-mail and Internet surﬁng.

This reduces heat generation, noise levels and power consumption. As a

result, battery life is increased (battery saver mode).

If you require a high level of performance, for example, for games, you can

switch to the external graphics unit (performance mode).

Change graphics mode

In your notebook, the external graphics mode is preconﬁgured ex works (performance mode).

A device connected to an HDMI port of your notebook (FullHD resolution) can only be

activated in performance mode via the external graphics unit.

►Click the Quick Start button Hybrid VGA on the Multimedia Board of your notebook:

The graphics display switches to battery-saver mode.

►Click the Quick Start Hybrid VGA button again.

The graphics display switches to performance mode.

2 - English 10600969197, edition 1

Thanks to innovative technology

Second hard drive in RAID group

RedundantAr rayofIndepe ndentDisksRAID

Removal and installation of the second hard disk must only be performed by

authorised service agents of Fujitsu Siemens Computers GmbH. Unauthorised

removal and installation will invalidate your warranty.

For further information and addresses of our service partners, please

see "http://www.fujitsu-siemens.com/support".

RAID (Redundant Array of Independent Disks, also: Disk Array) is a procedure for

combining two hard disks to create a logical unit.

A so-called disk array can be used advantageously to improve performance or

alternatively to improve error tolerance (data protection).

Error tolerance is facilitated by means of data redundancy. If one drive malfunctions,

a different drive contains an exact copy of the data. This can prevent an operating

system from malfunctioning or data from being lost.

The operating system detects all hard disks in a disk array as a single physical

hard disk. The individual disk drives in a disk array are called "members". Member

conﬁguration information is recorded in the reserved sector of the hard disk. With this

information the hard disk can be identiﬁed as a member.

There are usually a few methods by which hard disks can be combined. These methods

are referred to as different RAID levels. The different RAID levels represent different

performance and security levels as well as implementation costs.

Depending on the size of the hard disk, the process for combining two

hard drives to create a RAID group can take several hours. During this

time period, your screen will turn black.

For further information regarding the conﬁguration of your RAID systems, please

see the Help function of your Intel®Matrix Storage Manager Program.

Intel®Call up Matrix Storage Manager and Help function

To call up the Intel®Matrix Storage Manager program and the Help function, proceed as follows:

►Choose Start - All Programs - Intel®Matrix Storage Manager -Intel®Matrix Storage Manager.

The programme is started.

►In the upper menubar, click on Help.

The Help function for the Intel®Matrix Storage Manager program is called up.

10600969197, edition 1 English - 3

Thanks to innovative technology

Further information

General information about your AMILO Notebook can be found in the

"AMILO Notebook" operating manual.

The Windows Vista drivers for your AMILO notebook are available to download

from our website. This computer is not designed to support any other operating

systems. Fujitsu Siemens Computers accepts no liability for consequences

arising from the use of other operating systems.

Software-related portions of this manual relate to Microsoft products if

they are included with your AMILO Notebook.

Please refer to the relevant manufacturer’s operating instructions when

installing other software products.

"AMILO Notebook" Operating Manual

The "AMILO Notebook" Operating Manual can be found in the Windows Start menu

or on the Internet at "www.fujitsu-siemens.com/support".

4 - English 10600969197, edition 1
