Fujitsu FPCKB51A1P Bedienungsanleitung

The wireless keyboard allows you to enter data into your

Tablet PC without the clutter and constraints of cables.

Before using the wireless keyboard, you should read through

this manual to become familiar with the keyboard.

Contents

Before proceeding with the installation of your new wireless

keyboard, verify the contents of the package. Your wireless

keyboard package should include the following:

■Wireless Keyboard

■Wireless Keyboard Driver CD

■Four AAA batteries

■Warranty information

■User’s Guide

INSTRUCTIONS

Wireless Keyboard with

Touch Pad, User’s Guide

FPCKB51A1P

Fujitsu Computer Systems

IR Keyboard.fm Page 1 Wednesday, March 3, 2004 1:25 PM

Installing the Keyboard Batteries

To install or replace the batteries in your wireless keyboard:

1. Close any open programs on your Tablet PC.

2. Remove the wireless keyboard battery compartment

cover by sliding the cover away from the keyboard

(Figure 1).

3. If there are old batteries installed, remove them and

dispose of them in accordance with local regulations.

4. Insert the batteries that came with your keyboard or

four new AAA-type alkaline batteries into the battery

tray. Be sure to observe correct polarity.

5. Replace the battery compartment cover.

Before installing or replacing the batteries in

your wireless keyboard, be sure to note the

following:

• Ensure that the correct polarities (+ and -)

are used when installing new batteries in the

keyboard.

• Don’t mix old and new batteries.

• If the keyboard won’t be used for a long

period, remove the batteries to prevent elec-

trolyte leakage. If the batteries leak, clean

out the battery compartment with a damp

cloth, then dry thoroughly.

• Handle the batteries carefully, and dispose of

old batteries in accordance with local regula-

tions.

IR Keyboard.fm Page 2 Wednesday, March 3, 2004 1:25 PM

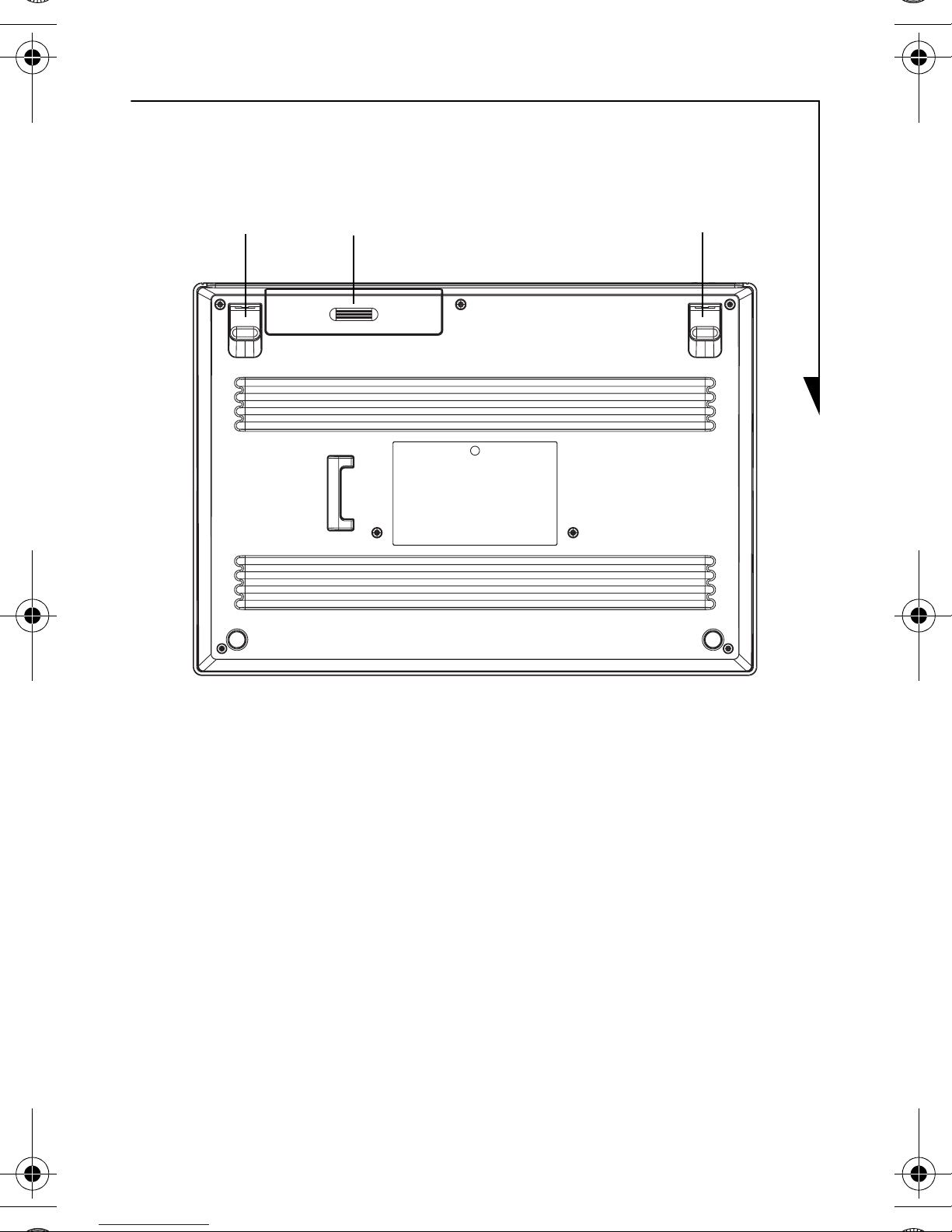

Figure 1. Bottom of wireless keyboard

Installing the Keyboard Driver

Before using the wireless keyboard, you will need to install a

new keyboard driver. There are two ways to install the new

driver:

Wireless Keyboard Driver CD

The Wireless Keyboard Driver CD is included with the wire-

less keyboard. Note that using the CD requires that you have

an optional external device that can read CDs, such as a Tab-

let Dock, CD drive or DVD drive.

Foot FootBattery Compartment Cover

IR Keyboard.fm Page 3 Wednesday, March 3, 2004 1:25 PM

To install the driver from an external drive:

1. Attach the drive to the tablet.

2. Turn on the system.

3. Open the drive and insert the CD. The system will auto-

matically recognize the CD and begin the installation.

Follow the instructions that appear to install the driver.

4. When finished, remove the CD.

Fujitsu Web Site

The driver can be downloaded from the Fujitsu Web site. TO

download the driver:

1. Log onto the Internet.

2. Go to the Fujitsu Web site at: us.fujitsu.com/computers.

3. Click on Support, then click on Accessory Downloads in

the left pane.

4. Select the FPCKB51A1P driver from the dropdown list.

5. Follow the instructions that appear to load the driver.

Using the Wireless Keyboard

There are several important points to note before using the

wireless keyboard (Figure 2).

■The Tablet PC should be securely seated upright, either in

a desk stand or portfolio case.

■The keyboard should be positioned so that its infrared

transmitter is directly facing the infrared photosensor on

the Tablet PC.

■The keyboard performs best when it is within approxi-

mately 12 inches (30 cm) of the computer although it will

operate at greater distances.

IR Keyboard.fm Page 4 Wednesday, March 3, 2004 1:25 PM

■Don’t attempt to use a wireless keyboard at the same time

as a wired keyboard. Wired keyboards takes precedence

over wireless, so the wireless keyboard becomes disabled.

■If a key on the keyboard is depressed continuously, the

battery will automatically shut off after approximately 60

seconds to preserve battery life.

Figure 2. Wireless keyboard

Figure 3. Top edge of wireless keyboard

Right button

Scroll button

Left button

Touchpad

Power/Suspend/Resume button Infrared Transmitter

Keyboard On/Off switch

IR Keyboard.fm Page 5 Wednesday, March 3, 2004 1:25 PM

Keyboard Features

On/Off Switch

The On/Off switch is located on the top edge of the key-

board. It is used to power the keyboard on and off. The key-

board should be powered off when it is not used for

extended periods in order to maximize battery life.

Power/Suspend/Resume Button

The Power/Suspend/Resume button on the keyboard works

in the same manner as the power/suspend/resume button

on the computer. This button remotely suspends and wakes

up the system.

Touchpad

The Touchpad pointing device comes built into your wire-

less keyboard. It is used to control the movement of the

pointer to select items on your display panel. The Touchpad

is composed of a cursor control, a left and right button, and

a scrolling button. The cursor control works the same way a

mouse does, and moves the cursor around the display. It

only requires light pressure with the tip of your finger. The

left and right buttons function the same as mouse buttons.

The actual functionality of the buttons may vary depending

on the application that is being used. The scrolling button

allows you to navigate quickly through pages, without

having to use the scroll bars.

Using the Touchpad

Clicking

Clicking means pushing and releasing a button. To left-click,

move the cursor to the item you wish to select, press the left

button once, and then immediately release it. To right-click,

IR Keyboard.fm Page 6 Wednesday, March 3, 2004 1:25 PM

move the mouse cursor to the item you wish to select, press

the right button once, and then immediately release it. You

can also perform the clicking operation by tapping lightly on

the Touchpad once. (Figure 4)

Figure 4. Clicking

Double-Clicking

Double-clicking means pushing and releasing the left button

twice in rapid succession. This procedure does not function

with the right button. To double-click, move the cursor to

the item you wish to select, press the left button twice, and

then immediately release it. You can also perform the

double-click operation by tapping lightly on the Touchpad

twice. (Figure 5)

Figure 5. Double-clicking

IR Keyboard.fm Page 7 Wednesday, March 3, 2004 1:25 PM

Dragging

Dragging means pressing and holding the left button, while

moving the cursor. To drag, move the cursor to the item you

wish to move. Press and hold the left button while moving

the item to its new location and then release it. Dragging can

also be done using the Touchpad. First, tap the Touchpad

twice over the item you wish to move making sure to leave

your finger on the pad after the final tap. Next, move the

object to its new location by moving your finger across the

Touchpad, and then releasing your finger. (Figure 6)

Figure 6. Dragging

Scrolling

Using the Scrolling button allows you to navigate through a

document quickly without using the window’s scroll bars.

This is particularly useful when you are navigating through

on-line pages. To use the Scrolling button, press the top or

■If the interval between clicks is too long, the

double-click will not be executed.

■Parameters for the Touchpad can be

adjusted from the Mouse Properties dialog

box located in the Windows Control Panel.

IR Keyboard.fm Page 8 Wednesday, March 3, 2004 1:25 PM

bottom of the button to scroll up or down a page. When you

have reached the desired section of the page, release the

button. (Figure 7)

Figure 7. Scrolling

Keyboard Layout

Your computer has an integral 86-key keyboard. The keys

perform all the standard functions of a 101-key keyboard,

including the Windows keys and other special function keys.

This section describes the following keys.

■Numeric keypad

■Cursor keys

■Function keys

■Windows keys

Numeric Keypad

Certain keys on the keyboard perform dual functions as

both standard character keys and numeric keypad keys.

NumLk can be activated by pressing the [NumLk] key.

Turning off the NumLk feature is done the same way. Once

this feature is activated you can enter numerals 0 through 9,

perform addition ( + ), subtraction ( - ), multiplication ( * ),

IR Keyboard.fm Page 9 Wednesday, March 3, 2004 1:25 PM

or division ( / ), and enter decimal points ( . ) using the keys

designated as ten-key function keys. The keys in the numeric

keypad are marked on the front edge of the key to indicate

their secondary functions.

Figure 8. Key Layout

Windows Keys

Your keyboard has two Windows keys, consisting of one

Start key and one Application key. The Start key displays the

Start menu. This button functions the same as your on-

screen Start menu button. The Application key functions the

same as your right mouse button and displays shortcut

menus for the selected item. (Refer to your Windows docu-

mentation for additional information regarding the

Windows keys.)

Function Keys

Fn Key

Start Key

Numeric Keypad

(surrounded by

black line)

Application Key

Cursor Keys

IR Keyboard.fm Page 10 Wednesday, March 3, 2004 1:25 PM
