FUNKY MONKEY BARS FIREMANS POLE Bedienungsanleitung

FIREMANS POLE

(add-on) - option ‘a’ and ’b’ positions

ASSEMBLY INSTRUCTIONS

‘a’

‘B’

Page 1

SAFETY NOTICE

1. Any person handling or using the Funky Monkey Bars® products must follow the instructions as described

in this document. The person in charge of assembling and using the equipment must ensure that the

recommendations for use given in this document are seen by all users.

2. Only use the Funky Monkey Bars® after they have been fully assembled and after checking that the

fittings are tightened properly (refer to page 3 - Correct Tightening Method).

3. DO NOT install your Funky Monkey Bars® over concrete, asphalt, packed earth, wood decking or any

other hard surface. A fall onto a hard surface can result in serious injury or death.

4. Inspect all grub screws, bolts and nuts at the beginning of each play session to ensure your Funky Monkey

Bars® are tight and secure.

5. Ensure all tubes are fully inserted into fittings until you hear the magic “CLUNK” sound.

6. Ensure your Funky Monkey Bars® are properly secure at ALL times. Pegs are in place and inserted fully into

the ground.

7. DO NOT exceed the maximum load/weight limit as recommended by Funky Monkey Bars®.

8. Children should be supervised by an adult at all times.

9. Installing a gym/crash mat under the fall zone area of your Funky Monkey Bars® would be recommended

for children learning this new skill. This will reduce the chance of injury and build the child’s confidence

while they build strength and master the skill.

10. Ensure you have thoroughly read your assembly and installation instructions and viewed our on-line

installation videos at https://www.funkymonkeybars.com/blogs/installation-maintenance-videos

11. DO NOT climb, sit or stand on top of the monkey bar (horizontal ladder) section.

12. DO NOT jump from the top of any section of the monkey bar.

13. DO NOT use your Funky Monkey Bars® when wet as the steel will be slippery.

14. DO NOT attach items to your frame that are not designed specifically to be used with Funky Monkey

Bars®, especially lower quality products that have not been approved by Funky Monkey Bars®.

15. Ensure the height of your Funky Monkey Bars® (horizontal ladder) are set at a level that is age appropriate.

16. DO NOT install your Funky Monkey Bars® over or near objects that could interfere with users in an unsafe

way. Maintain a clear area around your Funky Monkey Bars®.

17. DO NOT use your Funky Monkey Bars® while under the influence of drugs and alcohol.

18. Wear clothing free of drawstrings, hooks, loops or anything that could get caught while using your Funky

Monkey Bars® and result in entanglement and/or strangulation.

WARNING

PLEASE CAREFULLY READ ALL INFORMATION CONTAINED IN THIS ASSEMBLY MANUAL BEFORE

YOU INSTALL AND USE YOUR FUNKY MONKEY BARS®.

WARNINGS

CONTENTS

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 1

Assembly Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3

Inventory and Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4

Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5

Firemans Pole Add-on Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5

Firemans Pole Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6

Existing Frame Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7

Position Option ‘A’ Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 8

Position Option ‘B’ Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 10

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 13

Page 2

LOCATION

1. A safe fall zone around your Funky Monkey Bars® is essential. A minimum distance of 1.5m to 2m (5 ft to

6.5ft) is recommended around the elevated hanging points of your Funky Monkey Bars®.

2. Place your Funky Monkey Bars® on level ground, away from any structure or obstruction such as a fence,

garage, house, overhanging branches, laundry lines or electrical wires and remove any obstructions

beneath your Funky Monkey Bars®.

3. Ensure your Funky Monkey Bars® are positioned away from retaining walls, pool fences, structures and

other play equipment. Maintain a clear space around the whole perimeter of your Funky Monkey Bars®.

4. Place your Funky Monkey Bars® on the most level surface available.

MAINTENANCE

1. At the beginning of each heavy play session we recommend the following maintenance processes be

performed on your Funky Monkey Bars®:

• Tighten all bolts, grub screws and applicable hardware (as per page 3)

• Lubricate all metallic moving parts as per instructions (flying fox, swing hooks etc)

• Check all protective coverings on bolts, pipes, edges and corners. Replace if they are loose,

cracked or missing.

• Check all moving parts including swing seats, shackels, snap hooks, chains and trolleys for wear,

rust, or other deterioration. Replace as needed.

2. Twice a month during play season we would recommend the following maintenance processes be

performed on your Funky Monkey Bars®:

• Tighten all connections and hardware

• Check all protective coverings on bolts, pipes, edges and corners. Replace if they are loose,

cracked or missing.

3. Once a month during play season we would recommend the following maintenance processes be

performed on your Funky Monkey Bars®:

• Lubricate all metallic moving parts as per instructions (flying fox, swing hooks etc). If swings start

to squeek then lubricate swing hooks.

• Check all moving parts including swing seats, ropes, chains and trolleys for wear, rust, or other

deterioration. Replace as needed.

• Owners shall be responsible for maintaining the legibility of any warning labels.

For additional information concerning your Funky Monkey Bars®, please contact our customer service team

or check our website for any important updates. Phone - 1300 912 198 or www.funkymonkeybars.com

Assembly requires 2 adults. Heavy items ! Work on flat level surface.

ASSEMBLY

1. Keep small children away from the Funky Monkey Bars® during assembly.

2. Do not attempt to use the Funky Monkey Bars® until it is completely assembled and every fitting is tight

and secured.

3. Installation typically takes 1-2 hours to complete. Two people are recommended for assembly.

4. Ensure all fittings are tightened to the correct tightening method as described on page 3.

5. Assembly should be carried out on clean, dry, level surface

Please refer to the video section on the Funky Monkey Bars® website for more handy tips and assembly

instructions at http://www.funkymonkeybars.com/pages/videos

Page 3

All tubes must be fully inserted until

contact is made with adjoining tube.

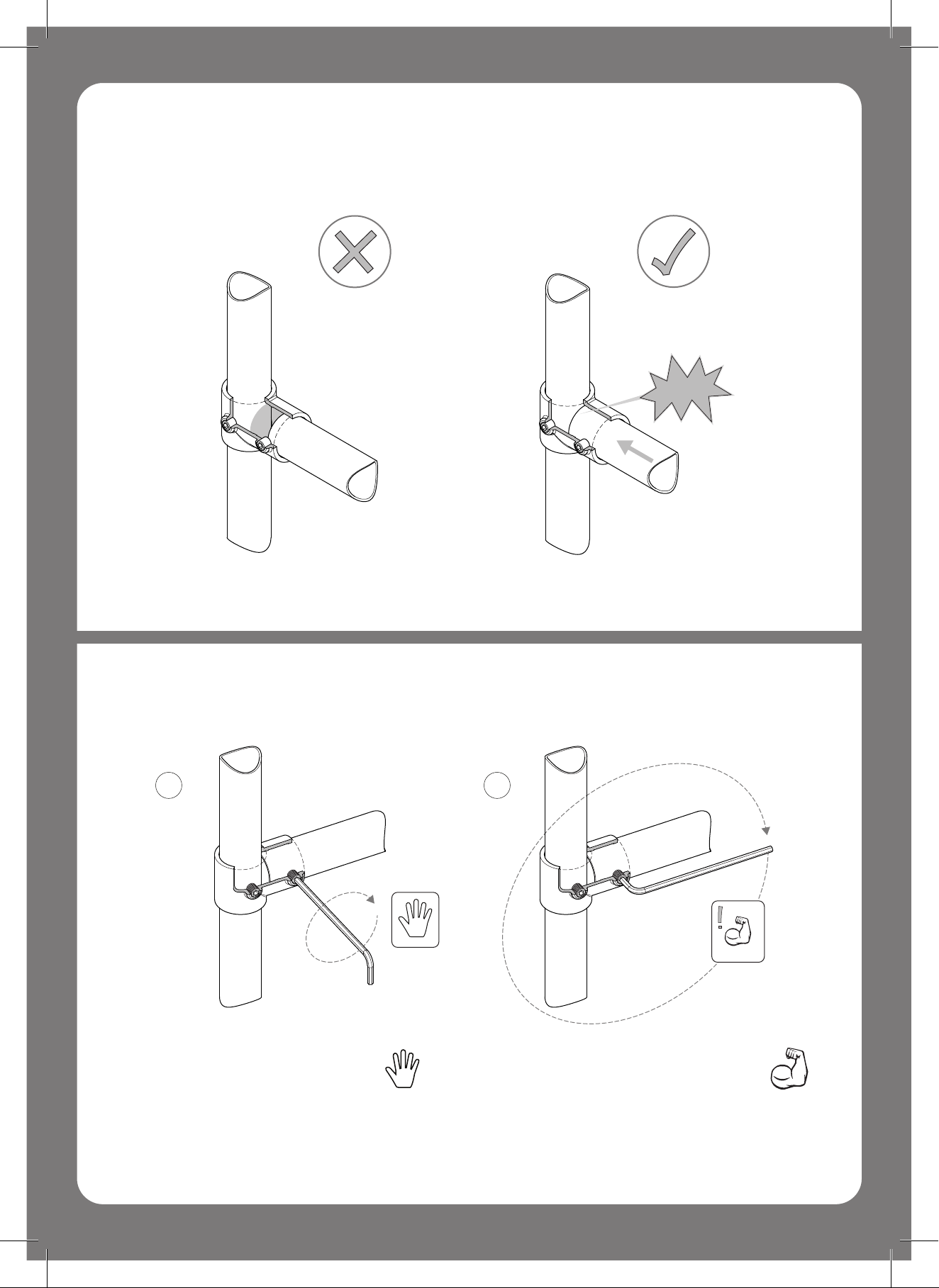

CORRECT INSERTION INTO FITTINGS - (indicative diagram shown)

CORRECT TIGHTENING METHOD OF GRUB SCREWS - (indicative diagram shown)

Gap. No gap.

CLUNK

1. With long end of allen key, hand

tighten grub screw as much as possible.

2. Using other end of the allen key do one full

360 degree turn as a minimum, use muscles!

ASSEMBLY TIPS

+ 360

1 2

8mm Allen key

(Included)

Soft Hammer

(Not included)

TOOLS REQUIRED FOR INSTALLATION

Spirit Level

(Not included)

Page 4

4 hole Base Plate

D-131

Peg

Long Tee

D-104

FITTINGS

TUBES

INVENTORY

50Dia. x 600mm

50Dia. x 2950mm

Firemans Pole

Extension Tube

Top Tube

50Dia. x 450mm

Elbow

D-125

1SELECT DESIRED ORIENTATION OF FIREMANS POLE ADD-ON.

(Assembly for Gorilla shown in example)

Page 5

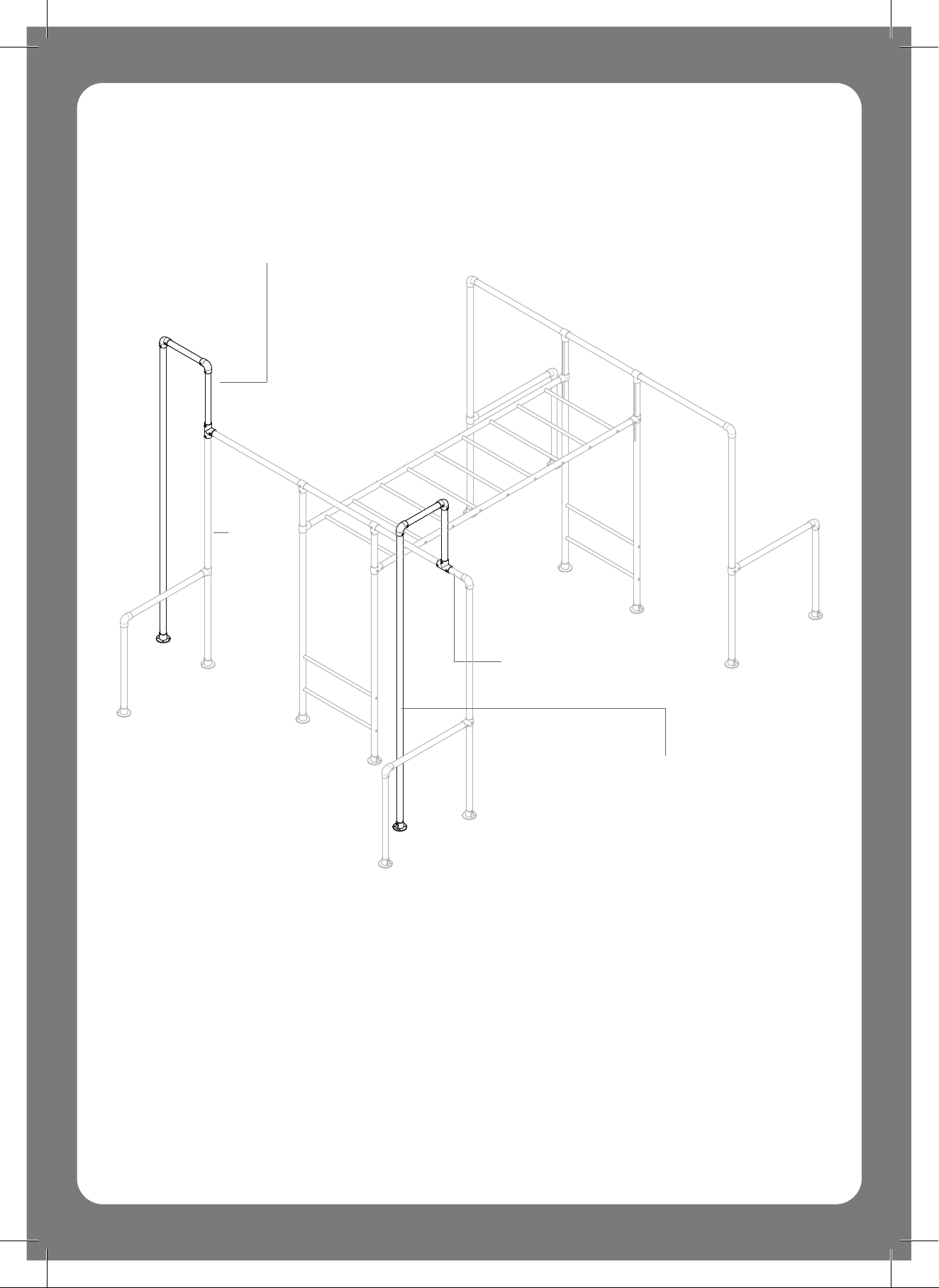

ASSEMBLY INSTRUCTIONS - ORIENTATION

FIREMANS POLE ADD-ON POSITION OPTION A.

NOTE:

Both position A & B require slightly different assembly methods.

Please refer to the applicable steps as follows.

Long tee positioned on swing bar.

REFER TO STEPS 2-10

Long tee added as extension to swing leg.

REFER TO STEPS 2-5 THEN STEPS 13 ONWARDS

Swing bar.

FIREMANS POLE ADD-ON POSITION OPTION B.

Swing leg.

Tighten all grub screws.

Page 6

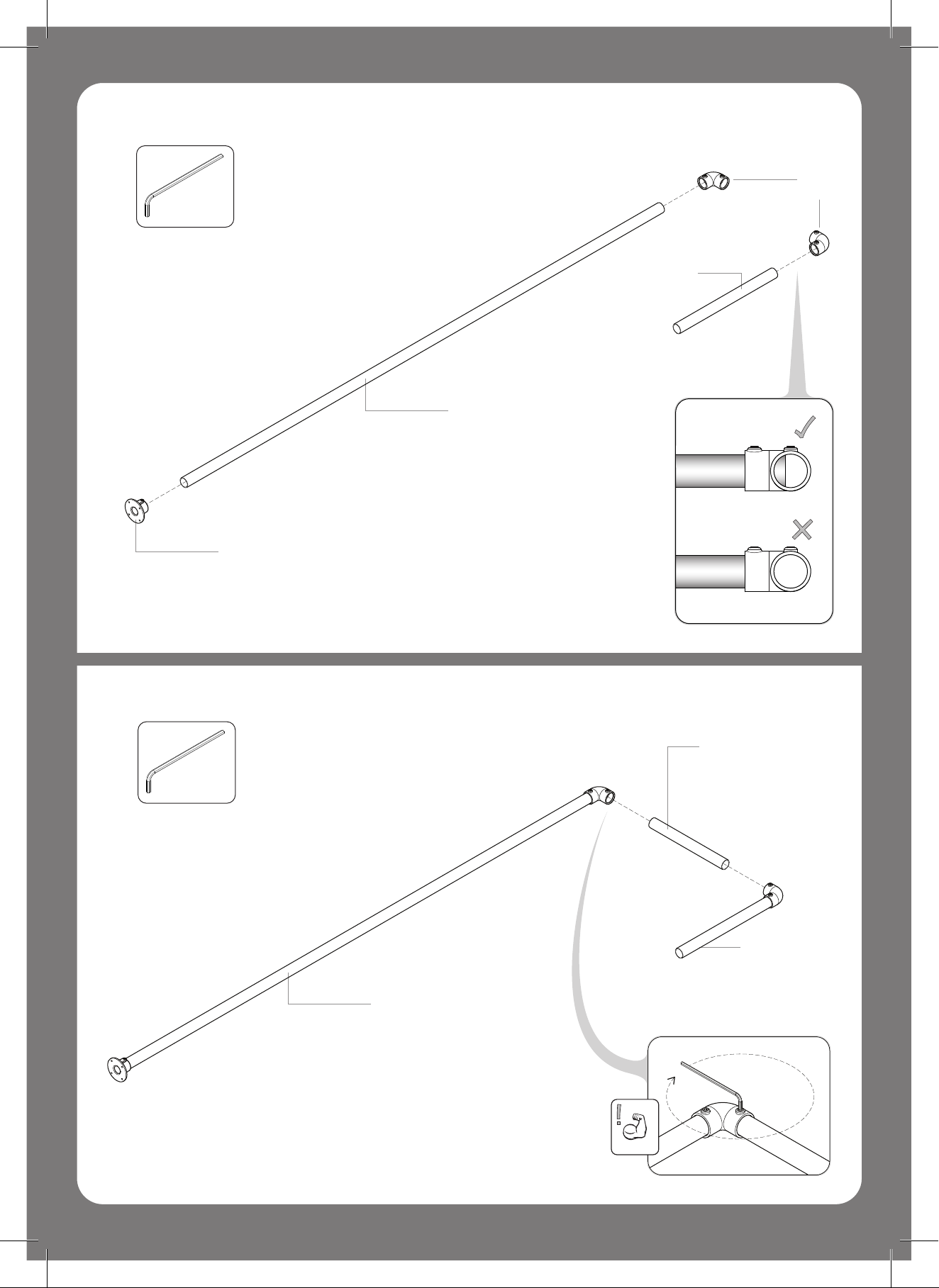

1. On flat level ground, slide fittings onto firemans pole

and extender tube, ensure fittings are fully engaged.

2. Fully tighten all grub screws

ASSEMBLE FIREMANS POLE AND EXTENDER TUBE

1. Connect firemans pole and extension tube

assemblies from step 1 with 450mm top tube.

2. Fully tighten all grub screws.

ATTACH TOP TUBE

+ 360

ASSEMBLY INSTRUCTIONS - FIREMANS POLE ASSEMBLY

Insert tubes fully into elbows.

4 hole Base Plate

D-131

Firemans Pole

Extension Tube

Elbow

D-125

50Dia. x 2950mm

50Dia. x 600mm

Top Tube

50Dia. x 450mm

Firemans pole assembly

from step 1

Extension assembly

from step 1

Swing leg.

Twirly whirly.

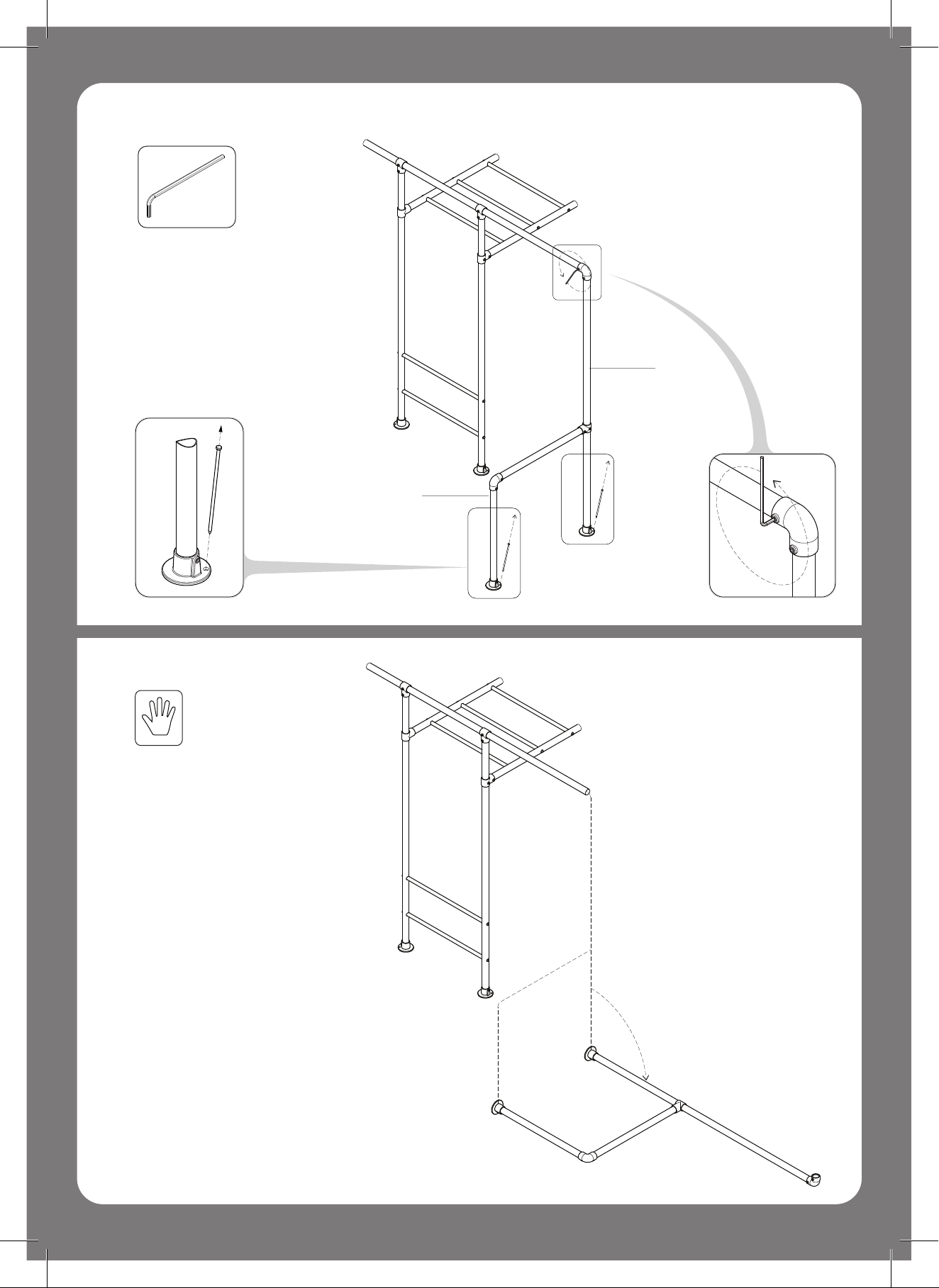

4REMOVE PEGS & LOOSEN ELBOW FITTING

Page 7

5LOWER LEG TO GROUND

1. Remove pegs from twirly whirly base

plate and swing leg on selected

firemans pole install location.

2. Loosen grub screw connecting swing

leg to swing bar on selected firemans

pole install location.

Lower loosened leg and

twirly whirly to the ground

ASSEMBLY INSTRUCTIONS - EXISTING FRAME PREPARATION

NOTE: If you are installing with a cargo net in place

simply leave the leg and twirly whirly loose in

position. Refer to cargo net instructions.

Loosen grub screw.

Remove pegs x2.

Page 8

ASSEMBLY INSTRUCTIONS - POSITION ‘A’ INSTALLATION

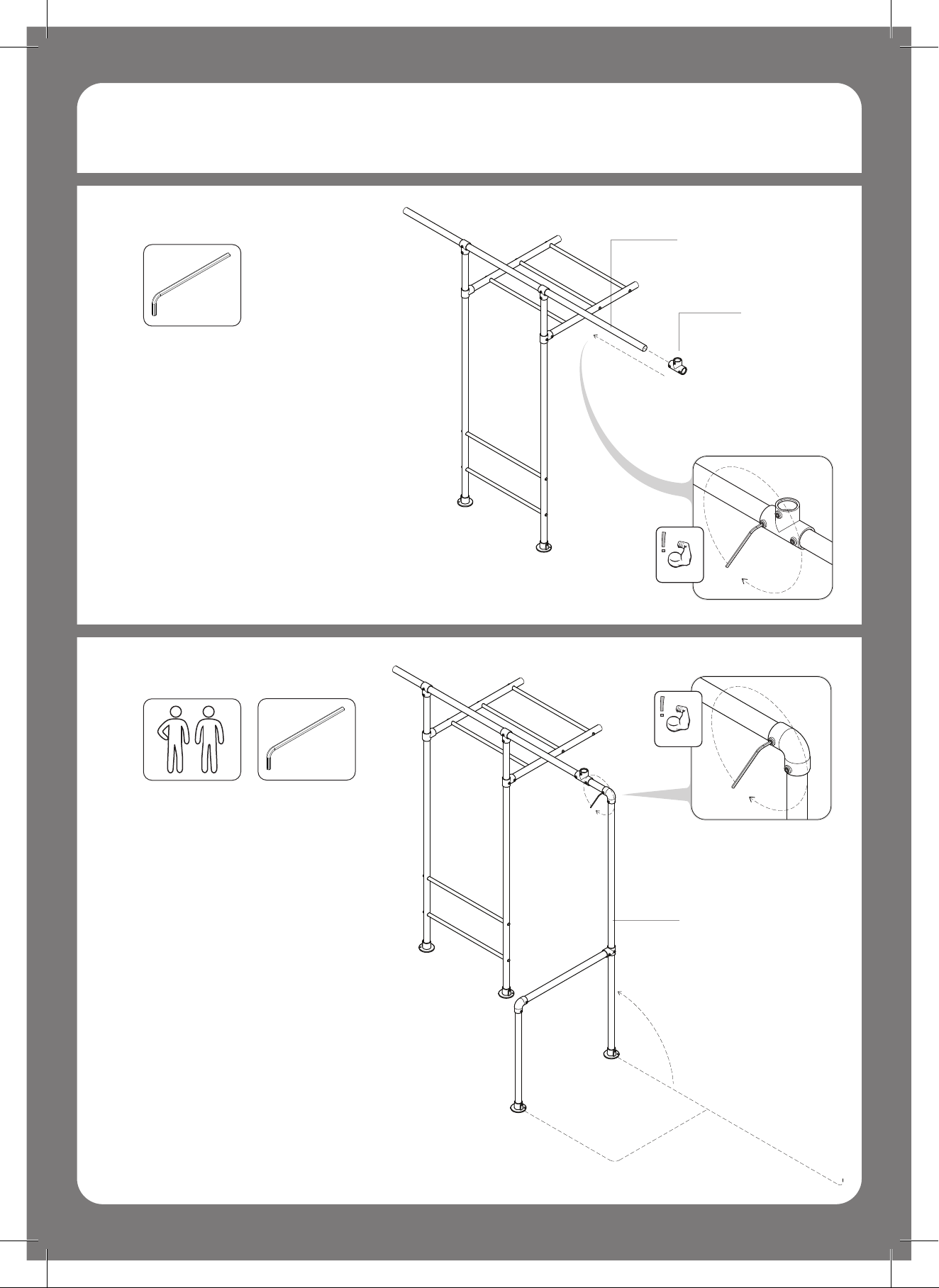

7ATTACH LONG TEE

1. With grub screws facing outwards slide the

long tee onto the swing bar to the desired

location for the firemans pole.

2. Fully tighten grub screws

8REATTACH LEG TO SWING BAR

Lift the lowered swing leg assembly from

step 5 back into position and fully insert the

swing bar into the leg elbow.

Fully tighten grub screws.

6THE FOLLOWING STEPS 7-10 ARE FOR THE FIREMANS POLE POSITION OPTION ‘A’.

Please refer to page 10 for position option ‘B’.

Swing bar.

Swing leg.

+ 360

Tighten all grub screws.

Tighten grub screws.

Long Tee

D-104

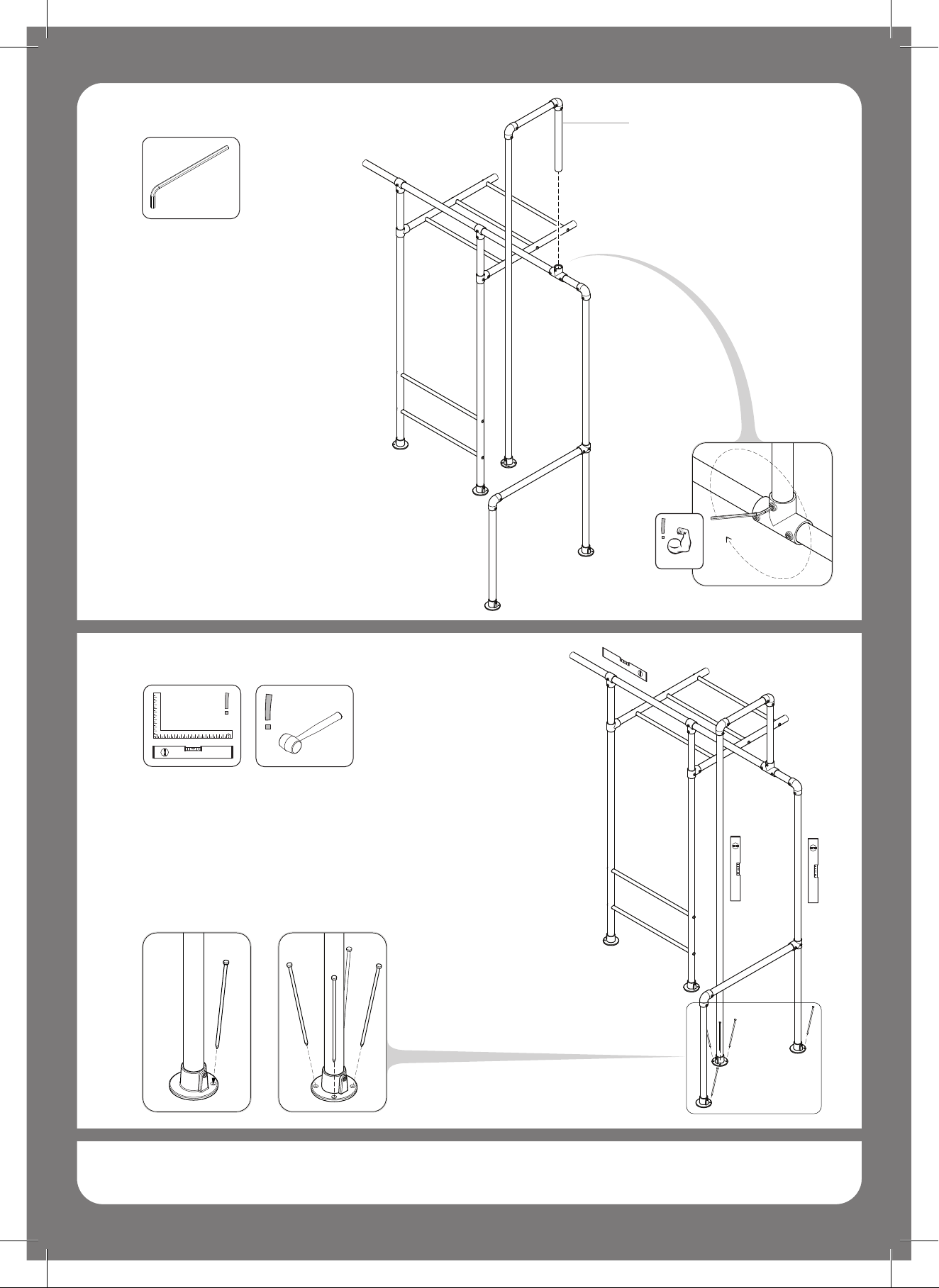

9ATTACH FIREMANS POLE

1. Fully insert firemans pole extension

tube into long tee on swing bar.

2. Fully tighten grub screws.

1. Check level and square.

2. Hammer in pegs on re-installed swing leg,

twirly whirly bar and newly installed 4 hole

firemans pole base plates.

NOTE: To reduce movement in your frame

load your twirly whirly bar as per original

frame assembly instructions or refer to website

www.funkymonkeybars.com/pages/videos

10 SECURE TO GROUND

Page 9

Hammer in pegs x6.

11 PLEASE SKIP TO STEP 18 (page 12.) FOR FINAL ASSEMBLY INSTRUCTIONS

+ 360

Tighten all grub screws.

Firemans pole from step 3.

Inhaltsverzeichnis

Andere FUNKY MONKEY BARS Spielgeräte und Spielplatzausstattung Handbücher

FUNKY MONKEY BARS

FUNKY MONKEY BARS Yoga Swing Bedienungsanleitung

FUNKY MONKEY BARS

FUNKY MONKEY BARS MONKEY BAR ADD-ON Bedienungsanleitung

FUNKY MONKEY BARS

FUNKY MONKEY BARS Boxing Bag Bedienungsanleitung

FUNKY MONKEY BARS

FUNKY MONKEY BARS THE MANDRILL PLUS Bedienungsanleitung

FUNKY MONKEY BARS

FUNKY MONKEY BARS THE SILVERBACK Bedienungsanleitung

FUNKY MONKEY BARS

FUNKY MONKEY BARS SWINGING CUBBY Bedienungsanleitung

FUNKY MONKEY BARS

FUNKY MONKEY BARS Spider Monkey Bedienungsanleitung

FUNKY MONKEY BARS

FUNKY MONKEY BARS ROCKET RINGS Bedienungsanleitung

FUNKY MONKEY BARS

FUNKY MONKEY BARS THE COMBAT NINJA Bedienungsanleitung

FUNKY MONKEY BARS

FUNKY MONKEY BARS THE ORANGUTAN Bedienungsanleitung

FUNKY MONKEY BARS

FUNKY MONKEY BARS CARGO NET Bedienungsanleitung

FUNKY MONKEY BARS

FUNKY MONKEY BARS THE MARMOSET Bedienungsanleitung

FUNKY MONKEY BARS

FUNKY MONKEY BARS THE CHIMP Bedienungsanleitung

FUNKY MONKEY BARS

FUNKY MONKEY BARS ACCESSORIES BAR Bedienungsanleitung

FUNKY MONKEY BARS

FUNKY MONKEY BARS Height Extender (Top) on Orangutan Bedienungsanleitung

FUNKY MONKEY BARS

FUNKY MONKEY BARS THE ORIGINAL Bedienungsanleitung

FUNKY MONKEY BARS

FUNKY MONKEY BARS THE AERIAL TAMARIN Bedienungsanleitung

FUNKY MONKEY BARS

FUNKY MONKEY BARS THE GORILLA Bedienungsanleitung

FUNKY MONKEY BARS

FUNKY MONKEY BARS Floating Accessories Bar Bedienungsanleitung

FUNKY MONKEY BARS

FUNKY MONKEY BARS Floating Flying Fox Bedienungsanleitung

FUNKY MONKEY BARS

FUNKY MONKEY BARS Aerial Hoop Bedienungsanleitung

FUNKY MONKEY BARS

FUNKY MONKEY BARS THE CHEEKY LITTLE MONKEY Bedienungsanleitung

FUNKY MONKEY BARS

FUNKY MONKEY BARS THE TROOP Bedienungsanleitung

FUNKY MONKEY BARS

FUNKY MONKEY BARS THE LEMUR Bedienungsanleitung

Beliebte Spielgeräte und Spielplatzausstattung Handbücher anderer Marken

Ledon

Ledon 302040 Bedienungsanleitung

FUNormous

FUNormous Disney Junior MICKEY MOUSE Bedienungsanleitung

b4Adventure

b4Adventure Slackers TREEZONE ADVENTURE THREE HOUSE Bedienungsanleitung

PoolMaster

PoolMaster 72775 Bedienungsanleitung

Palmako

Palmako 4743142009857 Installationshandbuch

BOERPLAY

BOERPLAY PSTE000.019 Bedienungsanleitung

MGA Entertainment

MGA Entertainment Little Tikes Dunk'n Toss Bouncer Benutzerhandbuch

stilum

stilum Erika Bedienungsanleitung

Costway

Costway NP10816 Bedienungsanleitung

Trigano

Trigano VABI Bedienungsanleitung

Outward

Outward OUT116 Bedienungsanleitung

GALOPIN

GALOPIN ARC02 Bedienungsanleitung

stilum

stilum levis Technische Daten

Ledon

Ledon BASIC Bai LB012 Bedienungsanleitung

BOERPLAY

BOERPLAY PSTE115.002 Bedienungsanleitung

Europlay

Europlay S306 Programmierhandbuch

SportsPlay Equipment

SportsPlay Equipment 361-509H Bedienungsanleitung

Ledon

Ledon 302250 Bedienungsanleitung
