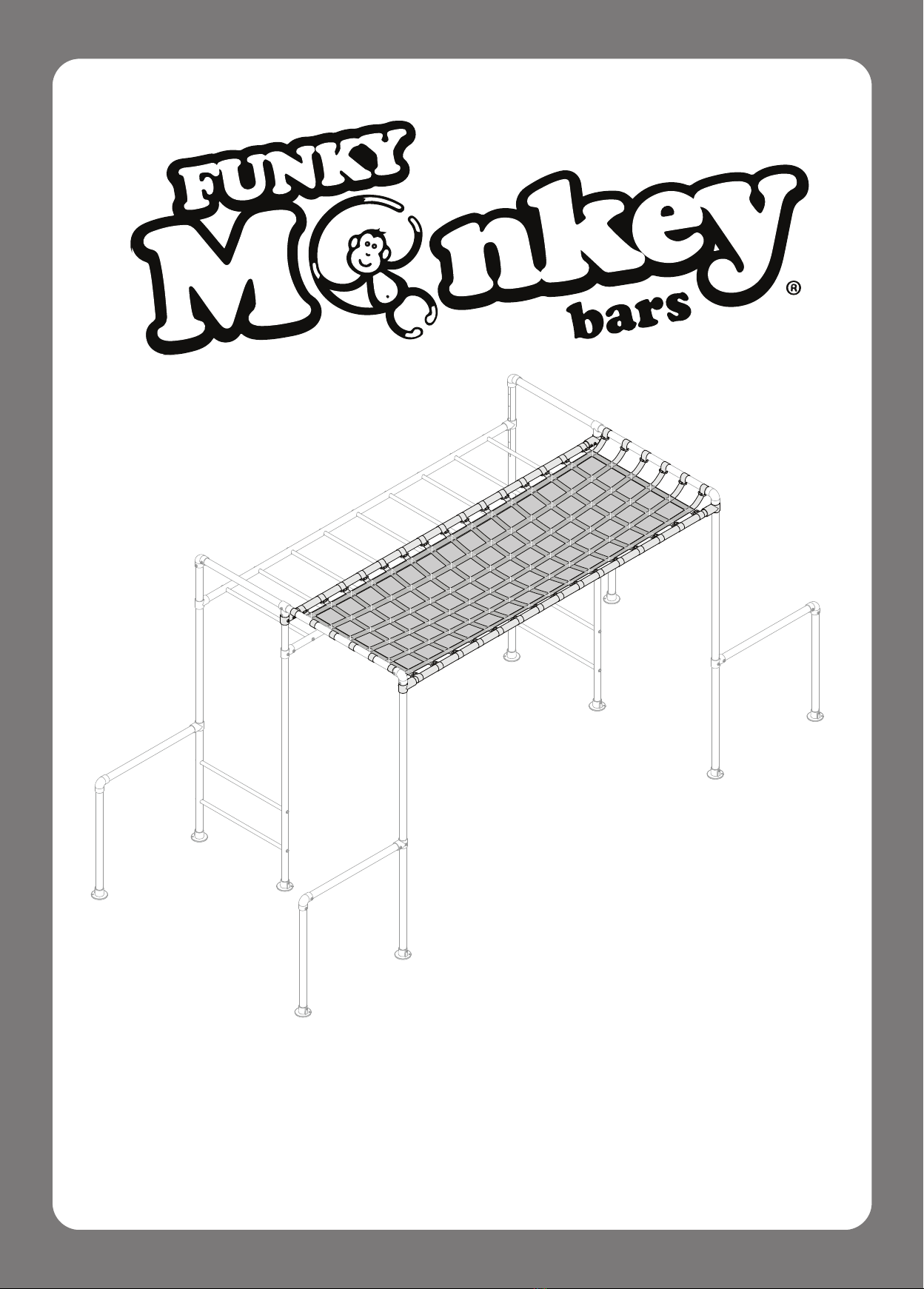

FUNKY MONKEY BARS HORIZONTAL CARGO NET Bedienungsanleitung

HORIZONTAL CARGO NET

ASSEMBLY INSTRUCTIONS

CONTENTS

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 1

Assembly Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3

Inventory and Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4

Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5

Number of accessories Bars Required ?. . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5

Existing Frame Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6

Accessories Bar .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7

Horizontal Cargo Net . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 8

Monkey Straps .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 11

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 12

Page 1

SAFETY NOTICE

RISK OF SERIOUS INJURY

DO NOT:

1. Climb, sit or stand on top of equipment.

2. Jump from top of equipment.

3. Attach foreign items not designed for equipment use.

4. Exceed load rated limit- Cargo Net: 360kg

Handles 130kg each

5. Wear loose items or clothing or accessories that may cause strangulation.

6. Install over a hard surface such as concrete, asphalt or hard packed earth.

7. Modify or alter equipment.

ALWAYS:

1. Use equipment as intended: to swing or hang from the underside only, use for play.

2. Use this product on Funky Monkey Bars® only.

3. Ensure adult supervision at all times.

4. Maintain regularly as detailed within owners manual and assembly instructions.

5. Ensure use of one person at a time.

6. Check the temperature of the surface before use in warm/hot weather.

7. Check product for faults and ensure all connections are closed and secured -

replace worn, defective or missing parts when necessary.

NOTE:

Supplying a gym/crash mat under the fall zone is recommended to reduce risk of injury.

Refer to Standards AS4685.1, ASTM F1148 and EN1176 for a complete list of cautionery statements and

instructions.

WARNING

PLEASE CAREFULLY READ ALL INFORMATION CONTAINED IN THIS ASSEMBLY MANUAL BEFORE

YOU INSTALL AND USE YOUR FUNKY MONKEY BARS®.

WARNINGS

Page 2

LOCATION

1. A safe fall zone around your Funky Monkey Bars® is essential. A minimum distance of 1.5m to 2m (5 ft to

6.5ft) is recommended around the elevated hanging points of your Funky Monkey Bars®.

2. Place your Funky Monkey Bars® on level ground, away from any structure or obstruction such as a fence,

garage, house, overhanging branches, laundry lines or electrical wires and remove any obstructions

beneath your Funky Monkey Bars®.

3. Ensure your Funky Monkey Bars® are positioned away from retaining walls, pool fences, structures and

other play equipment. Maintain a clear space around the whole perimeter of your Funky Monkey Bars®.

4. Place your Funky Monkey Bars® on the most level surface available.

MAINTENANCE

1. At the beginning of each heavy play session we recommend the following maintenance processes be

performed on your Funky Monkey Bars®:

• Tighten all bolts, grub screws and applicable hardware (as per page 3)

• Lubricate all metallic moving parts as per instructions (flying fox, swing hooks etc)

• Check all protective coverings on bolts, pipes, edges and corners. Replace if they are loose,

cracked or missing.

• Check all moving parts including swing seats, shackels, snap hooks, chains and trolleys for wear,

rust, or other deterioration. Replace as needed.

2. Twice a month during play season we would recommend the following maintenance processes be

performed on your Funky Monkey Bars®:

• Tighten all connections and hardware

• Check all protective coverings on bolts, pipes, edges and corners. Replace if they are loose,

cracked or missing.

3. Once a month during play season we would recommend the following maintenance processes be

performed on your Funky Monkey Bars®:

• Lubricate all metallic moving parts as per instructions (flying fox, swing hooks etc). If swings start

to squeak then lubricate swing hooks.

• Check all moving parts including swing seats, ropes, chains and trolleys for wear, rust, or other

deterioration. Replace as needed.

• Owners shall be responsible for maintaining the legibility of any warning labels.

For additional information concerning your Funky Monkey Bars®, please contact our customer service team

or check our website for any important updates. Phone - 1300 912 198 or www.funkymonkeybars.com

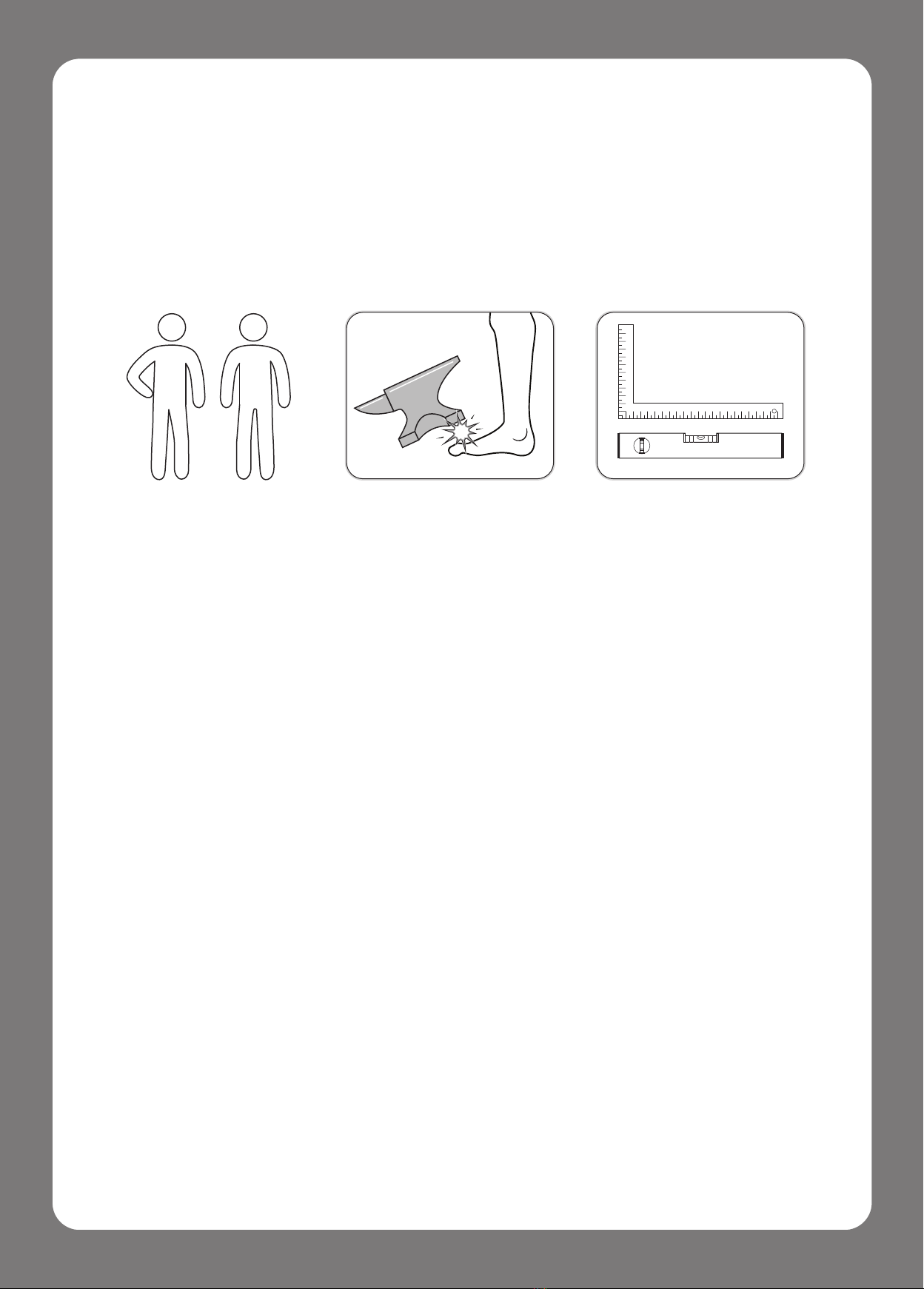

Assembly requires 2 adults. Heavy items ! Work on flat level surface.

ASSEMBLY

1. Keep small children away from the Funky Monkey Bars® during assembly.

2. Do not attempt to use the Funky Monkey Bars® until it is completely assembled and every fitting is tight

and secured.

3. Installation typically takes 1-2 hours to complete. Two people are recommended for assembly.

4. Ensure all fittings are tightened to the correct tightening method as described on page 3.

5. Assembly should be carried out on clean, dry, level surface

Please refer to the video section on the Funky Monkey Bars® website for more handy tips and assembly

instructions at http://www.funkymonkeybars.com/pages/videos

+ 360

Page 3

All tubes must be fully inserted until

contact is made with adjoining tube.

CORRECT INSERTION INTO FITTINGS - (indicative diagram shown)

CORRECT TIGHTENING METHOD OF GRUB SCREWS - (indicative diagram shown)

Gap. No gap.

CLUNK

1. With long end of allen key, hand

tighten grub screw as much as possible.

2. Using other end of the allen key do one full

360 degree turn as a minimum, use muscles!

ASSEMBLY TIPS

1 2

8mm Allen key

(Not included)

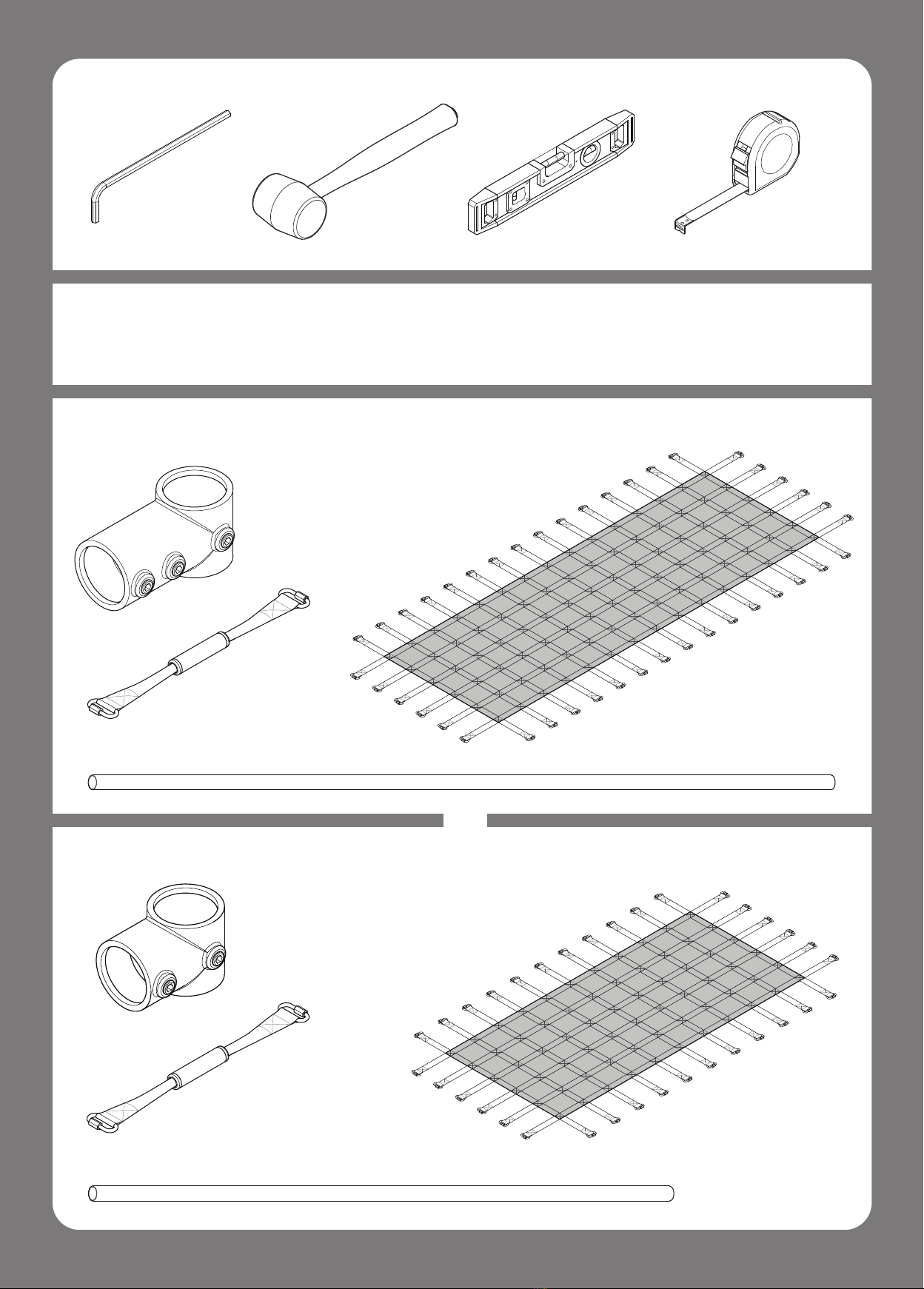

TOOLS REQUIRED FOR INSTALLATION

INVENTORY - HORIZONTAL CARGO NET (ALL FRAMES EXCEPT CHEEKY MONKEY) (Not to scale)

Spirit Level

(Not included)

Page 4

Tape Measure

(Not included)

THE INVENTORY WILL VARY BETWEEN THE CHEEKY MONKEY FRAME AND ALL

OTHER FUNKY MONKEY BAR®FRAMES BUT THE ASSEMBLY METHOD WILL REMAIN CONSISTENT.

CHECK THAT YOU DO NOT NEED 2 ACCESSORIES BARS FOR YOUR CHOSEN INSTALLATION- SEE STEP 1

Soft Hammer

(Not included)

TOOLS & INVENTORY

INVENTORY - HORIZONTAL CARGO NET FOR CHEEKY MONKEY FRAME (Not to scale)

Short Tee

D-101

Accessories Tube

50Dia. x 2950mm

Long Short Tee

D-101L

Cheeky Monkey

Horizontal Cargo Net

(11 X 6 straps)

Horizontal Cargo Net

(15 X 6 straps)

Short Accessories Tube

50Dia. x 2300mm

10x

Monkey Straps

10x

Monkey Straps

1x accessories bar.

2x accessories bar.

Existing monkey bar ladder.

The horizontal cargo net can be installed

directly onto the monkey bar ladder

in highest position). See installation ‘A’

The horizontal cargo net can be installed

using 2 accessories bars. This will allow

the monkey bar to remain in a

lower and adjustable position.

See installation ‘B’

SELECT THE ARRANGEMENT YOU DESIRE.

Page 5

ASSEMBLY INSTRUCTIONS - NUMBER OF ACCESSORIES BARS REQUIRED?

installation ‘a’

installation ‘B’

Loosen grub screws.

Remove any accessories

from swing hooks in the

selected area to ease

installation.

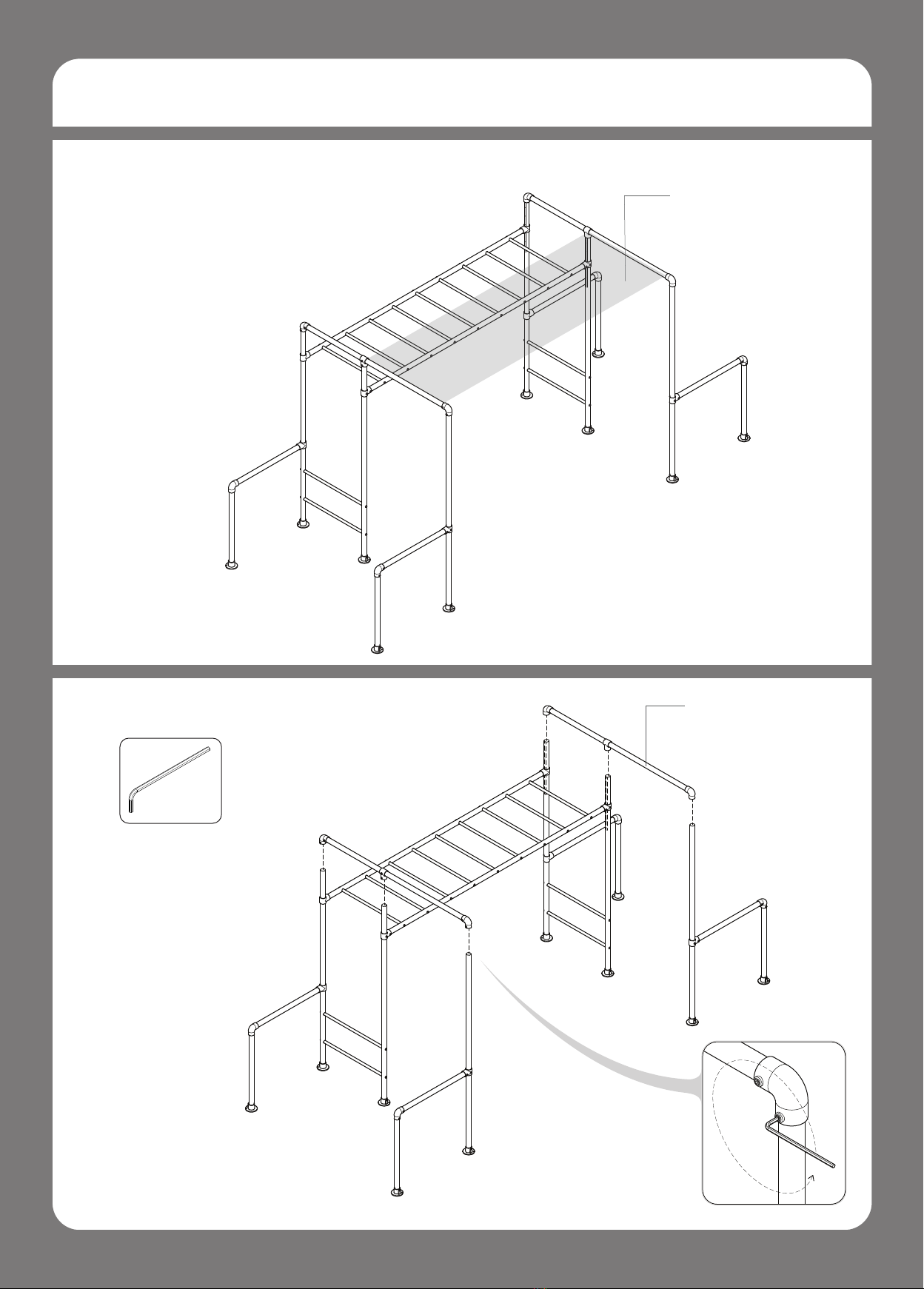

SELECT HORIZONTAL CARGO NET INSTALL LOCATION

ADDING A HORIZONTAL CARGO NET TO AN EXISTING FRAME. (INSTALLATION TYPE ‘B’ STEP 1)

- ORANGUTAN MODEL SHOWN

Page 6

Loosen grub screws on short

tees and elbows then

remove swing bar. Place

aside for later re-install.

REMOVE SWING FRAME BARS

Horizontal cargo net

installation location.

ASSEMBLY INSTRUCTIONS - EXISTING FRAME PREPARATION

Swing Frame Bar

Page 7

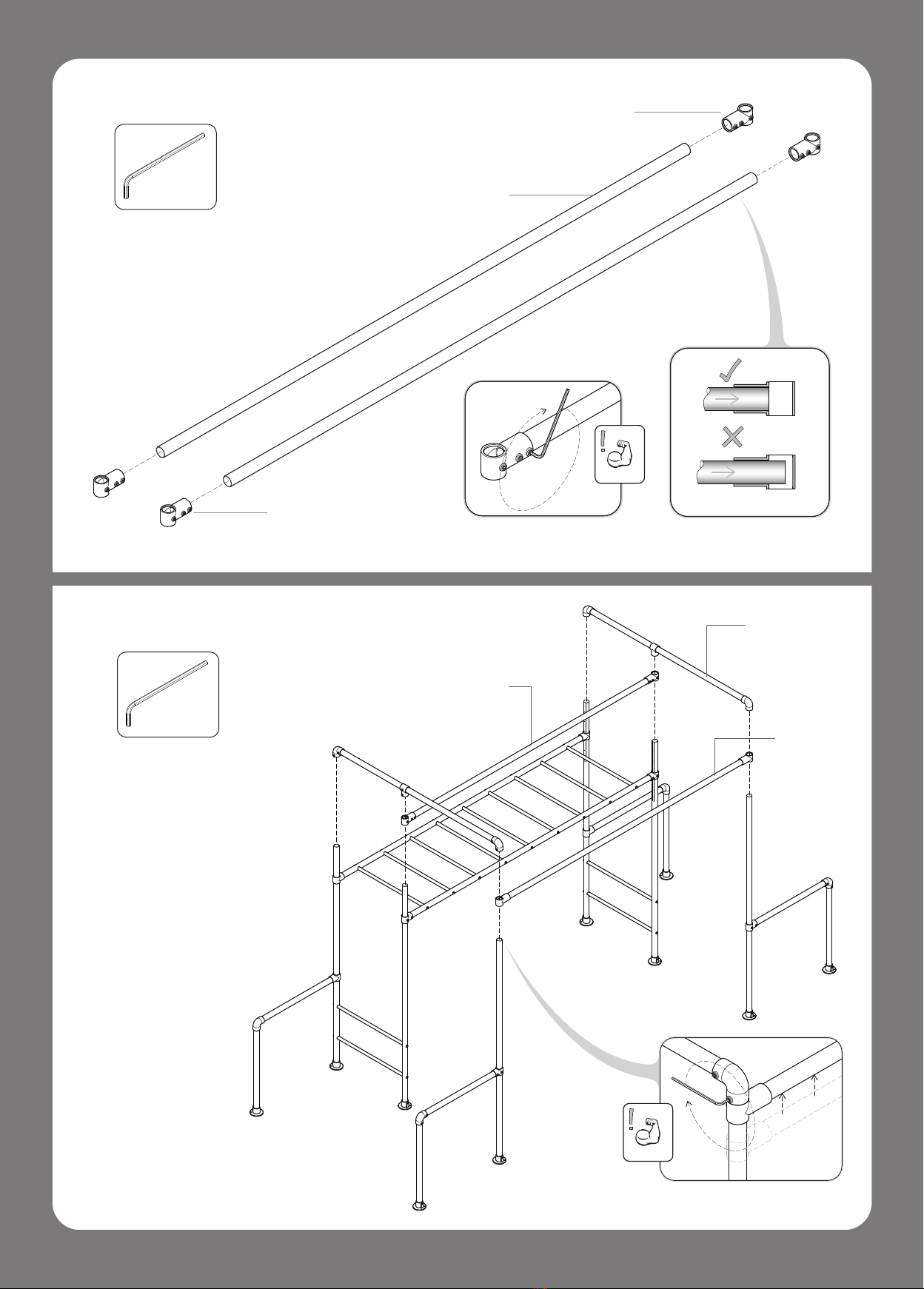

Ensure accessories tube is not

over inserted into extra long tees

& is level with through hole.

1x or 2x

Accessories Tube

50Dia x 2950mm

Slide long short tees onto ends of

required accessories tubes as per detail and

fully tighten all grub screws.

NOTE:

Refer to individual components

for maximum load on

accessories bar.

Fully tighten all grub screws.

+ 360

1x or 2x

Long Short Tee

D-101L

ASSEMBLE ACCESSORIES BAR (1x or 2x) 1x or 2x

Long Short Tee

D-101L

1. Slide the 2 accessories bars onto

the swing legs in the selected

location.(highest vertical position)

(Do not tighten grub screws).

2. Reattach the removed 2x swing

bars, Ensure it is fully inserted &

tighten all grub screws.

3. Raise accessories bars hard up

against the swing bar fittings,

then tighten all grub screws.

NOTE: If you are installing directly

onto the monkey bar ladder - ensure the

accessories bar is at the same height.

5ATTACH ACCESSORIES BARS & SWING BARS

Tighten swing bar grub screws

then accessories bar grub screws.

2x Swing Bars

removed in step 2

1x Accessories Bar

only required if not

attaching to monkey bar

ladder positioned at highest

point

+ 360

1x Accessories

Bar - assembled

in step 3

ASSEMBLY INSTRUCTIONS - ACCESSORIES BAR

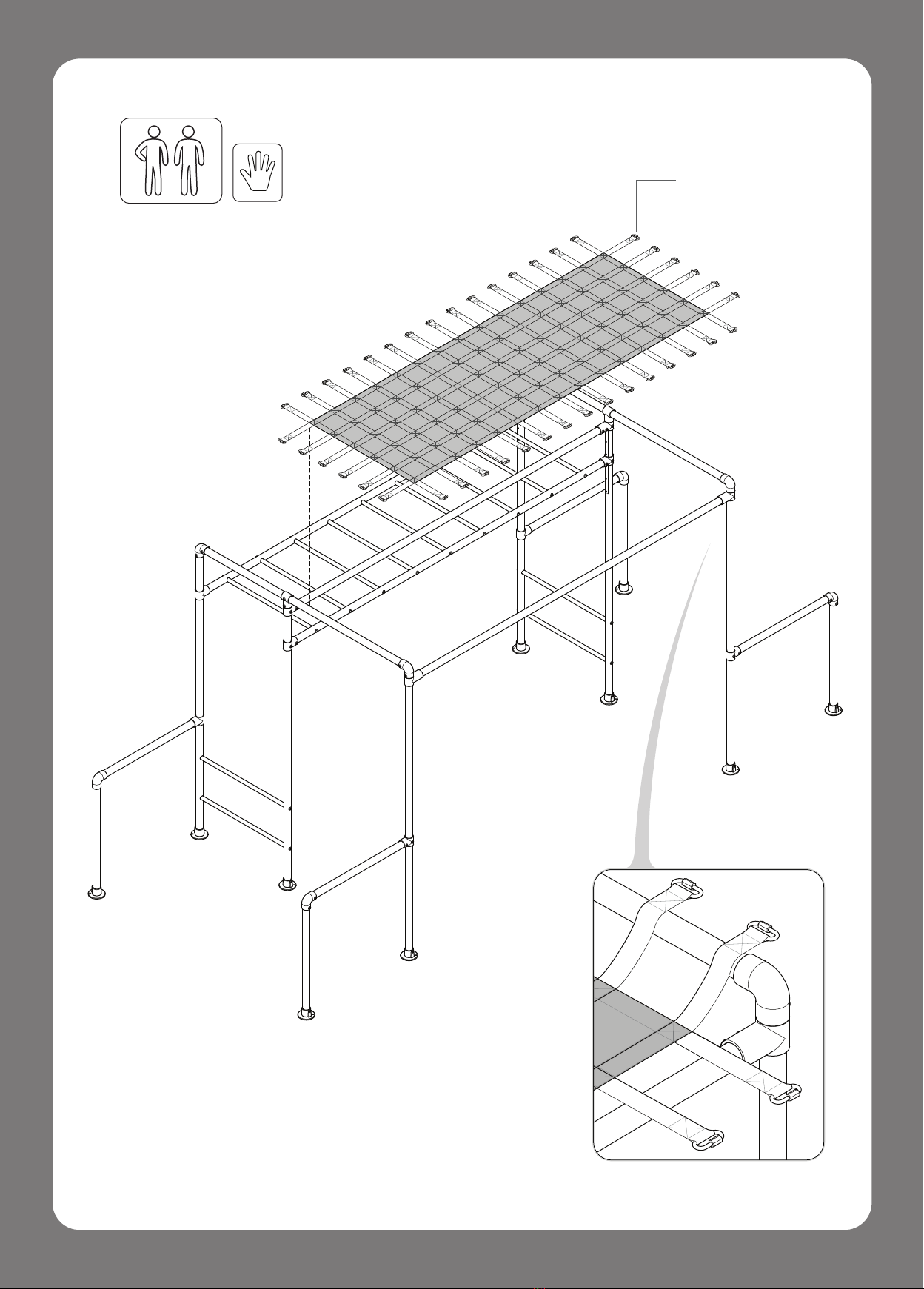

With the mesh mat side up and the

straps underneath the mat lay the

horizontal cargo net over the attached

accessories bar and swing bar.

NOTE: The warning label will be

on the underside once assembled.

LAY HORIZONTAL CARGO NET ON TOP

Page 8

1x Horizontal Cargo Net

1. Mesh side on top

2. Straps over top of tubes

ASSEMBLY INSTRUCTIONS - HORIZONTAL CARGO NET

Connect the corner straps at A,B,C & D to the

swing and accessories bars, as described below.

7CONNECT CORNER STRAPS TO TUBES.

Swing bar.

Page 9

Accessories bar.

1. Undo the shackles fully

and flip the straps over

the top of the tubes.

2. Pinch the strap together and

feed into the shackle (passed

up from underneath the pipe).

3. Tighten the shackle and repeat

to all other corner straps.
