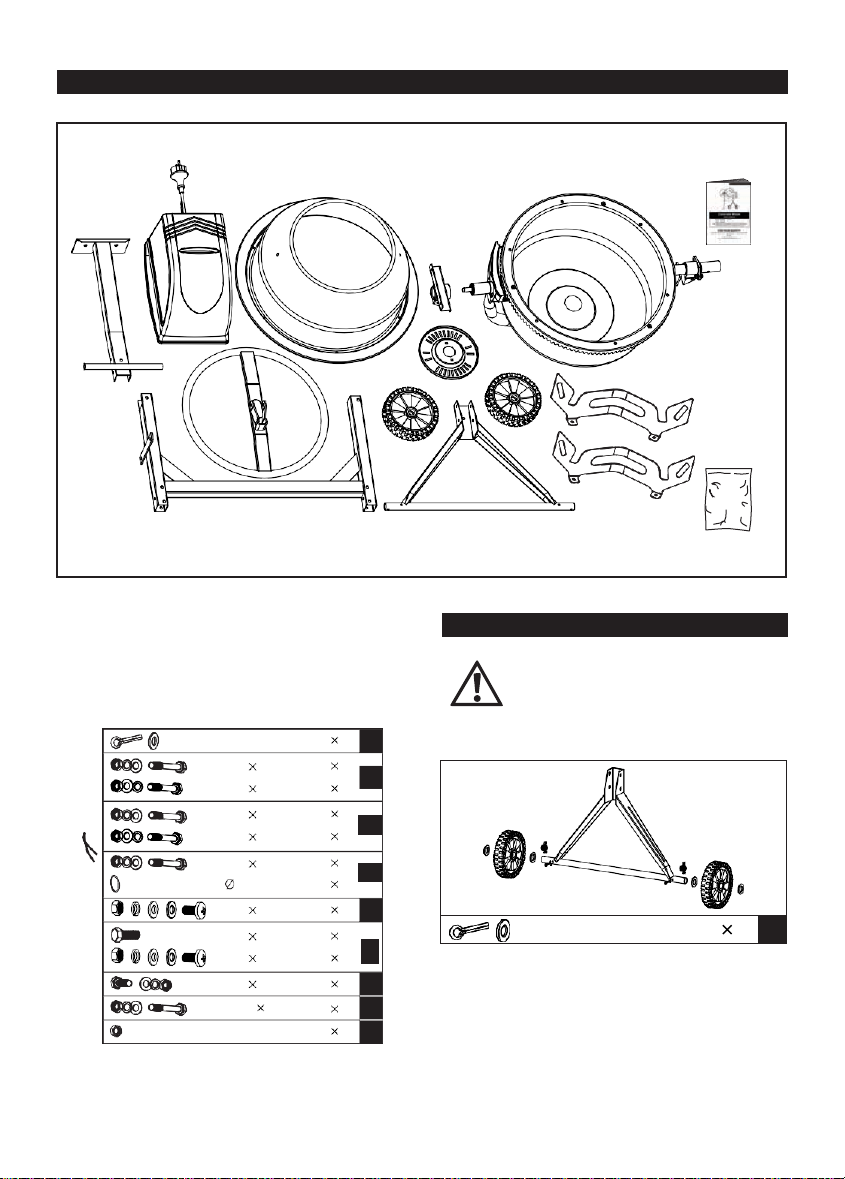

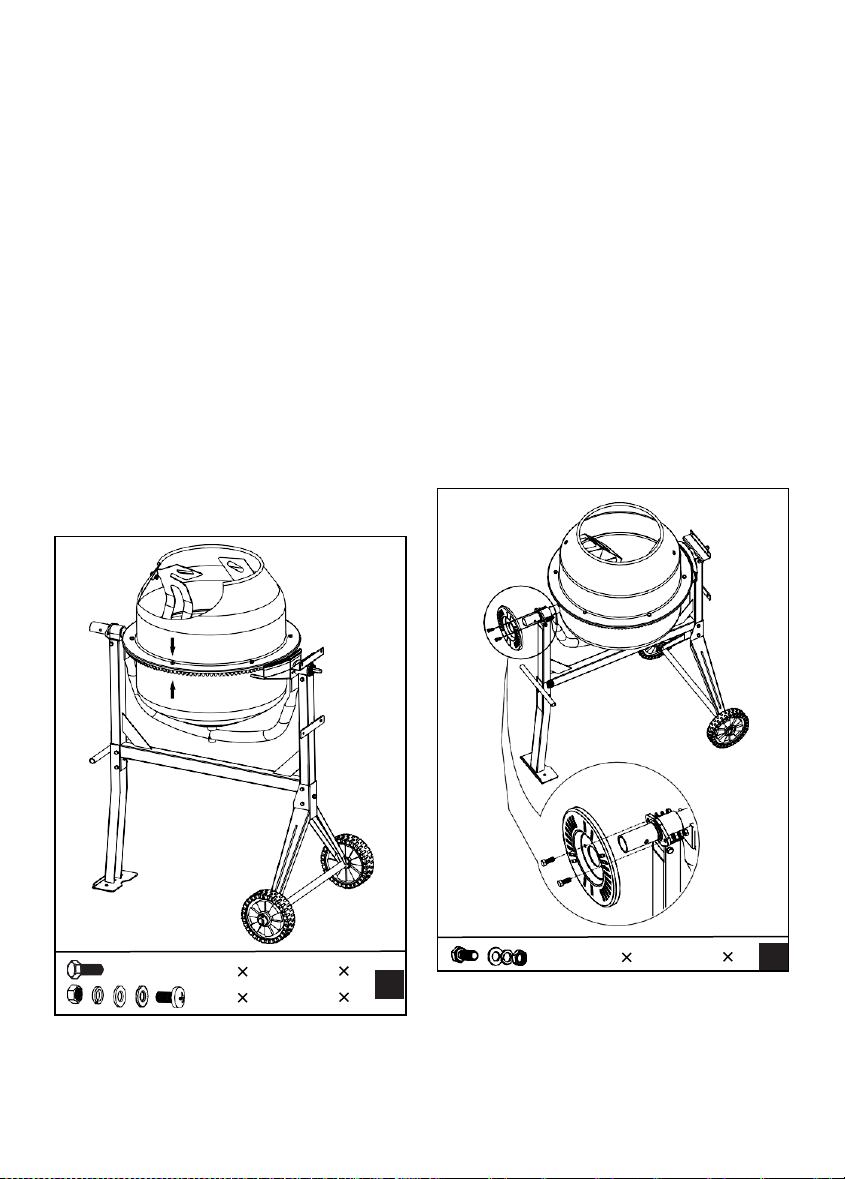

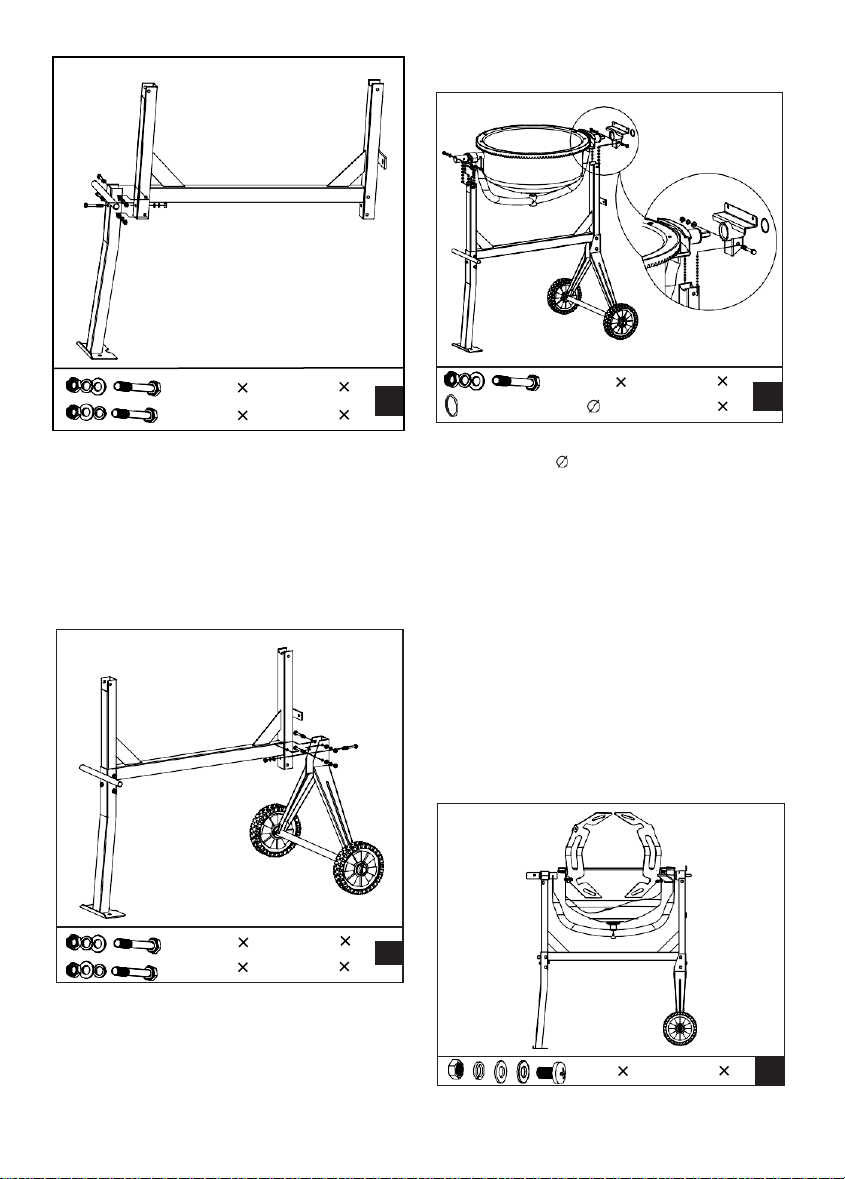

9

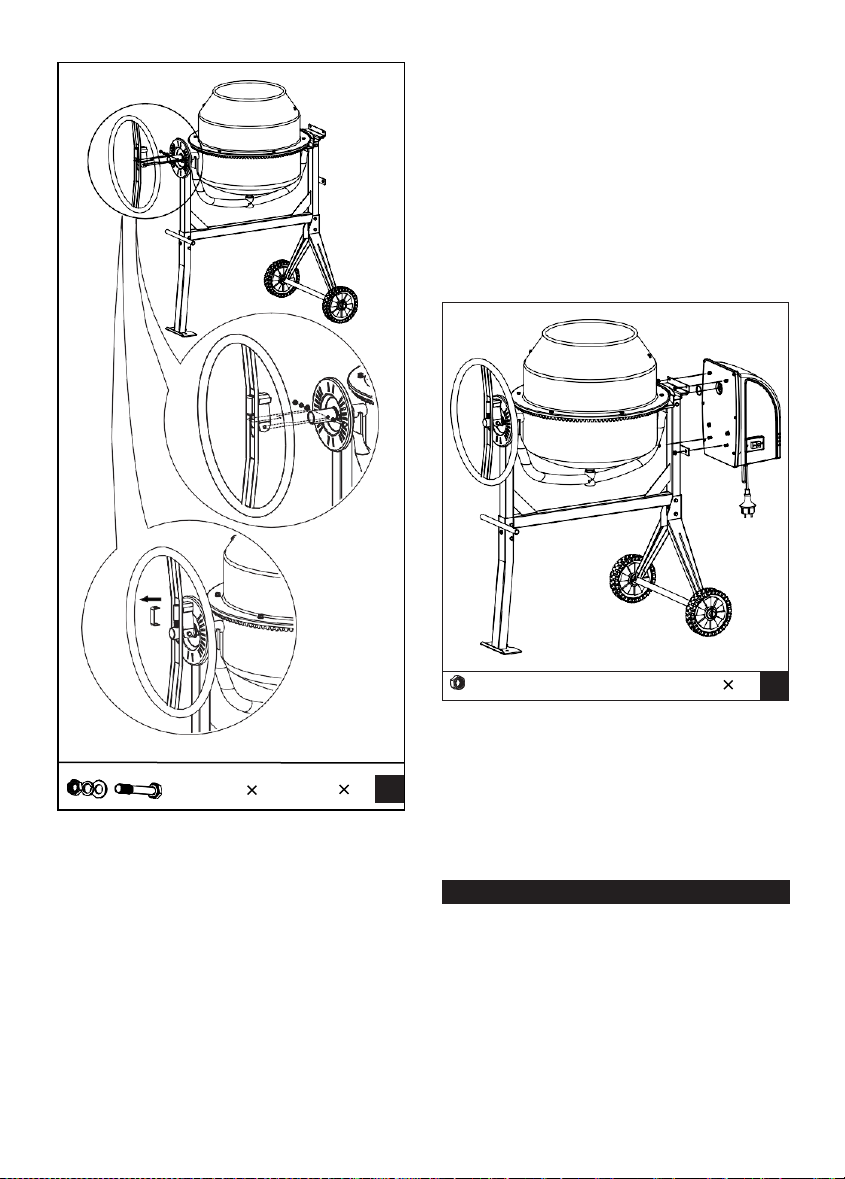

The drum is locked in position by lugs on the
self-locating tipping wheel which engage into
the locking plate on the mixer frame. To tilt the
drum, withdrawn the tipping wheel to dis-engage
the locking lugs. This then allows the tipping
wheel and drum to be turned in the same
direction.
To retain the drum in position, aligning the lugs
with the slots, release the tipping wheel a little

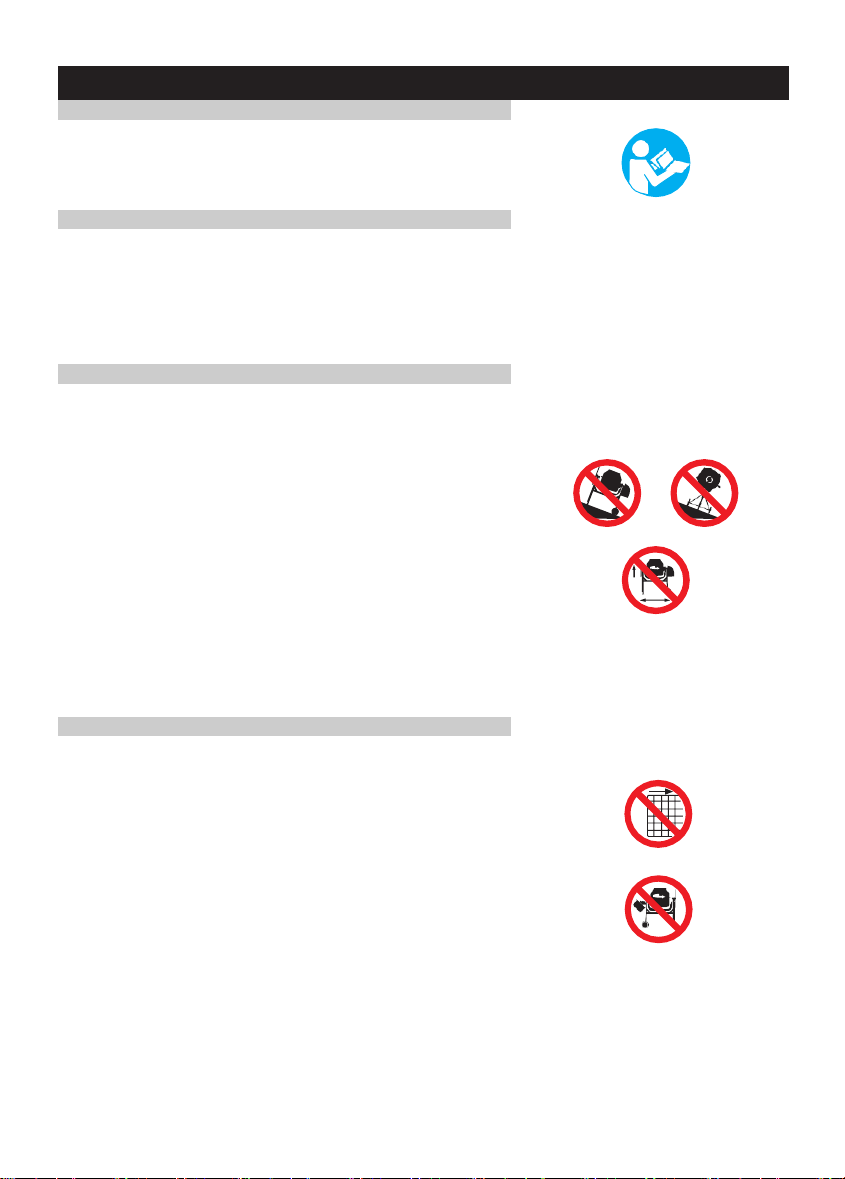

NOTE:
Do not throw material into the
mixer to avoid sticking firmly to
the back of the drum. Trickle it
steadily over the ram.
A built-in thermal protecter is
arranged in the motor to prevent it
from overheating. The thermal
protecter restores automatically
when the motor cools down.
while retaining the drum. Rotate the tipping
wheel until the locking lugs engage into the
locking plate on the mixer frame.

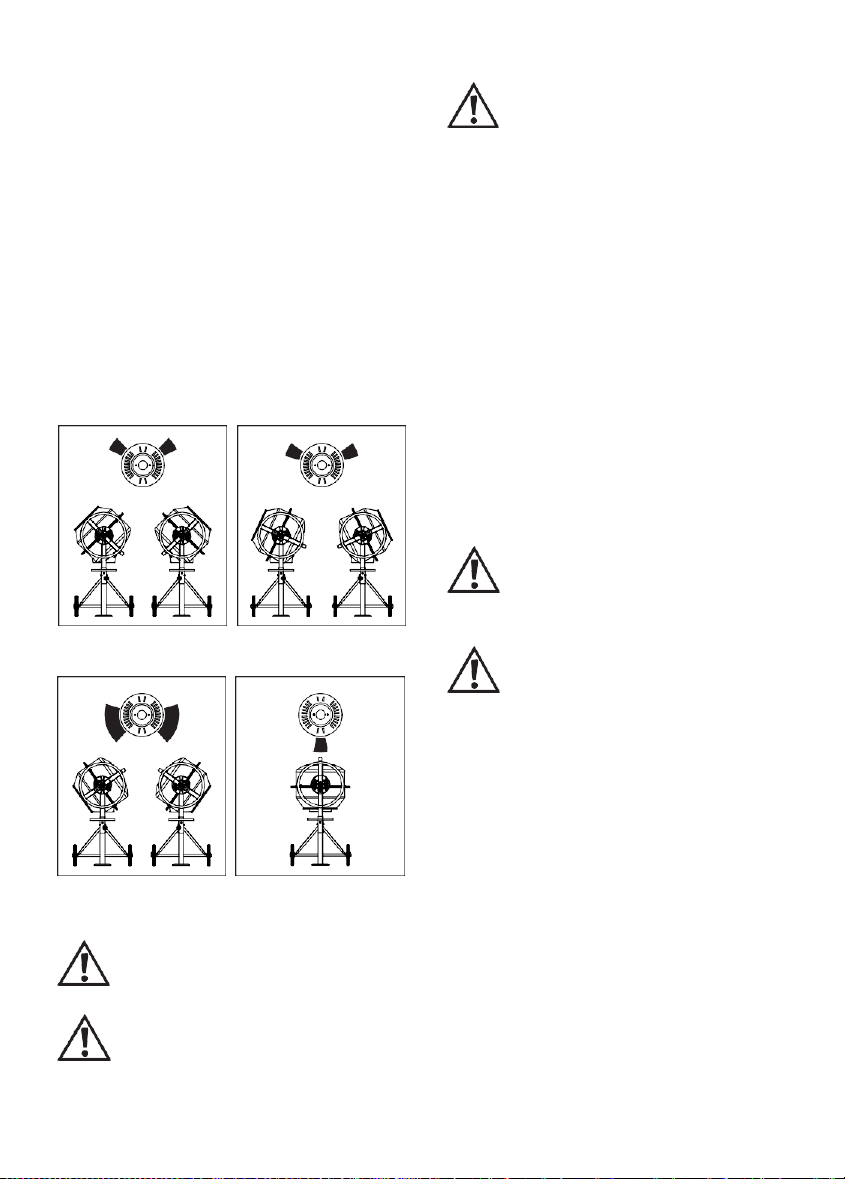

Loading/Mixing Position
For Mortar For Concrete
Emptying Position Storage Position

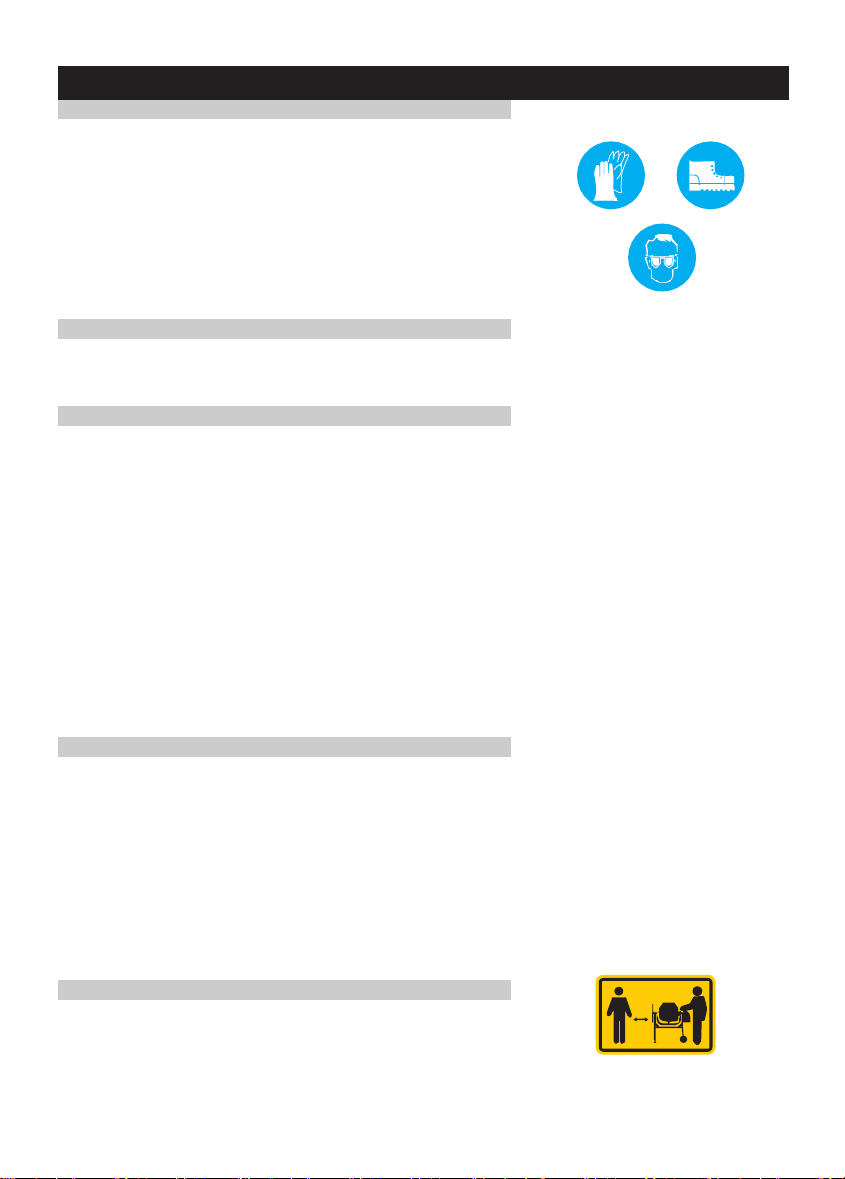

LOADING
Completely unwind the extension
cord. Connect it to the concrete
mixer first before plugging in power
supply.
Always start the mixer before
loading the drum. Loading the drum
with drum rotating.
For best results, proceed as follows:
1. Add the required amount of gravel into the
drum.
2. Add the required amount of cement into the
drum.
3. Add the required amount of sand into the
drum.
4. Pour the required amount of water into the
drum.
EMPTYING
Do not turn mixer off while full of
load. Emptying the drum with drum
rotating.
CLEANING

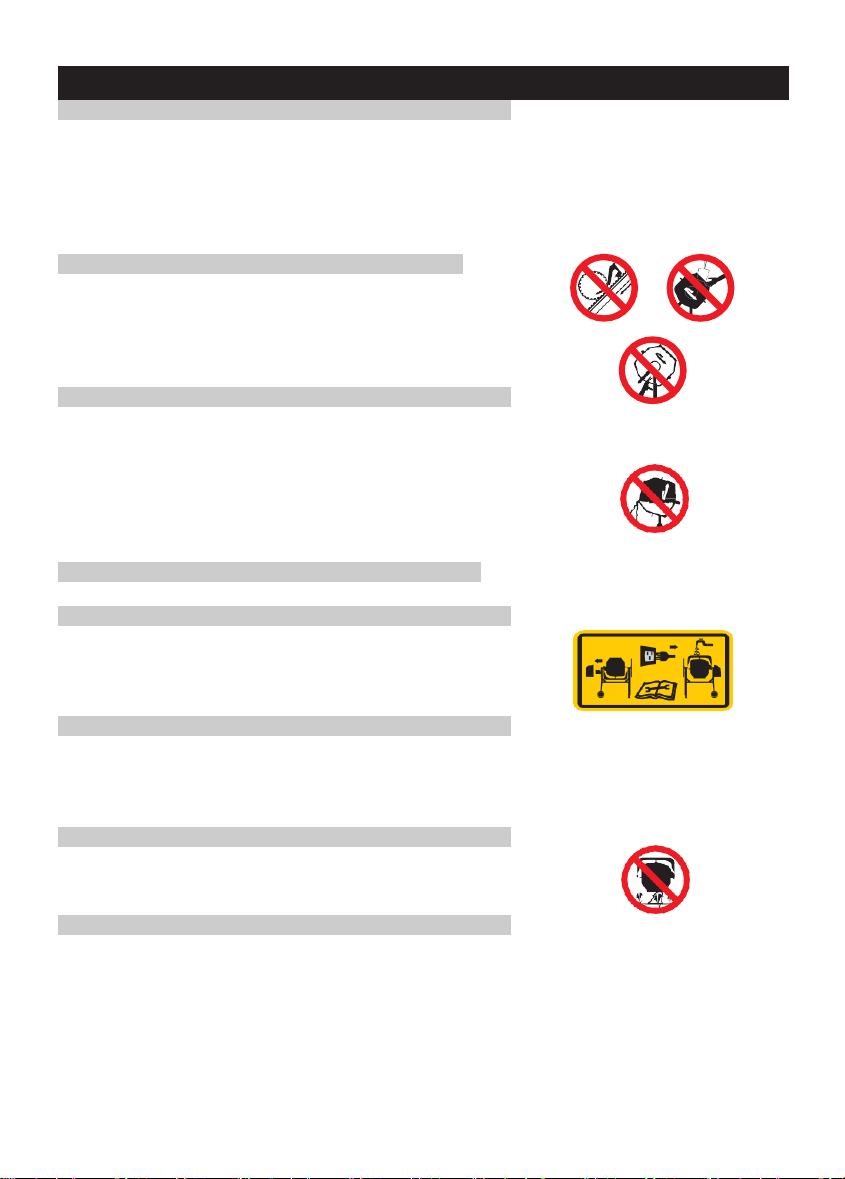

Never put hands inside the drum
with drum rotating.
Thoroughly clean the mixer at the end of each
day’s operation. Keep your mixer clean. The
slightest trace of material left in the drum will
harden and attract more each time you use it
until the machine is useless. Dried cement
should be scraped out of the drum. Do not throw
bricks into mixer drum to clean it out. Do not
beat on the drum with a shovel, a hammer or
other tools to break up accumulations of dried
cement mix, as damage to the mixer may result.
The drum may be scoured for approximate 2
minutes, using 1” gravel and water mixture.
Then discharge the gravel/water mixture and
hose down the drum assembly inside and out.
The IP44D protection class construction of the
concrete mixer enables you to hose down the
drum assembly safely.
