Refrigerator

en Table of contents

User manual

(

Safety instructions 3

About these instructions 3

Risk of explosion 3

Risk of electric shock 3

Risk of injury 3

Fire hazard/Danger due to refrigerants 3

Fire hazard 4

Avoiding placing children and vulnerable

people at risk 4

Damage 4

Weight 4

Intended use 5

Environmental protection 5

Packaging 5

Old appliances 5

Installation and connection 6

Scope of supply 6

Technical specifications 6

Installing the appliance 6

Built-in cut-out 6

Side-by-side installation 6

Tips for saving energy 7

Before using your appliance for the first time 8

Electrical connection 8

Getting to know your appliance 9

Appliance 9

Controls 10

Interior fittings 11

Operating the appliance 12

Switching on the appliance 12

Switching off and disconnecting the appliance 12

Setting the temperature 12

Fast cooling 12

Display lock for cleaning 13

Eco mode 13

Self-test 13

Setting the brightness of the control panel 13

Setting up the display screen 13

Setting the touch field colour 13

Setting the touch field tone type 14

Setting the touch field tone volume 14

Setting the signal tone volume 14

Dimming when door is opened and closed 14

Setting the temperature unit 14

Setting the language 14

Resetting to factory settings 15

Switching demo mode on or off 15

Rest mode 15

Automatic door opening 16

Home network 16

Automatic display lock for cleaning 16

Alarm 16

Door alarm 16

Home Connect 17

Setting up Home Connect 17

Connecting the refrigerator to the Home

Connect

app 18

Installing updates for the Home Connect

software 18

Customer Service access 18

Delete network settings 19

Information on data protection 19

Declaration of conformity 19

Refrigerator compartment 20

Note when storing food 20

Note the chill zones in the refrigerator

compartment 20

Vegetable container 20

Vegetable container with humidity control 20

Cool-fresh container 21

Storage times at 0 °C 21

Cleaning 21

Cleaning the display 21

Cleaning the appliance interior 21

Cleaning the equipment 21

Odours 22

Exchanging the odour filter 22

Noises 23

Normal noises 23

Preventing noises 23

Lighting 23

Faults – what to do? 24

Appliance 24

Customer service 25

Appliance self-test 25

Repair order and advice on faults 25

Safety instructions en

(

Safety instructions

Safetyinstructions

This appliance complies with the relevant

safety regulations for electrical appliances and

is fitted with noise suppression.

The refrigeration circuit has been checked for

leaks.

About these instructions

▯Read and follow the operating and

installation instructions. They contain

important information on how to install, use

and maintain the appliance.

▯The manufacturer is not liable if you

disregard the instructions and warnings in

the operating and installation instructions.

▯Retain all documents for subsequent use or

for the next owner.

Risk of explosion

▯Never use electric appliances inside the

appliance (e.g. heaters or electric ice

makers).

▯Do not store products which contain

flammable propellant (e.g. spray cans) or

explosive substances in the appliance.

▯Store high-percentage alcohol tightly

sealed and in an upright position.

▯Do not use additional means to accelerate

the defrosting process other than those

recommended by the manufacturer.

Risk of electric shock

Improper installations and repairs may put the

user at considerable risk.

▯When installing the appliance, ensure that

the mains cable is not trapped or damaged.

▯If the mains cable is damaged: immediately

disconnect the appliance from the

electricity supply.

▯Do not use multiple sockets, extension

leads or adapters.

▯Have the appliance repaired by the

manufacturer, Customer Service or a

similarly qualified person only.

▯Use original parts supplied by the

manufacturer only.

The manufacturer guarantees that these

parts satisfy the safety requirements.

Risk of injury

Containers which contain carbonated drinks

may burst.

Fire hazard/Danger due to refrigerants

The tubes of the refrigeration circuit

convey a small quantity of an environmentally

friendly but flammable refrigerant (R600a). It

does not damage the ozone layer and does not

contribute to the greenhouse effect. If

refrigerant escapes, it may injure your eyes or

ignite.

▯Do not damage the tubes.

If the tubes are damaged:

▯Keep naked flames and ignition sources

away from the appliance.

▯Ventilate the room.

▯Switch off the appliance and pull out the

mains plug.

▯Please contact Customer Service.

en Safety instructions

Fire hazard

Portable multiple outlets or power

supplies may overheat, causing a fire.

Never leave portable multiple outlets or

portable power supplies behind the appliance.

Avoiding placing children and vulnerable

people at risk

At risk are:

▯Children,

▯People who have limited physical, mental or

sensory abilities,

▯People who have inadequate knowledge

concerning safe operation of the appliance.

Measures:

▯Ensure that children and vulnerable people

have understood the hazards.

▯Children or vulnerable people must be

supervised by a responsible person when

using the appliance.

▯Only children from 8 years and above may

use the appliance.

▯Supervise children while the appliance is

being cleaned or maintained.

▯Never allow children to play with the

appliance.

Risk of suffocation

▯If the appliance features a lock: keep the

key out of the reach of children.

▯Keep children away from the packaging

and its parts.

Damage

To prevent damage:

▯Do not stand or support yourself on the

base, runners or doors.

▯Keep plastic parts and door seals free of oil

and grease.

▯Pull the mains plug – not the power cord.

Weight

The appliance is very heavy. The appliance

should always be transported and set up by at

least 2 persons.

~"Installing the appliance" on page 6

Intended use en

Intended use

Intendeduse

Use this appliance

▯only for refrigerating food.

▯only in the home and in the home environment.

▯only according to these operating instructions.

This appliance is intended for use up to a maximum

height of 2000 metres above sea level.

Environmental protection

Environmentalprotection

Packaging

All materials are environmentally safe and recyclable:

▯Dispose of packaging in an environmentally friendly

manner.

▯Please ask your dealer or inquire at your local

authority about current means of disposal.

Old appliances

Valuable raw materials can be reclaimed by recycling

old appliances.

mWarning – Children may become locked in the

appliance and suffocate!

▯To prevent children from climbing in, leave shelves and

containers in the appliance.

▯Keep children away from the redundant appliance.

Caution!

Refrigerant and harmful gases may escape.

Do not damage the tubes of the refrigerant circuit and

insulation.

1Remove the mains plug.

2Sever the power cord.

3Have the appliance disposed of professionally.

This appliance is labelled in accordance with

European Directive 2012/19/EU concerning used

electrical and electronic appliances (waste

electrical and electronic equipment - WEEE). The

guideline determines the framework for the return and

recycling of used appliances as applicable throughout

the EU.



en Installation and connection

Installation and connection

Installati onandconnection

Scope of supply

After unpacking all parts, check for any damage in

transit.

If you have any complaints, contact the dealer from

whom you purchased the appliance or our customer

service.

~"Customer service" on page 25

The delivery consists of the following parts:

▯Built-in appliance

▯Interior fittings (depending on model)

▯Installation material

▯User manual

▯Installation instructions

▯Customer service booklet

▯Warranty enclosure

▯Information on the energy consumption and noises

Technical specifications

Refrigerant, cubic capacity and further technical

specifications can be found on the rating plate.

~"Getting to know your appliance" on page 9

Installing the appliance

Installation location

The more refrigerant an appliance contains, the larger

the room must be in which the appliance is situated. In

rooms which are too small leaking refrigerant can form a

flammable gas-air mixture.

Per 8 g of refrigerant the room must be at least 1 m³ in

size. The amount of refrigerant in your appliance is

indicated on the rating plate inside the appliance.

~"Getting to know your appliance" on page 9

The weight of the appliance may be up to 500 kg

depending on the model.

Permitted room temperature

The permitted room temperature depends on the

climatic class of the appliance.

Information on the climatic class can be found on the

rating plate.

The appliance is fully functional within the permitted

room temperature.

If an appliance of climatic class SN is operated at

colder room temperatures, the appliance will not be

damaged up to a room temperature of +5 °C.

Built-in cut-out

The cut-out must fulfil these criteria:

▯Anti-tilt bracket fitted

▯Cut-out depth min. 610 mm, for flush installation

635 mm

▯Rectangular

▯Stable – the side panels and the top must be min.

16 mm thick and securely attached to the bottom or

wall

▯Depth of shortened side panels min. 100 mm

Side-by-side installation

Observe the specifications in the installation

instructions for a side-by-side installation.

If a partition wall is required between the appliances, it

must be at least 16 mm wide.

Climatic category Permitted room temperature

SN +10 °C ... 32 °C

N+16 °C ... 32 °C

ST +16 °C ... 38 °C

T+16 °C ... 43 °C

Installation and connection en

Tips for saving energy

If you follow the instructions below, your appliance will use less power.

Note: The arrangement of the features does not affect the energy consumption of the appliance.

--------

Installing the appliance

Keep the appliance out of direct sunlight. The appliance needs to cool less frequently at low ambient

temperatures and therefore consumes less power.

Install the appliance as far away as possible from heating ele-

ments, cooker and other heat sources:

At least 1¼" (3 cm) from electric or gas cookers.

At least 11¾" (30 cm) from oil or solid-fuel cookers.

Note:

If this is not possible, attach an insulating plate between the

appliance and heat source.

Select an installation location with a room temperature of

approx. 20 °C.

Do not cover or block the ventilation openings. If the warm air can escape, the appliance needs to cool less

frequently and therefore consumes less power.

Ventilate the room daily.

Using the appliance

Open the appliance door only briefly. The air in the appliance does not warm up so intensely. The

appliance needs to cool less frequently and therefore con-

sumes less power.

Transport purchased food in a cool bag and place in the

appliance quickly.

Allow warm food and drink to cool down before placing in the

appliance.

Thaw frozen food in the refrigerator compartment to utilise

the low temperature of the frozen food.

Always leave a space between the food and the back wall. The air can circulate and the humidity will remain con-

stant.The appliance needs to cool less frequently and there-

fore consumes less power.

Pack food airtight.

Do not cover or block the ventilation openings. The appliance consumes less power if warm air can escape.

Vacuum the ventilation openings once a year.

en Installation and connection

Before using your appliance for the

first time

1Remove information material, adhesive tape and

protective film.

2Clean the appliance.

~"Cleaning" on page 21

Electrical connection

Caution!

Do not connect the appliance to electronic energy saver

plugs.

Note: You can connect the appliance to mains-

controlled and sine-controlled inverters.

Mains-controlled inverters are used for photovoltaic

systems which are connected directly to the national

grid. Sine-controlled inverters must be used for isolated

applications. Isolated applications, e.g. on ships or in

mountain lodges, which are not connected directly to

the national grid.

1After installing the appliance, wait at least 1 hour

before connecting it to prevent damaging the

compressor.

2Connect the appliance via a correctly installed

socket.

The socket must comply with the following data:

Outside Europe: Check whether the indicated

current type of the appliance corresponds with the

values of your power supply. Appliance

specifications are on the rating plate.

3Connect the appliance to a socket near the

appliance.

The socket must also be freely accessible following

installation of the appliance.

mWarning – Risk of electric shock!

If the length of the mains cable is inadequate, never

use multiple sockets or extension leads.Instead,

please contact Customer Service for alternatives.

Socket with 220 V ... 240 V

Conductor 50 Hz

Fuse 10 A ... 16 A

Getting to know your appliance en

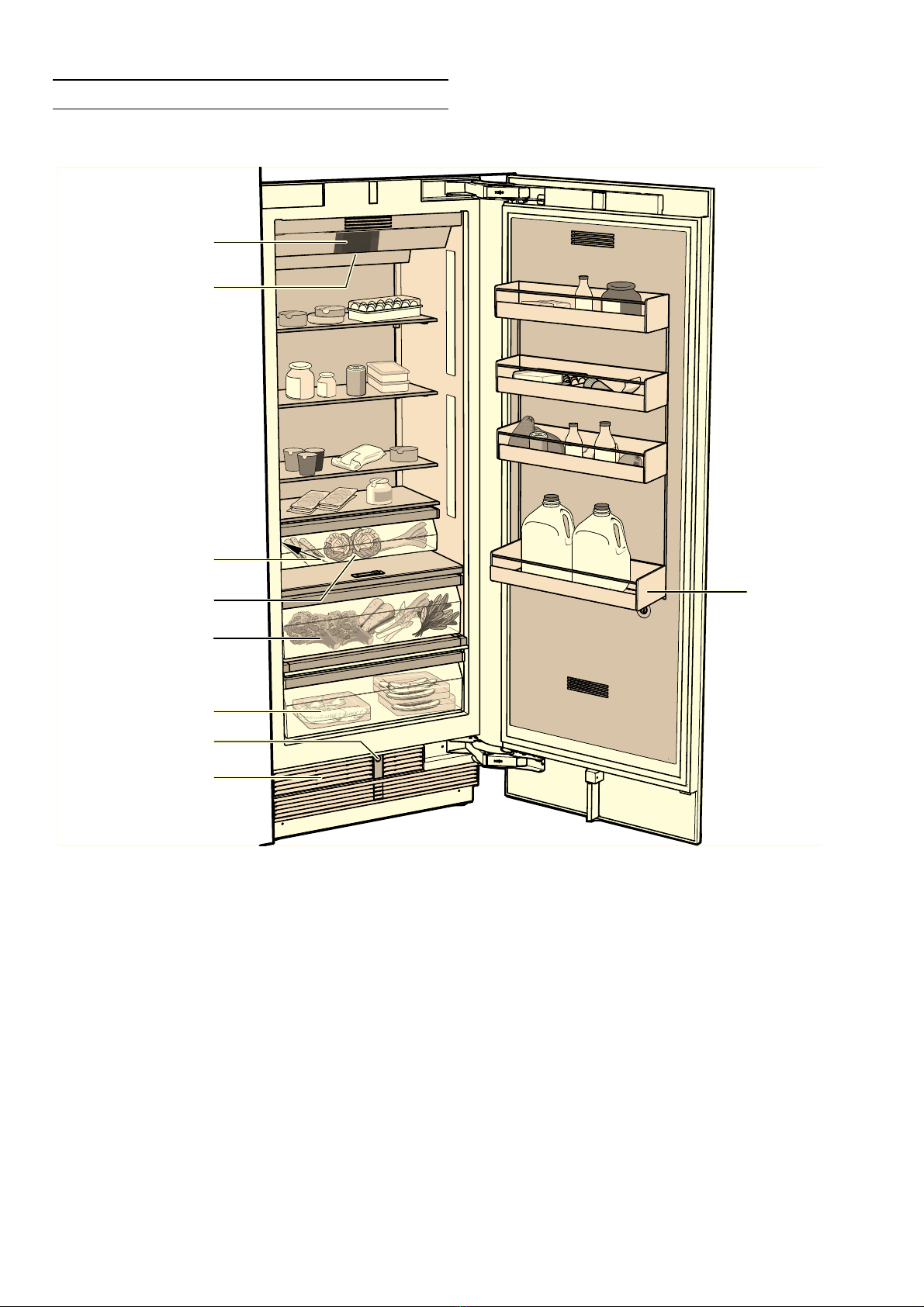

Getting to know your appliance

Gettingtoknowyour appliance

Appliance









+

;











(...HControls

PMain switch on/off

XRating plate

`Vegetable container

hVegetable container with humidity

control

)" Cool-fresh container

)* Automatic door opening

)2 Ventilation opening

): Tray for large bottles

en Getting to know your appliance

Controls

Main menu

Press àbutton to open the main menu.

In the main menu you can find:

▯Basic settings

▯Display lock for cleaning

▯Eco mode

▯Self-test

▯Rest mode (when active)

~"Operating the appliance" on page 12

Basic settings menu

To access the Basic settings menu:

1Press àbutton.

2Press Bbutton to move to the menu item Basic

settings.

3Open menu using ™button.

In the Basic settings menu you will find the following

sub-menus and setting options:

▯Brightness

▯Display screen

▯Touch field colour

▯Touch field tone type

▯Touch field tone volume

▯Volume signal tone

▯Dimming when door is opened and closed

▯Temperature unit

▯Language

▯Factory settings

▯Demo mode

▯Rest mode

▯Automatic door opening

▯Home network

▯Automatic display lock for cleaning

~"Operating the appliance" on page 12

(Touch fields

There are sensors under the touch fields.

Touching the symbol calls up the respective

function.

0Àbutton

Opens the menu for changing the

temperature and is used for selecting

compartments.

8Refrigerator compartment temperature

display

Indicates the set temperature in °C/°F.

@Cool-fresh compartment temperature

display

Indicates the set temperature in °C/°F.

Hàbutton

Opens main menu.

5









Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Gaggenau Kühlschrank Handbücher

Gaggenau

Gaggenau RF 461 Bedienungsanleitung

Gaggenau

Gaggenau RC462304 Bedienungsanleitung

Gaggenau

Gaggenau RC 462 Bedienungsanleitung

Gaggenau

Gaggenau RC4727 series Bedienungsanleitung

Gaggenau

Gaggenau RF 463200AU Bedienungsanleitung

Gaggenau

Gaggenau RY 491 Bedienungsanleitung

Gaggenau

Gaggenau RB 292 Bedienungsanleitung

Gaggenau

Gaggenau RT282 Bedienungsanleitung

Gaggenau

Gaggenau RY 492 Bedienungsanleitung

Gaggenau

Gaggenau RC 222 Bedienungsanleitung

Gaggenau

Gaggenau RF 461 Bedienungsanleitung

Gaggenau

Gaggenau RB 282 Bedienungsanleitung

Gaggenau

Gaggenau RY 492 Bedienungsanleitung

Gaggenau

Gaggenau RT 200 Bedienungsanleitung

Gaggenau

Gaggenau RB491200 - annexe 2 Bedienungsanleitung

Gaggenau

Gaggenau RT 280 Bedienungsanleitung

Gaggenau

Gaggenau RW 464 Bedienungsanleitung

Gaggenau

Gaggenau RC462305 Bedienungsanleitung

Gaggenau

Gaggenau RC 242 Bedienungsanleitung

Gaggenau

Gaggenau RC 28 Bedienungsanleitung

Gaggenau

Gaggenau PKK675T02E Bedienungsanleitung

Gaggenau

Gaggenau RC472705 Bedienungsanleitung

Gaggenau

Gaggenau RC 200 Bedienungsanleitung

Gaggenau

Gaggenau RY295350 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
