en Table of contents

User manual

(

Safety instructions 4

About these instructions 4

Risk of explosion 4

Risk of electric shock 4

Risk of cold burns 4

Risk of injury 4

Fire hazard/Danger due to refrigerants 5

Fire hazard 5

Avoiding placing children and vulnerable

people at risk 5

Damage to property 5

Weight 5

Intended use 6

Green living 6

Packaging 6

Old appliances 6

Installation and connection 7

Scope of supply 7

Technical specifications 7

Installing the appliance 7

Built-in cut-out 7

Side-by-side installation 7

Tips for saving energy 8

Before using the appliance for the first time 9

Water connection 9

Electrical connection 9

Getting to know your appliance 10

2-door appliance 10

3-door appliance 11

Controls 12

Features 12

Operating the appliance 15

Switching on the appliance 15

Switching off and disconnecting the appliance 15

Setting the temperature 15

Fast cooling 15

Fast freezing 16

Display lock for cleaning 16

Holiday mode 16

Switching ice cube production on or off 16

Eco mode 17

Reset water filter counter 17

Self-test 17

Setting the brightness of the control panel 17

Setting up the display screen 17

Setting the touch field colour 17

Setting the touch field tone type 18

Setting the touch field tone volume 18

Setting the signal tone volume 18

Switching the water filter counter on and off 18

Dimming when door is opened and closed 18

Setting the temperature unit 18

Setting the language 19

Resetting to factory settings 19

Switching demo mode on or off 19

Rest mode 19

Automatic door opening 20

Switching on or switching off condensation

protection 20

Home network 21

Automatic display lock for cleaning 21

Alarm 21

Door alarm 21

Temperature alarm 21

Home Connect 22

Setting up Home Connect 22

Connecting the refrigerator to the

Home Connect app 23

Installing updates for the Home Connect

software 23

Customer Service access 23

Delete network settings 23

Information on data protection 24

Declaration of Conformity 24

Refrigerator compartment 25

Note when storing food 25

Note the chill zones in the refrigerator

compartment 25

Vegetable container with humidity controller 25

Cold storage compartment 25

Freezer compartment 26

Maximum freezing capacity 26

Fully utilising the freezer volume 26

Purchasing frozen food 26

When loading products, please note: 26

Freezing fresh food 27

Defrosting frozen food 27

Cleaning 28

Cleaning the display 28

Cleaning the appliance interior 28

Cleaning the equipment 28

Care instructions for stainless steel surfaces 28

Odours 29

Changing the odour filter 29

Noises 30

Normal noises 30

Preventing noises 30

Lighting 30

What to do in the event of a fault 31

Appliance 31

Ice maker 32

Customer Service 33

Appliance self-test 33

Obtaining advice and ordering repairs if a

fault occurs 33

en Safety instructions

(

Safety instructions

Safetyinstructions

This appliance complies with the relevant

safety regulations for electrical appliances and

is fitted with noise suppression.

The refrigeration circuit has been checked for

leaks.

About these instructions

▯Read and follow the instructions for

installation and use.They contain important

information on how to install, use and

maintain the appliance.

▯The manufacturer is not liable if you

disregard the notifications and warnings in

the operating and installation instructions.

▯Retain all documents for subsequent use or

for the next owner.

Risk of explosion

▯Never use electric appliances inside the

appliance (e.g. heaters or electric ice

makers).

▯Do not store products which contain

flammable propellant (e.g. spray cans) or

explosive substances in the appliance.

▯Keep high-percentage alcohol tightly

sealed and store in an upright position.

▯Do not use additional means to accelerate

the defrosting process other than those

recommended by the manufacturer.

Risk of electric shock

Improper installations and repairs may put the

user at considerable risk.

▯When installing the appliance, ensure that

the mains cable is not trapped or damaged.

▯If the mains cable is damaged: immediately

disconnect the appliance from the

electricity supply.

▯Do not use multi-outlet power strips,

extension leads or adapters.

▯Have the appliance repaired by the

manufacturer, Customer Service or a

similarly qualified person only.

▯Use original parts supplied by the

manufacturer only.

The manufacturer guarantees that these

parts satisfy the safety requirements.

Risk of cold burns

▯Never put frozen food straight from the

freezer compartment into your mouth.

▯Avoid prolonged contact between your skin

and frozen food, ice or the tubes in the

freezer compartment.

Risk of injury

Containers which contain carbonated

beverages may burst.

Do not store containers which contain

carbonated beverages in the freezer

compartment.

Safety instructions en

Fire hazard/Danger due to refrigerants

The tubes of the refrigeration circuit

convey a small quantity of an environmentally

friendly but flammable refrigerant (R600a). It

does not damage the ozone layer and does not

contribute to the greenhouse effect. If

refrigerant escapes, it may injure your eyes or

ignite.

▯Do not damage the tubes.

If the tubes are damaged:

▯Keep naked flames and ignition sources

away from the appliance.

▯Ventilate the room.

▯Switch off the appliance and pull out the

mains plug.

▯Please contact Customer Service.

Fire hazard

Portable multi-outlet power strips or

power supplies may overheat, causing a fire.

Never leave portable multi-outlet power strips

or portable power supplies behind the

appliance.

Avoiding placing children and vulnerable

people at risk

At risk here are:

▯Children,

▯People with limited physical, mental or

sensory abilities,

▯People who have inadequate knowledge

concerning safe operation of the appliance.

Measures:

▯Ensure that children and vulnerable people

have understood the hazards.

▯A person responsible for safety must

supervise or instruct children and

vulnerable people who are using the

appliance.

▯Only children aged 8 years and above may

use the appliance.

▯Supervise children who are cleaning and

maintaining the appliance.

▯Never allow children to play with the

appliance.

Risk of suffocation

▯If the appliance features a lock: keep the

key out of the reach of children.

▯Keep children away from the packaging

and its parts.

Damage to property

To prevent damage to property:

▯Do not stand or support yourself on the

base, runners or doors.

▯Keep plastic parts and door seals free of oil

and grease.

▯Pull on the mains plug – not the power

cord.

Weight

The appliance is very heavy. The appliance

should always be transported and set up by at

least 2 persons.

~"Installation and connection" on page 7

en Intended use

Intended use

Intendeduse

Use this appliance

▯Only for the cooling and freezing of food and for

making ice.

▯Only in the home and in the home environment.

▯Only according to this user manual.

This appliance is intended for use up to a maximum

height of 2000 metres above sea level.

Green living

Greenliving

Packaging

All materials are environmentally safe and recyclable:

▯Dispose of packaging in an environmentally friendly

manner.

▯Please ask your dealer or inquire at your local

authority about current means of disposal.

Old appliances

Valuable raw materials can be reclaimed by recycling

old appliances.

mWarning – Children may become locked in the

appliance and suffocate!

▯Leave shelves and containers in the appliance to prevent

children from climbing in.

▯Keep children away from the redundant appliance.

Caution!

Refrigerant and harmful gases may escape.

Do not damage the tubes of the refrigerant circuit or the

insulation.

1Pull out the mains plug.

2Cut through the power cable.

3Have the appliance disposed of properly.

This appliance is labelled in accordance with

European Directive 2012/19/EU on waste

electrical and electronic equipment (WEEE).

This Directive provides an EU-wide framework for

returning and recycling old appliances.



Installation and connection en

Installation and connection

Installati onandconnection

Scope of supply

After unpacking all parts, check for any damage in

transit.

If you have any complaints, contact the dealer from

whom you purchased the appliance or our Customer

Service.

~"Customer Service" on page 33

The delivery consists of the following parts:

▯Built-in appliance

▯Interior fittings (depending on model)

▯Installation material

▯User manual

▯Installation instructions

▯Customer service booklet

▯Warranty enclosure

▯Information on the energy consumption and noises

Technical specifications

Refrigerant, cubic capacity and further technical

specifications can be found on the rating plate.

~"Getting to know your appliance" on page 10

Installing the appliance

Installation location

The more refrigerant an appliance contains, the larger

the room in which the appliance is situated must be. In

rooms which are too small, leaking refrigerant can form

a flammable gas-air mixture.

At least 1 m³ of room space is required per 8 g of

refrigerant. The amount of refrigerant in your appliance

is indicated on the rating plate inside the appliance.

~"Getting to know your appliance" on page 10

The weight of the appliance may be up to 460 kg

depending on the model. The base must be sufficiently

stable, and should not give. If necessary, reinforce the

floor.

Permitted room temperature

The permitted room temperature depends on the climate

class of the appliance.

Information on the climate class can be found on the

rating plate.

~"Getting to know your appliance" on page 10

The appliance is fully functional within the permitted

room temperature.

If an appliance with climate class SN is operated at

colder room temperatures, the appliance will not be

damaged up to a room temperature of +5°C.

Built-in cut-out

The cut-out must fulfil these criteria:

▯Anti-tilt bracket fitted

▯Cut-out depth min. 610 mm, for flush installation

635 mm

▯Rectangular

▯Sturdy – the side panels and the top must be min.

16 mm thick and securely attached to the floor or

wall

▯Depth of shortened side panels: min. 100 mm

Side-by-side installation

Observe the specifications in the installation

instructions for a side-by-side installation.

If a partition wall is required between the appliances, it

must be at least 16 mm wide.

Climate class Permitted room temperature

SN +10°C ... 32°C

N+16°C ... 32°C

ST +16°C ... 38°C

T+16°C ... 43°C

en Installation and connection

Tips for saving energy

If you follow the instructions below, your appliance will use less power.

Note: The arrangement of the features does not affect the energy consumption of the appliance.

--------

Installing the appliance

Keep the appliance out of direct sunlight. The appliance needs to cool less frequently at low ambient

temperatures and therefore consumes less power.

Install the appliance as far away as possible from heating ele-

ments, cookers and other heat sources:

At least 1¼" (3 cm) from electric or gas cookers.

At least 11¾" (30 cm) from oil or solid-fuel cookers.

Select an installation location with a room temperature of

approx. 20°C.

Do not cover or block the ventilation openings. If the warm air can escape, the appliance needs to cool less

frequently and therefore consumes less power.

Ventilate the room daily.

Using the appliance

Open the appliance door only briefly. The air in the appliance will not warm up as much. The appli-

ance will need to cool less frequently, and therefore consume

less power.

Transport purchased food in a cool bag and place in the

appliance quickly.

Allow warm food and beverages to cool down before placing

in the appliance.

Defrost frozen food in the refrigerator compartment to utilise

the low temperature of the frozen food.

Always leave a space between the food and the back wall. The air can then circulate and the humidity will remain con-

stant.The appliance will need to cool less frequently, and

therefore consume less power.

Pack food airtight.

Do not cover or block the ventilation openings. The appliance consumes less power if warm air can escape.

Vacuum the ventilation openings once a year.

Installation and connection en

Before using the appliance for the

first time

1Remove information material, adhesive tape and

protective film.

2Clean the appliance.

~"Cleaning" on page 28

Water connection

Caution!

– Installation and connection of the appliance must

be carried out by qualified technicians according to

the installation instructions supplied.

– To avoid damage to the appliance and to ensure its

proper functioning, it should only be connected to a

drinking water system.

– To avoid water damage, a shut-off valve must be

installed.

Water pressure of drinking water system

Caution!

If the water pressure exceeds the maximum value, a

pressure relief valve must be installed between the

drinking water connection and the hose set to avoid

damage to the appliance.

Note: If the water pressure is too low, this will impair

the appliance functions.

▯Min. 0.2 Mpa (2 bar/29 psi)

▯Max. 0.8 Mpa (8 bar/116 psi)

Electrical connection

Caution!

Do not connect the appliance to electronic energy saver

plugs.

Note: The power source used by the appliance must not

be a roof solar power generation or electricity

conservation system.

Please connect the appliance to Taipower´s power

network.

1After installing the appliance, wait at least 1 hour

before connecting it to avoid damaging the

compressor.

2Connect the appliance via a correctly installed

socket.

The socket must comply with the following data:

Outside Europe: Check whether the indicated

current type of the appliance corresponds with the

values of your power supply. Appliance

specifications are on the rating plate.

~"Getting to know your appliance" on page 10

3Connect the appliance to a socket near the

appliance.

The socket must also be freely accessible after

installation of the appliance.

mWarning – Risk of electric shock!

If the length of the mains cable is insufficient, do

NOT use multi-outlet power strips or extension

leads.Instead, please contact Customer Service for

alternative solutions.

Socket with 220 V ... 240 V

Conductor 60 Hz

Fuse 10 A ... 16 A

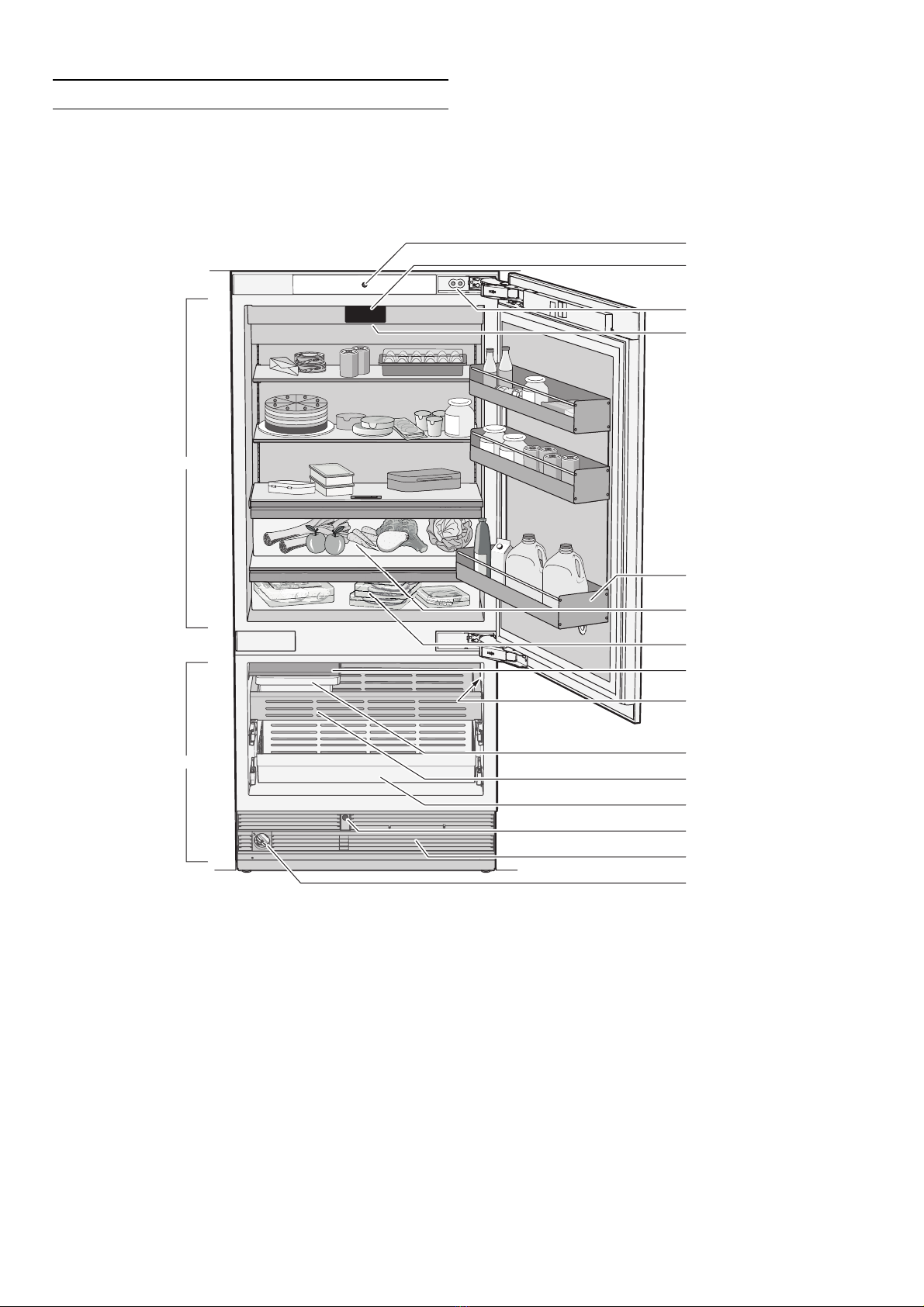

en Getting to know your appliance

Getting to know your appliance

Gettingtoknowyour appliance

2-door appliance

...

(

#Refrigerator compartment

+Freezer compartment

(Automatic door opening refrigerator

compartment

0...PControls

XDoor damper

`Main switch on/off

hShelf for large bottles

)" Vegetable container with humidity

controller

)* Chiller compartment

)2 Ice maker

): Rating plate

)A Ice cube container

)J Frozen food container

)R Frozen food container (large)

)Z Automatic door opening freezer

compartment

)b Ventilation opening

)j Water filter

Inhaltsverzeichnis

Andere Gaggenau Kühlschrank Handbücher

Gaggenau

Gaggenau RB472301 Bedienungsanleitung

Gaggenau

Gaggenau RB 472 Bedienungsanleitung

Gaggenau

Gaggenau RC202 Technisches Datenblatt

Gaggenau

Gaggenau RB472705 Bedienungsanleitung

Gaggenau

Gaggenau RC 472 Bedienungsanleitung

Gaggenau

Gaggenau RT202 Technisches Datenblatt

Gaggenau

Gaggenau RW4.4 Bedienungsanleitung

Gaggenau

Gaggenau Vario RC289370 Technisches Datenblatt

Gaggenau

Gaggenau RB 491 Bedienungsanleitung

Gaggenau

Gaggenau RC 462 Bedienungsanleitung

Gaggenau

Gaggenau RC 220 Bedienungsanleitung

Gaggenau

Gaggenau RC472200 Bedienungsanleitung

Gaggenau

Gaggenau RC 200 Bedienungsanleitung

Gaggenau

Gaggenau RB491200 - annexe 2 Bedienungsanleitung

Gaggenau

Gaggenau RY 492 Bedienungsanleitung

Gaggenau

Gaggenau RC4727 series Bedienungsanleitung

Gaggenau

Gaggenau RB 282 Bedienungsanleitung

Gaggenau

Gaggenau RF471200 Bedienungsanleitung

Gaggenau

Gaggenau RT 280 Bedienungsanleitung

Gaggenau

Gaggenau RC472504 Bedienungsanleitung

Gaggenau

Gaggenau RF 463-201 Bedienungsanleitung

Gaggenau

Gaggenau RB 472 Bedienungsanleitung

Gaggenau

Gaggenau RB 472 Bedienungsanleitung

Gaggenau

Gaggenau RW 464 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
