Ganz ZN-MD2xx Series Gebrauchsanweisung

Quick User Guide ZN-MD2xx Series Network Camera

Ver1.00 EN

Warning before installation

-Power off the Network camera if it is found to be smoking or smells unusual.

-Keep the Network camera away from water. If the Network camera gets wet, power

off immediately.

-Do not place the Network camera near heat sources, such as a television or oven.

-Refer to your instruction manual for the operating temperature.

-Keep the Network camera away from direct sunlight.

-Do not place the Network camera in high humidity environments.

-Do not place the Network camera on unsteady surfaces.

-Do not touch the Network camera when there is lightning present.

-Do not disassemble the Network camera.

-Do not drop the Network camera.

-Do not insert any object into the Network camera, such as a screwdriver.

For other safety and regulation information, please refer to “User’s manual”.

1. Check Contents

No. Item Description

1 Network Camera ZN-MD2xx Series

2 Software CD User’s Manual, Utility software

3 Quick User Guide This document

4 Accessories Silica-gel

Templates for installation

Video monitor cable

Focus adjust ring

Anti reflect rubber

Tapping Screw M4x30 : 3pcs

Anchor : 3pcs

Screw M4x8 : 4pcs

Surface Mount Bracket

L-Wrench (T20)

2. Physical Description

Quick User Guide ZN-MD2xx Series Network Camera

Ver1.00 EN

1. Control Button

-Change Video output format NTSC/PAL. (toggle)

-Factory Default (Keep hold more than 10 seconds)

2. Network LED

3. Status LED

4. Reset Button

5. Video output for service monitor

6. Lock nut

7. Focus adjustment

8. Network (RJ-45 PoE required)

3. Making Connection

Connect Ethernet cable to make a connection to the POE HUB.

The camera support POE only.

4. Assign IP address

The default setting of the camera is set to “DHCP” and “UPnP” function is

set to ON. If you have a DHCP server on your network and UPnP function is

enabled on your PC you can find the network camera in “My network”.

If a DHCP server is not available on your network, please assign IP address

by the following process.

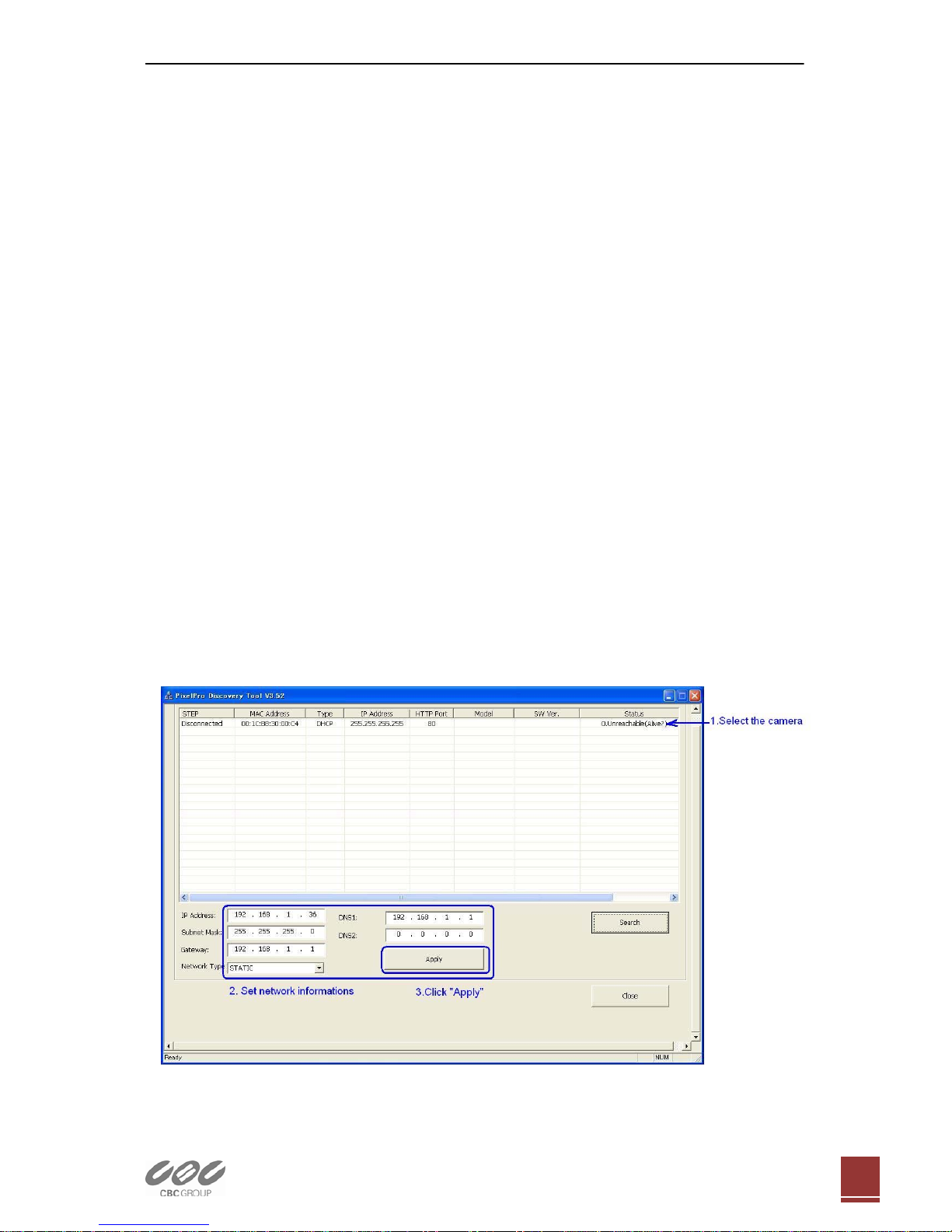

Execute PixelPro_Discovery_Tool.exe. It will search cameras on the network

automatically.

1) After the camera is listed in camera list, select the camera.

2) Type in the all network information.

3) Click “Apply” button

Then double click the camera in the list, Internet explorer will open

automatically.

3. Connect power cable to the camera.

When you use PoE function, you don’t

need to connect power.

Quick User Guide ZN-MD2xx Series Network Camera

Ver1.00 EN

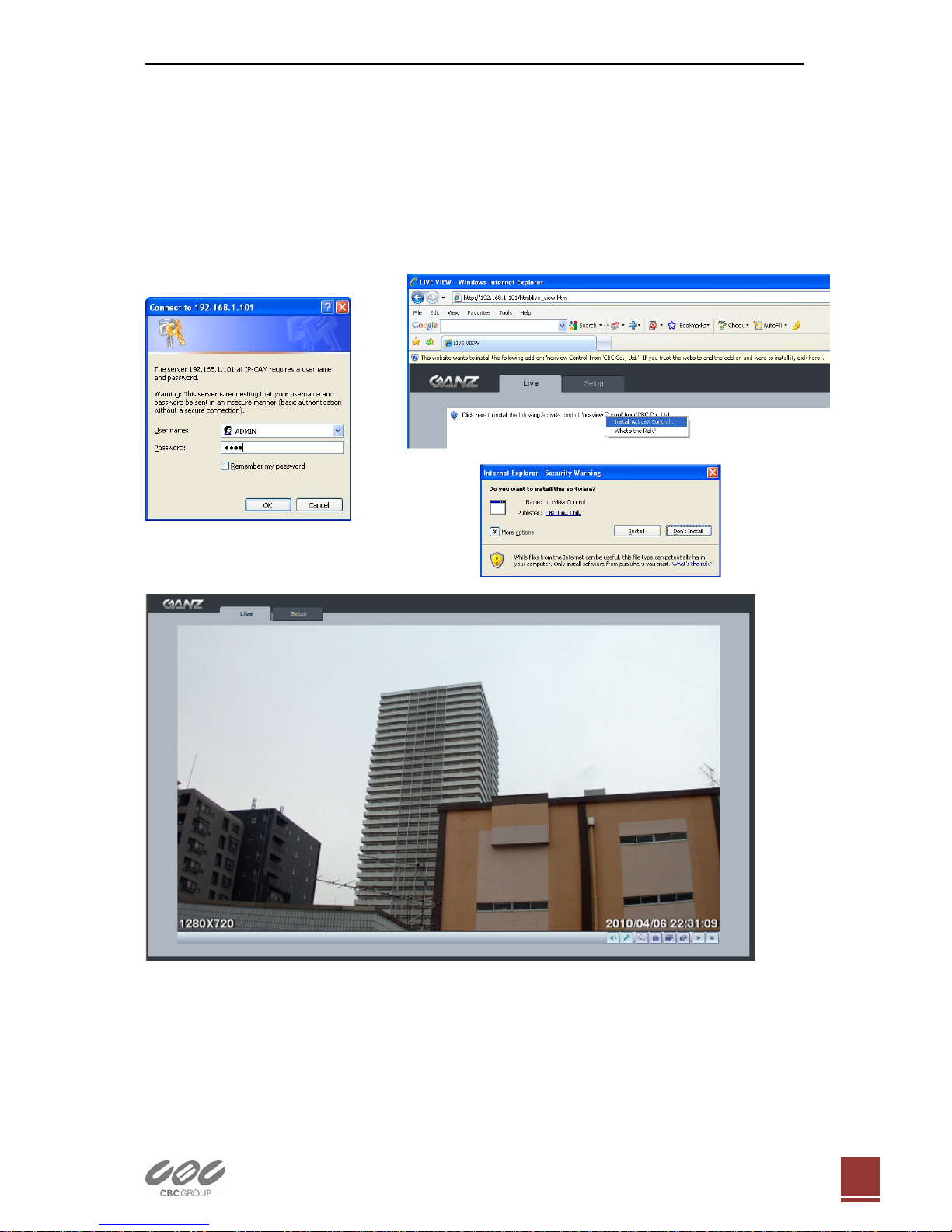

5. Web browser connection

Note : The Network camera supports Internet Explorer 7 or above.

Please check version of your browser and update it if necessary.

When you first access the camera you need to download and install an

Active X control from the camera to display a Live View image.

Default User and Password are set to “ADMIN” and “1234”. Please type in

the user ID and password to connect the network camera.

Note: By Default the cameras come with “Installation Mode” set to “ON” to

enable Analog output. You must turn installation mode off to use 720p

or 1080p streaming.

For further information for setup, please refer to User’s manual

in software CD.
