Garmin ETrex Summit - Hiking GPS Receiver Bedienungsanleitung

owner’s

manual

and

reference

guide

eTrex Summit

personal navigator

GARMIN International, Inc.

1200 East 151st Street, Olathe, Kansas 66062, U.S.A.

GARMIN (Europe) Ltd.

Unit 5, The Quadrangle, Abbey Park Industrial Estate, Romsey, SO51 9AQ, U.K.

GARMIN Corporation

No. 68, Jangshu 2nd Road., Shijr, Taipei County, Taiwan

www.garmin.com

Part Number 190-00193-00 Rev. D

Covers.indd 02/01/01, 12:26 PM1

GARMIN International, Inc.

1200 East 151st Street, Olathe, Kansas 66062 U.S.A.

Tel. 913/397.8200

Fax 913/397.8282

GARMIN (Europe) Ltd.

Unit 5, The Quadrangle, Abbey Park Industrial Estate, Romsey, SO51 9AQ, U.K.

Tel. 44/1794.519944

Fax 44/1794.519222

GARMIN Corporation

No. 68, Jangshu 2nd Road., Shijr, Taipei County, Taiwan

Tel. 886/2.2642.8999

Fax 886/2.2642.9099

may be reproduced, copied, transmitted, disseminated, downloaded or stored in

any storage medium, for any purpose without prior written consent of GARMIN

Corporation. GARMIN Corporation hereby grants permission to download a single

copy of this manual onto a hard drive or other electronic storage medium to be

viewed for personal use, provided that such electronic or printed copy of this

manual contains the complete text of this copyright notice and provided further that

any unauthorized commercial distribution of this manual is strictly prohibited.

Information in this manual is subject to change without notice. GARMIN

Corporation reserves the right to change or improve its products and to make

changes in the content without obligation to notify any person or organization of

such changes. Visit the GARMIN website for current updates and supplemental

information concerning the use and operation of this and other GARMIN products.

Website address: www.garmin.com

GARMIN is a registered trademark and eTrex is a trademark of GARMIN Corpora-

tion and may not be used without the express permission of GARMIN Corporation.

February 2001 Part Number 190-00193-00 Rev. DPrinted in Taiwan

Covers.indd 02/01/01, 12:26 PM2

Introduction

eTrex Summit Registration

Help us better support you by completing your

on-line registration today!

Why should you register your eTrex Summit?

• Notiﬁcation of Product Updates

• Notiﬁcation of New Products

• Lost or Stolen unit tracking

Connect to our website (www.garmin.com) and look

for the Product Registration link on the home page.

Thanks for choosing the GARMIN eTrex Summit. If

you have any questions or comments regarding the use

of the eTrex Summit you can visit our website or contact

our Customer Service Department M-F, 8:00-5:00 CST

(except holidays) at 1-800-800-1020.

If you have previously registered your GARMIN

product purchase using a mail-in registration

card, we invite you to reregister using our

NEW on-line system. Many services provided

by our new product registration system are

now being automated and reregistering your

purchase ensures you the best possible support

from GARMIN.

Registration

POWER

190-00193-00_0D.indd 02/12/01, 10:07 AM1

Introduction

Registration.......................................................................... 1

Warnings and Cautions........................................................ 3

FCC Statement..................................................................... 4

Features ............................................................................... 5

Buttons ................................................................................ 6

Description .......................................................................... 7

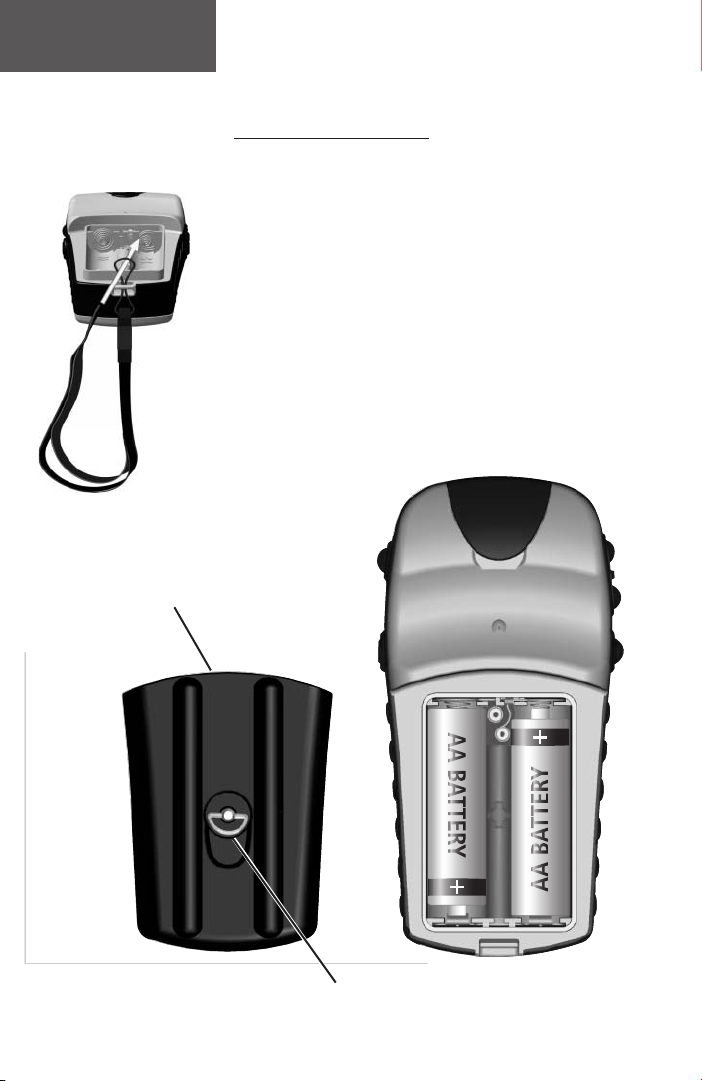

Installing the Batteries.......................................................... 8

Getting Started

Calibrating the Electronic Compass .................................... 10

SkyView Page Basics ........................................................... 11

Map Page Basics.................................................................. 12

Pointer Page Basics ............................................................. 13

Elevation Page Basics .......................................................... 14

Menu Page Basics................................................................ 15

Creating a Waypoint ...................................................... 16-17

Heading in the Right Direction .......................................... 18

Cancelling a GOTO ............................................................ 19

Reference Section

SkyView Page Options................................................... 20-21

Map Page Options .............................................................. 22

Pointer Page Options ..................................................... 23-25

Elevation Page .............................................................. 26-29

Mark Waypoint Page...................................................... 30-31

Waypoint Page.................................................................... 32

Review Waypoint Page................................................... 33-34

Routes ........................................................................... 35-37

Tracks............................................................................ 38-40

Calibration..................................................................... 41-43

Setup Page ..................................................................... 43-44

Display Page ....................................................................... 45

Units Page ..................................................................... 45-48

Heading Page................................................................. 50-52

System Page................................................................... 53-55

Appendicies

Appendix A — Speciﬁcations ............................................. 56

Appendix B — What is GPS?......................................... 57-58

Appendix C — Reciption Tips ............................................ 59

Appendix D — Time Offset Chart....................................... 60

Appendix E — Accessories ................................................. 61

Appendix F — Wiring Diagram.......................................... 62

Appendix G — Troubleshooting ......................................... 63

Appendix H — FAQ’s .................................................... 64-65

Appendix I — Index...................................................... 66-69

Warranty ............................................................................ 70

Table of

Contents

190-00193-00_0D.indd 02/12/01, 10:07 AM2

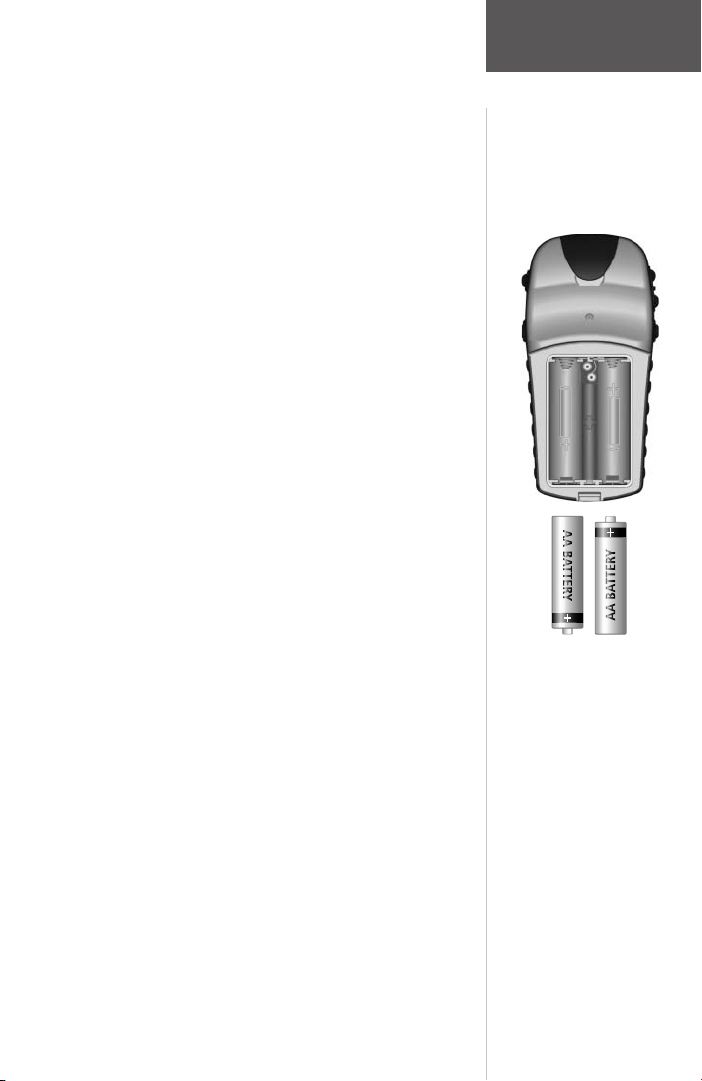

Remove the batteries from your

eTrex Summit if you don’t expect to

use it for several months. Be sure

to observe the proper polarity when

inserting the batteries. Follow the

battery manufacturer’s instructions

on the proper care and handling of

the batteries.

WARNING: If you choose to use the eTrex Summit

in a vehicle, it is the sole responsibility of the owner/

operator of the eTrex Summit to secure the GPS unit so

that it will not cause damage or personal injury in the

event of an accident. Do not mount the eTrex Summit

over airbag panels or in a place where the driver or pas-

sengers are likely to have an impact with it in an accident

or collision.

WARNING: If you choose to use the eTrex Summit in

a vehicle, it is the sole responsibility of the operator of the

vehicle to operate the vehicle in a safe manner, maintain

full surveillance of all driving conditions at all times,

and never become distracted by the eTrex Summit to the

exclusion of safe operating practices. It is unsafe to oper-

ate the eTrex Summit while you are driving. Failure by

the operator of a vehicle equipped with an eTrex Summit

to pay full attention to operating the vehicle and road

conditions while the vehicle is in motion could result

in an accident or collision with property damage and

personal injury.

CAUTION: IT IS THE USER’S RESPONSIBILITY TO

USE THIS PRODUCT PRUDENTLY. THIS PRODUCT IS

INTENDED TO BE USED ONLY AS A TRAVEL AID AND

MUST NOT BE USED FOR ANY PURPOSE REQUIRING

PRECISE MEASUREMENT OF DIRECTION, DISTANCE,

LOCATION, OR TOPOGRAPHY.

CAUTION: The Global Positioning System (GPS) is

operated by the government of the United States, which is

solely responsible for its accuracy and maintenance. The

system is subject to changes which could affect the accu-

racy and performance of all GPS equipment. Although the

eTrex Summit is a precision electronic NAVigation AID

(NAVAID), any NAVAID can be misused or misinterpreted

and, therefore, become unsafe.

Warnings and

Cautions

Introduction

190-00193-00_0D.indd 02/12/01, 10:07 AM3

Introduction

The eTrex Summit complies with Part 15 of the FCC

limits for Class B digital devices. This equipment gener-

ates, uses, and can radiate radio frequency energy and, if

not installed or used in accordance with the instructions

may cause harmful interference to radio communications.

There is no guarantee that interference will not

occur in a particular instance. If this equipment does

cause harmful interference to other equipment, try to

correct the problem by relocating the equipment.

Consult an authorized GARMIN dealer or other

qualiﬁed service technician if the problem cannot be cor-

rected. Operation is subject to the following conditions:

(1) This device cannot cause harmful interference, and (2)

this device must accept any interference received, includ-

ing interference that may cause undesired operation.

The eTrex Summit does not contain any user-

serviceable parts. Repairs should be made only by an

authorized GARMIN service center. Unauthorized repairs

can void the warranty.

FCC Compliance

Statement

190-00193-00_0D.indd 02/12/01, 10:07 AM4

Introduction

The eTrex Summit is a six ounce, 12 channel, hand

held GPS receiver. It has a built-in GPS antenna and only

ﬁve user-Buttons. All Buttons are located on either side of

the unit, allowing for simple, one-handed operation that

won’t obstruct your view of the display. It runs for up to

22 hours on two AA batteries in battery save mode.

The eTrex Summit contains a full function GPS, elec-

tronic compass and barometric altimeter. The eTrex

Summit will track barometric pressure and altitude

changes, providing data never before available in such

a small package. Using the built in compass, the eTrex

Summit will provide you with a reliable heading even

while standing still. When moving, the eTrex Summit

will provide you with more data, including speed, direc-

tion of movement, time, distance to destination, and

more.

From these basic features, your eTrex Summit can

provide one more critical beneﬁt; peace of mind, because,

with the combination of these technologies you’ll know

where you are, where you’ve been and where you’re

going. And since you’ll always know the way back home,

you can concentrate on what you set out to do and enjoy

the great outdoors.

Other features include:

Waypoints:

500 with name and graphic symbol.

Tracks:

Automatic track log; 10 saved tracks.

Routes:

20 Routes that let you navigate through a set

of 50 waypoints.

Trip Computer:

Current speed, average speed, maxi-

mum speed, bearing, elevation, location, time of sunrise/

sunset, trip timer and trip odometer.

Elevation Computer:

Total ascent, total descent,

average ascent, average descent, maximum ascent,

maximum descent, vertical speed, pressure, 12 hour

pressure trend, maximum elevation, and minimum ele-

vation.

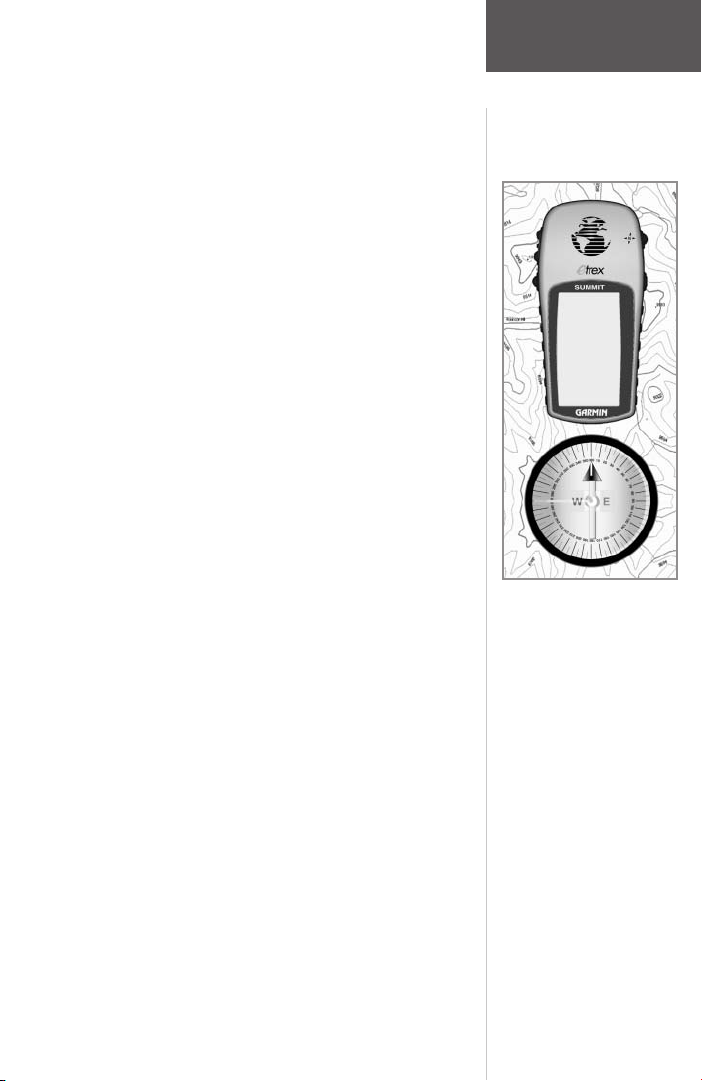

NOTE: You should always

be prepared and capable of

navigating without the eTrex

Summit. It is designed to aug-

ment other forms of basic nav-

igation, not entirely replace

them.

Features

190-00193-00_0D.indd 02/12/01, 10:07 AM5

Introduction

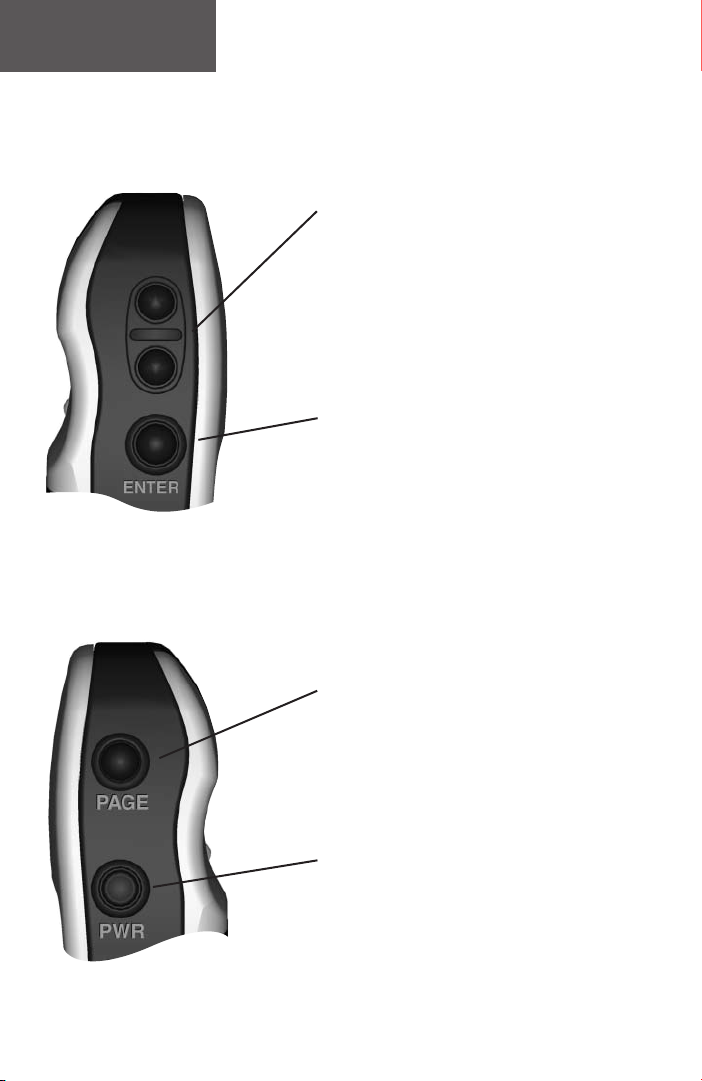

The UP/DOWN Button:

• Select options on pages and menus

• Adjusts Contrast on SkyView Page

• Zoom in and out on Map Page

• Cycles through trip computer data

• Cycles through elevation computer data

The ENTER Button:

• Conﬁrms data entry or menu selections

• Displays Options on main pages

• Pressing and holding the ENTER Button

activates the ‘Mark Waypoint’ page

The PAGE Button:

• Switches display pages.

• Allows you to quit a function.

• Pressing and holding the PAGE Button

will turn on the Electronic Compass and

display the Pointer Page.

The POWER Button:

• Turns the unit on and off

• Turns the display backlight on and off

eTrex Summit

Buttons

190-00193-00_0D.indd 02/12/01, 10:07 AM6

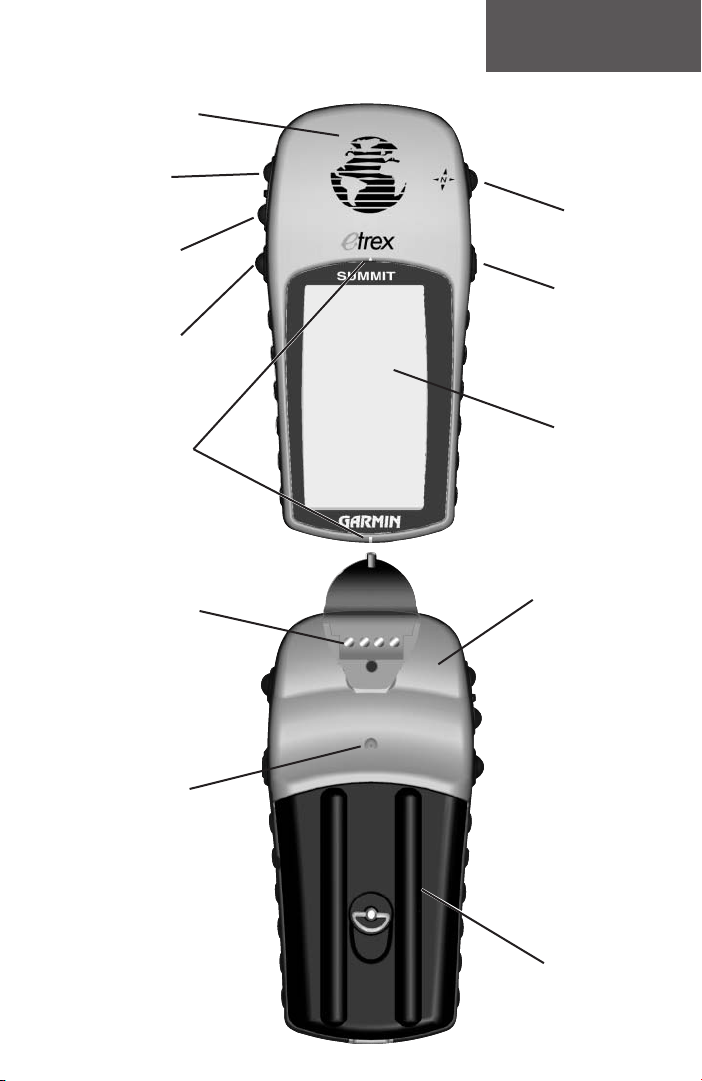

Introduction

External Power

and

Data Connector

DOWN

Button

ENTER

Button

Internal

GPS Antenna

LCD Display

(with backlight)

POWER

Button

PAGE

Button

Battery

Compartment

Waterproof Case

Barometric

Pressure

Sensor

Compass

Sighting

Marks

eTrex Summit

Description

190-00193-00_0D.indd 02/12/01, 10:07 AM7

Introduction

Installing the Batteries

The eTrex Summit operates on two AA batteries (not

included), which are installed at the back of the unit.

To install the batteries, remove the battery cover by turn-

ing the D-ring at the back of the unit 1/4 turn counter-

clockwise. Insert the batteries observing proper polarity.

Attach the battery cover by turning the D-ring 1/4 turn

clockwise. The two AA batteries can last up to 16 hours

during typical use.

D-ring

Battery Cover

Battery

Installation

Lanyard Installation

190-00193-00_0D.indd 02/12/01, 10:08 AM8

Andere Handbücher für eTrex Summit - Hiking GPS Receiver

Inhaltsverzeichnis

Andere Garmin GPS Handbücher

Garmin

Garmin TREAD OVERLAND EDITION Bedienungsanleitung

Garmin

Garmin GPS 25 LP Handbuch

Garmin

Garmin Montana 650 Bedienungsanleitung

Garmin

Garmin nüvi 1250 Gebrauchsanweisung

Garmin

Garmin Quest Bedienungsanleitung

Garmin

Garmin GPSMAP 12X3 Bedienungsanleitung

Garmin

Garmin NUVI 2300 series Gebrauchsanweisung

Garmin

Garmin Astro 320 Bedienungsanleitung

Garmin

Garmin aera 1900111700 Bedienungsanleitung

Garmin

Garmin GTM 10 Bedienungsanleitung

Garmin

Garmin GPSMAP 17 Bedienungsanleitung

Garmin

Garmin GPSMAP 1000 Series Bedienungsanleitung

Garmin

Garmin Oregon 300 Bedienungsanleitung

Garmin

Garmin 61LMT-S Bedienungsanleitung

Garmin

Garmin STRIKER Series Bedienungsanleitung

Garmin

Garmin eTrex - Hiking GPS Receiver Bedienungsanleitung

Garmin

Garmin GPS 19x NMEA 0183 Bedienungsanleitung

Garmin

Garmin GPSMAP 696 Bedienungsanleitung

Garmin

Garmin GPSMAP 76C Bedienungsanleitung

Garmin

Garmin GDU 370 Bedienungsanleitung

Garmin

Garmin 101 Bedienungsanleitung

Garmin

Garmin GMA 35 Bedienungsanleitung

Garmin

Garmin Montana 650 Bedienungsanleitung

Garmin

Garmin GPS 10x Bedienungsanleitung

Beliebte GPS Handbücher anderer Marken

Raven

Raven Cruizer II Handbuch

Hama

Hama 53118 Bedienungsanleitung

Jigabot

Jigabot EX Bedienungsanleitung

Pointer

Pointer Cellocator CelloTrack XT LTE Installationsanleitung

Queclink

Queclink GV55LITE Bedienungsanleitung

Voxson

Voxson Voxtrack GPS500 Gebrauchsanweisung

Starcom Systems

Starcom Systems Kylos Compact Bedienungsanleitung

Cobra

Cobra Marine MC 600Ci Bedienungsanleitung

Cellocator

Cellocator CelloTrack T Bedienungsanleitung

Enfora

Enfora Mini-MT GSM2228UG001 Bedienungsanleitung

Magellan

Magellan eXplorist 100 Bedienungsanleitung

LTE

LTE G50B Bedienungsanleitung

SkyGolf

SkyGolf SkyCaddie SG1 Bedienungsanleitung

Kenwood

Kenwood DNN9330BT Bedienungsanleitung

Safelet

Safelet Indra Bedienungsanleitung

Bushnell

Bushnell 360100 Bedienungsanleitung

Geneq

Geneq SXBlue Bedienungsanleitung

ORIGO

ORIGO ED308 Bedienungsanleitung

Garmin eTrex Summit - Hiking GPS Receiver Bedienungsanleitung

Beliebte GPS Handbücher anderer Marken
