GATE ARMS+ FOLDARM90 Bedienungsanleitung

FOLDARM90

INSTALLATION

MANUAL

IMPORTANT SAFETY INFORMATION

IMPORTANT

Please read all instructions and safety information prior to

attempting installation.

Always disconnect 110V and 12V power from gate operator

equipment prior to touching any wiring or installing anything.

Serious injury could occur if power is not disconnected prior to

installation.

BE HIGHLY CAUTIOUS OF OVERHEAD POWER LINES

Ask for assistance from another person to install gate arms.

Removal and replacement of the gate arm pole is much

simpler with two people.

Always use appropriate PPE during installation including safety

glasses, gloves and hearing protection as needed.

Install as directed. GateArms+ LED Barrier Arms and LED

Controllers are intended for use as described herein and by

the product literature available for download at

www.GateArms.com

Any misuse, alteration, or modification of GateArms+ branded

products beyond what is described in the available product

literature will void all warranties.

UNBOX-GET ORGANIZED

Tools Needed (not included):

•

Power Drill

•

Drill Bit 1/2

•

Drill Bit 3/8

•

Drill Bit 1/8

•

Center Punch

•

Hammer

•

Level

•

Socket Set

•

Wrenches

•

Acetone

•

100% Silicone Glue

•

Rubber Bands

•

Pencil / Sharpie

NOTE: First time installations will require one {INSTKIT-GATE} with

LED Controller,

(sold separately).

LED Strip/

Folding [1]

Retainer Clips [4]

Items included in the box:

REPLACE ITEMS PIC

(6)

PART NO. INSTKIT-GATE

See our complete line of LED Safety Light Systems at www.GateArms.com

INSTALL OFFSET PLATE TO OPERATOR HOUSING

2.1 Measure 3” down from center

of motor shaft. Mark

measurement for Hole 1

(mandatory).

For right-side installation:

Align top right hole of

Offset Plate with Hole 1

For left-side installation:

Align top left hole of

Offset Plate with Hole 1.

2.2 Measure 3” down from the

center of Hole 1 and mark the

measurement for Hole 2.

2.3 Measure 2” left of the center

of Hole 2 and mark the

location for Hole 3 (optional,

may not be necessary unless

using a very long gate arm.)

Hole 1

Hole 3

Hole 2

Right-side

installation

shown here

2.4 Drill

½”

holes into the operator on marked locations, being

careful not to damage anything on the inside of the operator.

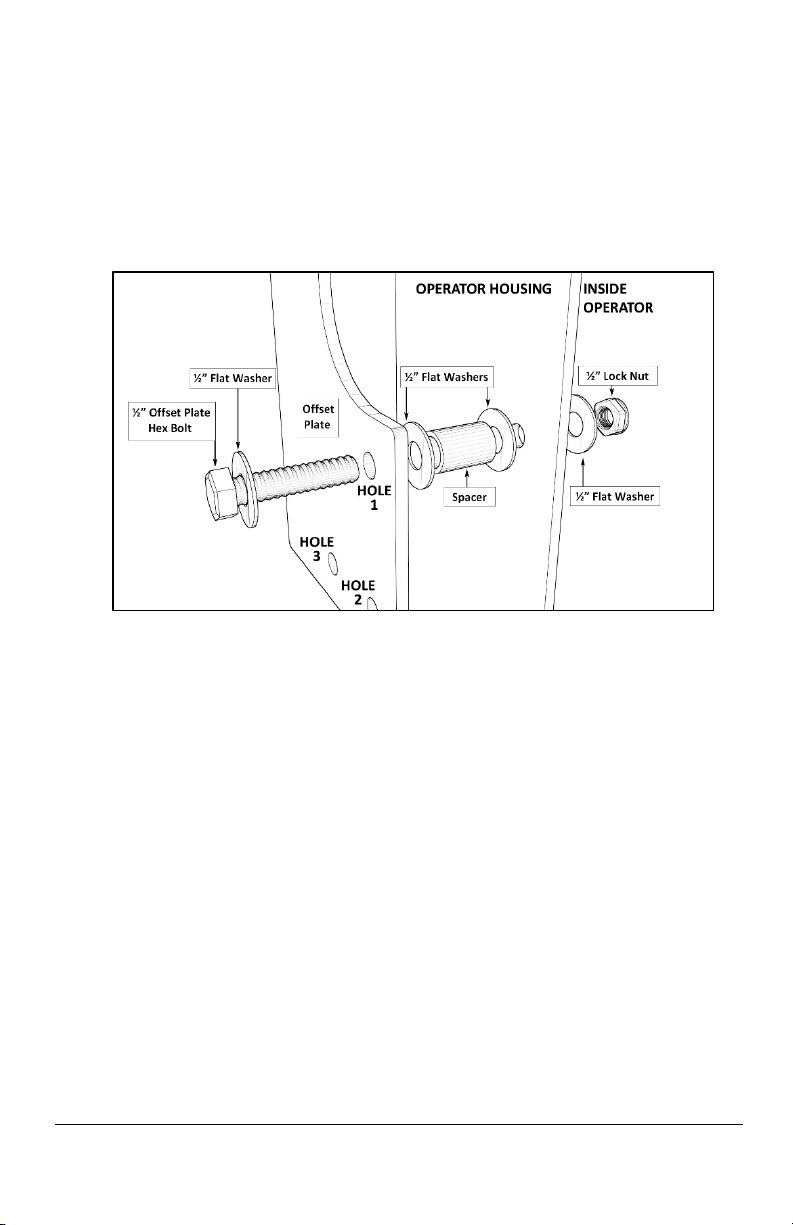

2.5 Starting at Hole 1, attach the Offset Plate to the operator as

shown below with hardware included in kit. Tighten securely.

Repeat for Hole 2 and Hole 3.

2.6 Determine the operator arm’s clearance. Measure the height

from the top of the operator’s output shaft to the lowest

spot of the ceiling above the barrier arm. This is your

“Clearance Height”.

Step 2.5

See our complete line of LED Safety Light Systems at www.GateArms.com

ASSEMBLE BARRIER ARM

3.1 Cut the operator arm to desired length as follows:

Section Length = Ceiling Height – 7” (elbow) + 7” (bracket)

 Ensure 1st section contains the mounting bolt holes.

 Select the LED based on desired length of 1

arm section

Section Length = 6’ (unless necessary to cut it)

3.2 Attach 1st arm section to the operator’s arm bracket as shown

below. Tighten securely and repeat with second bracket bolt.

NOTE: Do not use nylon nuts on folding arms due to vibration

concerns.

3.3 Close the gate so the arm is horizontal.

3.4 Insert the Pivot Bracket into the 1

section of the arm with the

Pivot Bracket’s metal arm facing up and towards the operator.

Step 3.2

Step 3.4

3.5 Drill

⅛”

hole on underside of arm and attach to the Pivot

Bracket with #6 screw.

3.6 Measure the distance from the center of the operator’s

output shaft to the center of the Pivot Bracket’s hinge joint

as shown below. This measure is the “Arm Height”.

3.7 If necessary, cut the Threaded Rod to the “Arm Height”

length minus 2”. NOTE: Prior to making any cuts, pre-install a

⅜”

nut on the rod to be used as a tool to clean the burrs

and smooth out the cut.

3.8 Install the

⅜”

rod nuts on both ends of the Threaded Rod

(if not already done).

3.9 Screw a Threaded Rod End onto each side of the Threaded

Rod until the Threaded Rod is about half-way through the

Threaded Rod End.

Step 3

Measure the distance between these points

See our complete line of LED Safety Light Systems at www.GateArms.com

3.10 Assemble the Threaded Rod to the Elbow as shown in the

illustration below. Tighten both nuts securely.

3.11 If necessary, adjust the operator’s bracket position until the

segment of the arm is level. Using a level tool, ensure the

folding part of the elbow is level when in the fully-locked

horizontal position. Have a helper hold the elbow in the

horizontal position desired.

3.12

the back side of the Threaded Rod, take a pencil or

sharpie and put it through the eye of the threaded rod end

facing the offset plate. It may help to wrap the pencil with

some electrical tape

to ensure that it sits

centered within the

Threaded Rod End

eye. With the elbow

in the fully-locked

horizontal position

and while keeping the

arm level, carefully

mark a line going up

and down onto the offset plate. Keep the pencil

perpendicular to the arm and as centered as possible

within the Threaded Rod End eye.

Step 3.10

Step 3.12

3.13 Set the barrier arm in the

fully-open vertical position.

Have your helper use a level

tool to ensure the folding

part of the elbow is level

(horizontally) and stays level

during the next step.

3.14 Insert a pencil or sharpie through the eye of the threaded

rod end facing the offset plate.

While your partner keeps the

folding part of the elbow level

horizontally, carefully mark a line

going left and right onto the offset

plate. Keep the pencil

perpendicular to the arm and as

centered as possible within the

Threaded Rod End eye.

3.15 Drill a

⅜”

inch hole through the center of the marked cross

on the offset plate. Do not remove the offset plate or make

any more adjustments to the threaded rod as doing so may

cause the folding arm to not be level during operation.

NOTE: This hole should be made with high precision. We

recommend using a center punch tool about 2 times in the

center of the marked cross. Then create a

⅛”

pilot hole, a

second

¼”

hole, and a final

⅜”

hole.

See our complete line of LED Safety Light Systems at www.GateArms.com

3.16 Assemble the remaining Threaded Rod End to the Offset Plate

as shown in the illustration below. Attach the threaded rod nut

to the top of the threaded rod end and tighten all securely.

3.17 Insert 2

section of the barrier arm into Pivot Bracket.

3.18 Drill

⅛”

hole on underside of arm and attach to the Pivot

Bracket with a #6 screw.

3.19 Ensure Arm is horizontal (90° to vertical) when Up and

Down. If not, remove a bolt and tighten or loosen a Rod End

to adjust the articulation process.

Step 3.16
