JVM3670SK – GE Profile™ 36” Spacemaker® 1.8 Cu. Ft. Over-the-Range Microwave Oven

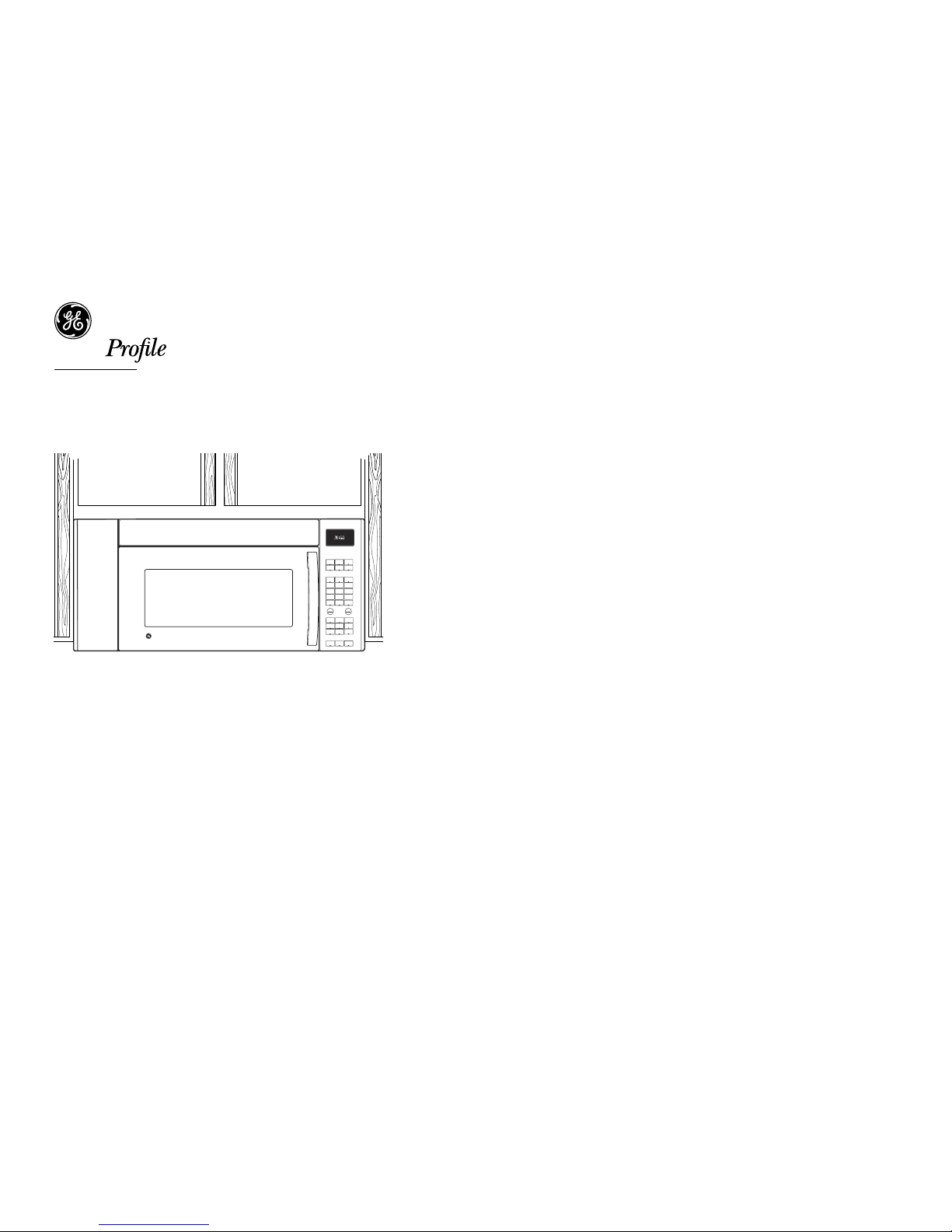

Dimensions (in inches)
Note: Requires 120V grounded outlet. Electrical receptacle must be
located in cabinet above Spacemaker microwave oven. No additional
wiring, venting or cabinet rebuilding necessary in many cases. Complete
detailed, easy-to-follow installation instructions and convenient full-size
templates are packed with the Spacemaker microwave oven.
Important Information: When installing the Spacemaker microwave oven
over a range, allow minimum of 2" from bottom of Spacemaker microwave
oven to top of range backguard to allow for removal of light covers.
Installation Information: This information is not intended to be used for
installing unit described. Before installing, consult installation instructions
packed with product/kit for current dimensional data.
21-3/4"
Door open
16-1/2
66" MIN.
Mounting
height
from floor
36" MIN.
width required
MAX.
Exhaust outlet
connects to
3-1/4" X 10" duct
12"
15-3/4
15
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,
® GE Profile™ or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center® service, 800.626.2000.
Specification Created 9/05
240268
TM
Optional Accessories (Available at additional cost)
HOOD EXHAUST DUCT
Outside ventilation requires a HOOD EXHAUST DUCT. Read the following carefully.
EXHAUST CONNECTION: The hood exhaust has been designed to mate with a standard
3-1/4” x 10” rectangular duct.If a round duct is required, a rectangular-to-round transition adaptor
must be used. Do not use less than a 6” diameter duct
REAR EXHAUST: If a rear or horizontal exhaust is to be used, care should be taken to align exhaust
with space between studs,or wall should be prepared at the time it is constructed by leaving enough
space between the wall studs to accommodate exhaust.
MAXIMUM DUCT LENGTH: For satisfactory air movement, the total duct length of 3-1/4” x 10”
rectangular or 6” diameter round duct should not exceed 140 equivalent feet.
ELBOWS, TRANSITIONS,WALL AND ROOF CAPS, etc., present additional resistance to airflow
and are equivalent to a section of straight duct which is longer than their actual physical size. When
calculating the total duct length, add the equivalent length of all transitions and adaptors plus the
lengths of all straight duct sections. The chart below shows the approximate feet of equivalent
length of some typical ducts.

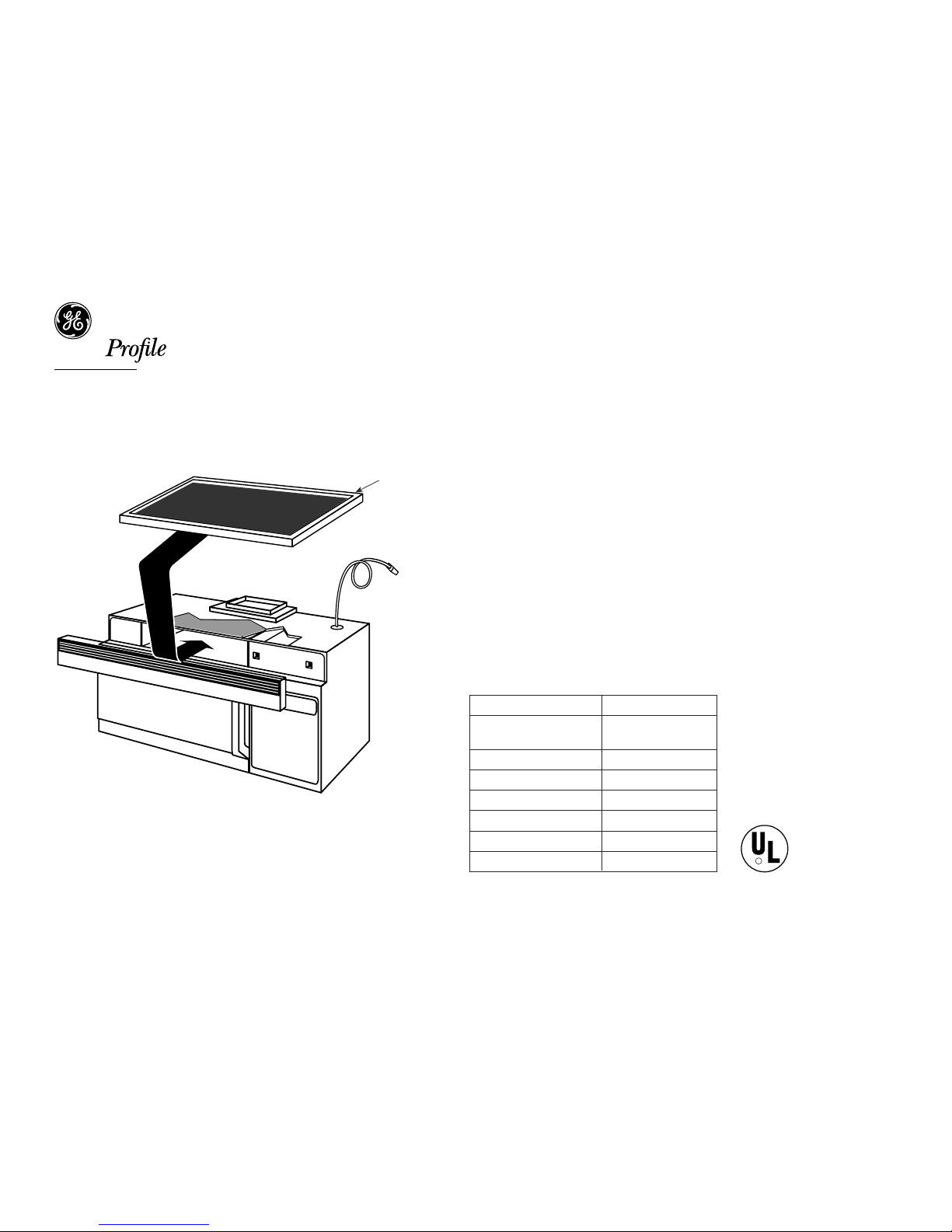

Filter Kits
JX81B–Recirculating
Charcoal Filter Kit
To be used when the
Spacemaker microwave
oven cannot be vented
to the outside.
Duct Equivalent Feet
A. Rectangular-To-round 5 ft.
Transition Adaptor
B. Wall Cap 40 ft.
C. 90° Elbow 10 ft.
D. 45° Elbow 5 ft.
E. 90° Elbow 25 ft.
F. 45° Elbow 5 ft.
G. Roof Cap 24 ft.
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,
® GE Profile™ or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center® service, 800.626.2000.
JVM3670SK – GE Profile™ 36” Spacemaker® 1.8 Cu. Ft. Over-the-Range Microwave Oven
Specification Created 9/05
240268
TM
EXPRESS COOK
3
EXPRESS COOK
2
EXPRESS COOK
1
EXPRESS COOK
6
EXPRESS COOK
5
EXPRESS COOK
4
9
8
7
0
CLEAR
OFF
START
PAUSE
POWER
LEVEL
ADD
30 SEC.
TIME
COOK
AUTO / QUICK
DEFROST
TIME
DEFROST
CUSTOMCLOCK
AM / PM
DELAY
START
VENT FAN SURFACE
LIGHT
VENT FAN
BOOST
BEVERAGE POTATO CHICKEN/
FISH
POPCORN
VEGETABLE
REHEAT
ONE TOUCH SENSOR
OPTIONS
TURNTABLE
HELP
MESSAGE
REMINDER
TIMER
Spacemaker
Profile
JVM3660.EPS
Features and Benefits
• 1.8 cu. ft. Cavity/Powerful 1100 Watts*
• New GE Profile™ Appearance and Sculptured Handle
• Electronic Touch Controls
• Custom Pads and One Touch Sensor Cooking Controls for Chicken, Fish,
Beverage, Popcorn, Potatoes, Reheat and Vegetables
• Recessed Turntable (On/Off) and Removable Cooking Rack
• SmartControl System with Interactive Electric Scrolling Digital Display
• Three Speed, High-Capacity Exhaust Fan with Boost (300 CFM)/Halogen Cooktop
Lighting and Halogen Cavity Light
• Auto Defrost/Time Defrost/Quick Defrost
• Display On/Off (Bilingual)
• Express Cook (1-6 mins.) with Instant-On Controls
• CircuWave™ 1100 with 10 Power Levels
• Clock and AM/PM Pad
• Complete Cooking Reminder with Beeper Volume Control
• Easy Mount Installation
• Bright View Window and Designer-Style Handle
• Model JVM3670SK – Stainless steel
*IEC-705 Test Procedure
JVM3670SK – GE Profile™ 36” Spacemaker® 1.8 Cu. Ft. Over-the-Range Microwave Oven
Specification Created 9/05
240268
