GE Profile JVB37HBB Bedienungsanleitung

JVB37HBB/CC/WW – GE Profile™30" Telescopic Downdraft System

Specification Revised 4/09

220962

2-1/4

6-3/8

3-1/4

30" Unit

28-3/8

14-3/8

17-7/8

12-1/8

7-1/4

7-1/2

8-1/2

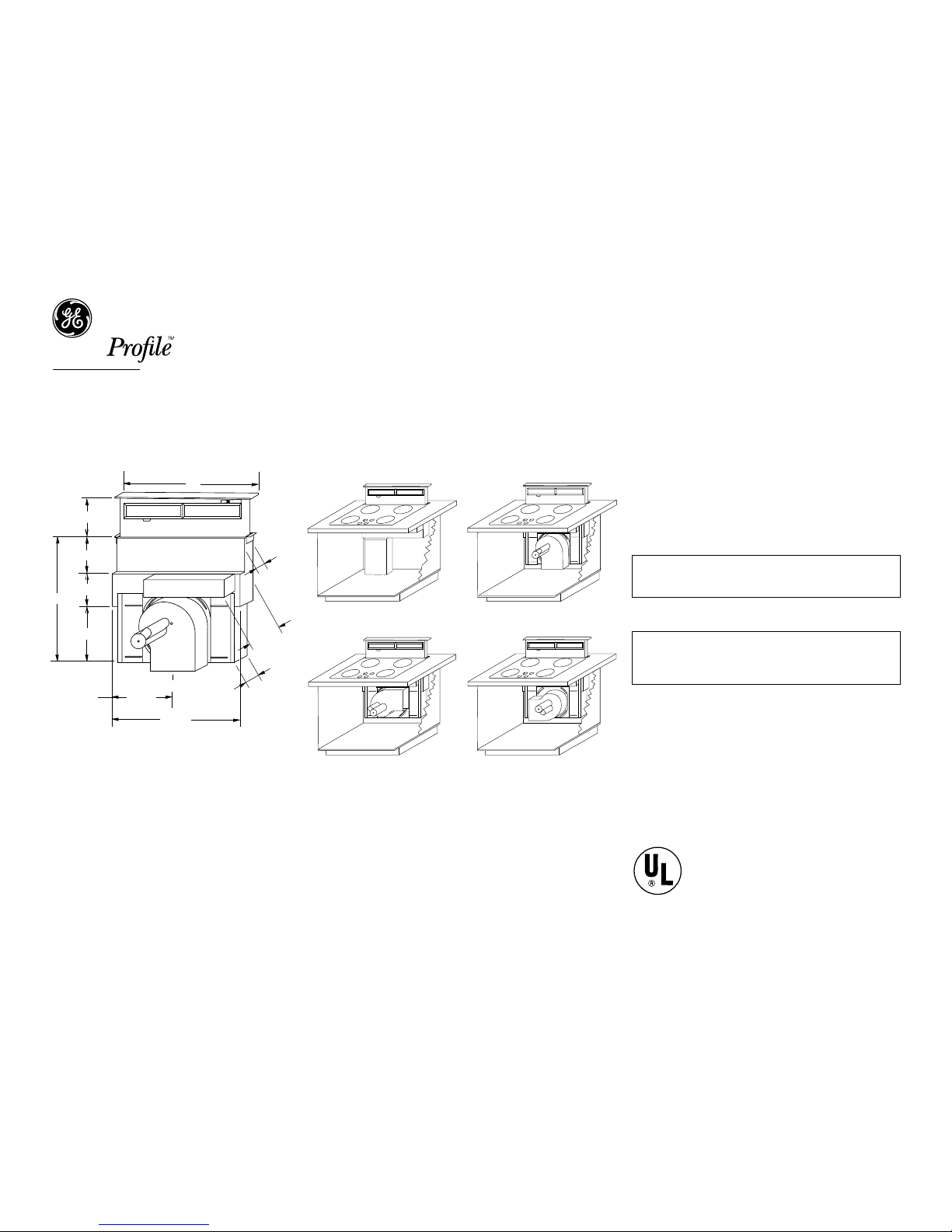

Overall Dimensions (in inches) Venting Options (in inches)

Installation Information: Before installing, consult installation instructions

packed with product for current dimensional data.

For answers to your Monogram,

® GE Profile™or

GE®appliance questions, visit our website at

GEAppliances.com or call

GE Answer Center®service, 800.626.2000.

Through the Floor In Cabinet Discharge (Down)

In Cabinet Discharge (Right) In Cabinet Discharge (Left)

Note: Telescopic downdraft vents are not recommended to be installed

with cooktops that are flush mounted.

Approved for use with the following GE Profile Performance™,

GE Profile™, and GE cooktops–36" and 30" electric models, 36" and 30”

gas sealed burner models and 36" and 30" induction models.

Not Approved for use with standard burner gas cooktops.

Note: The cooktop must be at least 26" deep with a flat surface area

of 23-1/2" or more, front to back. In addition, other clearances to the

front edge of the countertop must be considered.

Note: Dimensions shown are for reference only. Before cutting out

countertop, refer to instructions packed with downdraft and cooktop.

Note: Installation on cabinets/countertops against the wall

will not be possible in most applications. Against the wall

installations are limited to dimension requirements. Refer to

installation instructions packed with product for further details.

JXBC67 Outdoor Cover. Optional accessory may be ordered for

installation of motor and blower assembly on outside wall.

JXRB67 Indoor Remote Accessory. Optional accessory may be

ordered for installation of motor and blower assembly in an indoor

remote location.

Listed by

Underwriters

Laboratories

JVB37HBB/CC/WW – GE Profile™30" Telescopic Downdraft System

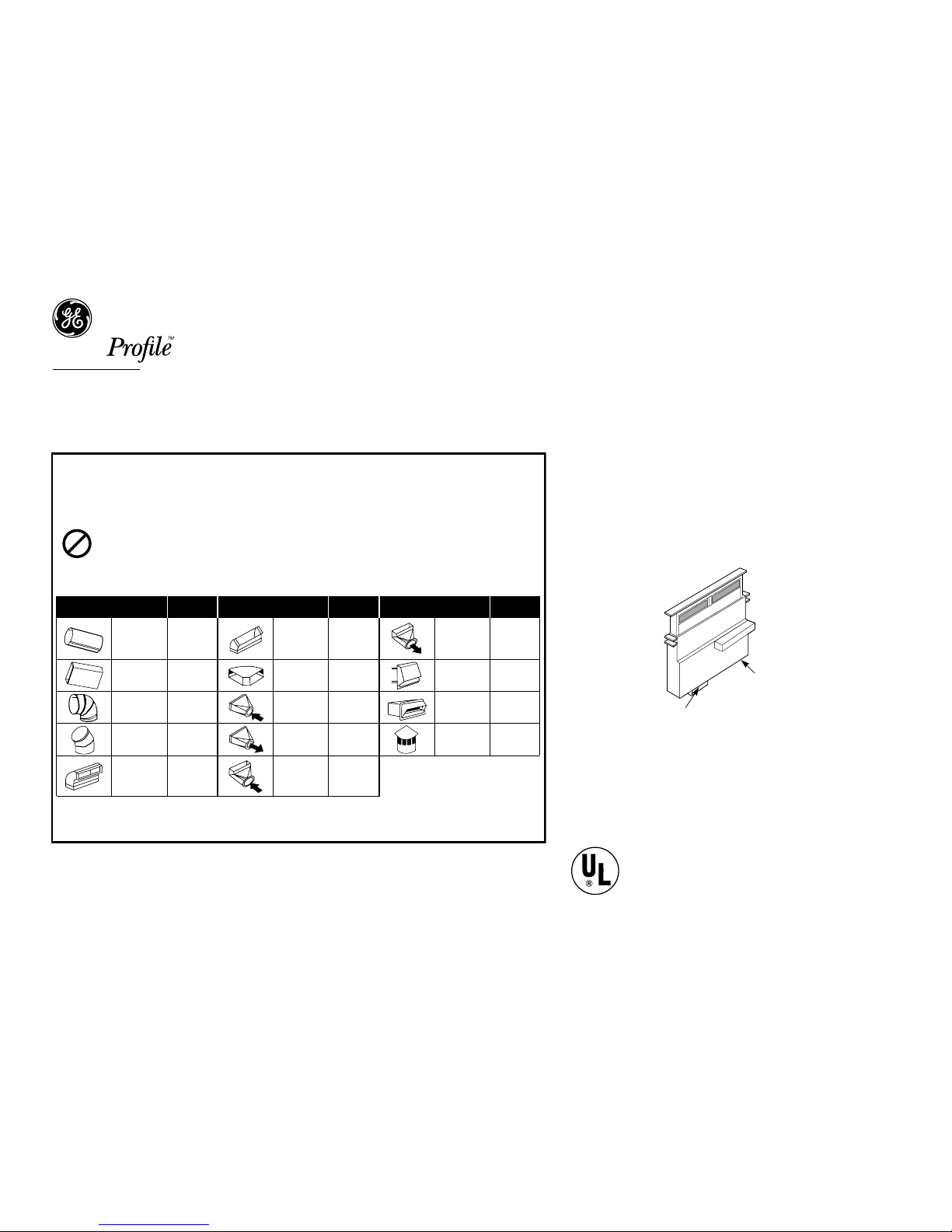

DUCTWORK LENGTH AND DUCT FITTINGS

NOTE: Do not exceed 150 foot maximum permissible equivalent lengths!

Flexible ducting: If flexible metal ducting is used, all equivalent feet values in the table should be

doubled. The flexible metal duct should be straight and smooth and extended as much as possible.

DO NOT use flexible plastic ducting.

Add equivalent lengths for all duct pieces and transitions used to ensure that the duct run does not

exceed the maximum 150 feet.

Duct Equivalent Duct Equivalent Duct Equivalent

Pieces Length* Pieces Length* Pieces Length*

31⁄4″x 10″

to 6″Round

6″Round 1 ft. (per 31⁄4″x 10″Transition 4 ft.

Straight foot length) 45°Elbow 8 ft. 90°Elbow

6″Round

31⁄4″x 10″1 ft. (per 31⁄4″x 10″Wall Cap 24 ft.

Straight foot length) 90°Flat Elbow 33 ft. with Damper

6″Round 31⁄4″x 10″

6″12 ft. to 31⁄4″x 10″2 ft. Wall Cap 24 ft.

90°Elbow Transition with Damper

31⁄4″x 10″

6″to 6″Round 2 ft. 6″Round

45°Elbow 7 ft. Transition Roof Cap 33 ft.

6″Round

to 31⁄4″x 10″

31⁄4″x 10″Transition 4 ft.

90°Elbow 14 ft. 90°Elbow

SHOULD NOT EXCEED 150 EQUIVALENT FEET

*Equivalent lengths of duct pieces are based on actual tests conducted by GE Evaluation Engineering

and reflect requirements for good venting performance. See chart for CFM Duct Length.

Venting Duct Information

Plan the Ductwork

1. This downdraft blower system is designed for use with 3-1/4" x 10"

ductwork (can be transitioned to 6" round). Two different discharge

directions are available with side-to-side adjustment for the accurate

alignment of ductwork.

2. For best performance: choose the ducting option which allows the shortest

length of ductwork and a minimum number of elbows and transitions.

Check location of floor joists, wall joists, wall studs, electrical wiring or

plumbing for possible interference.

Left discharge

(as shipped)

Right 

discharge

Specification Revised 4/09

220962

For answers to your Monogram,

® GE Profile™or

GE®appliance questions, visit our website at

GEAppliances.com or call

GE Answer Center®service, 800.626.2000.

Listed by

Underwriters

Laboratories

Specification Revised 4/09

220962

JVB37HBB/CC/WW – GE Profile™30" Telescopic Downdraft System

JVB37HWW/CC/BB

OFF

LEFT

RIGHT

Features and Benefits

•Telescopicdowndrafthood–Hoodraisesovercooktopsurfaceandretractswhennotinuse

•500-CFM–Powerful500-CFMperformanceremovessmokeandvaporsfromthecookingarea

•Variablespeedfancontrol–Thepowerfulvariablespeedexhaustsystemeffectivelypulls

smoke and vapors out of the kitchen

•Removablegreasefilter–Durablefilterscanberemovedforeasycleaningandmaintenance

•ModelJVB37HWW–Whiteonwhite

•ModelJVB37HBB–Blackonblack

•ModelJVB37HCC–Bisqueonbisque
