Gearhead KB5000WDR Bedienungsanleitung

120944-109128

Rev.061017

WirelessDesktop&OpticalMouse

Model: KB5000WDR

User’sManual

User’sRecord:

Toprovide qualitycustomer serviceandtechnicalsupport, itissuggested thatyoukeepthe

followinginformationaswell as your storereceiptandthis user’smanual.

DateofPurchase:

__________________________________

ModelNumber:

__________________________________

SerialNumber:

__________________________________

ProductRevNumber(locatedbelowtheUPConthepackage):

__________________________________

PackageContents:

YournewWireless Desktopwill ship withthefollowingitems.

§Wireless Desktop&OpticalMouse

§WiredReceiverwithDualPS/2 Connectors

§Detachable Palmrest

§6AAA Ni-MHRechargeable Batteries

§User’sManual

§Warranty Information

SystemRequirements:

Pleasebesure thatyoumeetall ofthesystemrequirementsbelowtoavoiddifficultiesduringinstallation.

§IBMPCsor100%Compatibles

§Windows®ME, 2000, XP

§2Available PS/2 Ports

SystemSpecifications:

YournewWireless Desktopcomplieswiththefollowingspecifications.

§PS/2 Interface

Installation:

NOTE: The picturesshown in theUser’sManualarefordemonstrationpurposesonly.Yourcomputerorproductmay lookslightly different.

1. Turnoffyourcomputer.

2. PlugyourReceiverintothe appropriate PS/2Ports onyourcomputer.

3. Turnonyourcomputer.

4. YourcomputerwilldetectyourReceiver,andthenecessary driverswill be installedautomatically.

BatteryInstallation:

Toinstall batteriesintoyourMouse, pleasefollowthe instructionsbelow:

a. Removethe BatteryCompartmentCover fromthe bottom ofyourMouse.

b. Install twoofthe enclosed AAA Ni-MHRechargeableBatteries into the BatteryCompartment followingthe battery

orientationguideprintedinsidethe compartment.

c. Replacethe BatteryCompartmentCover backonto yourMouseuntil itsecurely locks.

d. YourMousewill establishaconnectionwiththereceiverautomatically.Ifaconnectionisnot established,proceedtothe

EstablishaConnection sectionofthismanual.

Toinstall batteriesintoyourKeyboard,pleasefollowthe instructionsbelow:

1. Removethe BatteryCompartmentCover fromthe bottom ofyourKeyboard.

2. Install twoofthe enclosed AAA Ni-MHRechargeableBatteries into the BatteryCompartment followingthe battery

orientationguideprintedinsidethe compartment.

3. Replacethe BatteryCompartmentCover backonto yourKeyboarduntil itsecurely locks.

4. Yourkeyboardwill establishaconnectionwiththereceiverautomatically.Yourkeyboardandmousearenowready to

be used.Formoreinformationaboutyourspecialfunctionkeyspleasesee the Special FunctionKeys Section ofthe manual. Ifa

connectionisnot automatically established,proceedto the EstablishaConnection sectionofthismanual.

EstablishaConnection:

Press the ConnectButton onyourWireless Receiverfor6seconds,the AutoSyncfunctionofyourreceiverwillbe activatedandwill begin

searchingforyourKeyboardandMouse, anautomatic connectionwillbe establishedbetween yourreceiver,mouseandkeyboard.Ifthisdoes

not occurpleasefollowtheinstructionsbelow.

Toestablishadedicatedconnectionbetween yourWiredReceiver,Keyboard,Mouse, andcomputerpleasefollowthe instructionsbelow:

Note: Anautomatic connectionmay fail iftherearemorethanone KB5000WDRWireless Desktopsoperatingwithin acloseproximity.The

followinginstructionsareforadedicatedconnection:

1. Press the ConnectButton onyourWireless Receiver,andthen press the ConnectButton onthe bottom ofyourKeyboard.

2. Press the ConnectButton onyourWireless Receiver,andthen press the ConnectButton onthe bottom ofyourMouse.

3. YourKeyboardandMousearenowready tobe used.

WiredReceiverLEDIndicators:

TherearefourLEDIndicatorsonyourWiredReceiver,pleasesee the chartbelowforadescriptionofeach(startingfromlefttoright):

LEDIndicator Status Description

Signal LED(Green/Red) Green Solid If thegreen LEDissolid,yourcomputerispoweredonandyourWired

Receiverisconnected.

RedBlinkingRapidlyIf theredLEDblinksrapidly,yourWiredReceiverisscanningforaconnection

to yourkeyboardand/ormouse.

RedBlinking If theredLEDblinks,yourWiredReceiverhasestablishedaconnectiontoyour

keyboardand/ormouse.

RedBlinkingSlowlyIf theredLEDflashes,yourkeyboardand/ormouseisactive.

NumLockLED(Red) RedSolid If theredLEDissolid,numberlockisenabled.

CapsLockLED(Red) RedSolid If theredLEDissolid,capslockisenabled.

ChargeLED(Red) Off If theLEDisoff,nobatteriesareinstalledin yourWiredReceiver,orthe

batteriesinstalledarefully charged.

RedSolid If theLEDissolidred,yourWiredReceiverischargingthe installedbatteries.

Recharging YourNi-MHBatteries:

TorechargeyourNi-MHBatteriesusingyourWiredReceiver,pleasefollowthe instructionsbelow:

1. Make sureyourcomputeristurnedonandyourWiredReceiverisconnectedtoyourcomputer.

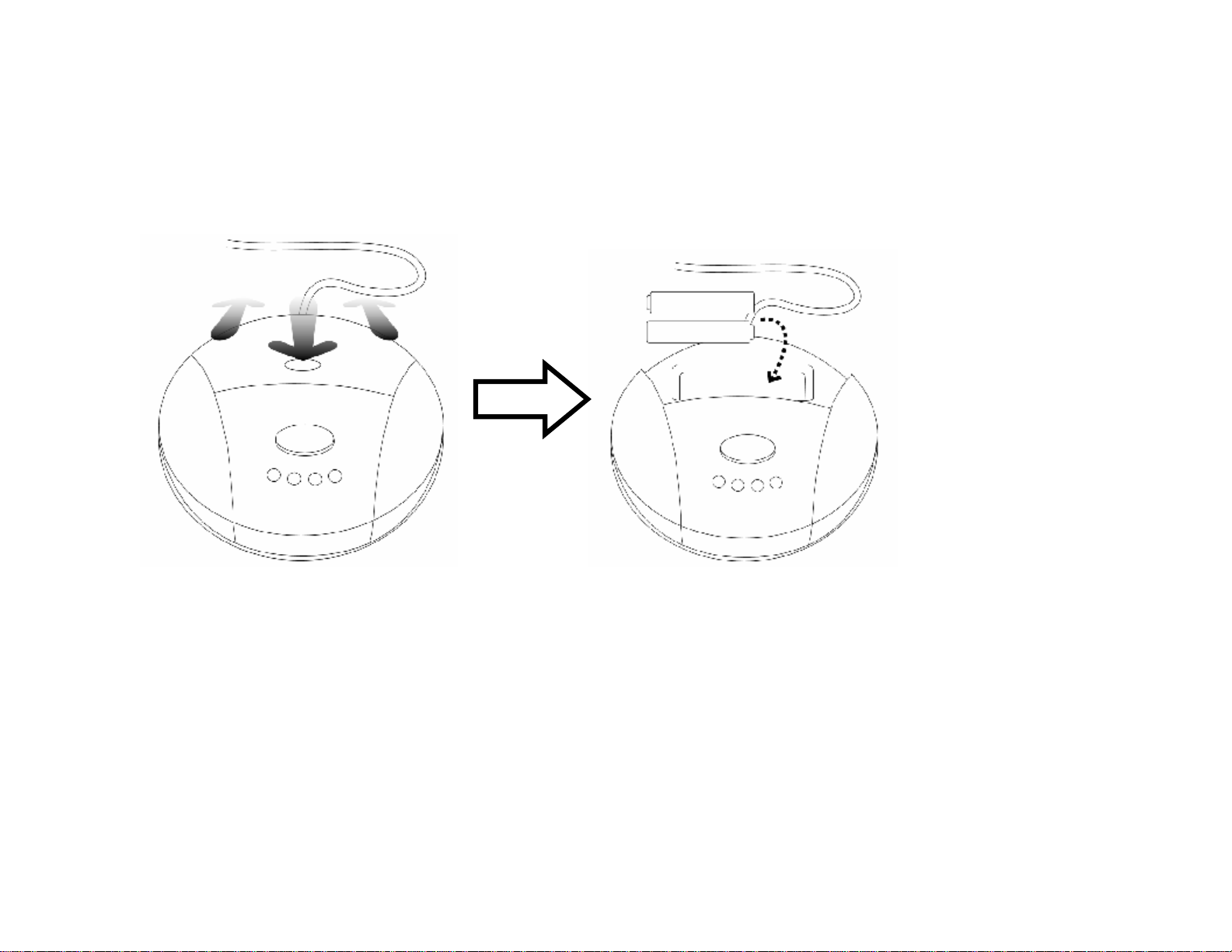

2. Press down andthen slideoff the BatteryCompartmentCover fromyour WiredReceiver.

3. PlacetwoNi-MHBatteriesinto the BatteryCompartment followingthe batteryorientationguideprintedinsidethe compartment.

4. Replacethe BatteryCompartmentCover backonto your WiredReceiver.

5. The ChargeLED willturnsolidredandthe installedbatterieswill begin charging.

6. When the LEDindicatorturnsoff,the batteriesarefully charged.
