GECKO® GENESIS ELEGANCE AGE 600H / AGE 900H

www.geckomusic.net

OWNE 'S MANUAL

GECKO® SAFETY INSTRUCTIONS & SYMBOLS GUIDE

For your own safety and to avoid invalidation of the warranty, all text marked with these symbols should be

read carefully.

SYMBOLS:

SAFETY INSTRUCTIONS:

•To reduce the risk of electrical shock, do not remove covers. No user serviceable parts inside. Please

refer servicing to qualified personnel.

•To reduce the risk of electrical shock or fire, do not expose the equipment to rain or moisture.

•o not impose unnecessary stress on your equipment (i.e. placing heavy objects on it, overscrewing its

mounting etc).

•Read and keep the instruction manuals in a safe place for future references.

•o not attempt to clean the equipment with chemical solvents as this may damage the finish. Clean only

with dry cloth.

•o not block any ventilation openings.

•o not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that

produce heat.

•o not defeat the purpose of the polarized or grounding type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide

blade or the grounding prong is provided for your safety. If the provided plug does not fit into your outlet,

consult an electrician for the replacement of the obsolete outlet.

•Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus.

•Unplug the apparatus during lightning storms or when it is not in use for a long period of time.

NOTES

Contain important information and useful tips on the operation of your equipment.

WARNING

The lightning flash with arrowhead symbol within an equilateral triangle, is intended to

alert the user to the presence of uninsulated dangerous voltage within the product’s

enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

CAUTIONS

The exclamation point within an equilateral triangle is intended to alert the user to the

presence of important operating and maintenance (servicing) instructions in thee

literature accompanying the appliance. Please read the manual carefully.

HEADPHONES

EADPHONES

SAFETY

WARNIN

WARNING

Contain important information and use

useful tips on headphones outputs and monitoring

levels.

•Use only attachments / accessories specified by the manufacturer.

•Always shut down power supply when not in use to save energy and for prolonged lifespan.

•Exposure to extremely high noise levels may cause permanent hearing loss. Individuals vary

considerably in susceptibility to noise-induced hearing loss, but nearly everyone will lose some hearing if

exposed to sufficiently intense noise for a period of time. The U.S. Government’s Occupational Safety

and Health Administration (OSHA) has specified the permissible noise level exposures shown in the

following chart. According to OSHA, any exposure in excess of these permissible limits could result in

some hearing loss. To ensure against potentially dangerous exposure to high sound pressure levels, it is

recommended that all persons exposed to equipment capable of producing high sound pressure levels

use hearing protectors while the equipment is in operation. Ear plugs or protectors in the ear canals or

over the ears must be worn when operating the equipment in order to prevent permanent hearing loss if

exposure is in excess of the limits set forth here:

Duratio /Day (Hours) dB, Sou d Pressure Level (SPL) Descriptio s

Below 90 dB Safe zone

8.00 90 Hearing damage

6.00 92

4.00 95

3.00 97

2.00 100 Serious hearing damage

1.50 102

1.00 105

0.50 110

0.25 or less 115 Human pain threshold

GECKO MUSIC GROUP

No. 59, 59-1, 61, 61-1, 63, 63-1, Jalan PE 3, Taman Paya Emas,

Paya Rumput, 76450 Melaka, Malaysia.

Mobile: +6012.204 2175

Email: [email protected] • Website: www.geckomusic.net

FOREWORD

ear Friends,

Thank you very much for purchasing quality products by GECKO MUSIC GROUP. I am indeed very

delighted that we have journeyed this far, setting new standards in the audio and music industry while

touching and changing lives along the way!

At GECKO MUSIC GROUP we focus on developing nothing but the best professional audio equipment and

premium grade musical instruments you ever need! It has been our philosophy all this while that good sound

reproductions can be achieved at a fraction of a premium. Our engineering team is constantly doing research

and development to meet this objective. We thank God that by HIS grace, we have succeeded in developing

the revolutionary C.R.I.S.T.A.L.® Audiophile technology that is changing the way how sound is being

encoded, reproduced and managed!

On behalf of GECKO MUSIC GROUP, I would like to pledge our continuing commitment to uphold our

traditions in serving music and audio communities around the world with more value-added highest possible

quality GECKO® professional audio equipment and premium grade musical instruments!

Once again, thank you very much for your support.

Yours truly,

aniel Foo

Founder / Chairman

GECKO MUSIC GROUP

TABLE OF CONTENTS

INTRODUCTION 1

PACKAGE CONTENTS 2

CONTROL ELEMENTS 3

OPERATION & PERFORMANCE 7

MAINTENANCE 9

MAKING CONNECTIONS 10

INSTALLATION AND MOUNTING 12

SPECIFICATIONS 13

WARRANTY 14

______________________________________________________________________________________

NOTES: This manual covers the GECKO® GENESIS ELEGANCE

AGE 600H and the GECKO® GENESIS ELEGANCE AGE 900H. As

both devices are virtually identical, this manual will discuss the

GECKO® GENESIS ELEGANCE AGE 900H.

INTRODUCTION

Introducing world's first line-replaceable unit (LRU) audiophile power amplifiers. Our latest GECKO®

GENESIS ELEGANCE Series power amplifiers incorporate refined multi-stage C.R.I.S.T.A.L.® Audiophile

Class-H technology for precision audio reproductions (step-up from previous 3-tier C.R.I.S.T.A.L.®

Audiophile Class H design). The new multi-stage C.R.I.S.T.A.L.® Audiophile Class-H technology allows

wider frequency bandwidth to be processed in numerous bands of “frequency cells” more efficiently while

maintaining the desired RC time constants. The result – superb audiophile clarity and an energy efficient

system with lots of headroom. Hence, playing a familiar audio source through any one model of the

GENESIS ELEGANCE C.R.I.S.T.A.L.® Audiophile Class-H power amplifier in your system setup; you will be

able to hear the track in superb clarity and details you have missed out all these while!

Its elegant front panel with two handles are made from a single-piece aluminium block, with two “quick-

release” air cooling vent covers for easy access to its dust-filters for maintenance cleaning. The GENESIS

ELEGANCE has a 2U rack-mountable chassis design. Under the hood is a brand new, eco-friendly,

advanced system design using industry's finest components. The components are mounted on the printed

circuit board (PCB) using latest surface-mount technology (SMT), ensuring exceptional efficiency and

reliability.

The GENESIS ELEGANCE is equipped with advanced system protections such as the automatic Voltage

Peak Limiter (VPL) for protecting input signals from overloading, Current Peak Limiter (CPL) for ensuring that

the amplifier’s output does not exceed the safe current handling parameters of amplifier components, Very

High Frequency (VHF) protection circuits for muting the output of the amplifier when non-dynamic continuos

signals above 12kHz are detected, Temperature (TEM) protection for ensuring that the amplifier will not be

damaged by exceeding thermal limits, C protection for ensuring destructive C signals will not appear at

the amplifier outputs, and many more.

Revolutionary LRU design allows easy replacement (can be done within minutes) of LRU module, or

provides easy system access for maintenance purposes should you need to do so.

The GECKO® GENESIS ELEGANCE C.R.I.S.T.A.L.® Audiophile Class-H power amplifiers are more than

just engineering masterpieces; they are where arts and technology come as one. The GECKO® GENESIS

ELEGANCE C.R.I.S.T.A.L.® Audiophile Class-H power amplifiers are world's only audiophile power

amplifiers designed for home, studio, and live sound applications.

Available in two models:

GECKO® GENESIS ELEGANCE AGE 600H C.R.I.S.T.A.L.® Audiophile Class-H power amplifier;

GECKO® GENESIS ELEGANCE AGE 900H C.R.I.S.T.A.L.® Audiophile Class-H power amplifier.

______________________________________________________________________________________

PACKAGE CONTENTS

GENESIS ELEGANCE AGE 600H / AGE 900H:

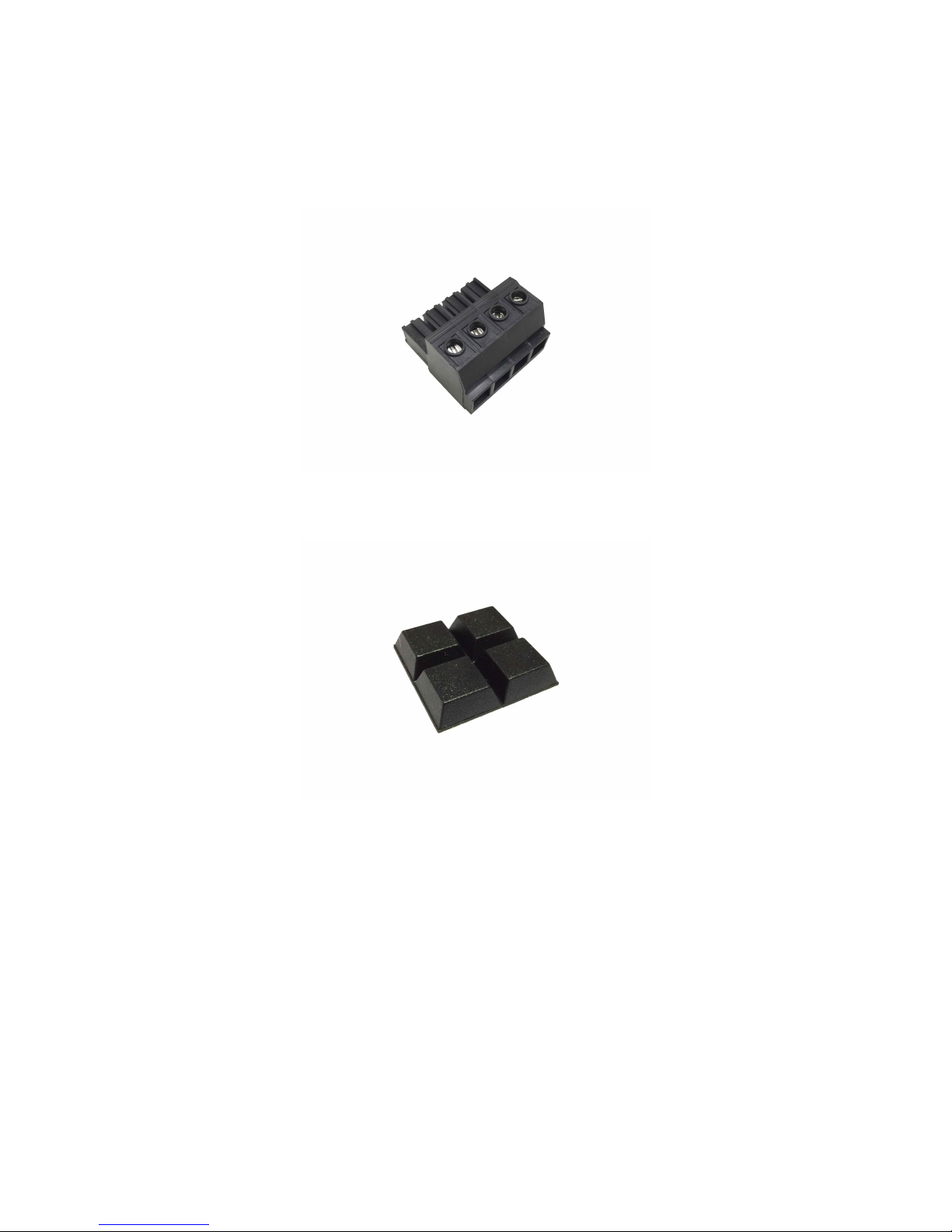

•4-conductor screw terminal adaptor

•Rubber feet

______________________________________________________________________________________

CONTROL ELEMENTS

FRONT PANEL

1. POWER SWITCH

Use this switch to switch your power amplifier on.

2. CHANNEL A ATTENUATOR CONTROL

In STEREO mode, this attenuator allows the adjustment of CHANNEL A input level. The lowest gain level is

marked as “-inf” and the highest is set at “0dB”. In BRI GE/PARALLEL mode, this attenuator allows the

combined gain adjustments of both CHANNEL A and CHANNEL B at the same time. CHANNEL B attenuator

control is disabled in BRI GE/PARALLEL mode.

______________________________________________________________________________________

7 88

2 44

NOTES: When your power amplifier is first powered up, the red PRO LE indicator

will illuminate while the cooling fans will rotate at higher speed (start up temperature

control measure); after approximately 6 seconds, the red PRO LE indicator will

distinguish and the cooling fans enter ultra quiet cooling mode. The green PWR LE

indicator illuminates when the power amplifier is switched on, indicating your power

amplifier is active.

69 9

3. CHANNEL B ATTENUATOR CONTROL

In STEREO mode, this attenuator allows the adjustment of CHANNEL B input level. This attenuator control is

disabled in BRI GE/PARALLEL mode.

4. AIR COOLING VENTS

Cool air is drawn from the surrounding environment into the amplifier by the cooling fans through these

vents, while the warm air exits through the rear air vents of the amplifier. This process help keeps the

amplifier cool. The dust-filters are located behind these covers. They are for minimizing entry of dust and dirt.

5. LED INDICATORS

▸ PWR (GREEN LED)

Illuminates when power on.

▸ SIG (GREEN LED) / HI-IMP

Shows signal is present on a particular channel (-40dB to -4dB). When an open or high-impedance load is

detected, the LE will be dimmed.

▸ PRO (RED LED)

Illuminates when the power amplifier is in protection mode (protecting the device from overheating, overload,

short circuit, C, and enables soft start to the power amplifier).

▸ VPL (ORANGE LED) / CLIP

Illuminates when Voltage Peak Limiter (VPL) is active to regulate clipping.

▸ CPL (ORANGE LED)

Illuminates when Current Peak Limiter (CPL) is active to regulate amplifier’s output current so that it does not

exceed the safe current handling parameters of amplifier components.

▸ TEM (ORANGE LED)

Illuminates when sensor detects high temperature exceeding the power amplifier's thermal limit. When this

happens, temperature protection circuit will mute the power amplifier to ensure that the amplifier will not be

damaged.

▸ VHF (RED LED)

Illuminates when non-dynamic continuos signals above 12kHz are detected. Very High Frequency (VHF)

protection mode is active (output muted).

6. RUBBER FEET

High-density rubber feet supplied along with your power amplifier. Use these feet to reduce “surface-to-

amplifier” or “amplifier-to-surface” vibration and to prevent scratches to your power amplifier.

7. HANDLES

Those one-piece handles are provided for better amplifier handling.

______________________________________________________________________________________

CAUTIONS: o not block the front and rear air vents!

8. FRONT PANEL MOUNT

These are standard 19” rack width 2U rack-mount panels. Thread size is M3.

9. QUICK-RELEASE SCREWS

These are “quick-release” screws for the front air cooling vent covers. Turn anti-clockwise to unscrew.

REAR PANEL

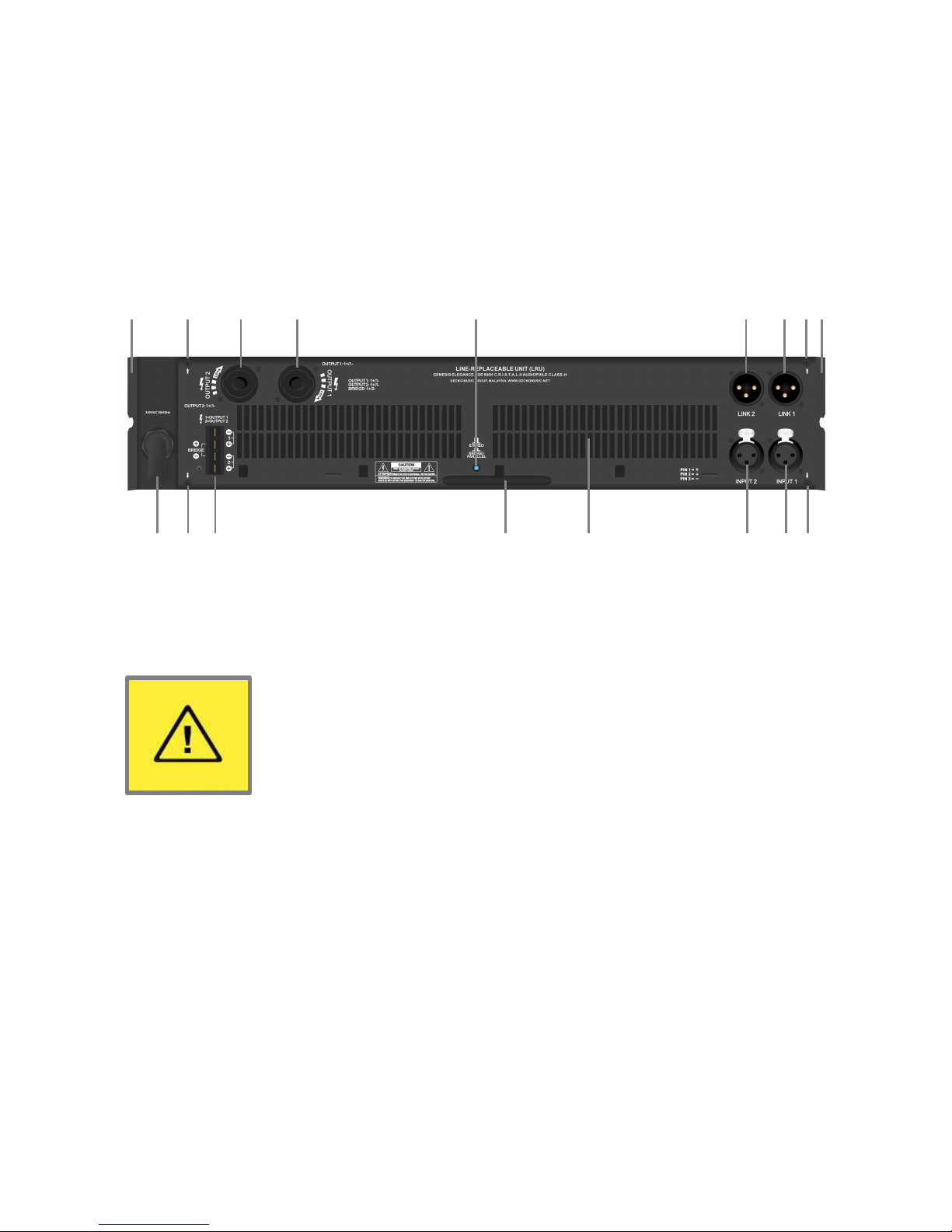

10. AIR VENTS

These air vents are for the exit of warm air from within your power amplifier.

11. INPUT (1-2)

Two balanced XLR female type INPUT sockets are provided (one per channel).

12. LINK (1-2)

Two balanced XLR male type LINK sockets are provided (one per channel) to loop-thru signal from one

amplifier to another.

13. MODE SELECTOR

Select the desired INPUT configuration by pushing in (using a pin) the MO E selector to the corresponding

position.

STEREO – upper position;

BRI GE/PARALLEL - lower position (selector pressed in).

______________________________________________________________________________________

1414 121213

1516 18 1111

1919 1717

17 1710

CAUTIONS: o not block the front and rear air vents!

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Gecko Verstärker Handbücher

Gecko

Gecko GENESIS AG550S Bedienungsanleitung

Beliebte Verstärker Handbücher anderer Marken

ASTRO

ASTRO HVO V40 P Bedienungsanleitung

Marantz

Marantz SUPERSCOPE BLA-545 Montageanleitung

NAD

NAD CI980 Bedienungsanleitung

Technics

Technics SE-CH770 Bedienungsanleitung

Harman Kardon

Harman Kardon HK6300 Bedienungsanleitung

NAD

NAD T975 Bedienungsanleitung

McIntosh

McIntosh MA6850 Bedienungsanleitung

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Bedienungsanleitung

Viatron

Viatron Autrix Bedienungsanleitung

GME

GME GA9800 Bedienungsanleitung

Atlas

Atlas CP700 Bedienungsanleitung

Roland

Roland KC-1000 Bedienungsanleitung

Pyle

Pyle PFMRA350BW Bedienungsanleitung

Advantage

Advantage S-250 Bedienungsanleitung

IRT Electronics

IRT Electronics DVA-3007 Bedienungsanleitung

Dimavery

Dimavery BA-100 Series Bedienungsanleitung

Sony

Sony XM-S400D Bedienungsanleitung

Schertler

Schertler ROY X Bedienungsanleitung

Gecko genesis elegance age 600H Bedienungsanleitung

Beliebte Verstärker Handbücher anderer Marken
