Gefen 1x8 DVI DA Bedienungsanleitung

1x8 DVI DA

USER MANUAL

www.gefen.com

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday.

Write To:

Gefen Inc.

C/O Customer Service

20600 Nordhoff St.

Chatsworth, CA 91311

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

1x8 DVI DA is a trademark of Gefen Inc.

DVI is a trademark of hdmi.org

ASKING FOR ASSISTANCE

TABLE OF CONTENTS

Introduction

Features

Panel Descriptions

Connecting and Operating the 1x8 DVI DA

Dip Switch Guide

Speciﬁcations

Warranty

Congratulations on your purchase of the ex•tend•it 1x8 DVI Distribution Ampliﬁer. Your

complete satisfaction is very important to us.

Gefen’s line of HDTV switches, extenders, and splitters are designed to make yourA/V

equipment use more comfortable, more productive and less expensive.

The 1x8 DVI DA allows one HDTV device to be outputed on up to eight HDTV displays.

All output displays will have mirrored images.

The ex•tend•it line offers solutions for Home Theater, AV installation, data center, infor-

mation distribution, conference room presentation, school and corporate training envi-

ronments.

Our Commitment

Gefen will always offer the ﬁnest quality product at the best possible price. Included in

that price is a lifetime support from a team of outstanding engineers.

The ex•tend•it 1x8 DVI DA allows one HDTV DVI device to be distributed easily in to

eight HDTV DVI compatible monitors or projectors. Simply connect your HDTV displays

to the DA’s display outputs. The 1x8 DVI DA can also be placed at the end of a long DVI

cable to regenerate the DVI signal.

INTRODUCTION

FEATURES

Features

• Distributes easily up to eight DVI/HDMI displays

• Maintains 480i, 480p, 720p, 720i, and 1080i, 1080p resolutions

• Maintains highest DVI single link video resolution

• Maintains highest DVI digital audio signal

• Supports HDCP compliant devices

• DVI or DVI to HDMI cables are used to connect the inputs and switcher output

• Installs in seconds

Includes:

(1) 1x8 DVI DA

(1) 6’ DVI cables (M-M)

(1) 24VDC Power Supply

(1) Rack Ears

(1) Users Manual

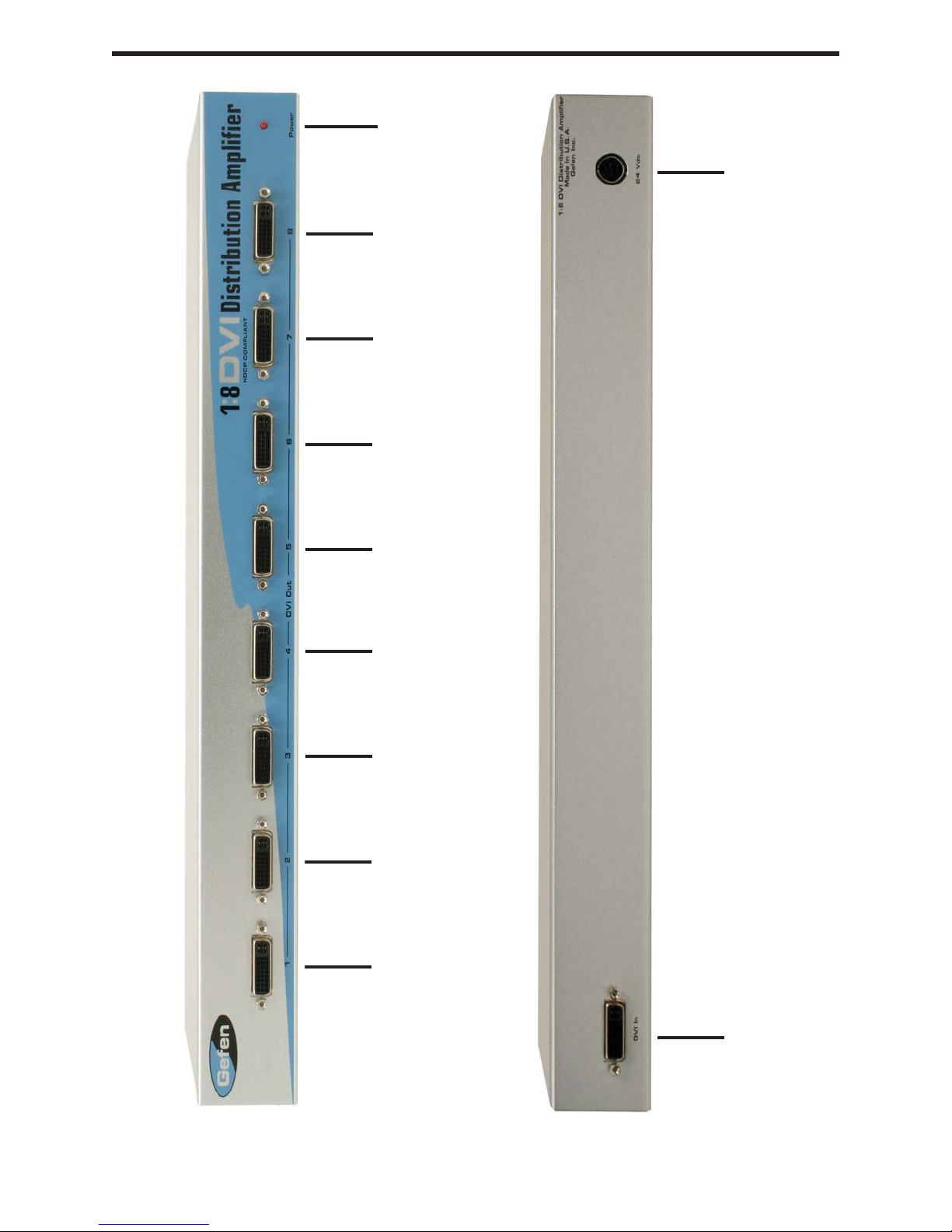

PANEL DESCRIPTIONS

Connects to

24VDC power

supply

DVI

In 1

DVI

Out 1 DVI

Out 2 Power LED

DVI

Out 3 DVI

Out 4 DVI

Out 5 DVI

Out 6 DVI

Out 7 DVI

Out 8

CONNECTING AND OPERATING THE 1X8 DVI DA

How to Connect the 1x8 DVI DA to your devices

1 Connect the supplied cable from the HDTV DVI source into the 1x8 DVI DA

input.

2Connect the cables from your displays (monitor or projector) into the DVI outs of the

1x8 DVI DA.

3 Plug the 24VDC power supply into the 1x8 DVI DA.

DIP SWITCH GUIDELINES

Inside the 1x8 DVI Splitter is a bank of Dip Switches. Below is a table describing their

functions. By default, all switches are set to the Off position. By default, all switches are

set to the Off position.

Dip Switch # Name Description

1 Switching Delay Adds a 3 second delay to switching

2 On Board EDID Feeds a Generic HDMI EDID to all Inputs

3 Unused

4 Unused

5 Unused

6 Unused

7 Unused

8 Edge Select +Edge Pixels

How to open the 1x8 DVI Splitter:

To access the dip switches, ﬁrst remove the 18 hex nuts on the front of the unit

(2 located on each DVI port and 2 on the DVI port on the back). Remove the 5 Philips

screws under the unit and the 4 screws on each side of the unit. Now carefully remove

the cover of the 1x8 DVI Splitter.

12345678

SPECIFICATIONS

Video Ampliﬁer Bandwidth ..................................................................................1.65 GHz

Input Video Signal ..........................................................................................1.2 volts p-p

Input DDC Signal .....................................................................................5 volts p-p (TTL)

Single Link Range .............................................................................1080p / 1920 x 1200

Input Connector Type .............................................................................DVI (Digital Only)

Output Connector Type ..........................................................................DVI (Digital Only)

Power Consumption .................................................................................60 Watts (max.)

Power Supply ....................................................................................................12-24VDC

Dimensions ..................................................................................17”W x 1.75”H x 7.25”D

Shipping Weight ........................................................................................................8 Lbs

Gefen Inc. warrants the equipment it manufactures to be free from defects in material

and workmanship.

If equipment fails because of such defects and Gefen Inc. is notiﬁed within two

(2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace

the equipment, provided that the equipment has not been subjected to mechanical,

electrical, or other abuse or modiﬁcations.

Equipment that fails under conditions other than those covered will be repaired at the

current price of parts and labor in effect at the time of repair. Such repairs are warranted

for ninety (90) days from the day of reshipment to the Buyer.

This warranty is in lieu of all other warranties expressed or implied, including without

limitation, any implied warranty or merchantability or ﬁtness for any particular purpose,

all of which are expressly disclaimed.

1. Proof of sale may be required in order to claim warranty.

2. Customers outside the US are responsible for shipping charges to and from Gefen.

3. Copper cables are limited to a 30 day warranty and cable must be free from any

scratches, markings, and neatly coiled.

The information in this manual has been carefully checked and is believed to be

accurate. However, Gefen Inc. assumes no responsibility for any inaccuracies that may

be contained in this manual. In no event will Gefen Inc., be liable for direct, indirect,

special, incidental, or consequential damages resulting from any defect or omission

in this manual, even if advised of the possibility of such damages. The technical

information contained herein regarding 1x8 DVI DA features and speciﬁcations is

subject to change without notice.

WARRANTY
