Gefen EXT-VGA-CAT5-148S Bedienungsanleitung

www.gefen.com

VGA CAT-5

1:8 Distribution S

VGA CAT-5

Distribution R

EXT-VGA-CAT5-148S

EXT-VGA-CAT5-148R

User Manual

ASKING FOR ASSISTANCE

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday through Friday, Pacic Time

Write To:

Gefen, LLC

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen, LLC reserves the right to make changes in the hardware, packaging and

any accompanying documentation without prior written notice.

VGA CAT-5 1:8 Distribution S and VGA CAT-5 Distribution R

are trademarks of Gefen, LLC

All trademarks are the property of their respective owners.

Rev A4

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 Sender Unit Layout

5 Sender Unit Descriptions

6 Receiver Unit Layout

7 Receiver Unit Descriptions

8 Connecting the VGA CAT-5 1:8 Distribution S

8 Wiring Diagram

9 DIP Switch Conguration

9 Adjusting the Picture

10 Network Cable Wiring Diagram

11 Specications

12 Warranty

INTRODUCTION

Congratulations on your purchase of the VGA CAT-5 1:8 Distribution S.

Your complete satisfaction is very important to us.

Gefen

Gefen delivers innovative, progressive computer and electronics add-on solutions

that harness integration, extension, distribution and conversion technologies.

Gefen’s reliable, plug-and-play products supplement cross-platform computer

systems, professional audio/video environments and HDTV systems of all sizes

with hard-working solutions that are easy to implement and simple to operate.

The Gefen VGA CAT-5 1:8 Distribution S

The VGA CAT-5 1:8 Distribution S is the perfect solution for sending high-

denition video from a single VGA source to as many as eight remotely located

VGA displays. The system is capable of delivering resolutions up to 1920x1200

as far as 330 feet away from the source over industry standard CAT-5 cabling.

How It Works

Connect the VGA video source to the input of the VGA CAT-5 1:8 Distribution S

with the included VGA cable. The Sender and each Receiver (not included with

Sender unit) are then connected by individual runs of CAT-5 of up to 330 feet

in length. The Receiver units (sold separately) receive the video signal and DC

power from the Sender over the CAT-5, and are connected to the displays with

user supplied VGA cables. Power up the Sender with the included power supply,

and you now have crisp, high-resolution video at your remote displays.

Please note that all of the VGA displays used must have the same native

resolution in order to get a picture.

OPERATION NOTES

• Gefen VGA CAT-5 Distribution R (Receiver units) are not included with the Sender

unit. Receiver units (Gefen part no. EXT-VGA-CAT5-148R) can be purchased

separately.

FEATURES

Features

• Distributes a single VGA source to eight displays simultaneously

• Extends video signals up to 330 feet (100 meters) over CAT-5e

• Supports resolutions up to 1920 x 1200

• Supports component video signals

Package Includes

(1) VGA CAT-5 1:8 Distribution S

(1) 6 ft. VGA Cable (M-F)

(1) 5V DC Power Supply

(1) AC Power Cord

(1) Quick-Start Guide

SENDER UNIT LAYOUT

Sender unit

Front

Back

SENDER UNIT DESCRIPTIONS

1 Power

This LED indicator will glow bright red once the included 5V DC power supply

has been properly connected to the unit and the power supply has been

connected to an available electrical outlet.

2 5V DC

Connect the included 5V DC power supply to this receptacle.

3 Video Out (1 - 8)

Connect a CAT-5e cable, up to 330 feet (100 meters) between each RJ-45 port

and a Receiver unit (Gefen part no. EXT-VGA-CAT5-148R).

4 VGA In

Connect a VGA / component source to this HD-15 connector.

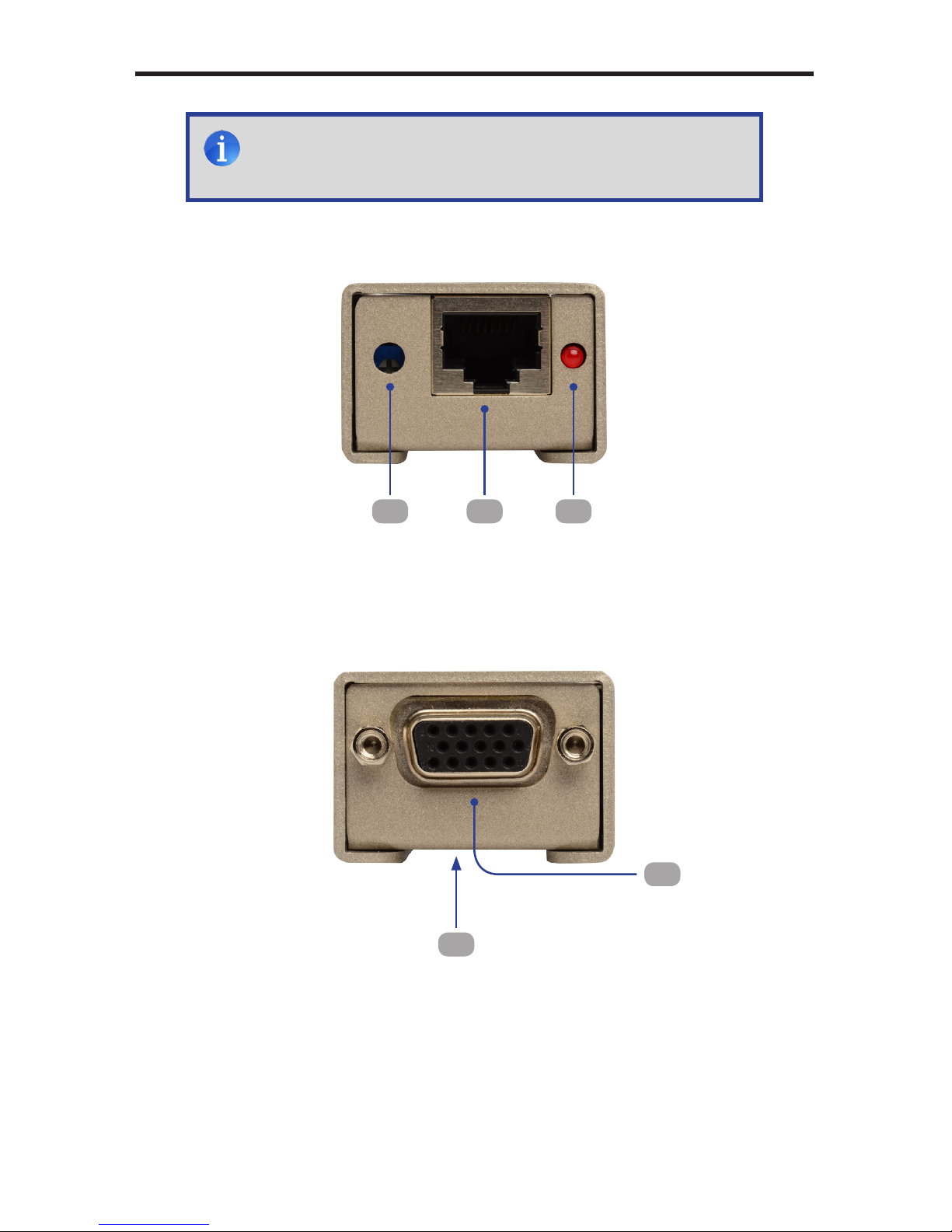

RECEIVER UNIT LAYOUT

Front

Back

1 2

NOTE: Gefen VGA CAT-5 Distribution R (Receiver units) are

not included with the Sender unit. Receiver units (Gefen part no.

EXT-VGA-CAT5-148R) can be purchased separately.
