Gefen CAT5-5500HD Bedienungsanleitung

CAT-5 Cables

DVI Cables

Optional

Accessories

CAT5•5500HD

Extends two DVI and USB up to 200 feet (60 meters) away

The Professional Series CAT5•5500HD extends your dual DVI displays and USB up to 200 feet

away from your DVI or HDMI™ source. The CAT5•5500HD is now available with a built in 4 port

USB hub on the receiver unit.

How It Works

The CAT5•5500HD sender unit sits next to your computer. The cables supplied with the

CAT5•5500HD connects your DVI source(s) and USB to the sender unit. The CAT5•5500HD

receiver unit sits next to your DVI displays - up to 200 feet away. The displays and USB plug into

the back of the CAT5•5000HD receiver unit. Four CAT-5 cables connect the CAT5•5500HD-S and

the CAT5•5500HD-R units to each other.

Note: The CAT5•5500HD is HDCP compliant.

DVI, HDCP & HDMI Defined

Features:

zExtends any DVI compliant device up to 150 feet (45 meters) from the computer at

1920x1200

zExtends any DVI compliant device up to 200 feet (60 meters) from the computer at

1280x1024

zExtends USB 1.1 compliant devices up to 200 feet

zUses CAT-5e cable for DDC and control signals

zVideo is transmitted digitally for zero signal loss

zSupports resolutions up to 1080p, 2K, and 1920 x 1200

zSupports DDWG standard for DVI compliant monitors

zIncludes rack ears

zHDCP compliant

Specifications:

zVideo Amplifier Bandwidth: 165 MHz

zSingle Link Range: 1080P/1920 x 1200

zInput Video Signal: 1.2 volts p-p

zInput DDC Signal: 5 volts p-p (TTL)

zDVI Connector: DVI-I (29 pin) female (digital only)

zUSB Input: USB type "B" connector

zUSB Output: two USB type "A" connectors

zLink Connector: RJ-45 Shielded

zPower Supply: 5V DC

zPower Consumption: 20 watts (max)

zDimensions: 17" W x 1.75"H x 4.375" D

zShipping Weight: 10 lbs.

Package Includes:

zCAT5•5500HD-S

zCAT5•5500HD-R

zTwo 6 foot DVI cables

zOne 6 foot USB cable

zTwo 5V Power Supply

zUser's Manual

EXT-CAT5-5500HD

Dystrybucja i sprzedaż: Meditronik Sp. z o.o.

02-952 Warszawa, ul. Wiertnicza 129, tel. (+48 22) 651-72-42, fax (+48 22) 651-72-46

http://www.meditronik.com.pl e-mail: [email protected]

Cat5 • 5500HD

USER MANUAL

www.gefen.com

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday.

Write To:

Gefen Inc.

c/o Customer Service

20600 Nordhoff St.

Chatsworth, CA 91311

[email protected]

www.gefen.com

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

The CAT5 5500HD is a trademark of Gefen Inc.

ASKING FOR ASSISTANCE

TABLE OF CONTENTS

Introduction and Operation Notes

Features

How It Works

CAT5•5500HDS Back Panel Layout

CAT5•5500HDS Back Panel Function Descriptions

CAT5•5500HDR Back Panel Layout

CAT5•5500HDR Back Panel Functions Descriptions

Link Cable Wiring Diagrams

CAT5•5500HD - Wiring Diagram

Service Switch Usage Guide

Frequently Asked Questions

Terminology

System Speciﬁcations

Warranty

READ THESE NOTES BEFORE INSTALLING

OR OPERATING THE CAT5•5500HD SYSTEM

* The CAT5•5500HD units are housed in a metal box for better RF shielding.

* Your CAT-5 cable should not exceed 200 feet.

OPERATION NOTES

INTRODUCTION

Thank you for purchasing the new ex•tend•it CAT5•5500HD series by Gefen, Inc.

The ex•tend•it CAT5•5500HD by Gefen allows users the beneﬁts of extending dual DVI

displays and USB beyond the desktop. In a growing number of applications, broadcast

stations and production facilities need to locate a computer remotely from the keyboard,

mouse, and video monitor. A CPU may need to be shared between several users, for ex-

ample, or moved to another room because of annoying fan noise.

The CAT5•5500HD series can be used to extend computers with noisy fans, printers, hard

drives, scanners, cameras, keyboards, mouse, and any other USB. With the potential to

cover the distance of 150 feet, industry standard Category 5 (CAT-5) cables are used for

the extension of all the devices.

FEATURES

Features

• Uses CAT-5 cable for DDC and control signals

• Extends any DVI (Digital Video Interface) compliant device up to 200 ft from the

computer

• 200 ft extension at 1280x1024

• 150 ft extension at 1920x1200

• Saves space on your desktop

• Increases productivity

• Eliminates computer noise where you work

• Supports VESA Standard resolutions and HDTV resolutions

• Supports DDWG standard for DVI compliant monitors

• HDCP Compliant

CONTENTS

The CAT5•5500HD system consists of:

--- (1) CAT5•5500HDS sender unit

--- (1) CAT5•5500HDR receiver unit

--- (2) 5 VDC power supplies

--- (2) DVI cable M-M (6FT)

--- (1) USB cable (6FT)

--- (1) User Manual

HOW IT WORKS

The CAT5•5500HD sender unit sits next to your computer. The cables supplied with the

CAT5•5500HDconnects yourDVI source(s)and USBto thesend unit.The CAT5•5500HD

receiver unit sits next to your DVI displays - up to 200 feet away. The displays and USB

plug into the back of the CAT5•5500HD receiver unit. Four CAT-5 cables connect the

CAT5•5500HD-S and the CAT5•5500HD-R units to each other.

HOW IT WORKS

CAT5•5500HDS BACK PANEL LAYOUT

12 3 4 56 7 8

CAT5•5500HDS BACK PANEL FUNCTIONS

POWER - 5 VDC external power supply

CAT5 Video 1 - RJ-45 input extends DVI input 1 with CAT-5 cable

CAT5 USB/DDC1 - RJ-45 input extends USB and DDC1 signals with CAT-5 cable

DVI IN 1 - DVI Input connects to your computer

CAT5 Video 2 - RJ-45 input extends DVI input 2 with CAT-5 cable

CAT5 USB/DDC2 - RJ-45 input extends USB and DDC2 signals with CAT-5 cable

DVI IN 2 - DVI Input connects to your computer

USB IN - USB Input from computer

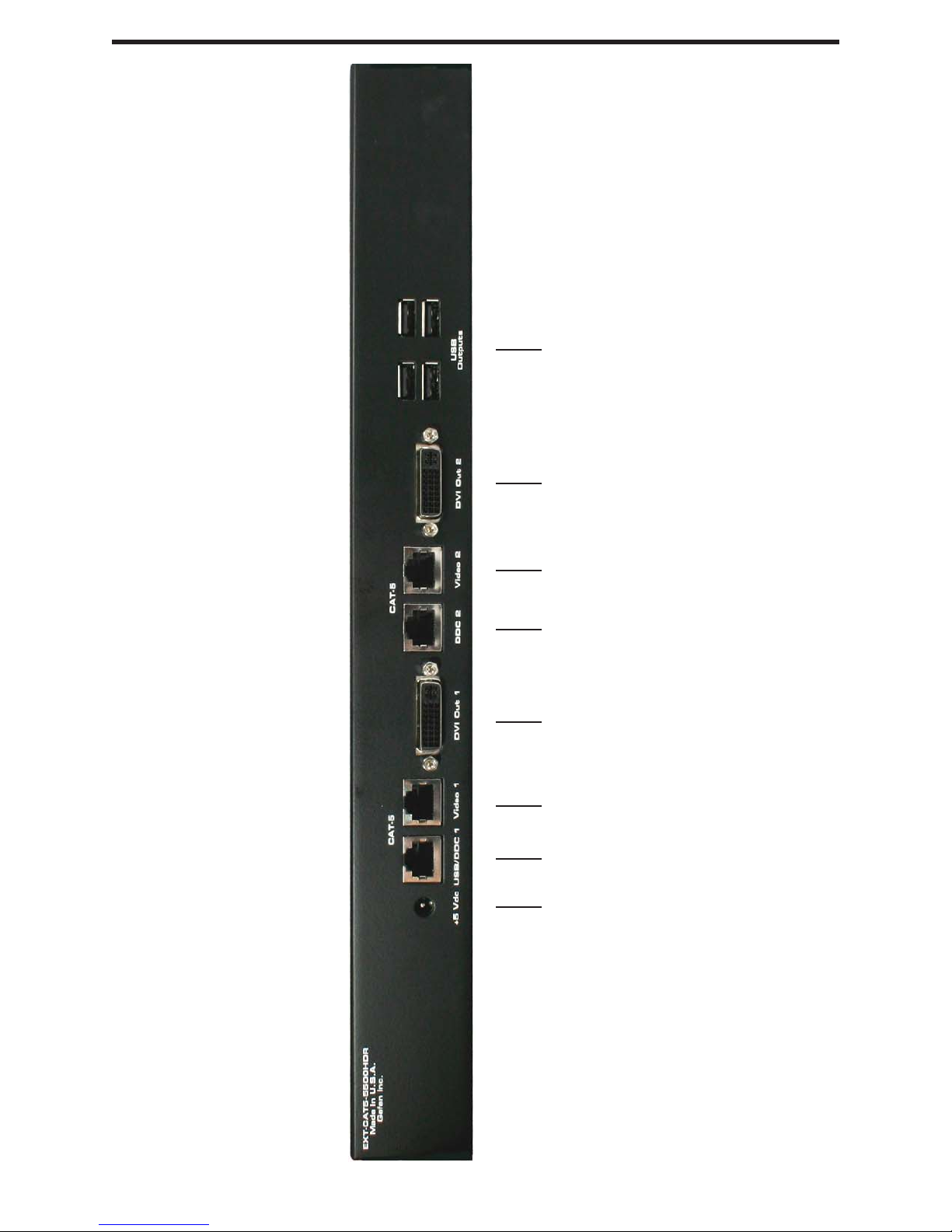

CAT5•5500HDR BACK PANEL LAYOUT

12 3 4 5 6 7 8
