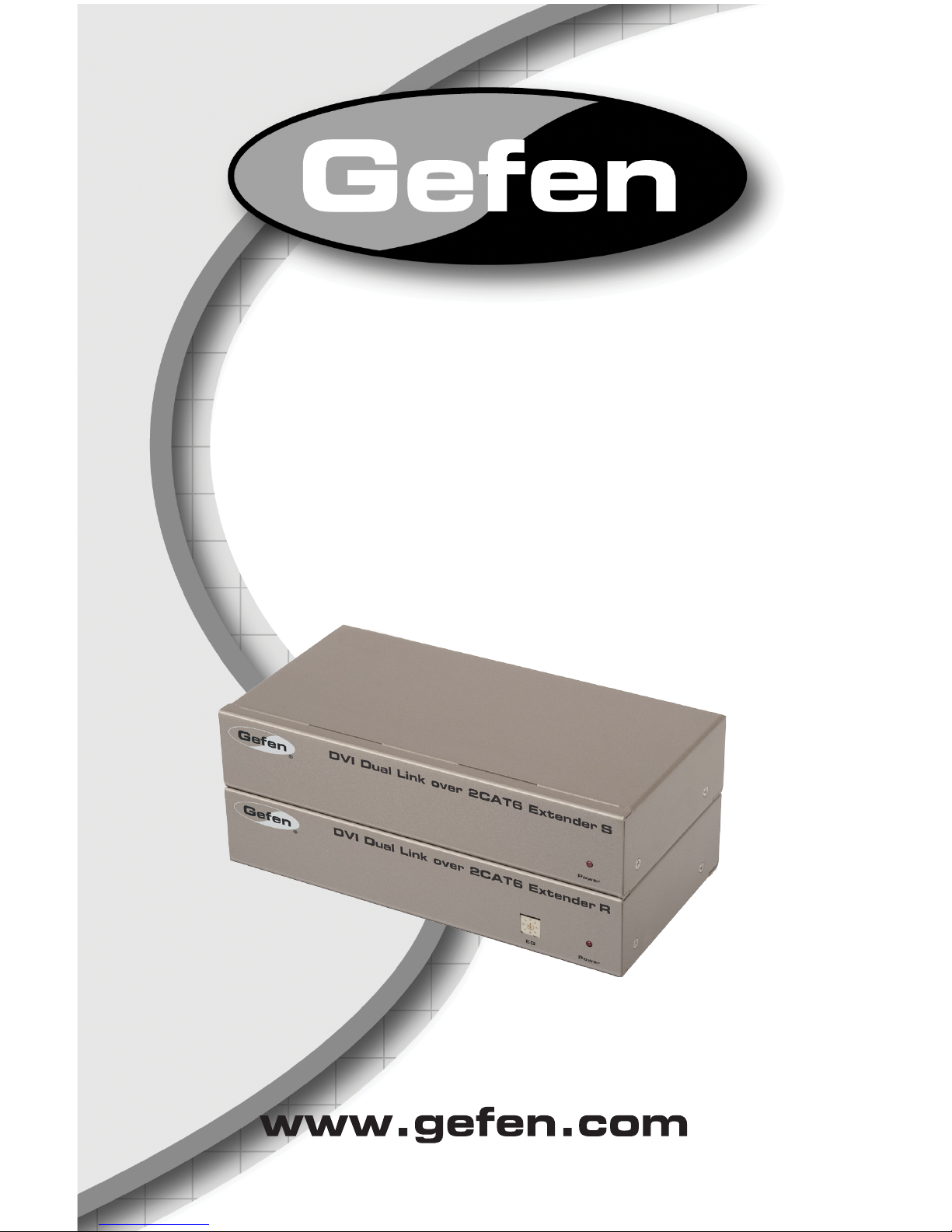

Gefen EXT-DVI-2CAT6DL Bedienungsanleitung

Dual-Link DVI

over 2CAT6

Extender

EXT-DVI-2CAT6DL

User Manual

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM (PST) Monday thru Friday Pacic Time

Write To:

Gefen, LLC

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen, LLC reserves the right to make changes in the hardware, packaging, and

any accompanying documentation without prior written notice.

Dual-Link DVI over 2CAT6 is a trademark of Gefen, LLC

All trademarks are the property of their respective owners.

ASKING FOR ASSISTANCE

Rev A9

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 Sender Panel Layout

5 Sender Panel Descriptions

6 Receiver Panel Layout

7 Receiver Panel Descriptions

8 Connecting the Dual-Link DVI over 2CAT6 Extender

8 Wiring Diagram

9 DIP Switch Conguration

10 Sender Unit

11 Sender Unit

12 Adjusting the Signal Quality

13 RS-232 Serial Control

14 Network Cable Wiring Diagram

15 Firmware Update

16 Specications

17 Warranty

Congratulations on your purchase of the Dual-Link DVI over 2CAT6 Extender.

Your complete satisfaction is very important to us.

Gefen

Gefen delivers innovative and progressive computer and electronics add-

on solutions that harness integration, extension, distribution, and conversion

technologies. Gefen’s reliable, plug-and-play products supplement cross-platform

computer systems, professional audio/video environments, and HDTV systems

of all sizes with hard-working solutions that are easy to implement and simple to

operate.

The Gefen Dual-Link DVI over 2CAT6 Extender

The Dual-Link DVI over 2CAT6 extends any dual-link DVI source up to 200 feet

(60 meters) using two CAT-6a cables or up to 150 feet (45 meters) using two

CAT-5e cables, at resolutions up to 3840 x 2400. Extending dual-link resolutions

over standard DVI cables have a limitation of 15 feet. Exceeding this distance

normally requires additional repeaters and/or boosters. The Dual-Link DVI over

2CAT6 Extender provides an easy to install solution using CAT-6a cables. This

product also extends RS-232 using the same CAT-6a cable, allowing access and

control of devices using RS-232..

How It Works

Place the Dual-Link DVI over 2CAT6 Extender Sender unit next to the computer

source. Use the included dual-link DVI cable to connect the computer to the

Sender unit. Connect the Receiver unit to the display with dual-link DVI cable.

Connect an RS-232 serial cable from the RS-232 port on the Sender unit to the

RS-232 control device. Connect the RS-232 port on the Receiver unit to the RS-

232 device. Use two CAT-6a cables, up to 200 feet (60 meters), to connect the

Sender unit to the Receiver unit. Connect the included locking power supplies to

the Sender and Receiver Unit, and then connect both power cables to available

electrical outlets.

INTRODUCTION

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE DUAL-LINK DVI OVER 2CAT6 EXTENDER

• The Dual-Link DVI over 2CAT6 Extender was designed for use with high

quality CAT-6a (augmented) cabling. This unit will either not perform to

specication or refuse to operate completely if cabling other than CAT-6a is

used.

• When eld terminating CAT-6a cabling please adhere to the TIA/EIA-568-B

specication shown on page 13.

• The Dual-Link DVI over 2CAT6 has a maximum distance rating based on

the bandwidth (i.e. resolution and color) of the video being transmitted.

When used with high quality CAT-6a cabling, you may expect a maximum

extension range of 200 feet (60 meters) at 3840x2400 or 1080p resolution

up to a 60Hz refresh rate. Lower quality cabling or older standards such as

CAT-5 cables will shorten the maximum achievable extension distance.

• For CAT-5e cables, the maximum distance is 150 feet at 1080p Full HD or

2560 x 1600.

OPERATION NOTES

Features

• Extends dual link DVI and RS-232 up to 200 feet (60 meters) over two

CAT-6a cables

• Supports 1080p Full HD at 120Hz and dual-link resolutions up to

3840 x 2400 or single-link resolutions up to 1920 x 1200

• Supports VESA resolutions up to 2560 x 1600

• EDID Management for Local and Pass-through modes

• HDCP pass-through for single link and dual link resolutions

• Locking Power Supplies

• Rack-mountable

• Compatible with the Gefen Modular General Purpose Racktray

Application

• Computer Extension over CAT-6 up to 2560 x 1600

Package Includes

(1) Dual-Link DVI over 2CAT6 - Sender unit

(1) Dual-Link DVI over 2CAT6 - Receiver unit

(1) 6 ft. Dual-Link DVI Cable (M-M)

(2) 5V DC Power Supply

(1) Quick-Start Gide

FEATURES

Front Panel

SENDER UNIT LAYOUT

Back Panel

5 6

1 Power

This LED indicator will glow bright red once the included 5V DC locking power

supply is properly connected between the unit and an open wall power socket.

2 Link 1

This port is used to connect the sending and receiving units together using a

CAT-6a cable.

3 DVI DL In

This input will accept a dual-link DVI-D (digital only) source for extension. Attach

the cable coming from your DVI source here.

4 Link 2

This port is used to connect the sending and receiving units together using a

CAT-6a cable.

5 RS-232 Input

This port is used to connect an RS-232 Serial Cable from the RS-232 host

device to this port.

6 5V DC

Connect the included 5V DC locking power supply to this receptacle.

SENDER PANEL DESCRIPTIONS

Front Panel

RECEIVER UNIT LAYOUT

Back Panel

1 2

6 7
