Gefen GTV-MFDA-148 Bedienungsanleitung

1:8 Multi Format Video Distribution

over Ethernet

GTV-MFDA-148

User Manual

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday.

Write To:

Gefen, LLC

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefentv.com

support@gefentv.com

Notice

Gefen, LLC reserves the right to make changes in the hardware, packaging, and

any accompanying documentation without prior written notice.

1:8 Multi Format Video Distribution over Ethernet

is a trademark of Gefen, LLC

All trademarks are the property of their respective companies.

ASKING FOR ASSISTANCE

Rev A2

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 Sender Panel Layout

5 Sender Panel Descriptions

6 Receiver Panel Layout

7 Receiver Panel Descriptions

8 Connecting and Operating The Unit

8 Distribution of Video andAudio over CAT-5

9 Distribution of Video andAudio over LAN

10 Operation As a Switch

11 Wiring Diagrams

12 IR Backchannel Configuration

13 Video Input and Output Format Conversion Table

14 Speciﬁcations

15 Warranty

INTRODUCTION

Congratulations on your purchase of the 1:8 Multi Format Video Distribution over

Ethernet. Your complete satisfaction is very important to us.

GefenTV

GefenTV is a unique product line catering to the growing needs for innovative

home theater solutions. We specialize in total integration for your home theater,

while also focusing on going above and beyond customer expectations to ensure

you get the most from your hardware. We invite you to explore our distinct

product line and hope you ﬁnd your solutions. Don’t see what you are looking for

here? Please call us so we can better assist you with your particular needs.

The GefenTV 1:8 Multi Format Video Distribution over Ethernet

This versatile product is useful for PCs, digital signage applications, and

educational institutions. VGA, Component, S-Video, or Composite video data

is broadcast from the Sender up to 330 ft over CAT-5 to the Receiver. The

Receiver provides VGA or Component output and can be daisy-chained.

Additional features of this product allow video and audio distribution over a Local

Area Network (LAN).

How It Works

The GefenTV 1:8 Multi Format Video Distribution over Ethernet is a Sender/Re-

ceiver system allowing broadcast of analog video and audio over Ethernet cable

to a maximum of eight (8) Receivers. Distribution of video and audio over LAN

can also be achieved by connecting a single Ethernet cable from the Sender unit

to a LAN connection. See page 9 for details.

READ THESE NOTES BEFORE INSTALLING OR OPERATING

THE 1:8 MULTI FORMAT VIDEO DISTRIBUTION OVER ETHERNET

• This product is Ethernet-based, not IP-based.

• It is recommended that a managed switch with multicast support be

placed between the Sender Unit and Receiver Unit(s). The multicast

function should be enabled on the switch.

• If a non-managed switch is used, VGA Sender multicast packets will be

broadcast to all outputs of the switch. This unit uses about 80 Mbs to

send audio and video.

• Once the Receiver Unit is connected to the same LAN, it will

automatically link to the Sender Unit.

• Receivers Unit(s) cannot be placed outside of a LAN.

• Conforms to IEEE 802.3 standards.

OPERATION NOTES

FEATURES

Features

• Extend video and audio up to 330 ft (100 m) using CAT-5.

• Maximum Input Resolutions: 1080p@60Hz (Component), 1280x1024@60Hz

(VGA), 480i@60Hz, 576i@50Hz (S-Video, Composite)

• Maximum Output Resolutions: 720p@60Hz (Component),

1280x1024@60Hz (VGA), 480i@60Hz, 576i@50Hz (S-Video, Composite)

• Switch between four audio/video sources from the Sender location

• Plug-and-Play installation (with no special hardware or software

conﬁguration required)

• 2-Channel Stereo Analog Audio supported

• PCM Encoding is 48KHz 16-bit sampling

Package Includes

(1) GefenTV 1:8 Multi Format Video Distribution over Ethernet Sender Unit

(1) GefenTV 1:8 Multi Format Video Distribution over Ethernet Receiver Unit

(1) 6 ft VGA Cable (M-M)

(1) 12V DC Power Supplies

(1) User Manual

SENDER PANEL LAYOUT

Front Panel

Back Panel

612

910 11 13

Top Panel

SENDER PANEL DESCRIPTIONS

1 Input Selection Indicators

Indicates the current input selection: Composite, S-Video, Component,

or VGA

2 Power Indicator

This LED will glow blue when the power is on.

3 Power On/Off Switch

Turn the power on or off using this button

4 Selector Button

Switches between Component Video, S-Video, Composite and VGA

5 Ethernet (RJ-45) Input Connectors

Use this jack point to connect another receiver into the system

6 Reset Button

Reset the sender unit

7 Analog Stereo Audio Input

Use this input to connect a 3.5mm analog stereo audio line-in jack

8 VGA Video Input

Use this input to connect a VGAvideo input from a computer source

9 Component Video Inputs

Use this input to connect anAnalog RCAComponent

10 S-Video Input

Use this input to connect S-Video sources

11 Composite Video Input

Use this input to connect Composite video

12 IR Back-Channel Port

Use this port to connect an IR blaster cable (Gefen Part No. EXT-2IREMIT,

not included)

13 12V DC Power Receptacle

Used to connect the included 12V DC power supply

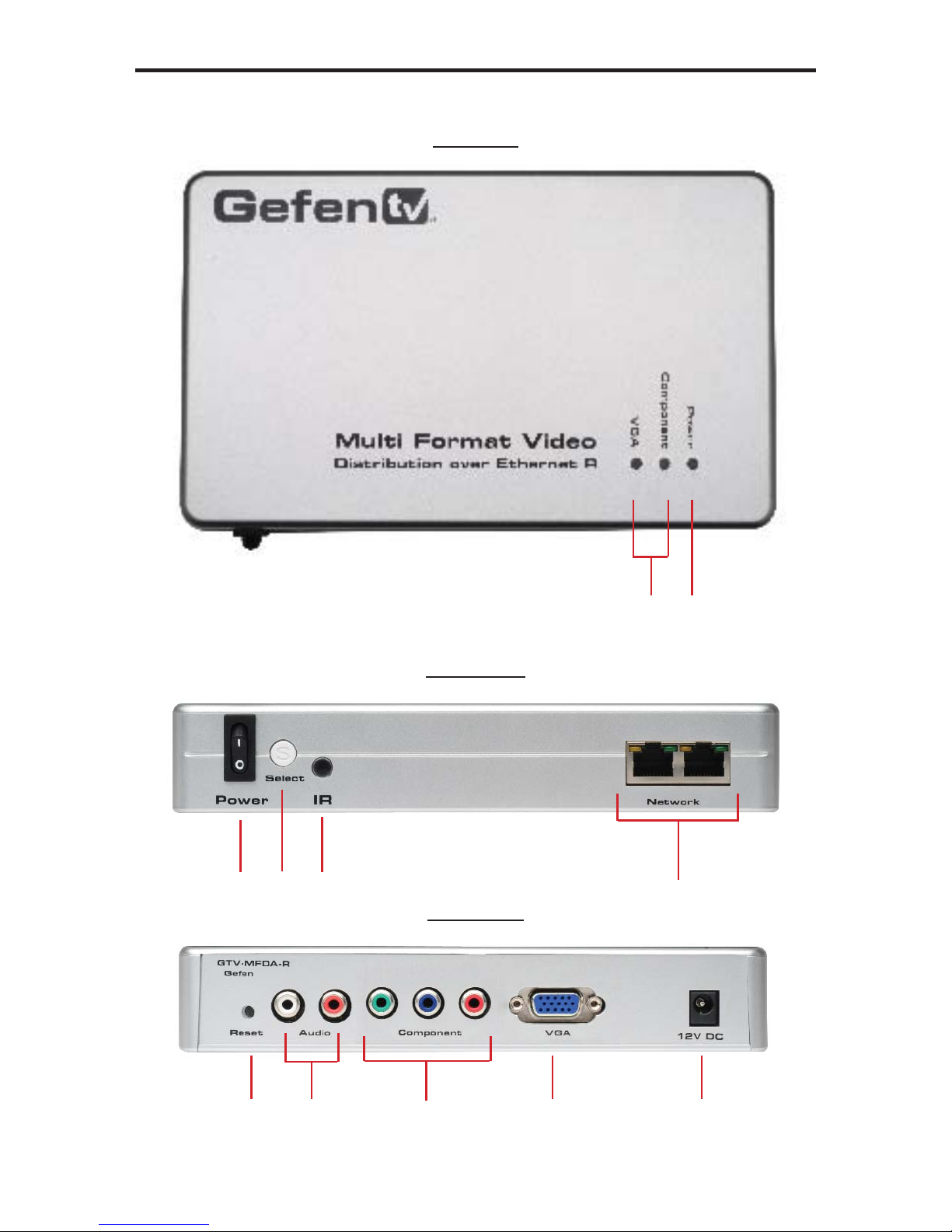

RECEIVER PANEL LAYOUT

Front Panel

Back Panel

3456

710

811

Top Panel

RECEIVER PANEL DESCRIPTIONS

1 Output Selection Indicator

Indicates the current output selection: Component or VGA

2 Power Indicator

This LED will glow blue when the Receiver is powered on

3 Power On/Off Switch

Turn the power on or off using this button

4 Selector Button

Switches between Component or VGAoutput

5 IR Sensor

Infrared lens senses signals from remote control

6 Ethernet (RJ-45) Output Connectors

Use this input to connect Ethernet cables

7 Reset Button

Resets the receiver unit

8 Analog Stereo Audio Output

Connect a stereo RCAcable to these outputs.

9 Component Video Output

Use this input to connect component video

10 VGA Output Connector

Use this to connect analog VGAdisplays

11 12V DC Power Receptacle

Used to connect the included 12V DC power supply
