Gefen HDMI CAT-5 Bedienungsanleitung
www.gefen.com
CAT5•7500HD
EXT-CAT5-7500HD
User Manual
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday Pacific Time
Write To:
Gefen, LLC
c/o Customer Service
20600 Nordhoff St.
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen, LLC reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
All trademarks are the property of their respective owners.
© 2010 Gefen, LLC, All Rights Reserved
ASKING FOR ASSISTANCE
Rev A5
TABLE OF CONTENTS
Introduction and Operation Notes
How it Works
CAT5•7500HD Front Panel Descriptions
CAT5•7500HDS Back Panel Layout
CAT5•7500HDS Back Panel Functions
CAT5•7500HDR Back Panel Layout
CAT5•7500HDR Back Panel Functions
CAT5•7500HD - Wiring Diagram
CAT5 Link Cable Wiring Diagram
Service Switch Usage Guide
Frequently Asked Questions
Terminology
System Specifications
Warranty
1
2
3
4
5
6
7
8
9
10
11
12
13
14
INTRODUCTION
Thank you for purchasing the new ex•tend•it CAT5•7500HD series by Gefen, Inc.
The CAT5•7500HD by Gefen allows users the benefits of extending USB, audio in,
audio out, PS/2, RS-232, and video signals beyond the desktop. In a growing number
of applications, broadcast stations and production facilities there is a need to locate a
computer remotely, from the keyboard, mouse, and video monitor.ACPU may need to be
shared between several users or moved to another room because of annoying fan noise.
TheCAT5•7500HD series can be used to extend computers withnoisy fans, printers, hard
drives, scanners, cameras, keyboards, mouse, and any other USB-type peripherals. The
CAT5•7500HD has the potential to cover the distance of 200 feet over industry standard
Category 5 (CAT-5) cables. One can connect additional CAT5•7500HD series to the
same computer, allowing access to the same computer from other locations up to 200
feet apart.
Lengths and Distances Supported:
Up to 200 Feet....................................................................................1280x1024 @ 60Hz
Up to 150 Feet....................................................................................1920x1200 @ 60Hz
1
READ THESE NOTES BEFORE INSTALLING
OR OPERATING THE CAT5•7500HD SYSTEM
• IndustrystandardCategory-5(CAT-5)cablesareusedtooperateCAT5•7500HDsystems.
• The CAT5•7500HD units are housed in a metal box for better RF shielding.
OPERATION NOTES
c
.
di i
c
2
CONTENTS
The CAT5•7500HD system consists of:
--- (1) CAT5•7500HDS (Sender unit)
--- (1) CAT5•7500HDR (Receiver unit)
--- (2) 5 VDC power supply
--- (2) DVI cables (6FT)
--- (1) USB cable (6FT)
--- (2) PS/2 cables (6FT)
--- (1) Audio cable (6FT)
--- (1) Rack ears
--- (1) User Manual
HOW IT WORKS
Inits most basic application,the CAT5•7500HDS Senderunitresides next tothe computer.
Suppliedwiththesystem,DVIcables,PS/2keyboard,PS/2mouse,audio,and USB cables,
they connect the computer to the CAT5•7500HDS Sender unit.
The CAT5•7500HDR Receiver unit is placed next to the monitors, keyboard, mouse, and
USB peripherals at the remote location. The monitor and keyboard are connected to the
CAT5•7500HDR, similar to the way they are connected to the back of the computer (PC
or Macintosh).
HOW IT WORKS

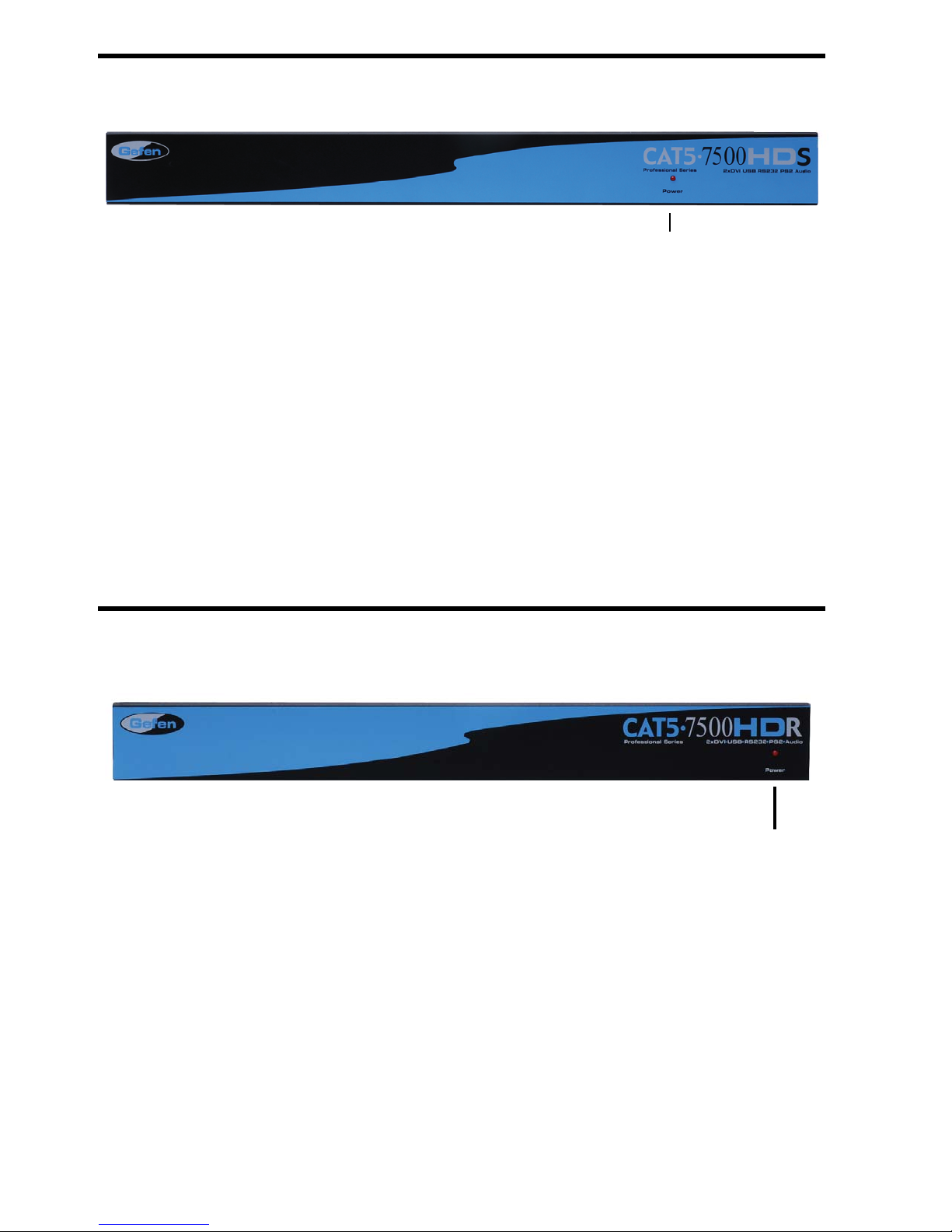

CAT5•7500HDS FRONT PANEL DESCRIPTIONS
3
Front Panel Function Descriptions
Power On Indication - Indicates that the unit is on and plugged in.1
CAT5•7500HDR FRONT PANEL LAYOUT
Front Panel Function Descriptions
POWER ON INDICATOR - Indicates that the unit is on and plugged in.
1
1
1
CAT5•7500HDS BACK PANEL LAYOUT
4
123 4 56 7 9 11 12 13
108 14
CAT5•7500HDS BACK PANEL LAYOUT
POWER - 5V DC external power supply plugs in here with a locking power
connector. When attaching the power tip, gently screw it into the threaded socket
until it refuses to turn any further. Do not apply force when turning the connector.
CAT5 Video 1 - RJ-45 input extends DVI input 1 with CAT-5 cable
CAT5 USB / DDC1 - RJ-45 input extends USB and DDC1 signals with CAT-5
cable
DVI IN 1 - DVI Input connects to your computer with the supplied DVI cable
CAT5 Video 2 - RJ-45 input extends DVI input 2 with CAT-5 cable
CAT5 USB / DDC2 - RJ-45 input extends USB and DDC2 signals with CAT-5
cable
DVI IN 2 - DVI Input connects to your computer with the supplied DVI cable
USB IN - USB Input from computer
KEYBOARD - Mini-DIN PS/2 keyboard input from computer
MOUSE - PS2 mouse input from computer
AUDIO / PS2 and RS-232 - RJ-45 input extends audio as well as RS-232 and
PS2 signals with a set of two (2) CAT-5 cables here.
RS-232 IN - RS-232 DB9 serial input from computer
MIC OUT - 3.5mm mini-Stereo input jack connects to computers' mic input
AUDIO IN - 3.5mm mini-Stereo input jack connects to computers' audio output
5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
e
r
d
socket
nnector
nnector
e
d
CAT5•7500HDR BACK PANEL LAYOUT
6
123 4 56 7 911 12 13108 14 15
