Gefen EXT-HDMI1.3-242 Bedienungsanleitung

www.gefen.com

2X2 Switcher for

1.3

EXT-HDMI1.3-242

User Manual

Rev A1

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday.

Write To:

Gefen Inc.

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and

any accompanying documentation without prior written notice.

2x2 Switcher for HDMI 1.3 is a trademark of Gefen Inc.

All trademarks are the property of their respective companies

ASKING FOR ASSISTANCE

Rev A1

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 Panel Layout

5 Panel Descriptions

6 Connecting And Operating The 2x2 Switcher for HDMI 1.3

7 RMT2-IR Remote Control Description

8 IR Channel Configuration

10 Speciﬁcations

11 Warranty

Congratulations on your purchase of the 2x2 Switcher for HDMI 1.3. Your

complete satisfaction is very important to us.

Gefen

Gefen delivers innovative, progressive computer and electronics add-on solutions

that harness integration, extension, distribution and conversion technologies.

Gefen’s reliable, plug-and-play products supplement cross-platform computer

systems, professional audio/video environments and HDTV systems of all sizes

with hard-working solutions that are easy to implement and simple to operate.

The Gefen 2x2 Switcher for HDMI 1.3

Gefen’s 2x2 Switcher for HDMI 1.3 is equipped with two HDMI inputs and two

HDMI outputs. Two inputs accommodate the simultaneous connection of up to

two high deﬁnition video sources, such as satellite systems and Blu-Ray players.

Two outputs send the high deﬁnition audio/video signals to up to two HDTV

displays. Switching is done via the included IR remote.

How It Works

Connect all your sources to the 2x2 Switcher for HDMI 1.3 inputs. Then connect

up to two displays on the output ports. Once the sources, the switcher and the

displays are powered and connected, you then select which source you want to

view using the IR remote.

Note:

All displays that cannot show the same video resolution(s) as the Primary Display

connected to Output #1 may fail to show a picture. Secondary displays follow the

Primary by sharing the resolution and capability information (EDID) obtained from

the Primary Display.

INTRODUCTION

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE 2X2 SWITCHER FOR HDMI 1.3

• Display information (EDID) is needed by the source to determine the

capabilities of the connected display. This is especially important for HDMI

1.3 sources because without the right information in the EDID none of

the features for HDMI1.3 will be enabled. The 2x2 Switcher for HDMI 1.3

features an EDID selection that will allow the user to choose an external

EDID from an attached display or an built-in internal EDID. Please see page

6 for more details.

• The source device will output a single video resolution that all displays must

be capable of accepting.

• This devices is HDMI 1.3 compliant. Please see page 3 for supported HDMI

1.3 features.

• Supports HDTV resolutions up to 1080p Full HD and computer resolutions of

1900 x 1200.

OPERATION NOTES

Features

• Switch easily between any two HDMI™/DVI sources

• Outputs are mirrored to two HDMI™/DVI displays simultaneously

• Maintains high resolution video - beautiful, sharp HDTV resolutions up to

1080p, 2k, and computer resolutions up to 1920 x 1200 are easily achieved

• Discrete IR remote (included)

• HDMI™ and HDCP compliant

HDMI 1.3 Features

• Lip-Sync Pass Through

• 225 MHz (up to 12 bit YUV 444 supported @ 1080p)

• Deep Color Supported (XV Color Supported)

• Color Space Conversion Supported

• Dolby TrueHD & DTS Master Supported

• CEC Pass Through

Package Includes

(1) 2x2 Switcher for HDMI 1.3

(1) RMT-2IR Remote Control

(2) 6-Foot HDMI cables

(1) 5V DC Power Supply

(1) User’s Manual

FEATURES

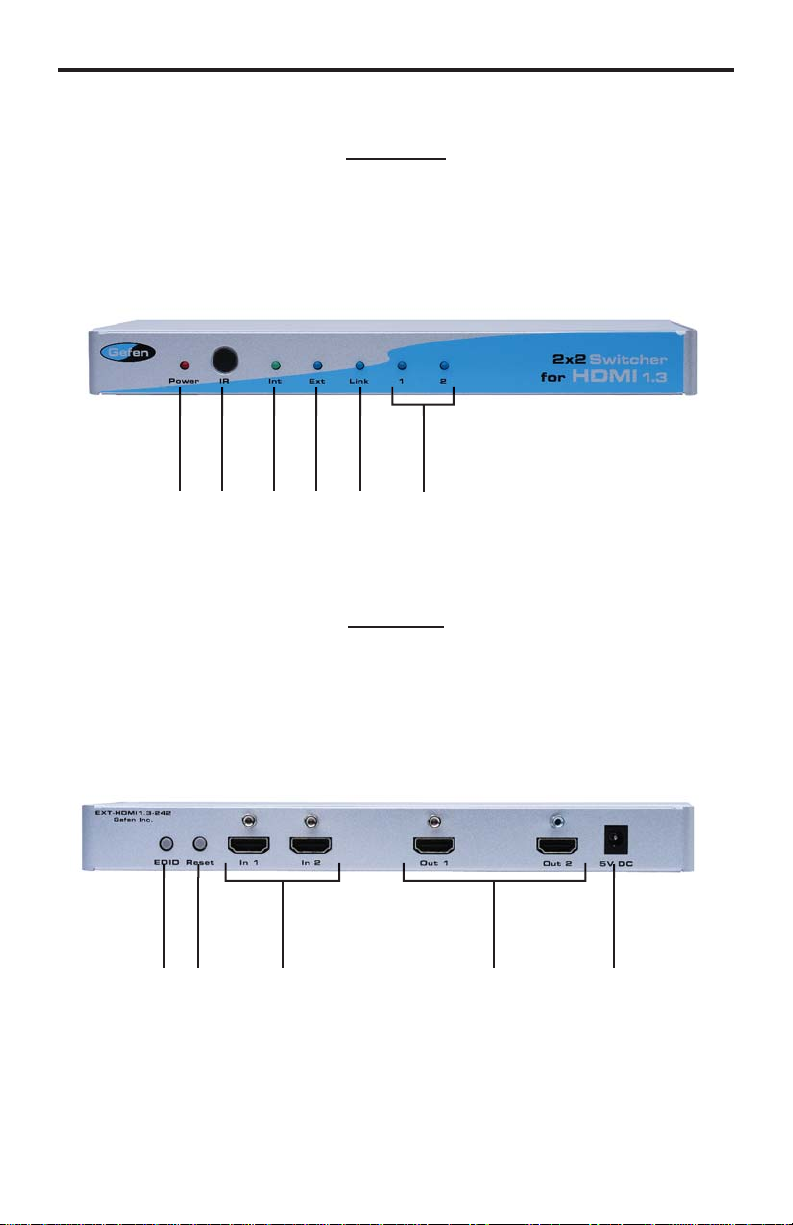

Front Panel

Back Panel

1 2 3 4 5 6

7 8 119 10

PANEL LAYOUT

1 Power LED Indicator

This LED will become active once the included 5V DC power supply is properly

connected between the unit and a open wall power receptacle.

2 IR (Infrared) Receiver

This receiver will accept command for switching between input HDMI devices

using the included RMT-2IR remote control.

3 Internal EDID Mode LED Indicator

This LED will become active when the unit is using the pre-loaded EDID. Please

see page 6 for more details.

4 External EDID Mode LED Indicator

This LED will become active when the unit is using the EDID from the HDMI

deice connected to HDMI output port 1. Please see page 6 for more details.

5 Link LED Indicator

This LED will become active when the unit is properly connected to an HDMI

capable device on either of the HDMI output ports.

6 Currently Selected Input LED Indicator

There is one LED for each of the four input ports. The LED for the currently

selected HDMI input will be active.

7 EDID Selection Toggle Button

This button will toggle between the internal external EDID modes. To determine

which mode is currently being used, please note which EDID mode LED is

active on the front panel of the unit.

8 Reset Button

This button will reset the unit and force all devices in the chain to re-transmit/

re-read EDID. It is essential that the unit be reset after the EDID mode has been

changed. Please see page 6 for more details.

9 HDMI Input Ports 1-2

Connect up to 2 HDMI source devices to these HDMI input ports. Selection

between these inputs are made using the included RMT-2IR remote control.

10 HDMI Output Ports 1-2

Connect up to 2 HDMI capable devices to these HDMI output ports. The

currently selected HDMI input source device will be output through both of these

HDMI output ports.

11 5V DC Power Input Port

Connect the included 5V DC power supply between this port and an open wall

power receptacle.

PANEL DESCRIPTIONS

How to Connect the 2x2 Switcher for HDMI 1.3

1. Connect up to two HDMI source devices to the 2x2 Switcher for HDMI 1.3

using the supplied HDMI cables.

2. Connect up to two HDMI capable devices to the 2x2 Switcher for HDMI 1.3

using the supplied HDMI cables.

NOTE: The display connected to the port labeled OUT 1 will have its EDID

used when the external EDID mode is active. If there are displays with different

resolutions in the setup it is recommended that the display with the lowest

resolution be placed on the HDMI port labeled OUT 1. This way, all of the

displays should be able to display an image when the external EDID mode is

active.

3. Connect the included 5V DC power adapter to the 2x2 Switcher for HDMI

1.3 power input port.

4. Power on the displays ﬁrst and then the source.

How to Operate the 2x2 Switcher for HDMI 1.3

Use the included RMT2-IR remote control to switch between HDMI inputs.

Please see page 7 for a description of the RMT2-IR remote control.

EDID Modes and Reset Buttons

The EDID source is selectable between the display connected to the HDMI

output port labeled OUT 1 or the built-in internal EDID. These 2 modes are

selectable by toggling the EDID button located on the back panel. To switch

modes, follow the instructions below.

1. Note the current EDID mode by viewing the front panel’s LED array. If the

INT LED is active the internal EDID mode is in use. If the EXT LED is active

the external EDID mode is in use.

2. If the currently selected EDID mode is not the desired EDID mode, press the

EDID button on the rear panel once. The active LED will now switch and the

new EDID mode will become active once the unit is reset.

3. Press the reset button to cycle power and initiate the newly selected EDID

mode.

The EDID carries import information that the source reads to determine what

resolutions and features are supported. The internal EDID has support for

resolutions up to 1080p and includes Dolby TrueHD and DTS-HD features.

CONNECTING AND OPERATING THE 2X2 SWITCHER FOR HDMI 1.3

The included RMT-2IR remote control is used to switch between inputs on the 2x2

Switcher for HDMI 1.3. Only one input can be selected at a time and this input is then

mirrored to the four HDMI outputs on the rear panel.

Switching

Press the 1 button to switch to HDMI input 1.

Press the 2 button to switch to HDMI input 2.

RMT2-IR REMOTE CONTROL DESCRIPTION
