www.gefen.com

Mini DVI Switcher

EXT-MINIDVI-241N

User Manual

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday through Friday.

Write To:

Gefen Inc.

C/O Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

Mini DVI Switchertm is a trademark of Gefen Inc.

ASKING FOR ASSISTANCE

Rev X1

TABLE OF CONTENTS

Introduction

Features

Panel Descriptions

Connecting and Operating the Mini DVI Switcher

RMT2-IR Installation

IR Code Conﬁguration

Speciﬁcations

Warranty

Congratulations on your purchase of the ex•tend•it Mini DVI Switcher. Your complete

satisfaction is very important to us.

Gefen’s line of DVI switches, extenders, and splitters are designed to make yourA/V

equipment use more comfortable, more productive and less expensive.

The ex•tend•it Mini DVI Switcher enables effortless DVI video source switching using

a single DVI display. A simple, reliable and economical solution, the Mini DVI Switcher

links any two DVI sources to one DVI display. It completely eliminates the need to

disconnect then reconnect multiple DVI sources, saving time by providing a fundamen-

tal tool that brings it all together behind the scenes. When all three devices (the display

plus the two sources) are connected to the Mini DVI Switcher and powered on, you

simply select which source you want to view on the display using the Switcher, the IR

remote that comes with it, or any universal remote you program to work with the

Switcher.

The ex•tend•it line offers solutions for noise, space and security concerns, data center

control, information distribution, conference room presentation, school and corporate

training environments.

Our Commitment

Gefen will always offer the ﬁnest quality product at the best possible price. Included in

that price is a lifetime of support from a team of outstanding engineers.

How It Works

Simply connect your DVI display to the Switcher's display output. Then connect both

DVI sources to the Switcher's inputs using the DVI cables that come with the Switcher.

Once the sources, the Switcher and the display are all powered on and connected, you

simply select which source you want to view.

INTRODUCTION

FEATURES

Features

• Saves money on hardware—no need to purchase multiple DVI displays

• Saves space—a single DVI display

• Saves time—no need to disconnect and reconnect DVI devices—everything is always

connected and accessible

• Maintains high resolution video—beautiful, sharp DVI resolutions up to 1080P are

easily achieved. For computer users, the Mini DVI Switcher conforms with DVI 1.0

speciﬁcations for resolutions up to 1920 x 1200.

• No loss of quality—the integrity of the signal is preserved throughout the transmissions

using high caliber DVI cables that ensure the signal is maintained

• Operational ﬂexibility—you can switch at the source, with the IR remote control or your

own universal remote

• Compatible with all DVI-equipped. To determine if your device is DVI-equipped, simply

look for the 24-pin connector on the back of the unit. For computer users, the Mini DVI

Switcher is compatible with all DVI-equipped computers and supports Apple’s line of ﬂat

panel displays when used with the DVI to ADC Conversion Box.

• Easy to install and simple to operate

Includes:

(1) Mini DVI Switcher

(2) 6’ DVI-D cables (M-M)

(1) 5VDC Power Supply

(1) RMT2-IR remote control

(1) User's Manual

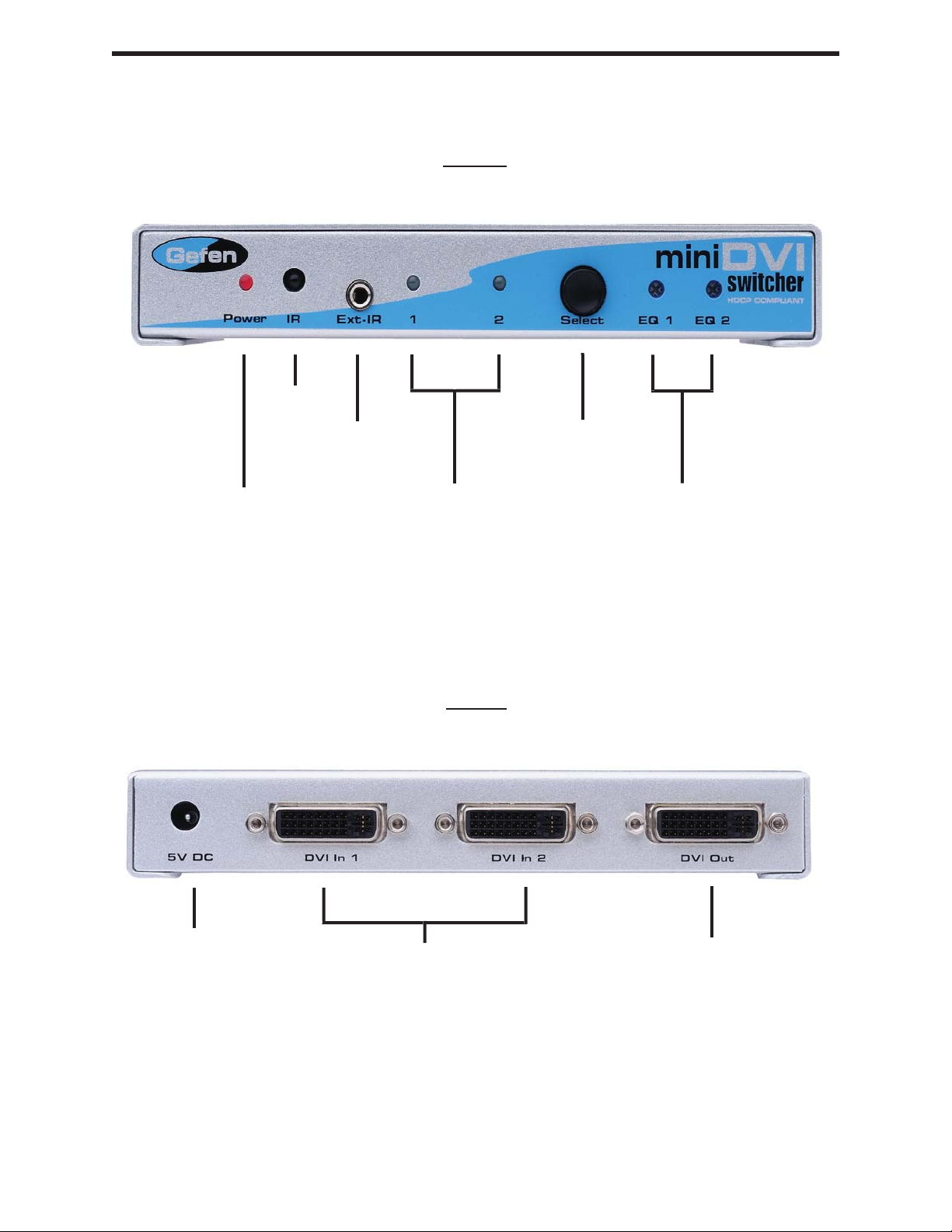

PANEL DESCRIPTIONS

Connects to 5VDC

power supply Connects to

DVI display

Connects to IR

extender

IR eye

Indicates if port 1 or

port 2 is selected

Selects port 1

or port 2

Power LED

Indicator EQ Trim pots for

each channel

DVI Outputs

Front

Back

CONNECTING AND OPERATING THE MINI DVI SWITCHER

How to Connect the Mini DVI Switcher to your devices

1 Connect the supplied DVI cables from the DVI sources into the DVI Switcher Input.

2Connect the cable from your display (monitor or projector) into the DVI Out of the

Mini DVI Switcher.

How to Operate the Mini DVI Switcher

1 Use the front panel push button to switch between sources.

2 Alternatively, use the RMT2-IR remote control port to remotely toggle between sources.

Operation Notes

The output signal may need to be equalized depending on the length and quality of the

DVI cables that are being used. If, after connecting all equipment and powering on the

system, there is either no picture or video noise on the output display device, the signal

may have to be equalized. To do this, follow the steps below.

1. Locate the equalization Trim Pots on the front panel of the Mini DVI switcher.

2. Insert small ﬂat-headed adjustment tool into the Trim Pot and turn it in either a clock-

wise or counter clock-wise direction until the image appears and/or stabilizes. The Trim

Pot can only be turned approximately one full revolution. Do not force the Trim Pot

beyond the point where it initially stops or it may be rendered useless.

3. Once the desired setting has been achieved, remove the adjustment tool.

RMT2-IR INSTALLATION

1. Remove battery cover from the back of the RMT2-IR remote.

2. Verify that dip switches 1 & 2 are in the down (OFF) position.

3. Hold the battery so that you can see the positive side facing up. The side that is not

marked must be facing down.

5. Insert the battery into the open battery slot in the remote control.

7. Test the RMT2-IR remote by pressing ONLY one button at a time. The indicator light

on the remote will ﬂash once each time you press a button. WARNING: Do not press

multiple buttons simultaneously and do NOT press buttons rapidly. These actions will

cause the remote to reset and steps 1-7 will have to be repeated.

Note: The RMT2-IR ships with two batteries. One battery is required for operation, the

second battery is complimentary.

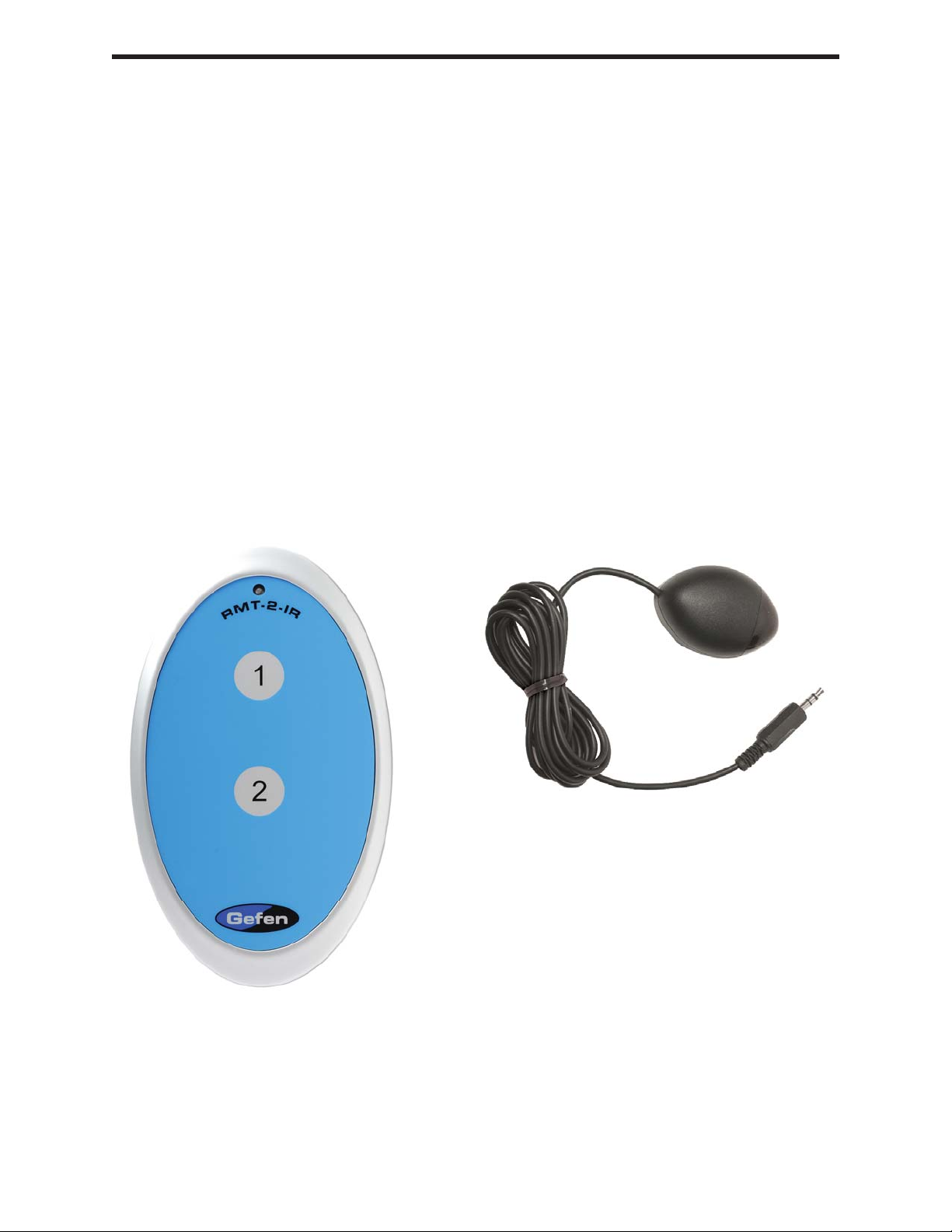

The optional IR extender RMT-EXTIR al-

lows you to relocate your Mini DVI Switcher

and still have IR control of the Mini DVI

Switcher

Note: The 3.5mm mini-stereo jack located on the front of the unit is used to con-

nect the optional IR extender (shown above). It can also be used for connecting a

cabled contact closure remote control (such as Gefen's EXT-RMT-2).

IR CODE CONFIGURATION

Why would I need to change the remote channel?

In some instances, the Mini DVI Switcher may use IR codes that conﬂict with other

IR remote control devices. The unit may switch inputs when another brand IR remote

control is used or the RMT-2IR may cause other brand IR controlled devices to

behave unexpectedly.

I am experiencing the issues listed above. What do I do?

In these cases it is recommended to change the IR channel that the RMT-2IR remote

control and the Mini DVI Switcher use. The IR channel is conﬁgured independently

on the RMT-2IR remote control and the Mini DVI Switcher but the channel selection

must match on both units for proper operation.

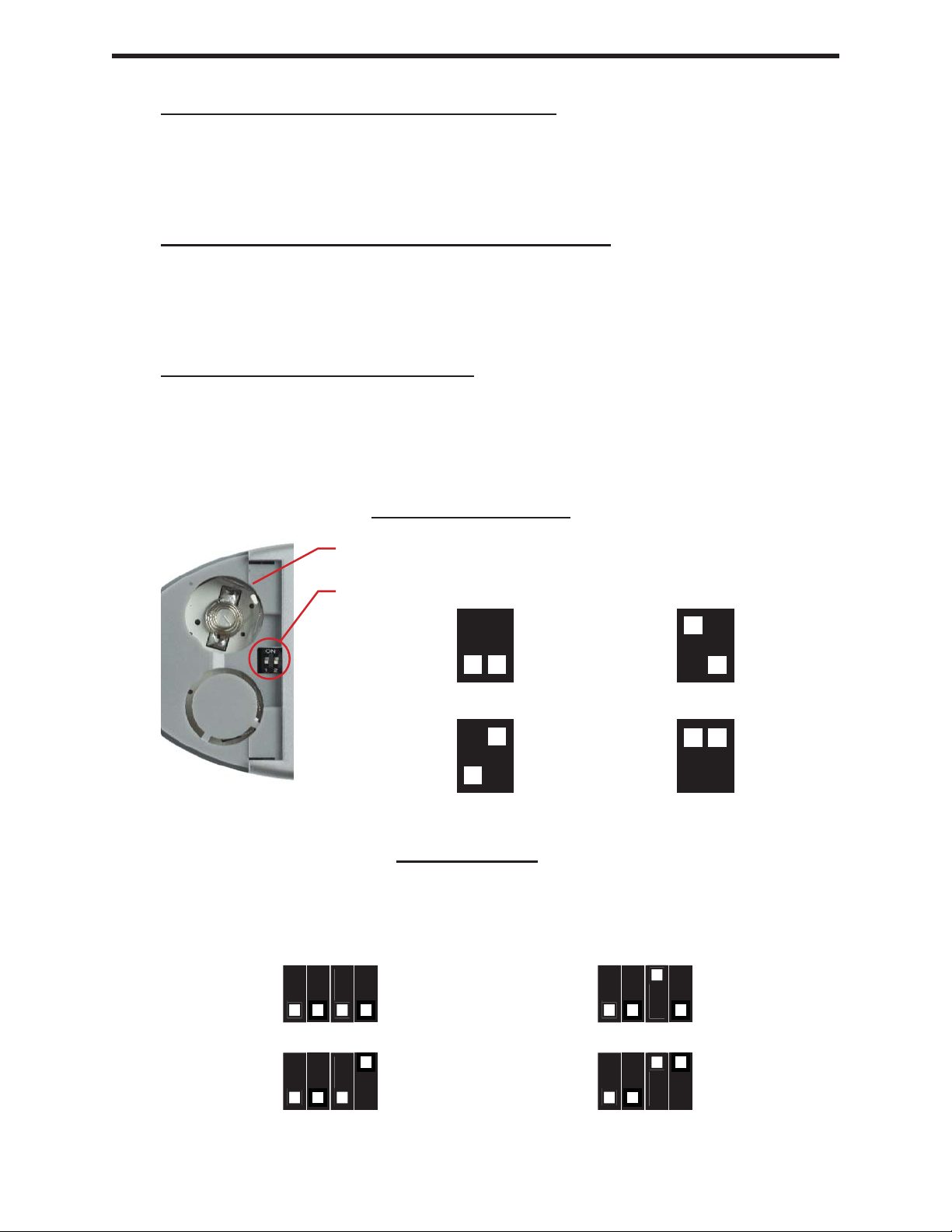

How Do I change the Remote Channel?

There are service DIP switches on the RMT-2IR remote control and also inside the

Mini DVI Switcher. Use the diagrams below to locate and change the IR channel to

one that is not the default. Remember that the channel must match on both the unit

and remote control for successful operation.

2 DIP switch bank for IR channel conﬁguration.

Mini DVI Switcher

RMT-2IR Remote Control

Remote Channel 1:

Default

Remote Channel 4:

Remote Channel 1:

Default

1 2

Remote Channel 2:

1 2

Remote Channel 3:

1 2

Remote Channel 4:

1 2

1234

Remote Channel 3:

1234

Remote Channel 2:

1234

Remove the battery cover on the rear side of the RMT-2IR remote control

to expose the DIP switches.

The IR channel DIP switches for the Mini DVI Switcher are located on an 4 bank DIP switch on the

underside of the unit and covered with a piece of silver colored metallic tape. Locate DIP switches 3 and

4. Once adjustments are complete replace all screws and.

SPECIFICATIONS

Video Ampliﬁer Bandwidth ................................................................................. 1.65 GHz

Input Video Signal ......................................................................................... 1.2 volts p-p

Input DDC Signal .................................................................................... 5 volts p-p (TTL)

Single Link Range ......................................................................................... 1920 x 1200

DVI Input/Output Connector Type ........................................................................... DVI-D

Power Consumption ................................................................................ 15 Watts (max.)

Power Supply .......................................................................................................... 5VDC

Dimensions ............................................................................................. 4”D x 1”W x 4”H

Shipping Weight ....................................................................................................... 2 Lbs
