Gefen RMT-2-CAT5 Bedienungsanleitung

RMT-MATRIX-444

& RMT-2-CAT5

USER MANUAL

www.gefen.com

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday.

Write To:

Gefen, Inc.

c/o Customer Service

20600 Nordhoff Street

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and

any accompanying documentation without prior written notice.

The RMT-MATRIX-444 &RMT-2-CAT5 is a trademark of Gefen Inc.

ASKING FOR ASSISTANCE

TABLE OF CONTENTS

Introduction / Operation Notes

Features / Package Includes

Panel Layout - RMT-MATRIX-444

Panel Layout - RMT-2-CAT5

Using the RMT-MATRIX-444 / RMT-2-CAT5

RS-232 Interface

Warranty

INTRODUCTION

Thank you for purchasing the RMT-MATRIX-444 and/or the RMT-2-CAT5.

The RMT-MATRIX-444 is a powerful tool that can be used with the EXT-DVIKVM-

444. It will allow you to remotely switch your sources. If your remote station is

located in another room, you can easily switch to another source by pressing

one of the four pushbutton switches on the RMT-MATRIX-444. This box easily

connects to the EXT-DVIKVM-444 by one CAT5e cable. You can use up to four

RMT-MATRIX-444 units with the EXT-DVIKVM-444 to have the ability to switch

at all four remote workstations.

The RMT-2-CAT5 now gives your Gefen 4x4 Matrix box the power of remote

switching. The RMT-2-CAT5, in conjunction with up to four RMT-MATRIX-444

units, will extend your ability to manage your sources at each remote display. It

will work with any of our 4x4 matrix untis listed below. Your remote switching is

easily setup by using one CAT5e cable from the RMT-MATRIX-444 to the RMT-

2-CAT5, and then connecting the RMT-2-CAT5 to your matrix switcher by using

a serial cable. You can now switch your sources at each display without ever

having to switch locally again.

OPERATION NOTES

READ THESE NOTES BEFORE INSTALLING

OR OPERATING THE HOME THEATER SCALER

• The RMT-MATRIX-444 and RMT-2-CAT5 units are housed in a metal box for

better RF shielding.

• Industry standard Category-5 (CAT-5) cables are used to operate the

RMT-MATRIX-444 and RMT-2-CAT5.

• The RMT-MATRIX-444 is designed to work with the EXT-DVIKVM-444 or in

conjunction with the RMT-2-CAT5.

• The RMT-2-CAT5, with up to four RMT-MATRIX-444 units, will work with

these Gefen products:

EXT-HDTV-444N

EXT-HDTVKVM-444

EXT-DVI-444N

EXT-HDMI-444

EXT-COMPAUD-444

FEATURES

• Remote switching of sources on compatible products

INCLUDES:

RMT-MATRIX-444

(1) RMT-MATRIX-444

(1) 10ft CAT5e cable

(1) User manual

RMT-2-CAT5

(1) RMT-2-CAT5

(1) 5V 2 Amp power supply

(1) User manual

PANEL LAYOUT - RMT-MATRX-444

Front

Top

RJ45 (CAT5e)

Ouptut

Extension

RS-232 (Serial)

Output

Source LED indicator

Receiver

Source Selector

Button

Back

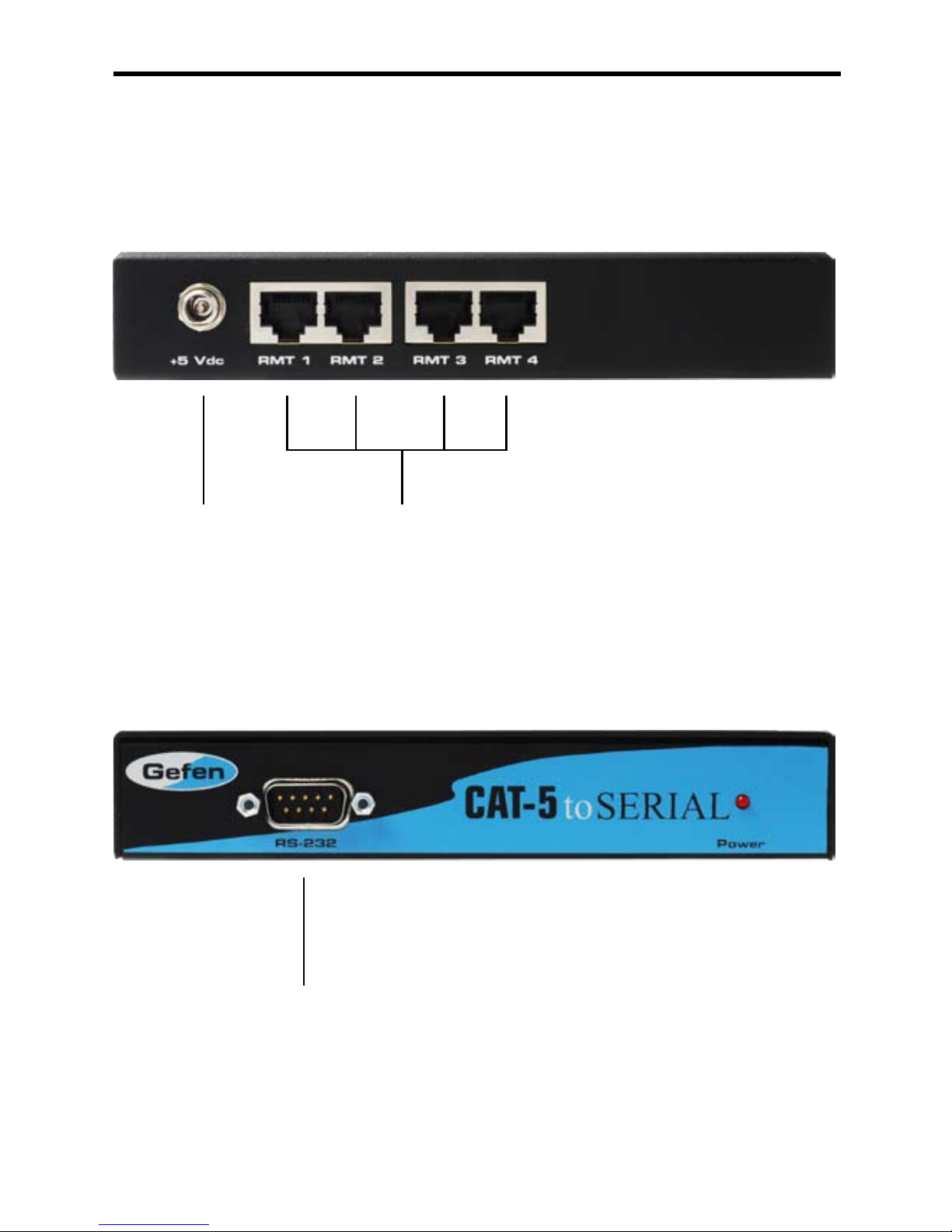

PANEL LAYOUT - RMT-2-CAT5

Back

Front

5V DC

Input

RS-232 (Serial)

Output To Compatible Gefen Product

RJ45 (CAT5e)

Inputs From RMT-MATRIX444

USING THE RMT-MATRIX-444

USING THE RMT-2-CAT5

1. Connect a CAT5/6 cable between the RMT-MATRIX-444 and one of the

CAT5 ports on the rear of the DVIKVM-444N. The ports are labeled as RMT A,

B, C, and D and correspond with DVI out ports 1, 2, 3, and 4.

2. Use the contact buttons on the RMT-MATRIX-444 to switch between the

different inputs connected to the DVIKVM-444N. Switches A, B, C, and D

correspond to sources 1, 2, 3, and 4. Optionally, you can use a RMT-4IR

(infrared remote) in conjunction with the RMT-MATRIX-444 to switch inputs

from a distance.

1. Connect a CAT5/6 cable between the RMT-MATRIX-444 and one of the

CAT5 ports on the rear of the RMT-2-CAT5. The ports are labeled as RMT 1,

2, 3, and 4, which correspond with any of our matrixs’ 1, 2, 3, and 4 display

outputs.

2. Connect a serial cable (must not be a null modem serial cable) between the

RMT-2-CAT5 and the compatible Gefen matrix product.

3. Use the contact buttons on the RMT-MATRIX-444 to switch between the

different inputs connected to the compatible Gefen matrix product. Switches

A, B, C, and D correspond to sources 1, 2, 3, and 4 on any of our matrix units.

Optionally, you can use a RMT-4IR (infrared remote) in conjunction with the

RMT-MATRIX-444 to switch inputs from a distance.

RS-232 INTERFACE

Binary Table

ASCII Corresponding

Display/Source

Binary ASCII Corresponding

Display/Source

Binary

1 1/1 0011 0001 9 3/1 0011 1001

2 1/2 0011 0010 a 3/2 0110 0001

3 1/3 0011 0011 b 3/3 0110 0010

4 1/4 0011 0100 c 3/4 0110 0011

5 2/1 0011 0101 d 4/1 0110 0100

6 2/2 0011 0110 e 4/2 0110 0101

7 2/3 0011 0111 f 4/3 0110 0110

8 2/4 0011 1000 g 4/4 0110 0111

RS232 Settings

Bits per second ..................................................................................................19200

Data bits .................................................................................................................... 8

Parity .................................................................................................................. None

Stop bits .....................................................................................................................1

Flow Control ....................................................................................................... None

The RMT-MATRIX-444 has a RS-232 serial port for control by external serial

devices. Use the table below to setup your external serial control device.
