Genelec 8260-414B Bedienungsanleitung

easy handling,

adjustable direction and angle

instruction manual

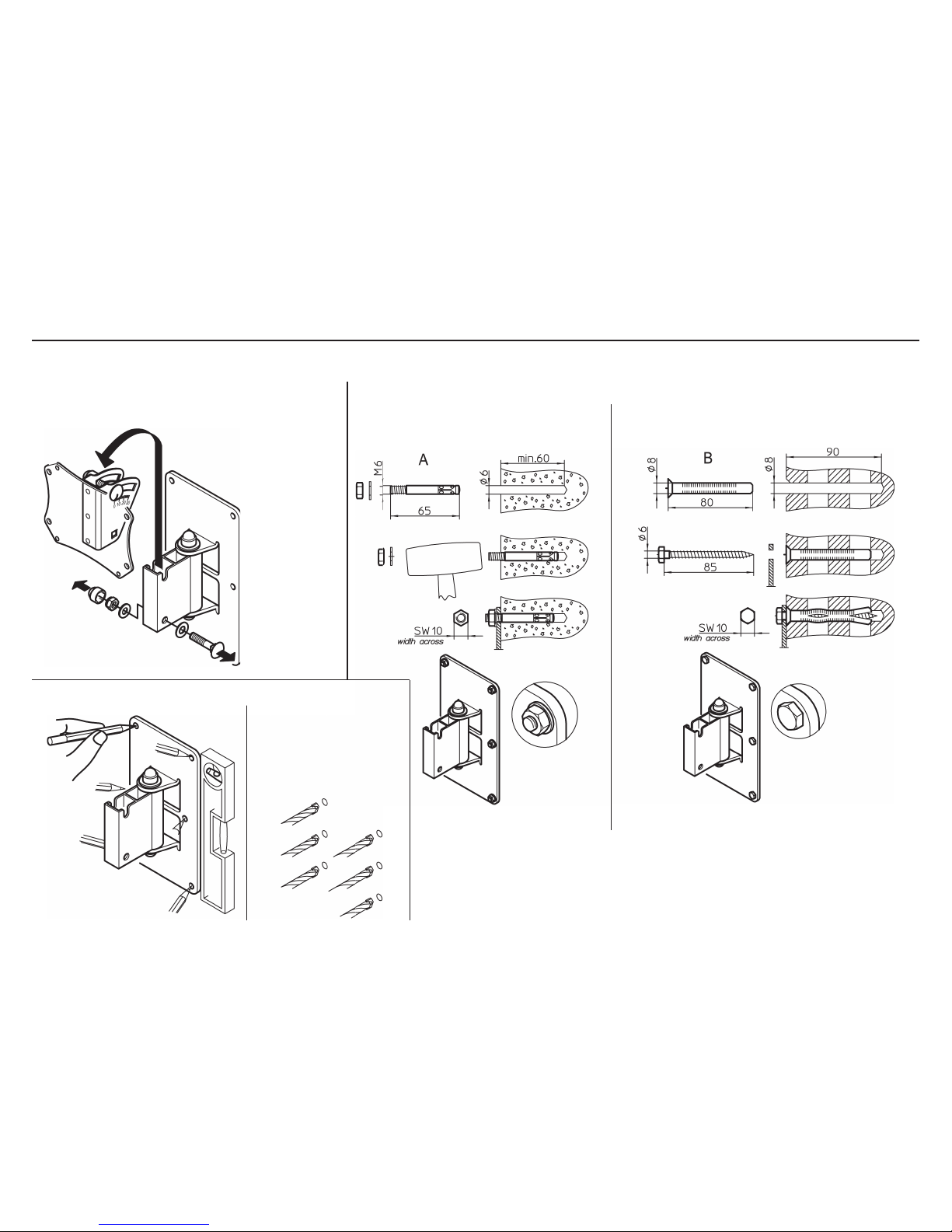

1. separate swivel joint from wall bracket 3. wall mount options

1.a

Loosen lower

bolted assembly

1.b

Gather swivel joint from

wall bracket

2.a

Adjust wall

plate vertically

2.b

Anchor holes drilling (6x)

diameter

-6 mm steel-anchor-bolt

-8 mm universal frame fixing set

2. wall bracket fastening

concrete wall - e.g.: steel-anchor-bolt M 6 x 65 mm

-drill and blow out hole, place anchor, wall bracket and

washer, tighten hexnut

perforated bricks - e.g.: unsiversal frame fixing set 8 x 80 mm

-drill, countersink and blow out hole, place anchor and bracket, fix hexagon

head wood screw

C injection-molded-anchor

without sieve bushing for concrete wall - with sieve bushing for perforated bricks / optional with threaded bolt M6 or threaded bushing M6

Advantages: fixing without pressure, enables repeated mounting, capable for diverse wall materials

Advantages: (please notice instructions of anchor manufacturers).

GENELEC Oy

Olvitie 5, Fin-74100 Iisalmi, www.genelec.com

24478-015-55 Rev.01 03-80-354-00 4/15

WALL MOUNT for GENELEC 8X5X - Series + 8260A - 8260-414B

- For GENELEC 8260A, 8351A, 8250A, 8050A

- Use six anchors per wall bracket

- Choose a position and mounting method compliant with local

- building codes and regulations

- For use only by trained installers

- For use only at proper walls with adequate anchors (see 3.)

- Not suitable are fragile walls. Beware of power supply lines and water conduits.

- In case ask an expert.

- Inspect bolted assemblies periodly

- For indoor use only

instruction manual

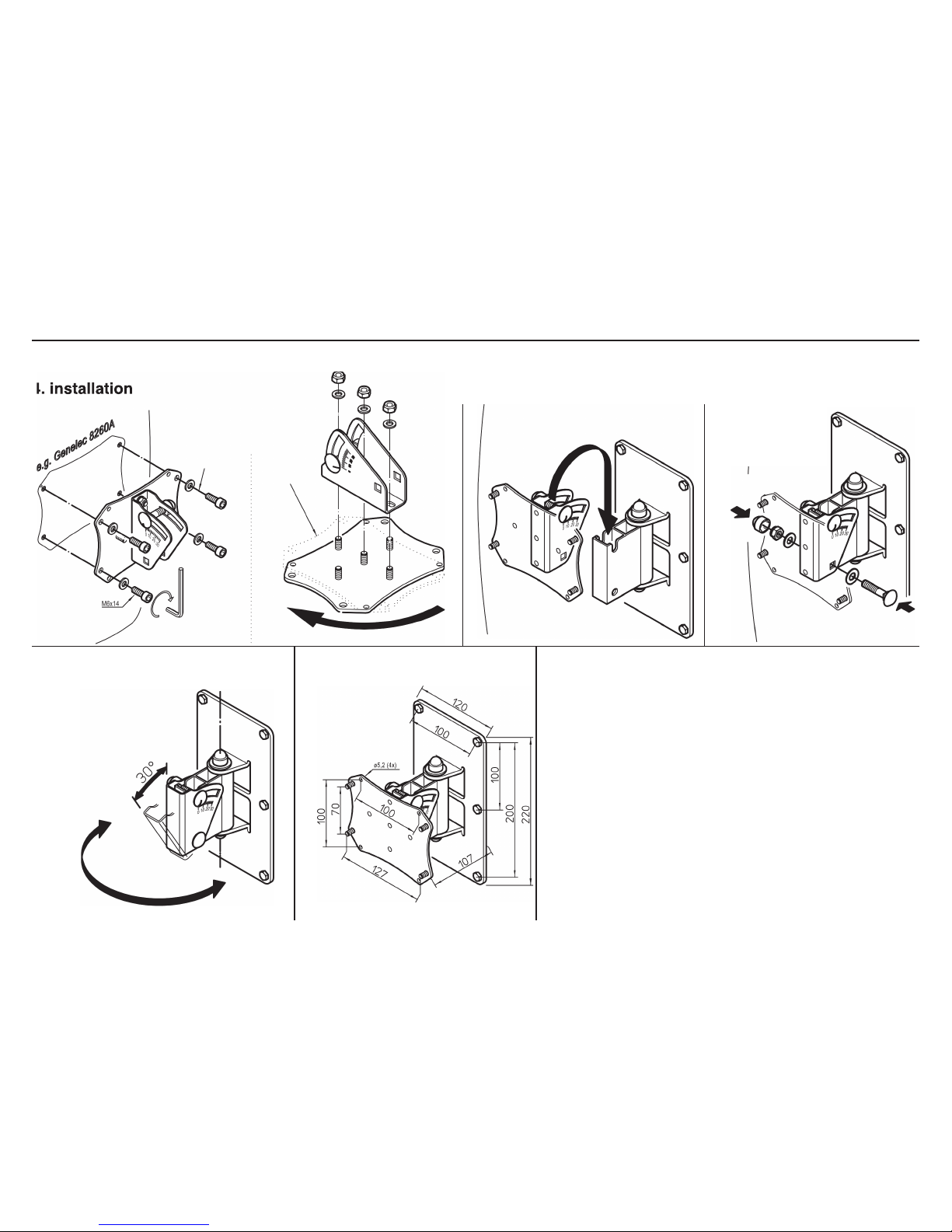

4. installation

5. settings 6. dimensions safety instructions

4.a

Bolt the monitor

to adaptor plate.

Use four screws

M6 x 14 mm

with washers

Tightening

torques

10 Nm

For horizontally

mounting of the

GENELEC 8251

turn the adaptor

plate

5.a

Continuously adjustable up to 30°,

by fixing the upper bolted assembly

6.a

hole pattern:

127 x 70 mm - M6

5" x 2-3/4" - M6

VESA 100 x 100 - M4/5

VESA 3-15/16" x

3-15/16" - M4/5

6.b

Weight: 1.8 kg

5.b

Pivoting attachment

around vertical axis

4.b

Replace swivel joint (with mounted 8260A)

into wall bracket

easy handling,

adjustable direction and angle

WALL MOUNT for GENELEC 8X5X - Series + 8260A - 8260-414B

4.c

Secure swivel joint to the

wall bracket by tightening

lower bolted assembly
