Genesis CCTV BC-540WDR Bedienungsanleitung

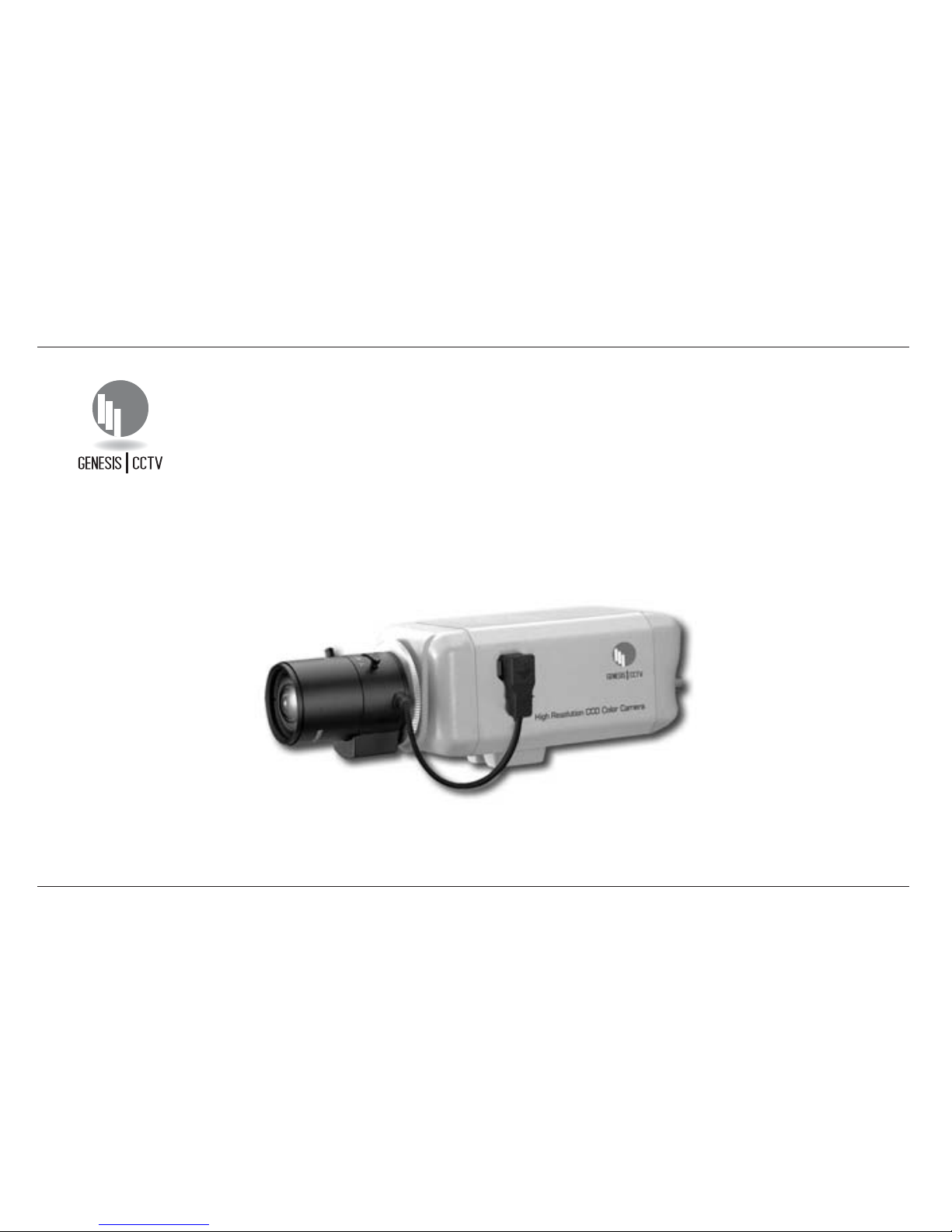

Box Camera :

Day/Night w/PIXIM’s WDR

Vision with Integrity

www.genesiscctv.com

Thank you for purchasing Wide Dynamic Camera. Before using the camera, please read this operation

manual carefully to obtain the best result and keep this manual for future reference.

Table of Contents

FEATURES ······························································· 3

NAME & FUNCTION ················································ 4

REAR VIEW & FUNCTION ······································· 6

Lens Connector ······················································· 8

LENS INSTALLATION ··············································9

Mounting a Lens ···················································· 10

Back-Focus Adjustment ······································· 11

CAMERA INSTALLATION ····································· 12

Installation & Tripod Mounting Base

OSD Manual ·························································· 13

SPECIFICATION ····················································31

SUPPLIED ACCESSORIES···································· 33

FEATURES

• Superior Images even in tough back light conditions

• 1/3" Digital Pixel System & Innovative 32 Bit DSP

• Wide Dynamic Range : 95dB(14Bit), 120dB Max.

• More than 540TVL of Horizontal Resolution

• High speed, automatic 5 level exposure control for each pixel

• Multiple camera options, including premium class of WDR using Digital Pixel System

• Wide Range of visible scene in real time

• Good Smearless even in the presense of strong light.

• Catch the image of fast moving object.

• Motion Detection and Digital Pan/Tilt/Zoom

• On Screen Menu and Camera ID

• C/CS Mount Lens Available

• 12VDC/24VAC Dual Power(Non-polarity)

NAME & FUNCTION

(Front Panel)

1. Lens mount

Mount for lens installation. See page 9.

2. Lens connector

When using an auto iris lens, connect the lens cable to this connector. See page 8.

3. Back-Focus screw

Screw it after adjusting the back-focus to fix the setting. See page 11.

4. Tripod mounting base

Mounting base for camera installation. See page 12.

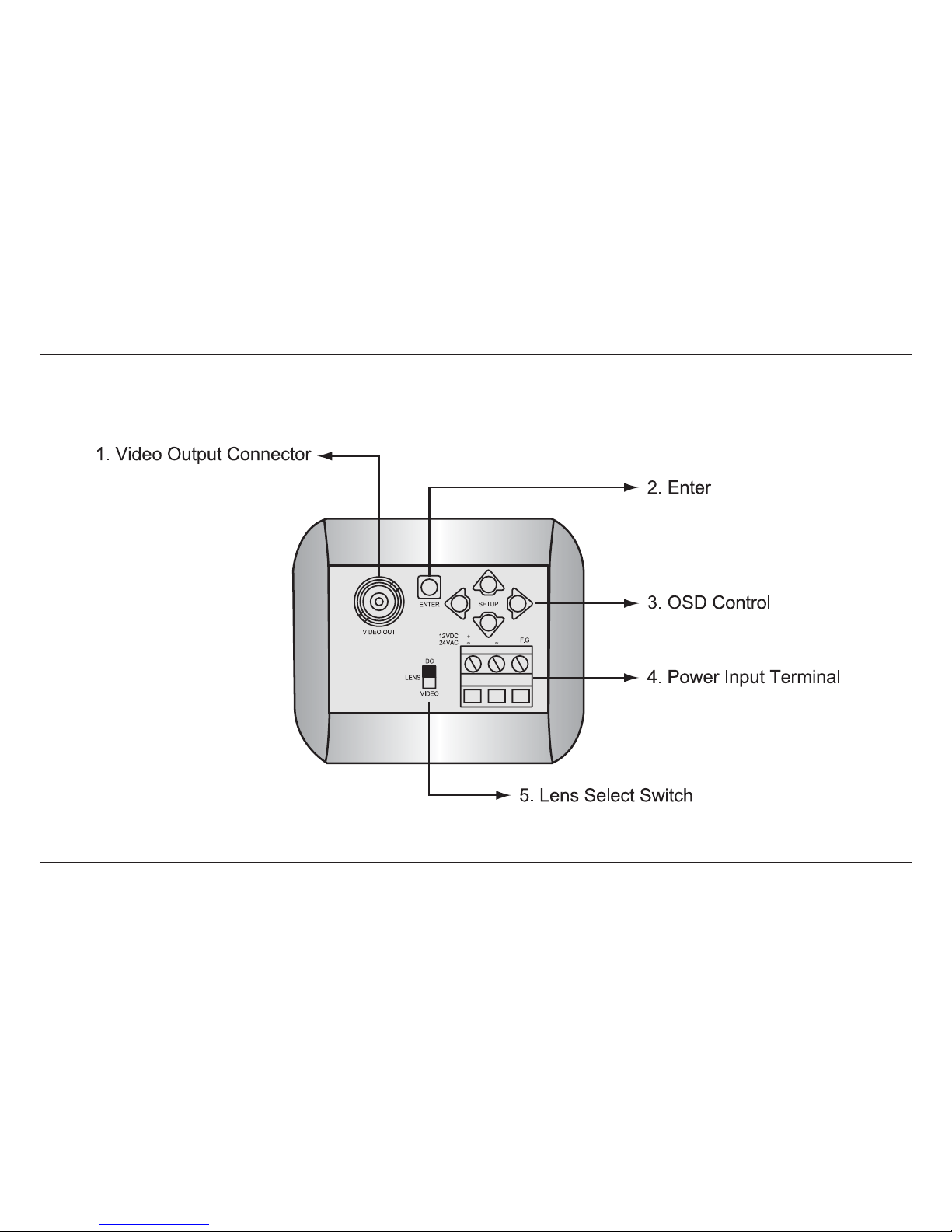

REAR VIEW & FUNCTION

1. Video output connector

BNC connector that outputs a composite video signal.

2. Enter

3. OSD control

Push arrow keys to move the cursor to left, right, up and down.

4. Power input terminal

Connect to 12VDC or 24VAC power source. When operating with 12VDC or 24VAC power supply, use

only an isolated power source. (Be sure not to connect the power source until all other connections are

completed)

5. Lens select switch

When using an auto IRIS lens, set the switch according to the lens type.

VIDEO : Set to this position when using a Video type lens.

DC : Set to this position when using a DC (galvanometric) type lens.

Lens Connector

When using an auto IRIS lens, connect the lens cable to the lens connector.

•

Video IRIS type lens

Set lens switch to VIDEO, and put the lens cable into the lens connector.

If the plug on the cable is a different type, replace it with the provided 4-pin

iris plug.

• DC IRIS type lens :

Set lens switch to DC, and put the lens cable into the lens connector.

If the plug on the cable is a different type, replace it with the provided 4-pin

iris plug.

• Pin Assignment •

VIDEO Iris type Lens

•

DC Iris type Lens

Pin No.

Signal

+9V DC (50mA max)

Video

GND

Pin No.

Signal

Damping coil(-)

Damping coil(+)

Drive coil(+)

Drive coil(-)

LENS INSTALLATION

• Please connect a lens cable when using the DC type

lens or VIDEO type lens.

• When using the VIDEO type lens, please adjust a

brightness of image by volume attached with the lens.

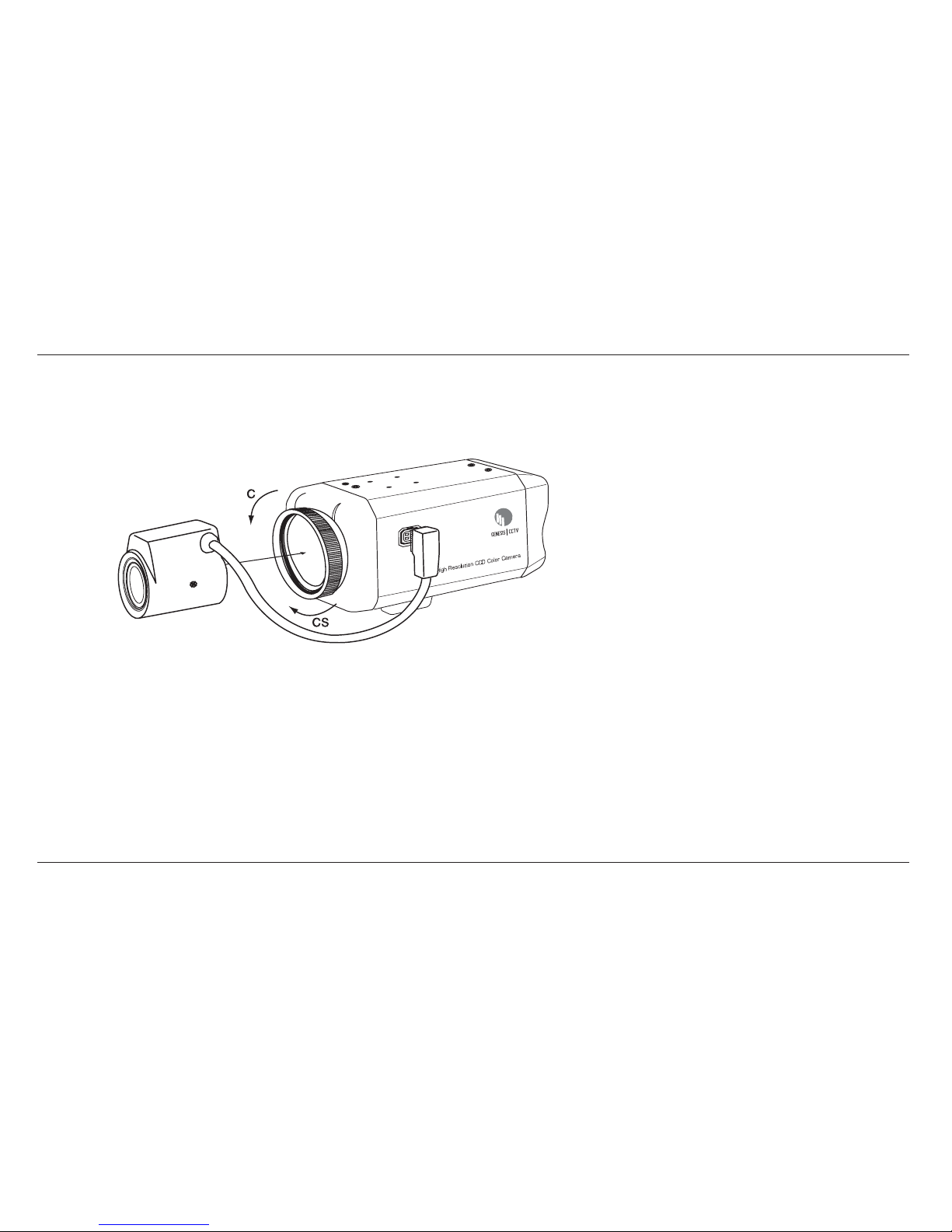

1. Mounting a lens

Remove the lens mount cap from the camera

Attach the lens to the mount. Secure it so that it does not become loose

- C Mount lens : Turn the adaptor ring to counterclockwise.

- CS Mount lens : Turn the adaptor ring to clockwise.

If the lens has an auto-IRIS mechanism, connect the lens connector.

- When installing a Video-IRIS lens, lens switch should be set to VIDEO

position.

- When installing a DC IRIS lens, lens switch should be set to DC

position.

2. Adjusting Auto-IRIS Lenses

Make this adjustment after connecting the camera to a power source and a monitor.

Set AGC mode to off.

When using a Video type lens : Adjust the level on the lens to produce minimum smear and optimum

pictures.

When using a DC type lens : Adjust the video level on the rear panel to produce minimum smear and

optimum pictures.

Set AGC mode to on. It is recommended that AGC be used in the “on” mode after adjusting the video level.
