GeoVision SD-220 Bedienungsanleitung

Internet Camera

( SD – 220 )

User，s Guide

About the Manual

This manual describes the functions of Internet Camera components, installation

procedure, Web interface setup, as well as DVR application program operation.

Introduction

Users can connect Internet Camera to Ethernets, hi-speed Ethernets standard

network. Internet Camera differs from conventional PC cameras in such a manner

that Internet Camera is an independent system including 1 CPU and 1 Internet

Server that allows users to set up and monitor remotely by PC or Notebook via the

Internet.

Fields of applications

．Security and burglarproofing for households, offices, stores, banks, factories,

warehouses, etc.

．Care for the elders, children, etc.

．Admittance control for shopping lots, schools, communities, etc.

．Shopping via the Internet.

System Requirement

．JAVA-supportive and compatible Browser

．DVR supporting Windows 98, 2000, or XP

．CPU｡GPentium III compatible or above

．Memory｡G64MB or above

．Display card｡Gwith resolutions 1024X768 or above

．Hard disk space｡Gmore than 1GB hard disk space reserved if recorded via DVR

software

Features

1. “Remote Eyes“- internet connectivity empowers you to vision what

happening at home while you are away at work or traveling

2. True DIY - No complicated camera cables to wire, or Ethernet connection to

your PC, everything is up and running in 20 minutes.

3. Products compatible with the 802.3 standard.

4. Built-in web server for Remote surveillance monitoring and remote

management via the Internet/Intranet.

5. Support: HTTP, ARP, TCP/IP, ICMP, PPPoE, SMTP

6. Unlimited IP Cam served.

7. Bundled PC application software of Digital Video Recording(DVR) provides

scheduling, recording, management, playback, transmitting, video quality

adjustment, and Remote DVR

8. Remote DVR capability allows any Internet client device (supports JAVA),

such as PC, PDA, Smart-phone, can access home surveillance, anytime and

anywhere.

9. Video quality up to VGA resolution.

10. QVGA(320*240) 5 frame per sec, VGA(640*480) 1 frame per sec

11. Advanced video compression to save PC storage. A 20G HDD will hold up to

one months＇pictures @1fps

12. Bundle professional DVR software.

13. No Server is needed: the highly efficient built-in CPU allows users to

connect their cameras to the Internet and work independently without a

computer or image Server.

14. Dynamic detection: once the intrusion is found, users will be notified via

e-mail.

15. Digital recording: the image data will be zipped and stored on the hard disk.

There is no need to change magnetic tapes.

16. Digital transmission: image data is transmitted digitally to ensure the

authenticity of the image quality.

Specifications

Housing

1. Professional Type: Metal, changeable Lens

Video

1. Video Format: Motion Jpeg

2. Image Sensor: CMOS

3. Picture resolution: up to VGA(640 x 480), 24-bit color

4. Frame Rate: QVGA(320*240) 5 fps, VGA(640*480) 1 fps

5. Video Adjustment: Quality, Brightness

DVR

1. Running on PC Windows 98/98SE/ME/2000/XP, Celeron 300MHz or above,

with at least 200Mbyte space available

2. Microsoft-style, intuitive user interface, easy to operate

3. Password protection

4. Simultaneous viewing

a､Simultaneous viewing of up to 25 cameras on a PC screen

b､Only one voice can be heard

5. Flexible recording schedule for any hour any date

a､Allow selection of a particular hour, or hours, continuous or not,

during a day.

6. Playback

a､Allow viewing of archived files

b､Preview of 6 sections simultaneously, each section representing a

period of 10 minutes within that hour

c､Support picture Print, Pause, Fast Forward, Stop, and Recall

7. Memory capacity indication

a､Total HDD capacity allocated for surveillance

b､Free capacity indicator

c､Estimated total recorded hours

8. Historical Archive

a､Archive filed each hour

b､Can be viewed and extracted at an interval of 10 minutes for external

use

9. Motion detection

a､User selectable Sensitivity Level to trigger detection

b､Target area selection for motion detection: total or Sub-area

c､When motion is detected, it will trigger a higher picture framing rate

d､Users can select to trigger an alarm, in the form of Email to be sent to

the pre-defined addresses

10. Alarm by form of emails

11. Remote DVR

a､Any remote PC or Java capable device is allowed to access the

cameras

b､Make Internet connection: Typing the DVR server’s IP address, which

is allocated by the ISP in the from of dynamic or static IP.

c､Each time a IP is changed, the DVR web server will automatically

inform the pre-defined address by sending emails

d､Recording: To view and record the remote pictures

e､Playback: to select a remote file and playback, allowing to pause, stop,

or fast forward.

12. Net DVR

a､To integrate all DVR Servers and network cameras into a network

surveillance system for centralized surveillance and administration.

b､Allows the system to be installed and administered in a flexible

manner; and enhances expansion.

c､To be integrated with the Airwave 955 series.

Unpacking the Internet Camera

Please take out the camera and all accessories from the box. Be sure you have all the

accessories as follows:

．Internet camera: 1 piece

．DVR installation CD: 1 piece

．AC transformer: 1 piece

．Camera stand: 1 piece

．Network cord: 1 piece

．Quick installation guide

If you find any accessories missing or damaged, please contact your distributor for

replacement.

Hardware Description

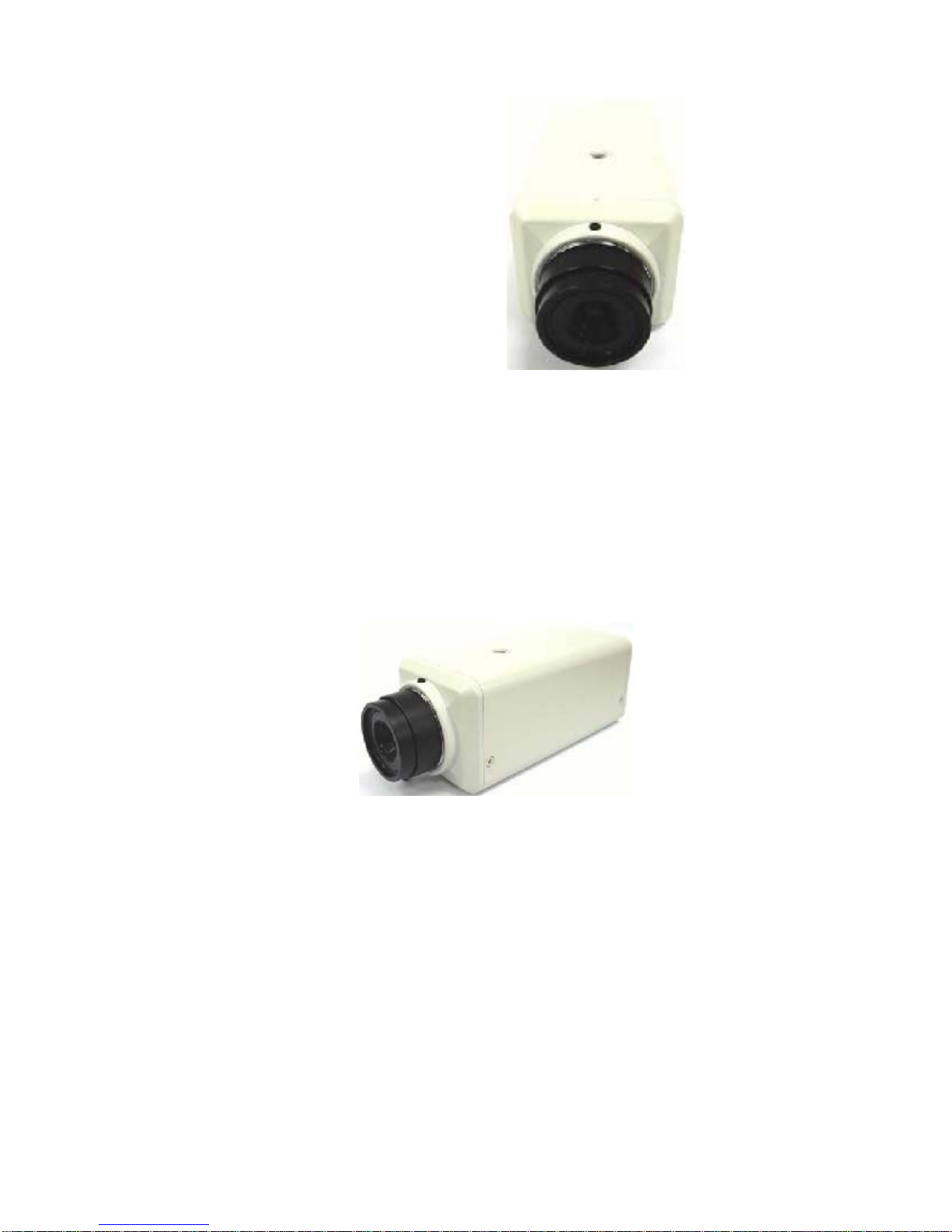

Front Panel

●Lens: Exchangeable C/CS-type lens

Adjusting the Camera Focus

●To adjust the focus, please rotate the lens slowly until the picture becomes clear.

●When you adjust the focus, please do not rotate the lens too much so as not to

drop the lens.

Replacing the Lens

The Internet Camera can be replaced with any stand C or CS type lens

1. Wind the lens to remove the lens

2. Turn the new lens all the way to the end

Turn the lens slowly and adjust the focus until the picture becomes clear

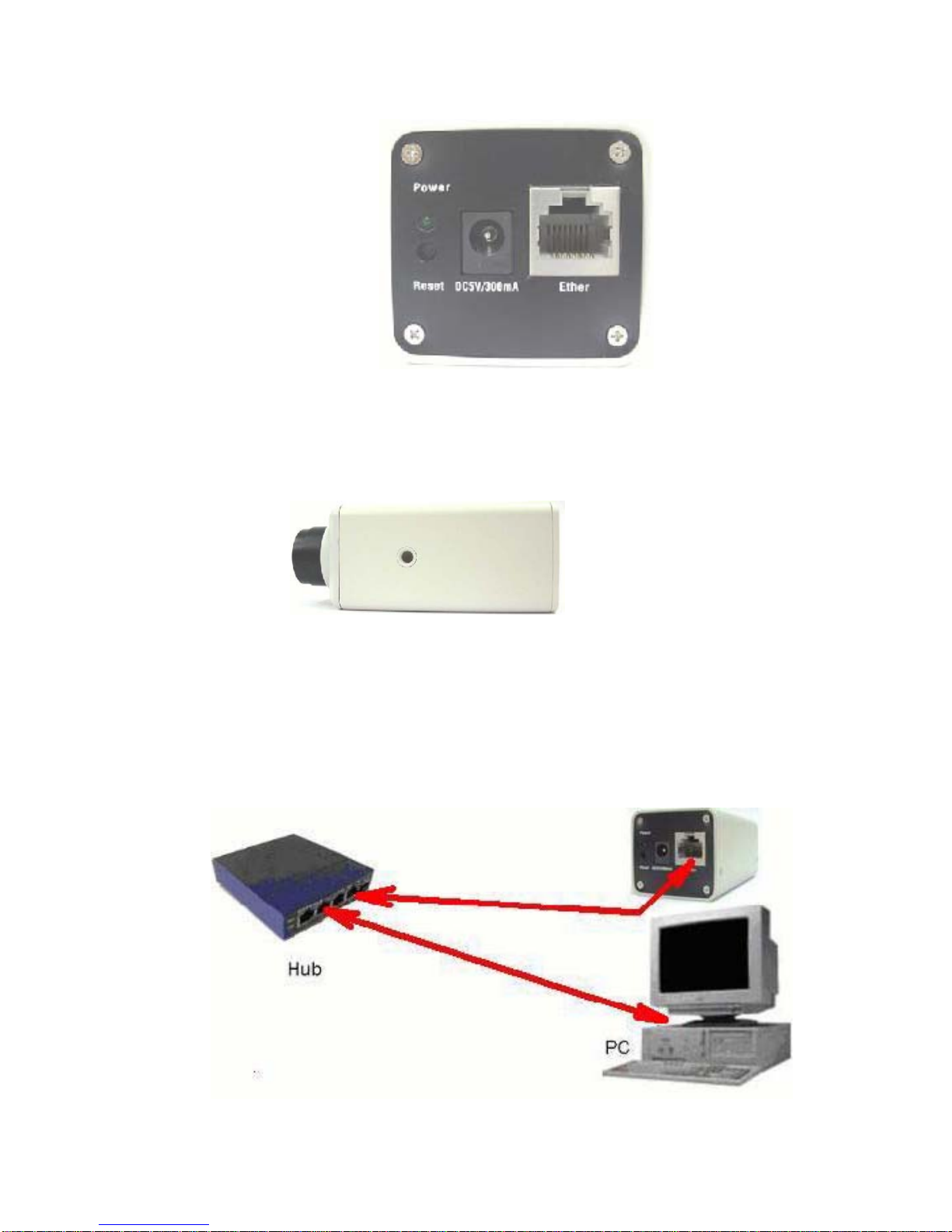

Rear Panel

●Reset button: Push reset button for 3 seconds, the system will be reset to default

value.

●Network Cable Connector: The Internet Camera has a RJ45 connector for

connection to 10/100Base-TX Fast Ethernet

DC Power Connector: The DC Power Connector connects the AC power adapter to

supply power to Internet Camera.

Button Panel

Bracket Cavity: The Bracket Cavity is used to connect the camera stand onto Internet

Camera by attaching the screw head on the camera stand into the mounting cavity

Internet Camera.

Hardware Installation

1. Connect an Ethernet cable

Connect an Ethernet cable to the network cable connector located on Internet

Camera’s rear panel and attach it to the network.

2. Attach the external power supply

Attach the external power adapter to the DC power input connector located

on AWS2100’s rear panel and connect it to your local power supply.

3. Install the stand

Follow the instructions to assemble the stand and connect the stand to the base of

Internet Camera.

Security

Internet Camera is a network camera. After connecting to the network, users can log

in remotely. To protect your data, please change your password when you use

Internet Camera for the first time. You can also change the password after resetting

the system default to protect your data.

Software Installation

This section shows you how to set up Internet Camera via Internet browser.

Web Configuration

1. Open

Activate the Internet browser and enter the defaulted IP address (192.168.0.99).

Press Enter to activate Internet Camera setup page.

Caution:

Your PC has to be on the same subnet as the Internet Camera defaulted address.

(for example: PC’s IP address192.168.0.100 ｡A Internet Camera: IP address

192.168.0.99)

2. Log-in

Enter the defaulted password (user) to activate the Internet Camera User mode

setup page.

Enter the defaulted password (admin) to activate the Internet Camera Administrator

mode setup page.

Caution:

Please change your password right after login for the protection of your data and

system.

3. System setup

Image Parameter
