GeoVision 84-FD220-D02U Bedienungsanleitung

Hardware Manual

GV-IPCam H.264

Before attempting to connect or operate this product,

please read these instructions carefully and save this manual for future use.

Fixed IP Dome

Target Fixed Dome

ICH264TG2V10

Under the copyright laws, this manual may not be copied, in whole or in

part, without the written consent of GeoVision.

Every effort has been made to ensure that the information in this manual is

accurate. GeoVision, Inc. makes no expressed or implied warranty of any

kind and assumes no responsibility for errors or omissions. No liability is

assumed for incidental or consequential damages arising from the use of

the information or products contained herein. Features and specifications

are subject to change without notice. Note: no memory card slot or local

storage function for Argentina.

GeoVision, Inc.

9F, No. 246, Sec. 1, Neihu Rd.,

Neihu District, Taipei, Taiwan

Tel: +886-2-8797-8377

Fax: +886-2-8797-8335

http://www.geovision.com.tw

Trademarks used in this manual: GeoVision, the GeoVision logo and GV

series products are trademarks of GeoVision, Inc. Windows and Windows

XP are registered trademarks of Microsoft Corporation.

September 2015

Contents

Contents ..............................................................................i

Options ..............................................................................iii

Note for Adjusting Focus and Zoom..............................

Chapter 1 Fixed IP Dome .................................................1

1.1 Packing List..............................................................................3

1.1.1 Packing List for Hard-Ceiling Mount.............................3

1.1.2 Packing List for In-Ceiling Mount..................................4

1.2 Features...................................................................................5

1.3 Overview ..................................................................................7

1.4 Installation................................................................................9

1.4.1 Hard-Ceiling Mount......................................................9

1.4.2 In-Ceiling Mount.........................................................

1.4.3 Wall-Surface Mount ...................................................17

1.5 Connecting the Camera..........................................................19

1.6 I/O Terminal Block..................................................................

1.6.1 Pin Assignment..........................................................

1.6.2 Voltage Load Expansion (Optional)............................

1.7 Loading Factory Default..........................................................

Chapter 2 Target Fixed Dome........................................

2.1 Packing List............................................................................

2.2 Features.................................................................................25

2.3 Overview ................................................................................27

2.4 Installation..............................................................................29

2.5 Connecting the Camera..........................................................

2.6 Loading Factory Default..........................................................

Options

Optional devices can expand your camera’s capabilities and versatility.

Contact your dealer for more information.

Device Description

Power Adapter The power adapter is available for all Fixed IP Dome

Camera. Contact your sales representative for the

countries and areas supported.

GV-PA191 PoE

Adapter

The GV-PA191 PoE adapter is designed to provide

power and network connection to the cameras over

a single Ethernet cable.

GV-POE Switch

The GV-POE Switch is designed to provide power

along with network connection for IP devices. The

GV-POE Switch is available in various models with

different numbers and types of ports.

GV-Mount

Accessories

The GV-Mount Accessories provide a

comprehensive lineup of accessories for installation

on ceiling, wall corner and pole. For details, see GV-

Mount Accessories Installation Guide on the

Software DVD.

GV-Relay V2

The GV-Relay V2 is designed to expand the voltage

load of GV IP devices. It provides 4 relay outputs,

and each can be set as normally open (NO) or

normally closed (NC) independently as per your

requirement.

Smoked Cover The smoked cover is an IK7, tinted camera cover

designed for GV-Fixed IP Dome to conceal the

direction of the camera lens.

iii

Note for Adjusting Focus and Zoom

When adjusting the Focus and Zoom Screws, do not over tighten the

Focus and Zoom screws. The screws only need to be as tight as your

finger can do it. It is not necessary to use any tools to get them tighter.

Doing so can damage the structure of lens.

For example,

Focus Screw

Zoom Screw

Fixed IP Camera

The maximum torque value for all the zoom and focus screws is 0.049 N.m

Fixed IP Camera

Chapter 1 Fixed IP Dome

The Fixed IP Dome is a series of indoor camera designed with 3-axis

mechanism for easy and flexible installation. The Fixed IP Dome features

IR LED for infrared illumination for night surveillance. The WDR Pro

models can produce clear image for scenes containing contrasting intensity

of lights. The motorized varifocal lens models allow the user to remotely

adjust the zoom and focus through the Web interface. The super low lux

models are able to display color live view in near darkness. For related

models, see 1.2 Features. The models are detailed below:

Model No. Specification Description

GV-FD220D

GV-FD320D

Auto Iris, f:3 ~ 9

mm, F/1.3, 1/3”

ø 14 mm lens mount

1.3 MP Low Lux / 2

MP / 3 MP, H.264,

D/N, Fixed IP Dome

GV-FD1200 1.3 MP Low Lux,

H.264, D/N, Fixed IP

Dome

GV-FD1500

GV-FD2400

GV-FD2500

GV-FD3400

Varifocal

Lens Auto Iris, f: 3 ~ 9

mm, F/1.2, 1/2.7’’

ø 14 mm Mount

1.3 MP Super Low

Lux / 2 MP WDR Pro

/ 2 MP Super Low

Lux / 3 MP WDR

Pro, H.264, D/N,

Model No. Specification Description

GV-FD1210

1.3 MP Low Lux,

H.264, D/N, 3x

Optical Zoom, Fixed

IP Dome

GV-FD1510

GV-FD2510

1.3 MP / 2 MP Super

Low Lux, H.264,

D/N, 3x Optical

Zoom, Fixed IP

Dome

GV-FD2410

GV-FD3410

Motorized

varifocal

Lens

Auto Iris, f: 3 ~ 9

mm, F/1.2, 1/2.7’’

ø 14 mm Mount

2 MP / 3 MP, H.264,

D/N, WDR Pro, 3x

Optical Zoom, Fixed

IP Dome

Models with P-Iris (Coming)

Model No. Specification Description

GV-FD1500

GV-FD2500

GV-VD3400

Varifocal

Lens

GV-FD1510

GV-FD2510

GV-FD3410

Motorized

varifocal

Lens

P-Iris, f: 3 ~ 9 mm,

F/1.2, 1/2.7’’

ø 14 mm Mount

1.3 MP Super Low

Lux / 2 MP Super

Low Lux / 3 MP

WDR Pro, H.264,

D/N, Fixed IP Dome

Fixed IP Camera

1.1 Packing List

1.1.1 Packing List for Hard-Ceiling Mount

Fixed IP Dome

Torx Wrench

Mounting Plate

Short Screw Anchor x 3

Ceiling Screw x 3

Plate Screw x 3

TV-out Wire Sticker

Power Adapter GV-IPCAM H.264 Software

DVD

GV-NVR Software DVD Warranty Card

Note: The power adapter can be excluded upon request.

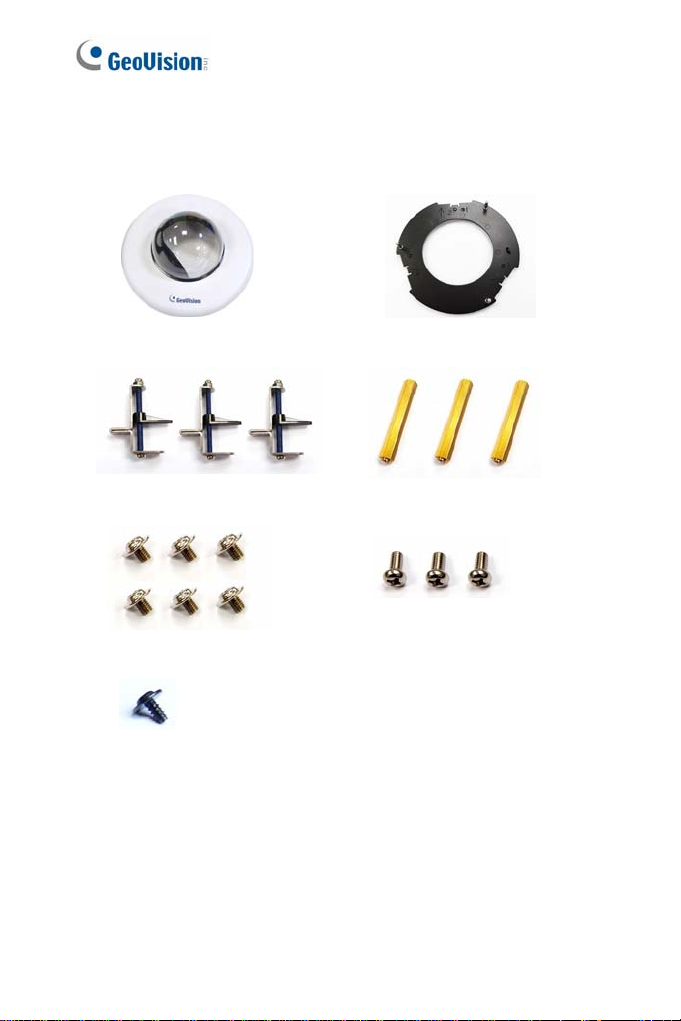

1.1.2 Packing List for In-Ceiling Mount

In-Ceiling Housing Cover

Mounting Plate

Mounting Bracket x 3 Copper Pillar x 3

Copper Pillar Screw x 6

Bracket Screw x 3

Thread Lock Screw

Housing Cover Thread

Sticker (In-Ceiling Mount)
