GeoVision 86-PPTZ730-P01U Bedienungsanleitung

Before attempting to connect or operate this product,

please read these instructions carefully and save this manual for future use. PPTZV10-QG-A

GV-Panoramic PTZ Camera

Quick Start Guide

Under the copyright laws, this manual may not be copied, in whole or in part,

without the written consent of GeoVision.

Every effort has been made to ensure that the information in this manual is

accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind

and assumes no responsibility for errors or omissions. No liability is assumed

for incidental or consequential damages arising from the use of the information

or products contained herein. Features and specifications are subject to

change without notice.

Note: No memory card slot or local storage function for Argentina.

GeoVision, Inc.

9F, No. 246, Sec. 1, Neihu Rd.,

Neihu District, Taipei, Taiwan

Tel: +886-2-8797-8377

Fax: +886-2-8797-8335

http://www.geovision.com.tw

Trademarks used in this manual: GeoVision, the GeoVision logo and GV

series products are trademarks of GeoVision, Inc. Windows is the registered

trademark of Microsoft Corporation.

February 2016

Contents

Note for Connecting to GV-VMS ...........................................................ii

Note for Recording................................................................................iii

Note for Installing Camera....................................................................iv

Optional Accessories.............................................................................v

1. Introduction......................................................................................1

1.1 Packing List..............................................................................................................2

1.2 Overview...................................................................................................................3

2. Installation........................................................................................4

3. Connecting the Camera ................................................................10

4. Accessing the GV-Fisheye Camera .............................................12

4.1 Web Browser..........................................................................................................12

4.2 Looking Up the Dynamic IP Address......................................................................13

4.3 Configuring the IP Address.....................................................................................15

5. The Integrated Web Interface .......................................................17

5.1 Fisheye View..........................................................................................................19

5.1 Speed Dome View..................................................................................................21

6. Upgrading System Firmware........................................................23

7. Restoring to Factory Default ........................................................24

Note for Connecting to GV-VMS

The GV-Panoramic PTZ IP Camera is designed to work with GV-VMS, a video management

system. Note the following when the camera is connected to GV-VMS:

1. By default, the images are recorded to the memory card inserted in the GV- Panoramic

PTZ IP Camera.

2. Once the camera is connected to the GV-VMS, the resolution set on the GV-VMS will

override the resolution set on the camera’s Web interface. You can only change the

resolution settings through the Web interface when the connection to the GV-VMS is

interrupted.

Note for Recording

1. By default, the images are recorded to the memory cards inserted in the GV-PPTZ

Camera. Make sure the Write recording data into local storage option (see 4.1.1 Video

Settings, Chapter 4, GV-Panoramic PTZ Camera User’s Manual) is enabled. If this option

is disabled, the camera will stop recording to the memory card while the live view is

accessed through Web browsers or other applications.

2. Mind the following when using a memory card for recording:

Recorded data on the memory card can be damaged or lost if the data are accessed

while the camera is under physical shock, power interruption, memory card

detachment or when the memory card reaches the end of its lifespan. No guarantee is

provided for such causes.

The stored data can be lost if the memory card is not accessed for a long period of

time. Back up your data periodically if you seldom access the memory card.

Memory cards are expendable and their durability varies according to the conditions

of the installed site and how they are used. Back up your data regularly and replace

the memory card annually.

To avoid power outage, it is highly suggested to apply a battery backup (UPS).

For better performance, it is highly suggested to use Micro SD card of MLC NAND

flash, Class 10.

Replace the memory card when its read/write speed is lower than 6 MB/s or when the

memory card is frequently undetected by the camera.

3. It is recommended to use memory cards of the following setting and specifications:

Apply a battery backup (UPS) to avoid power outage.

Use Micro SD card of MLC NAND flash, Class 10 for better performance.

iii

Note for Installing Camera

When installing GV-Panoramic PTZ IP Camera, be sure that:

1. The camera is set up above the junction box to prevent water from entering the camera

along the cables.

2. Any PoE, power, audio and I/O cables are waterproofed using waterproof silicon rubber

or the like.

3. The screws are tightened and the cover is in place after opening the camera cover.

4. The silica gel bag loses it effectiveness when the dry camera is opened. To prevent the

lens from fogging up, use the supplied adhesive tap and replace the silica gel bag every

time you open the camera, and conceal the gel bag in camera within 2 minutes of

exposing to open air.

Optional Accessories

Optional devices can expand the capabilities and versatility of your camera. Contact your

dealer for more information.

Name Details

GV-PA901

Power over Ethernet (PoE)

Adapter

The GV-PA901 is a Power over Ethernet (PoE) adapter

designed to provide power to the IP device through a single

Ethernet cable to GV-PPTZ7300.

GV-Mount Accessories The GV-Mount Accessories provides a comprehensive lineup

of accessories for installation on ceiling, wall and pole. For

details, see GV-Mount Accessories Installation Guide on the

software DVD.

GV-POE Switch The GV-POE Switch is designed to provide power along with

network connection for IP devices. The GV-POE Switch is

available in various models with different numbers and types

of ports.

Power Adapter Contact your sales representative for the countries and areas

supported.

Introduction

1. Introduction

Welcome to the GV-Panoramic PTZ Camera Quick Start Guide. In the following sections, you

will learn the basic installations and configurations of GV-Panoramic PTZ Camera. For a

detailed user manual, see the GV-Panoramic PTZ Camera User’s Manual on the Software

DVD.

1.1 Packing List

Panoramic PTZ Camera

Data Cable

Mounting Bracket

Mounting Cap

Tube

2 mm Hex Key

3 mm Hex Key

5 mm Hex Key

Rubber ring

RJ-45 Connector

Desiccant Pack x 2

GV-IPCAM H.264 Software DVD

GV-NVR Software DVD

Warranty Card

Introduction

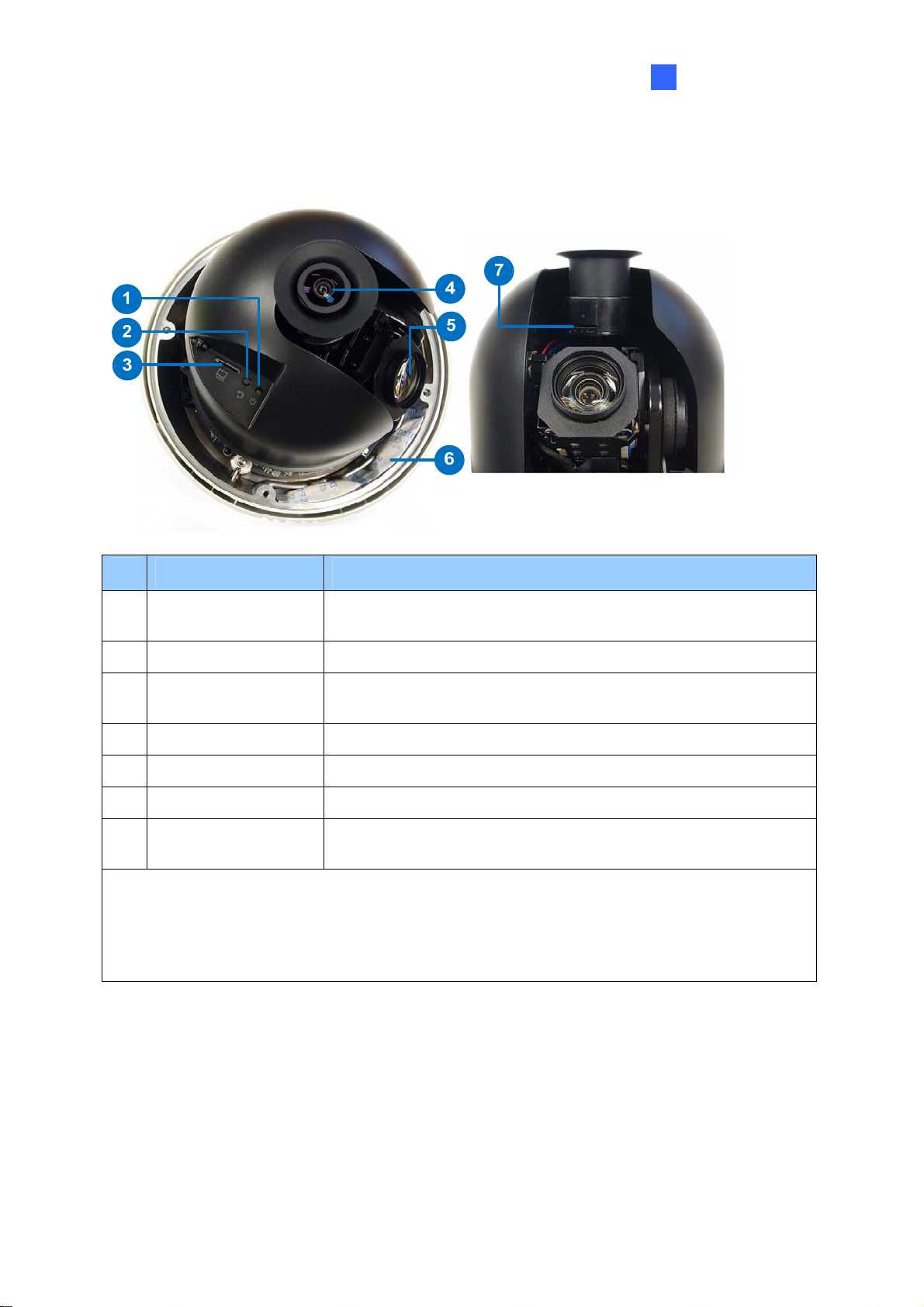

1.2 Overview

No. Name Function

1 Status LED Flashes when the camera is powering on and loading default

settings.

2 Default Button Resets all configurations to default factory settings.

3 Speed Dome SD

Card Slot Inserts a micro SD card (SD/SDHC, version 2.0, Class 10) to

store recording data from the speed dome.

4 Fisheye Lens Receives image inputs.

5 Speed Dome Lens Receives image inputs.

6 Desiccant Pack Keeps the camera housing dry.

7 Fisheye SD Card

Slot Inserts a micro SD card (SD/SDHC, version 2.0, Class 10) to

store recording data from the fisheye camera.

Note: The desiccant pack loses effectiveness after you open the camera cover. To prevent

the lens from fogging up, it is highly recommended to replace the desiccant pack every time

you open the camera. Ensure to insert a new desiccant pack and fasten the camera cover

within 2 minutes of opening the desiccant pack.
