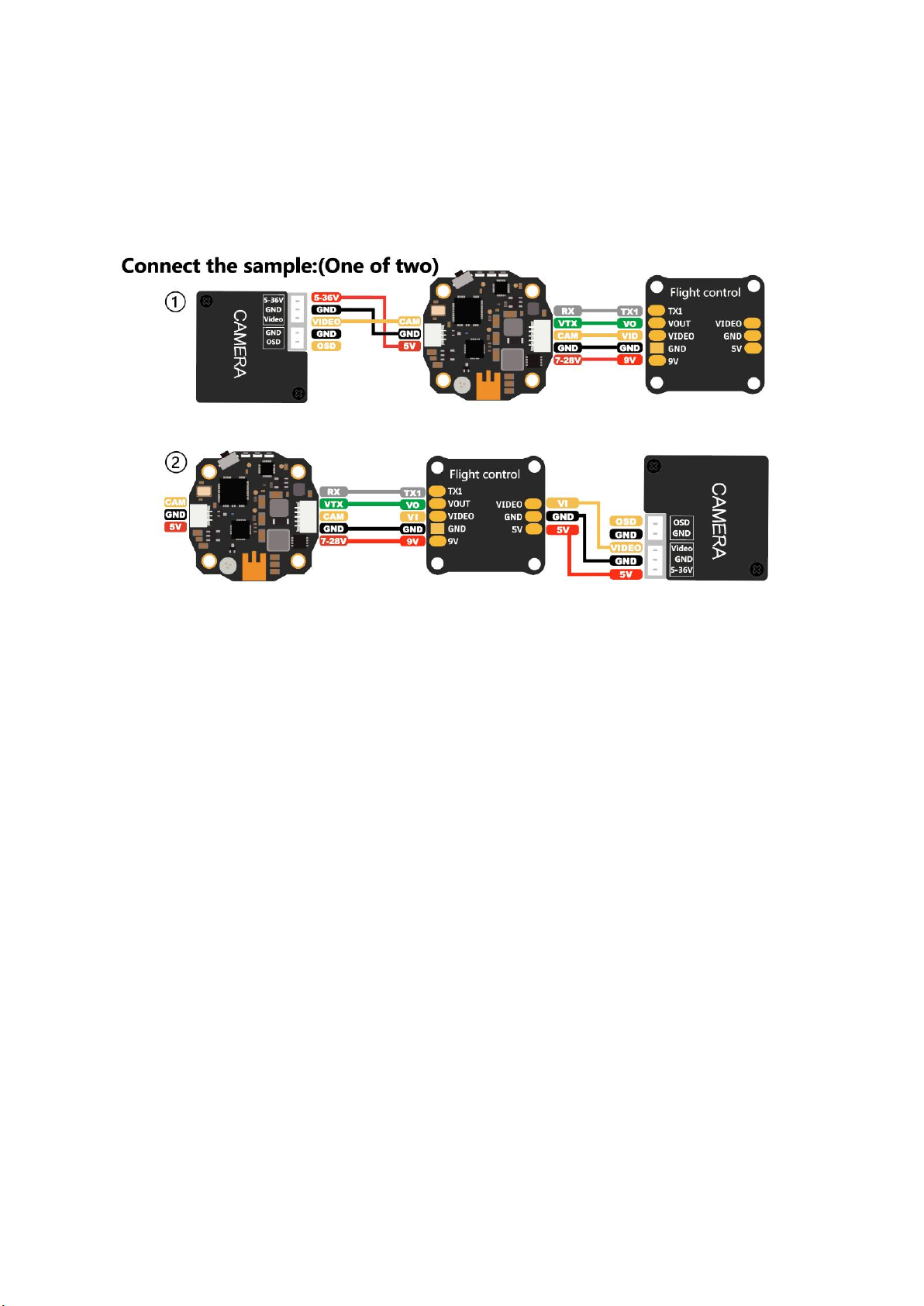

Covering the shell with a 20X20 mounting hole, and a single hole with M2 thread.It is recommended
to be installed at the rear of the frame where there are 20X20 holes. Pay attention to insulation when
installing,the PCB side down, and pad with four nylon spacers for installation. (included in the
package)
Specification:

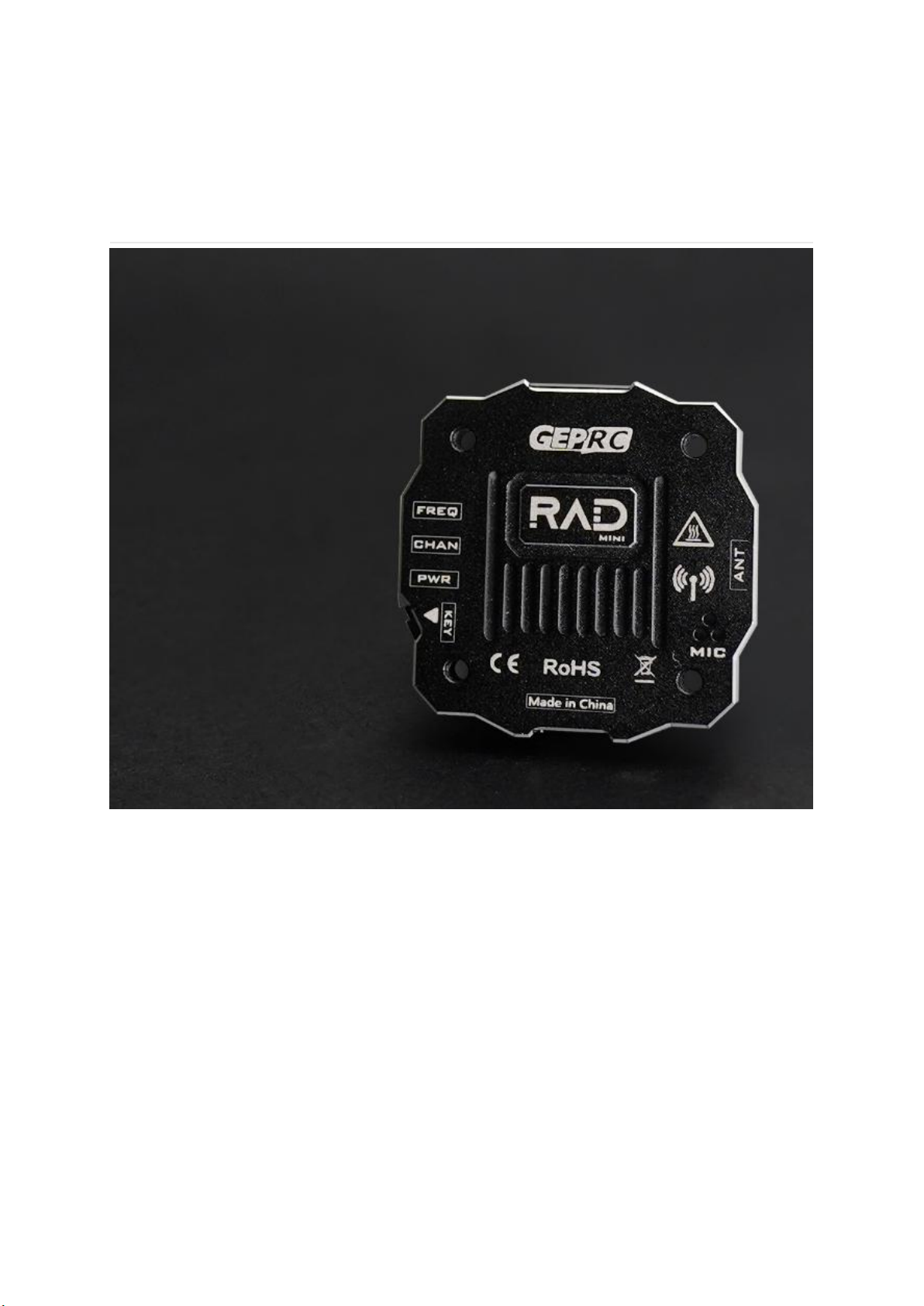

Model：GEPRC RAD MINI 5.8G 1W VTX
Input voltage：DC7-28V（2-6S Battery）
Output voltage: 5V@600mA(power 5V to Camera)
Input impedance: 75Ω
Protocol: IRC Tramp
Antenna connector: MMCX
Cable connector：SH1.0 5pin+SH1.0 3pin
Output power：25mW/200mW/500mW/1000mW/PIT MODE
Frequency band :
Universal frequency band(40CH),American FCC frequency band(37CH),European EU frequency
band(26CH)
Video format: PAL/NTSC
Microphone: Built in microphone
Mounting hole: 20x20mm
Size: 30.83x30.83mm
Net weight: 4.7g
With metal shell: 8.4g
Feature:
1. Lightweight ,high power,with a maximum power of 1000mW,suitable for short and medium range
flight to ensure image transmission quality.
2. 4 Power levels: PitMode/25mW/200mW/500mW/1000mW.
3. Adopts 6061 high-strength aluminum alloy shell to assist in heat dissipation,which has stronger
impact resistance and better heat dissipation.
