German Light Products Junior Scan 2 Bedienungsanleitung

Instruction Manual

from software version 1.0

(instruction version 1.3)

email: servic[email protected]

Internet: http://www.GLP.de

GLP



German Light Production (V1.3) 1

GLP



German Light Production (V1.3) 2

Table of contents

1Description of Device..............................................................................................3

1.1 Safety Instructions............................................................................................4

2Installation ...............................................................................................................5

2.1 Mounting...........................................................................................................5

2.2 Secure the J

2............................................................................5

2.3 Connectors .......................................................................................................5

2.3.1 AC Connectors.......................................................................................5

2.3.2 DMX .......................................................................................................5

2.4 Fuse..................................................................................................................5

3The Menu Field / Functions....................................................................................6

3.1 Adjust the DMX- Address..................................................................................6

3.2 Special Functions..............................................................................................6

3.2.1 Reset Function.......................................................................................6

3.2.2 Sound Function......................................................................................6

3.2.3 Lamp ON / OFF......................................................................................7

3.2.4 Temperature Control ..............................................................................7

3.2.5 Invert PAN/Tilt........................................................................................7

4DMX Channel Selection (DMX Protocol)................................................................8

5Changing the lamp................................................................................................11

5.1 Safety regulations...........................................................................................11

5.2 Realize the Lamp Change ..............................................................................11

6Changing the Gobos.............................................................................................12

6.1 Safety Regulations..........................................................................................12

6.2 Realize the Gobo Change...............................................................................12

7Maintenance and Cleaning the J

2 ................................................13

7.1 Safety Regulations..........................................................................................13

7.2 Mirror and Optical System ..............................................................................13

7.3 Air Cooling System .........................................................................................13

8Technical Specifications.......................................................................................14

GLP



German Light Production (V1.3) 3

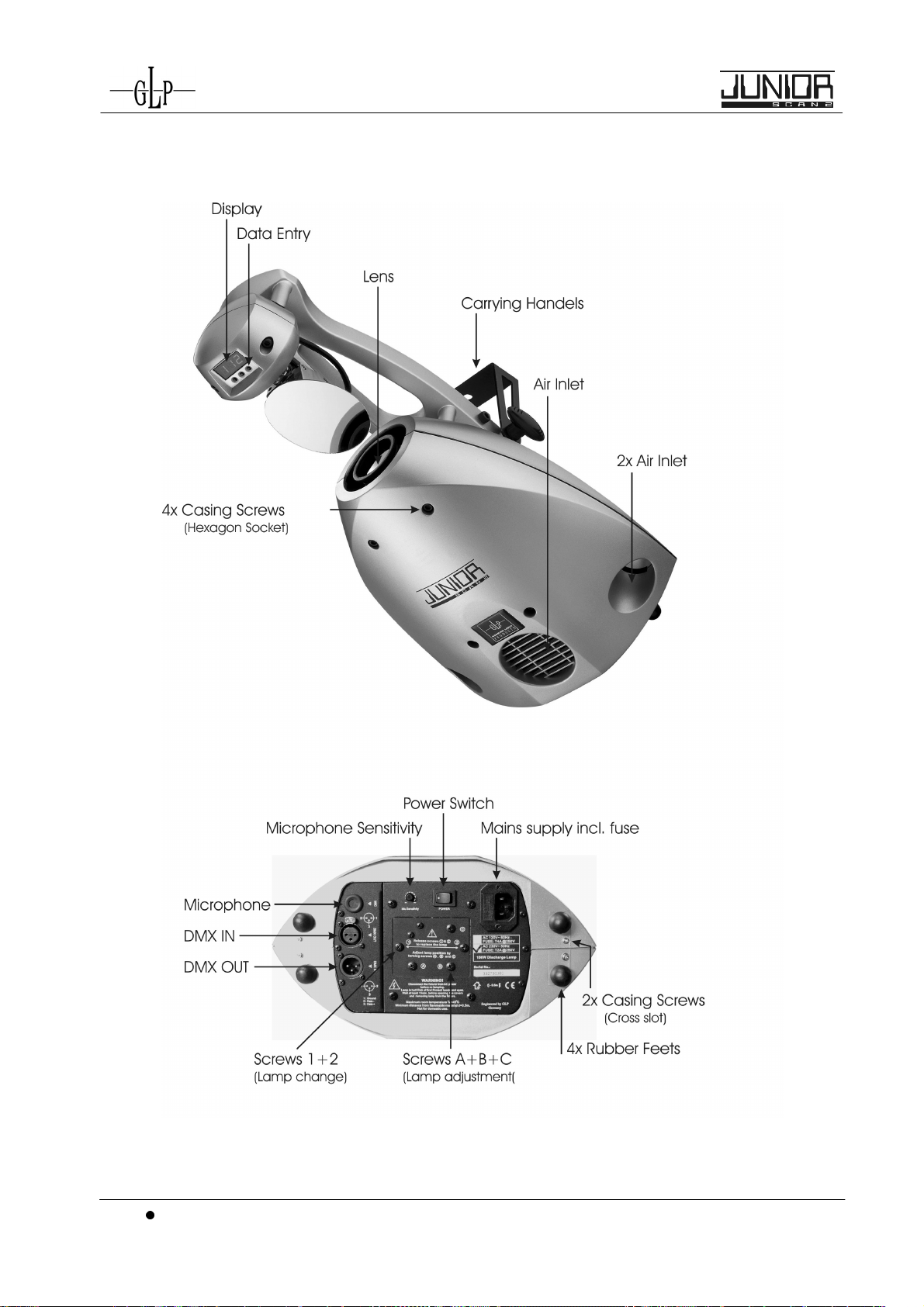

1 Description of Device

Illustration 1-1

GLP



German Light Production (V1.3) 4

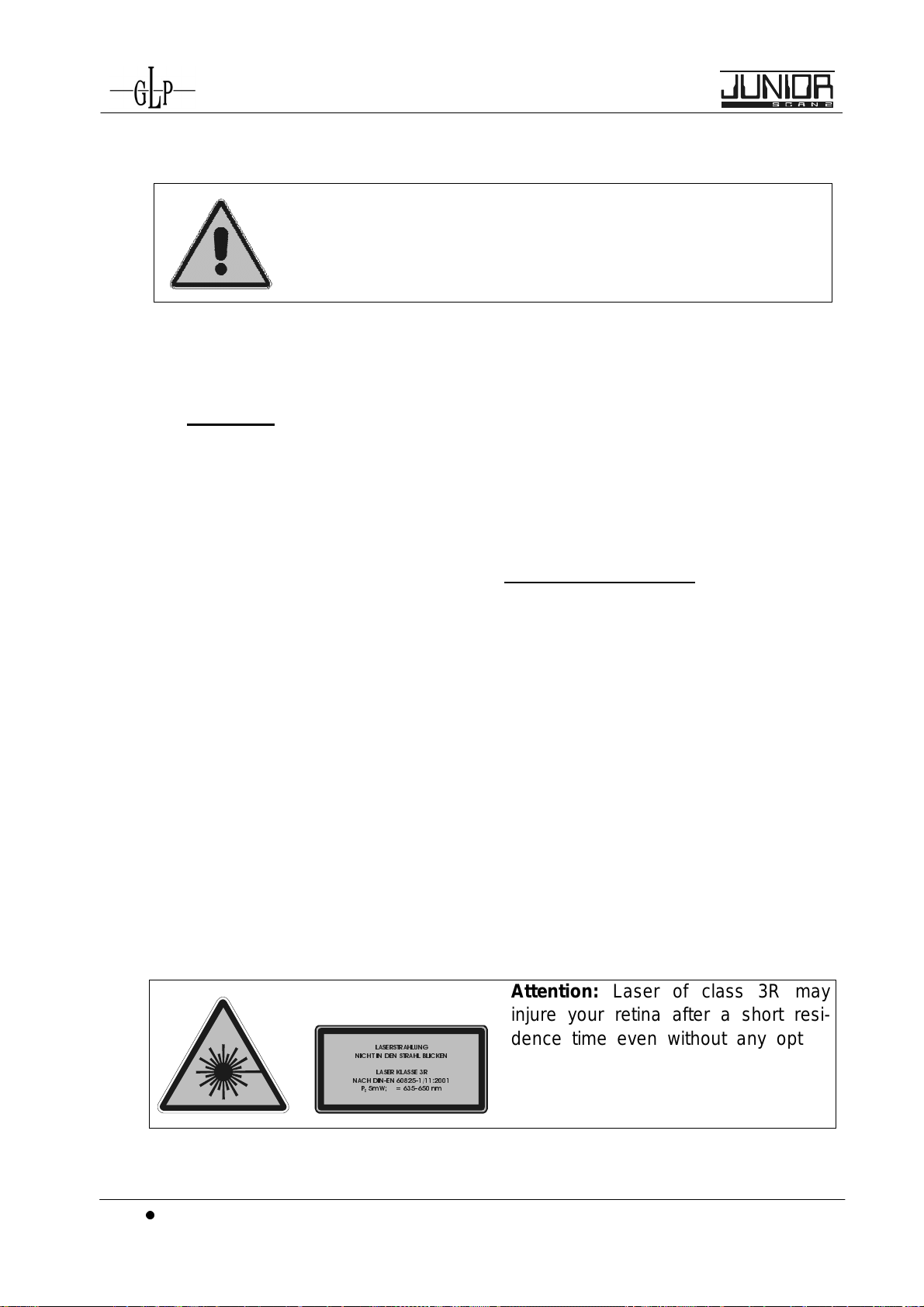

1.1 Safety Instructions

The

is a High-Tech Product. To guarantee a

smooth operation, it is necessary to keep following rules.

The manufacturer of this device will not take responsibility of

damages through disregard of the information in this manual.

Warranty adjustments will be cancelled.

1. Make sure that before putting into operation, the fan and the air inlets are

clean and not blocked by anything. J

2. Attention: Don’t touch the device during the operation. This can cause injuries

or damages.

3. Unplug the

from the AC outlet before any service.

4. It is necessary to wait at least 30 minutes after disconnecting the AC before

you open the J

2. Please do not touch the bulb of the lamp if

you are not absolutely sure it is cold. -Danger of BURNING-

5. Never look directly into the beam of the lamp. You risk injury of your retina and

blindness.

6. Pay attention of the maximum lamp operation time. You have to change it if

the lamp shows any deformations or damages. The same is with all glass

components, color filters, lenses and mirrors.

7. To allow a secure operation, follow also the Installation guide described in

chapter 2. Operating the J

without suited safety aids like

Safety cables or clamps/hooks can increase the risk of an accident.

8. The installation should be done by qualified staff only. Please pay attention to

the common rules of technology that are not explicit mentioned in this manual.

9. Use only original spare parts. Any structural modification will cancel all

warranty adjustments.

LASERSTRAHLUNG

NICHT IN DEN STRAHL BLICKEN

LASER KLASSE 3R

NACH DIN-EN 60825-1/11:2001

P 5mW; = 635-650 nm

Attention:

Laser of class 3R may

injure your retina after a short resi-

dence time even without any optical

instrument. Avoid any direct ex-

posure of your eyes!

GLP



German Light Production (V1.3) 5

2 Installation

2.1 Mounting

Mount clamps and/or hooks directly to the bow of the J

Please

make sure to use right sized clamps and hooks and fit them securely. Keep a

safety distance of 0.5 m towards any easy inflammable materials (decoration etc.).

Pay attention to the regulations of: BGV C1 (former VBG 70)

and DIN VDE 0711-217 !

The installation should be done by qualified staff only.

2.2 Secure the

Install a safety wire through the handle that can hold at least 10 times the weight

of the fixture.

2.3 Connectors

2.3.1 AC Connectors

230 Volt, 50 Hz (EU model) or 120 Volt, 60 Hz (US model)

Please see printing on the case for the right power supply!

2.3.2 DMX

DMX 512 Standard input/output.

[+] = Pin 3 / [-] = Pin 2 / [Ground] = Pin 3

The DMX- Address starts at [001].

Please see printing on the case for the right Pin usage!

2.4 Fuse

The J

2electronic system is protected by a 5x20mm T2A fuse 250V

(EU model), respectively a 5x20mm T4A fuse 120 V (US model).

• Please see the printing on the J

for more details!

• Disconnect AC outlet before changing a fuse!

GLP



German Light Production (V1.3) 6

3 The Menu Field / Functions

You can adjust the DMX address of the J

directly at the menu field.

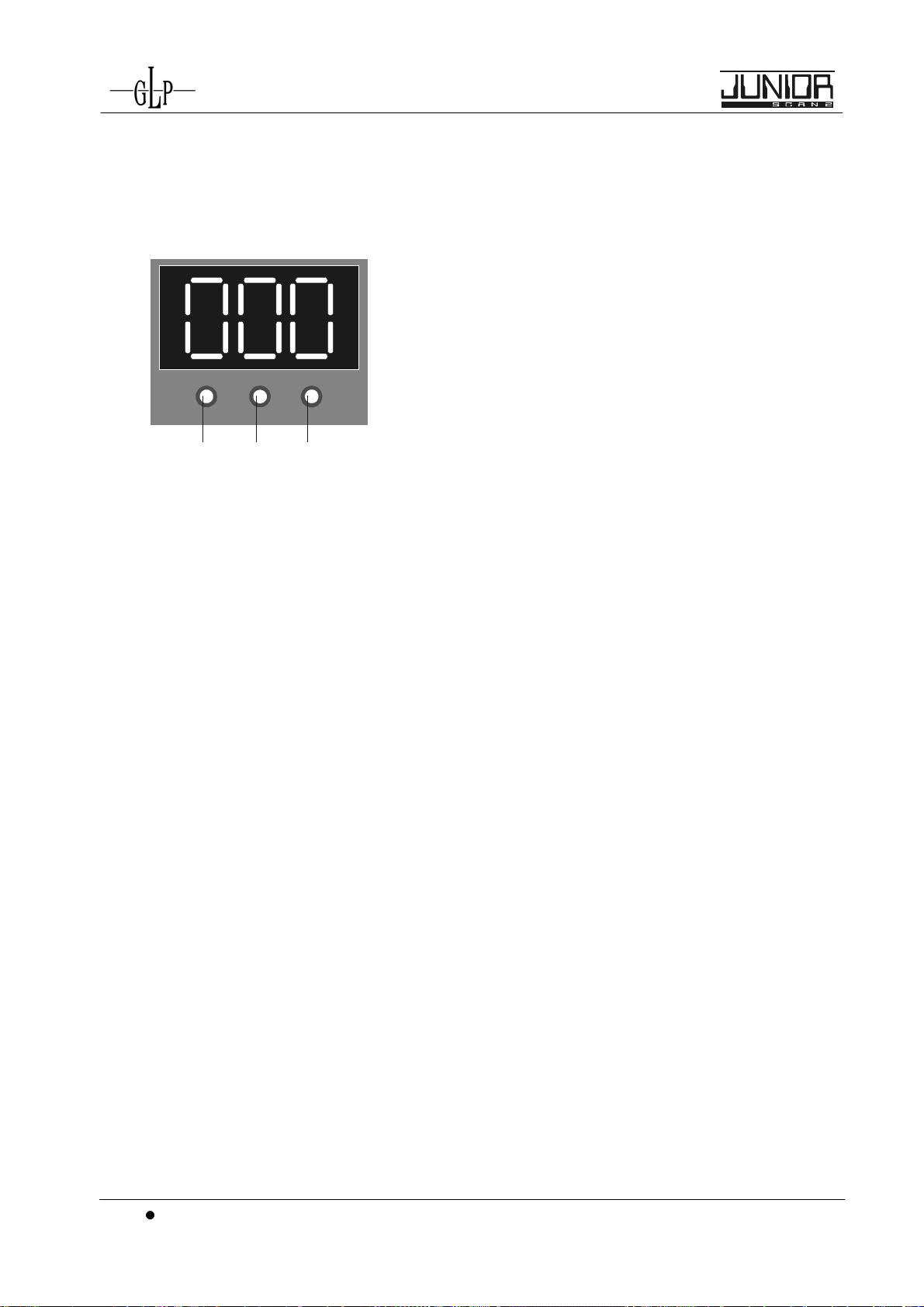

3.1 Adjust the DMX- Address

100

Right after turning on the J

and the

first reset, you see the current DMX-

Address. Use

the first? button for the "first digit", the second button

for the "second digit" and the third button for the

"third digit" of the DMX address.

The DMX-

Address is stored also while switching off

the J

3.2 Special Functions

3.2.1 Reset Function

The J

2is performing a reset right after turning on the unit.

During this operation the display shows „rSt“. This function can also be

started via the DMX signal. Select a DMX value between 250 and 255 for

longer than 3 seconds in the Special Channel (No. 9).

3.2.2 Sound Function

This function allows you to run a stand alone audio program. For activating

please use the following procedure:

Press and hold down the right display button (first digit) while switching on

the J

2. The display reads firstly the version number of the

unit and afterwards 2 sec. "AUD" to indicate the audio function.

Now the J

2is in Audio-Mode as well as in Master-Mode.

That means further units can be connected to the first J

which run the audio program simultaneously. All further units must be set to

Normal-Mode (switched off Audio-Mode).

To switch off this function again you have to run the above mentioned

procedure once again. Press and hold down the right display button (first

GLP



German Light Production (V1.3) 7

digit) while switching on the J

2. The display reads only

"rST" (Reset).

3.2.3 Lamp ON / OFF

The lamp of the J

2can be switched off via DMX signal. For

this please bring DMX channel no. 9 (Special) to a value between 230 - 249

and DMX channel no. 5 (Shutter) to a value between 0 - 15. The lamp will

start again if you set DMX channel no. 5 (Shutter) to a value between 254 -

255.

3.2.4 Temperature Control

If the inside temperature of the unit exceeds an certain value (e.g. in case of

blocked fans) the lamp of the J

2will be automatically

switched off. After solving the problem the lamp can be started once again.

3.2.5 Invert PAN/Tilt

This function allows you to invert the PAN/Tilt movement. Press and hold

down the middle (left) display button while switching on the unit to invert the

PAN (Tilt) movement. The display shows "r-P" for PAN inverse or "r-T"

for Tilt inverse. To switch off this functions please run these procedures

once again.

GLP



German Light Production (V1.3) 8

4 DMX Channel Selection (DMX Protocol)

Channel Function DMX-value Hex-value Value in %

1) Pan Pan- Position 0 - 255 0 - FF 0 – 100%

2) Tilt Tilt- Position 0 - 255 0 - FF 0 – 100%

3) Color white / open 0 -3 0 - 3 1%

open / Dark Blue B01 4 - 7 4 - 7 2%

Dark Blue B01 8 - 11 8 - B 3%

Half-Color 2 12 - 15 C - F 5%

Dark Green G01 16 - 19 10 - 13 7%

Half-Color 3 20 - 23 14 - 17 8%

Light Yellow Y0200 24 - 27 18 - 1B 10%

Half-Color 4 28 - 31 1C - 1F 11%

Bright Blue B2879 32 - 35 20 - 23 13%

Half-Color 5 36 - 39 24 - 27 15%

Lavender V98349 40 - 43 28 - 2B 16%

Half-Color 6 44 - 47 2C - 2F 18%

Magenta M56339 48 - 51 30 - 33 19%

Half-Color 7 52 - 55 34 - 37 21%

Light Blue B6467 56 - 59 38 - 3B 22%

Half-Color 8 60 - 63 3C - 3F 24%

Fire 00819 64 - 67 40 - 43 25%

Half-Color 9 68 - 71 44 - 47 27%

Turquoise C4700 72 - 75 48 - 4B 29%

Half-Color 10 76 - 79 4C - 4F 30%

Pink M6336 80 - 83 50 - 53 32%

Half-Color 11 84 - 87 54 - 57 33%

Canary Y89312 88 - 91 58 - 5B 35%

Half-Color 12 92 - 95 5C - 5F 36%

Golden Amber O5921 96 - 99 60 - 63 38%

Half-Color 13 100 - 103 64 - 67 40%

Red R9926 104 - 107 68 - 6B 41%

Half-Color 14 108 - 111 6C - 6F 43%

Italien Blue C45370 112 - 115 70 - 73 44%

Half-Color 15 116 - 119 74 - 77 46%

Green G28389 120 - 123 78 - 7B 47%

Half-Color 16 124 - 127 7C - 7F 49%

GLP



German Light Production (V1.3) 9

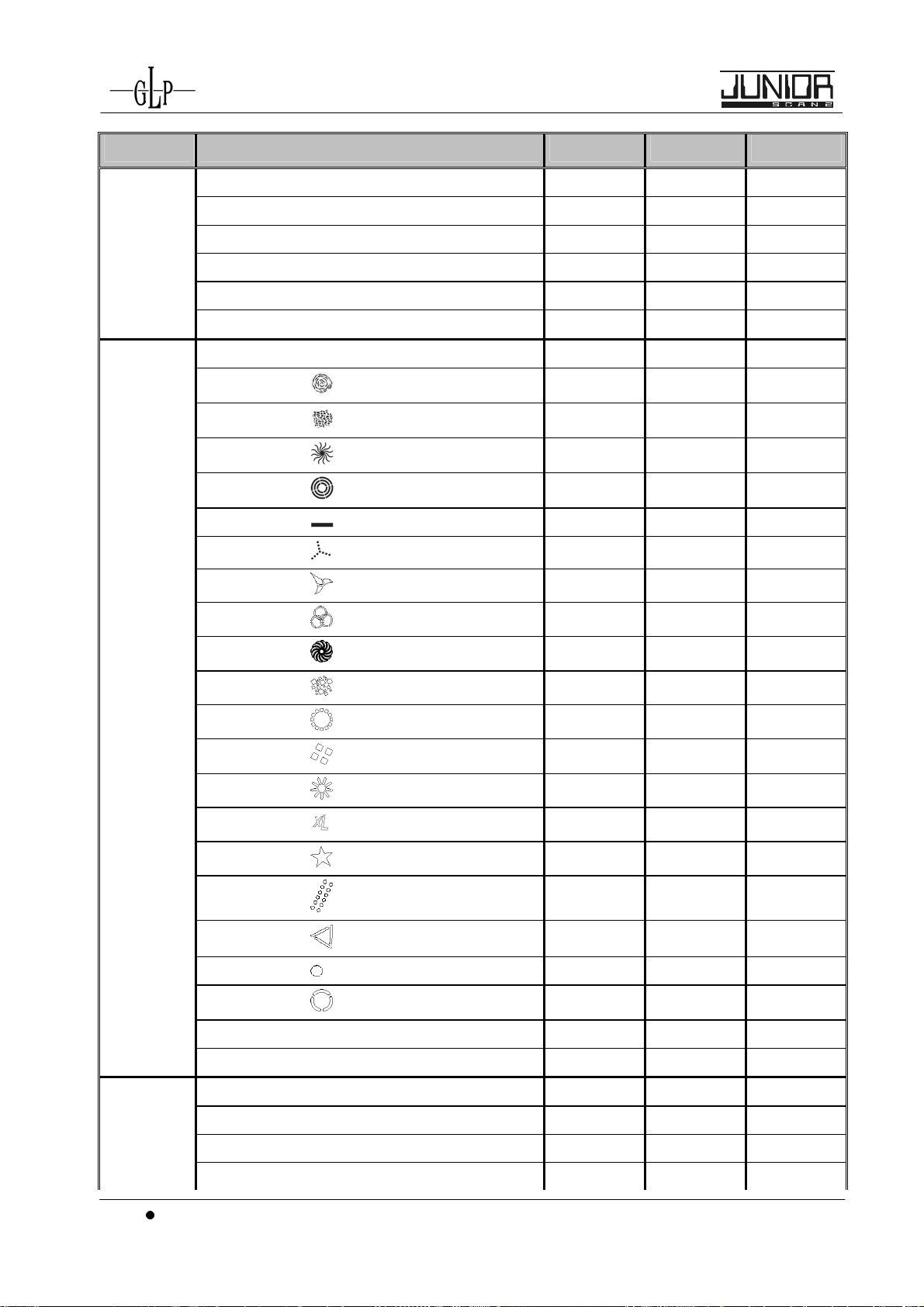

Channel Function DMX-value Hex-value Value in %

Multicolor 1 128 - 131 80 - 83 50%

Half-Color 17 132 - 135 84 - 87 52%

Multicolor 2 136 - 139 8 - 8B 53%

Rotation, slow - fast 140 - 253 8C - FD 54 - 98%

music color chaser (slow) 254 FE 99%

music color chaser (fast) 255 FF 100%

4) Gobos open 0 - 7 0 - 7 2%

Gobo 1 (exchangeable) 8 - 15 8 - F 5%

Gobo 2 (exchangeable) 16 - 23 10 - 17 8%

Gobo 3 24 - 31 18 - 1F 11%

Gobo 4 32 - 39 20 - 27 15%

Gobo 5 40 - 47 28 - 2F 18%

Gobo 6 48 - 55 30 - 37 21%

Gobo 7 56 - 63 38 - 3F 24%

Gobo 8 64 - 71 40 - 47 27%

Gobo 9 72 - 79 48 - 4F 30%

Gobo 10 80 - 87 50 - 57 33%

Gobo 11 88 - 95 58 - 5F 36%

Gobo 12 96 - 103 60 - 67 40%

Gobo 13 104 - 111 68 - 6F 42%

Gobo 14 112 - 119 70 - 77 45%

Gobo 15 120 - 127 78 - 7F 48%

Gobo 16 128 - 135 80 - 87 52%

Gobo 17 136 - 143 88 - 8F 55%

Gobo 18 144 - 151 90 - 97 58%

Gobo 19 152 - 159 98 - 9F 60%

music Gobo chaser (slow) 254 FE 99%

music Gobo chaser (fast) 255 FF 100%

5) Shutter Shutter closed 0 - 15 00 - 0F 0 - 3%

Random Shutter 16 - 31 10 - 1F 9%

Audio Shutter 32- 47 20 - 2F 16%

Shutter frequency, slow - fast 48 - 239 30 - EF 17 - 93%

Inhaltsverzeichnis

Andere German Light Products Scheinwerfer Handbücher

German Light Products

German Light Products Max 250 ELC Bedienungsanleitung

Beliebte Scheinwerfer Handbücher anderer Marken

VIZULO

VIZULO Micro Martin Benutzerhandbuch

EuroLite

EuroLite LED IP FL-100 SMD Bedienungsanleitung

Cooper Wheelock

Cooper Wheelock XB12 Bedienungsanleitung

Allen + Roth

Allen + Roth 17624-000 Bedienungsanleitung

ADJ

ADJ 4 STAGE PAK Bedienungsanleitung

Cooper Lighting

Cooper Lighting EGL91SW233 Bedienungsanleitung

Max

Max 37496 Bedienungsanleitung

BEGA

BEGA 85 143 Bedienungsanleitung

Beamz

Beamz 151.226 Bedienungsanleitung

EuroLite

EuroLite LED IP FL-8 Bedienungsanleitung

Ledj

Ledj PERFORMER 36 RGB Bedienungsanleitung

Perel

Perel ELS3 Bedienungsanleitung

Perel

Perel ELS3WD Bedienungsanleitung

LumX

LumX LM 36130 Bedienungsanleitung

Xtricity

Xtricity 4-80053 Bedienungsanleitung

Stahl

Stahl 6521/4 Series Bedienungsanleitung

Ecosense

Ecosense EcoSpec Bedienungsanleitung

Ayrton

Ayrton minipanel FX Bedienungsanleitung
