Gestetner 5309L Service-Handbuch

DRAFT 2002/08/02

3. User Tools

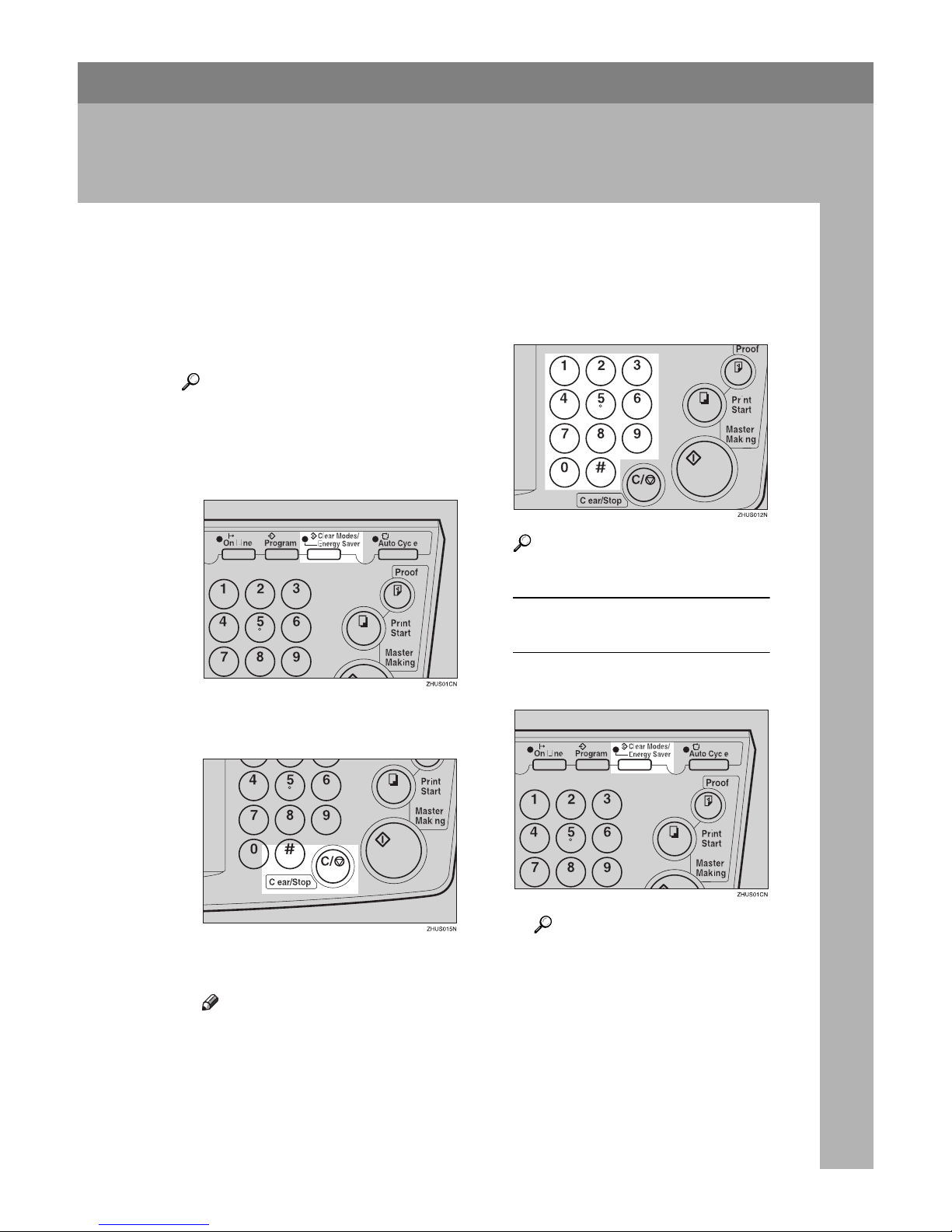

Accessing User Tools

You can change or set the machine's

default with User Tools. This section

is intended for the machine adminis-

trator.

Reference

For the User Tools menu, see ⇒

p.69 “User Tools Menu”.

APress the {

{{

{Clear Modes/Energy Sav-

er}

}}

}key.

BHold down the {

{{

{Clear/Stop}

}}

}key

for at least 3 seconds.

The User Tools display appears on

the guidance display.

Note

❒If you press the wrong key, try

pressing the above keys from

the beginning.

CWith the number keys, enter the

desired user tool number.

Reference

See ⇒p.69 “User Tools Menu”.

When you want to leave User

Tools

APress the {

{{

{Clear Modes/Energy

Saver}

}}

}key.

Reference

If you want to change the set-

tings of a selected user tool

number, see ⇒p.68 “Chang-

ing the Settings of User

Tools”.

DRAFT 2002/08/02

User Tools

Changing the Settings of User Tools

AAfter entering the desired user tool number, press the {

{{

}}

}key.

The value or mode set at the factory will be displayed at the end of the second

line on the guidance display.

Note

❒If you designate the wrong number, press the {

{{

{Clear Modes/Energy Saver}

}}

}

key. Then, re-enter the desired number.

BEnter the desired value or mode with the number keys.

CPress the {

{{

}}

}key to store the desired value or mode.

DRAFT 2002/08/02

Changing the Settings of User Tools

Note

❒If you enter the wrong value or mode, press the {

{{

{Clear Modes/Energy Saver}

}}

}

key. Then, go back to step A.

DPress the {

{{

{Clear Modes/Energy Saver}

}}

}key to leave User Tools.

User Tools Menu

No. Mode Function

5 Tape Marker Off Specifies whether the optional tape dispenser can be used.

Note

❒Default: 0

❒Adjustment value: 0: No 1: Yes

10 Min. Print Specifies the minimum number of prints that can be en-

tered with the number keys.

Note

❒Default: 0

❒Adjustment value: 0 to 9999

11 Max. Print Specifies the maximum number of prints that can be en-

tered with the number keys.

Note

❒Default: 0

❒Adjustment value: 0 to 9999

DRAFT 2002/08/02

User Tools

12 Set Language If you want to change the language used by the guidance

display, select the language version.

Note

❒Default: 1

❒Adjustable value:

•0: Japanese

•1: English

•2: German

•3: French

•4: Italian

•5: Spanish

•6: Chinese

•7: Dutch

•8: Portuguese (BRAZIL)

13 Set Size Mode Change the size mode.

Note

❒Default: 0

❒Adjustment value: 0: mm 1: Inch

20 Buzzer On Turns the buzzer ON or OFF.

Note

❒Default: 0

❒Adjustment value: 0: No 1: Yes

21 Prints/Master Cost The optional key counter usually counts the number of

prints made regardless of the number of masters used. For

accounting purposes, it is possible for the key counter to be

incremented by a value between 0 and 50 whenever a new

master is used.

Example: The key counter is adjusted to increase by 20 for

each master fed. If 100 copies have been made and the mas-

ter is replaced, the key counter will increase by 120.

Note

❒Default: 0

❒Adjustment value: 0 –50

No. Mode Function

DRAFT 2002/08/02

Changing the Settings of User Tools

25 Clear 2 In 1 By default, when master making is finished in Combine

Copies mode, this mode stays selected for the next master

making.

If you want master making turned off, select “1”.

Note

❒Default: 0

❒Adjustable value: 0: No 1: Yes

❒Even if you select “1”in this mode, Combine Copies

mode is not cleared when the next original are set in the

optional document feeder.

❒For details about Combine Copies, see ⇒p.46 “Com-

bine—Combining 2 Originals onto One Print”.

29 Pht Backgrnd Correct When you make prints in Photo or Letter/Photo mode, the

background of the prints might become dirty. You can pre-

vent this using this function.

Note

❒Default: 0

❒Adjustment value: 0: No 1: Yes

40 Original Specifies the image mode at power on.

Note

❒Default: 0

❒Adjustment value:

•0: Letter mode

•1: Letter/Photo mode

•2: Photo mode

41 Image density Specifies the image density at power on.

Note

❒Default: 1

❒Adjustment value:

•0: Light

•1: Standard

•2: Dark

•3: Darker

42 Print Speed Specifies the printing speed at power on.

Note

❒Default: 2

❒Adjustment value:

•1: 80 sheets/minute

•2: 100 sheets/minute

•3: 130 sheets/minute

No. Mode Function

DRAFT 2002/08/02

User Tools

43 Auto Cycle Mode Specifies whether Auto Cycle mode is selected at power

on.

Note

❒Default: 1

❒Adjustment value: 0: No 1: Yes

46 Fine Mode Specifies whether Fine mode is selected when the power is

turned on.

Note

❒Default: 0

❒Adjustment value: 0: No 1: Yes

47 Swap Master Making

Key

Specify to switch between Print Start key and Master Mak-

ing key functions.

Note

❒Default: 0

❒Adjustment value: 0: No 1: Yes

81 Quality Start No. You can select how many times Quality Start mode is car-

ried out for each master making.

When you set the Quality Start function, the bold letter or

solid images might be light.

Note

❒Default: 0

❒Adjustment value: 0 to 3 times

82 Skip Feed No. When you use the Skip Feed Printing function, you can se-

lect how many times the drum rotates while one sheet of

paper is fed.

Note

❒Default: 2 times

❒Adjustment value: 1 to 9 times

84 Auto Multi copy If you set an original on the exposure glass and press the

{

{{

{Combine}

}}

}key and {

{{

{Master Making}

}}

}key, two identical imag-

es are printed on one sheet.

Note

❒Default: 0

❒Adjustment value: 0: No 1: Yes

❒For details about Combine, see ⇒p.46 “Combine—

Combining 2 Originals onto One Print”.

No. Mode Function

DRAFT 2002/08/02

Changing the Settings of User Tools

87 Memory Print Each print set or stack will contain the number of prints

you program in Memory mode.

If set to Memory, Memory mode will work.

If set to Stack, Stack mode will work.

Note

❒Default: 0

❒Adjustment value: 0: Memory 1: Stack

❒For details about Memory mode, see ⇒p.43 “Memory

Mode—Group Printing from Different Originals”.

88 Auto Memory/Class In this function, the machine stops printing for 2 seconds

after one set of prints are completed in Memory mode and

Class mode. This gives you the chance to separate each set

when you do not have an optional tape dispenser.

For example, you can remove prints one by one from the

paper delivery tray or insert one sheet of paper between

the prints.

Note

❒Default: 0

❒Adjustment value: 0: No 1: Yes

113 Resettable Count Used to display the total number of masters and prints.

•M: Total number of masters

•P: Total number of prints

114 CLR Resettable Count Clears the resettable master/print counter.

Note

❒Default: 0

❒Adjustment value: 0: No 1: Yes

120 User Code Mode Selects user code mode. When you set this function, you

have to also specify the auto reset time. For details about

user code mode, see ⇒p.76 “User Codes”.

Note

❒Default:

•User Code mode: 0

•Auto Reset time: 0

❒Adjustment value:

•User Code mode: 0: No 1: Yes

•Auto Reset time: 0: No, 1 –5 minutes

No. Mode Function

DRAFT 2002/08/02

User Tools

121 UC Count Displays the number of masters and prints made in each

user code.

Note

❒M: Number of masters

❒P: Number of prints

122 Clear UC Count Clear each user code counter.

Note

❒Default: 0

❒Adjustment value: 0: No 1: Yes

123 Total UC Count Display the total number of masters and prints for all the

20 user codes.

Note

❒M: Number of masters

❒P: Number of prints

124 Clear Total UC Count Clear the total user code counter.

Note

❒Default: 0

❒Adjustment value: 0: No 1: Yes

125 Auto Energy Saving You can set the time until the Energy Saver mode starts.

Note

❒Default: 3 Min. (minutes)

❒Adjustment value: 0: No, 1 –120: Min

160 Side Ers. Adjust the default side edge margin width in Edge Erase

and Center/Edge Erase mode.

Note

❒Default:

•Metric Version: 5 mm

•Inch Version: 0.2"

❒Adjustable value:

•Metric Version: 2 –20 mm

•Inch Version: 0.1" –0.8"

No. Mode Function

DRAFT 2002/08/02

Changing the Settings of User Tools

Entering decimal values in No. 160–162:

•Press the {

{{

{Program}

}}

}key to enter a decimal point.

•Press the {

{{

}}

}key to fix the value.

161 Center Ers. Adjust the default center margin width in Center/Edge

Erase mode.

Note

❒Default:

•Metric version: 10 mm

•Inch version: 0.4"

❒Adjustable value:

•Metric version: 4 –60 mm

•Inch version: 0.2" –2.3"

162 Horizontal Ers. Adjust the default horizontal edge (top and bottom) mar-

gin in Edge Erase and Center/Edge Erase mode.

Note

❒Default:

•Metric version: 5 mm

•Inch version: 0.2"

❒Adjustable value:

•Metric version: 2 –20 mm

•Inch version: 0.1" –0.8"

170-172 Ers. **1L

Ers. **2L

Ers. **3L

Set up and register three original sizes for when perform-

ing edge erase of non-standard size originals, or perform-

ing center frame erase.

Note

❒Default: 0

0 mm

❒Adjustable value: 100-257 mm ×100-364 mm

No. Mode Function

DRAFT 2002/08/02

User Tools

User Codes

If the machine is set to use the User

Code function, operators must enter

their user codes before the machine

can operate. The machine keeps count

of the number of prints made under

each user code.

In this mode, the following 20 user

codes (fixed) can be used to access the

machine: 382, 191, 182, 173, 164, 155,

146, 137, 128, 119, 482, 291, 282, 273,

264, 255, 246, 237, 228, 219

Note

❒To prevent unauthorized users

from accessing the machine, note

down the codes and then black out

the codes from this manual.

How to Set User Code Mode (#

120)

The following procedure explains

how to set user code mode. This must

be done before a user code can be en-

tered.

APress the {

{{

{Clear Modes/Energy Sav-

er}

}}

}key.

BHold down the {

{{

{Clear/Stop}

}}

}key

for at least 3 seconds.

CEnter “120”with the number keys

and press the {

{{

}}

}key.

DEnter “1”(Yes) with the number

keys and then press the {

{{

}}

}key.

Andere Handbücher für 5309L

Inhaltsverzeichnis

Andere Gestetner Kopierer Handbücher

Gestetner

Gestetner DSm725e Montage- und Wartungsanleitung

Gestetner

Gestetner DSm651 Bedienungsanleitung

Gestetner

Gestetner 1045 Montage- und Wartungsanleitung

Gestetner

Gestetner DSm725e Bedienungsanleitung

Gestetner

Gestetner 3220 Service-Handbuch

Gestetner

Gestetner 2235 Bedienungsanleitung

Gestetner

Gestetner DSm635sp Montage- und Wartungsanleitung

Gestetner

Gestetner 5390 Bedienungsanleitung

Gestetner

Gestetner DSc525 Bedienungsanleitung

Gestetner

Gestetner 3355 Bedienungsanleitung

Gestetner

Gestetner DSm7110 Bedienungsanleitung

Gestetner

Gestetner DSm616 Montage- und Wartungsanleitung

Gestetner

Gestetner 2045 Montage- und Wartungsanleitung

Gestetner

Gestetner 1302 Bedienungsanleitung

Gestetner

Gestetner CS210 Bedienungsanleitung

Gestetner

Gestetner DSm651 Montage- und Wartungsanleitung

Gestetner

Gestetner 6002 Bedienungsanleitung

Gestetner

Gestetner 5309L Bedienungsanleitung

Gestetner

Gestetner 460 Bedienungsanleitung

Gestetner

Gestetner 3532 Bedienungsanleitung

Gestetner

Gestetner F540 Bedienungsanleitung

Gestetner

Gestetner AO70 Bedienungsanleitung

Gestetner

Gestetner 5502 Bedienungsanleitung

Gestetner

Gestetner 3532 Montage- und Wartungsanleitung

Beliebte Kopierer Handbücher anderer Marken

Canon

Canon iR1210 Referenzhandbuch

Ricoh

Ricoh FW740 Bedienungsanleitung

Minolta

Minolta CF910 Bedienungsanleitung

Ricoh

Ricoh B003 Bedienungsanleitung

Xerox

Xerox EC70 Bedienungsanleitung

Oce

Oce 9800 Bedienungsanleitung

Olivetti

Olivetti d-Copia 1800 Bedienungsanleitung

Minolta

Minolta Di181 Bedienungsanleitung

Canon

Canon iR5000i Bedienungsanleitung

Telecrane

Telecrane F25 Bedienungsanleitung

Xerox

Xerox WorkCentre Pro 40 Bedienungsanleitung

Canon

Canon NP6317 Anleitung zur Verwendung

Sharp

Sharp AR-5015 N Bedienungsanleitung

Ricoh

Ricoh Di-C1 Bedienungsanleitung

Mita

Mita MIP-2400 Handbuch

Sharp

Sharp AL-2061 Bedienungsanleitung

Muratec

Muratec MFX-C2280 Bedienungsanleitung

Ricoh

Ricoh FT5034C Bedienungsanleitung
