Gigabyte 6BXD Bedienungsanleitung
6BXD
1
TABLE OF CONTENTS
1. INTRODUCTION
1.1. PREFACE...................................................................................1-1
1.2. KEY FEATURES.........................................................................1-1
1.3. PERFORMANCE LIST................................................................1-2
1.4. BLOCK DIAGRAM ......................................................................1-3
1.5. INTRODUCE THE PentiumII Processor...................................1-4
1.6. WHAT IS AGP?...........................................................................1-6
2. SPECIFICATION
2.1. HARDWARE...............................................................................2-1
2.2. SOFTWARE ...............................................................................2-2
2.3. ENVIRONMENT..........................................................................2-2
3. HARDWARE INSTALLATION
3.1. UNPACKING...............................................................................3-1
3.2. MAINBOARD LAYOUT................................................................3-2
3.3. QUICK REFERENCE FOR JUMPERS & CONNECTORS............3-2
3.4. DRAM INSTALLATION................................................................3-5
3.5. CPU SPEED SETUP...................................................................3-6
3.6. CMOS RTC & ISA CFG CMOS SRAM.........................................3-7
3.7. SPEAKER CONNECTOR INSTALLATION ..................................3-7
3.8. HARDWARE RESET SWITCH CONNECTOR INSTALLATION ...3-7
3.9. POWER LED CONNECTOR INSTALLATION..............................3-7
3.10. IDE & ATAPI DEVICE INSTALLATION......................................3-8
3.12. PERIPHERAL DEVICE INSTALLATION ....................................3-8
3.13. KEYBOARD & PS/2 MOUSE INSTALLATION...........................3-8
Table Of Contents
2
3.14. KEYBOARD SETTING FUNCTION...........................................3-8
4. BIOS CONFIGURATION
4.1. ENTERING SETUP.....................................................................4-1
4.2. CONTROL KEYS........................................................................4-1
4.3. GETTING HELP..........................................................................4-2
4.3.1.Main Menu.........................................................................4-2
4.3.2.Status Page Setup Menu / Option Page Setup Menu..........4-2
4.4. THE MAIN MENU........................................................................4-2
4.5. STANDARD CMOS SETUP MENU..............................................4-4
4.6. BIOS FEATURES SETUP...........................................................4-8
4.7. CHIPSET FEATURES SETUP.....................................................4-13
4.8. POWER MANAGEMENT SETUP................................................4-19
4.9. PNP/PCI CONFIGURATION .......................................................4-22
4.10. LOAD BIOS DEFAULTS............................................................4-24
4.11. LOAD PERFORMANCE DEFAULTS .........................................4-25
4.12. INTEGRATED PERIPHERALS..................................................4-26
4.13. USER PASSWORD...................................................................4-32
4.14. IDE HDD AUTO DETECTION....................................................4-33
4.15. SAVE & EXIT SETUP ...............................................................4-34
4.16. EXIT WITHOUT SAVING..........................................................4-35
6BXD
1-1
1. INTRODUCTION
1.1. PREFACE
Welcome to use the 6BXD motherboard. The motherboard is a Dual
PentiumII Processor based PC / AT compatible system with AGP / PCI /
ISA Bus, and has been designed to be the fastest PC / AT system. There are
some new features allow you to operate the system with just the performance
you want.
This manual also explains how to install the motherboard for operation, and
how to set up your CMOS CONFIGURATION with BIOS SETUP program.
1.2. KEY FEATURES
qIntel Dual PentiumII Processor based PC / AT compatible mainboard.
qDual Slot 1 on board supports dual PentiumII processor running at 200-
633MHz.
qIntel 440BX chipset, Support AGP / SDRAM / Ultra DMA/33 IDE / ACPI
features.
qSupport CPU FAN Failure / Overheat Alarm & auto slow down CPU
speed.
qSupport PS/2 mouse & Keyboard Wake Up function.
qSupport Intel LDCMNetwork Manageability.
qSupport PCI Audio & Wake on Lan function.
qSupports 4xDIMMs using 3.3V EDO or SDRAM DIMM module.
qSupports 8 MB - 1 GB EDO / 1GB SDRAM memory on board.
qSupports ECC or Non-ECC type DRAM module.
q1xAGP slot, 5xPCI Bus slots, 2xISA Bus slots.
qSupports 2 channels Ultra DMA/33 IDE ports for 4 IDE Devices.
qSupports 2xCOM (16550), 1xLPT (EPP / ECP), 1x1.44MB Floppy port.
qSupports 2xUSB ports, 1xPS/2 Mouse & 1xPS/2 Keyboard ports.
qLicensed AWARD BIOS, 2M bits FLASH RAM.
Introduction
1-2
qATX form factor, Double stack I/O connector, 4 layers PCB.
1.3. PERFORMANCE LIST
The following performance data list is the testing results of some popular
benchmark testing programs.
These data are just referred by users, and there is no responsibility for
different testing data values gotten by users. (The different Hardware &
Software configuration will result in different benchmark testing results.)
•CPU PentiumII processor
•DRAM 128 MB SDRAM (NEC D4564841G5-A10-9JF)
•CACHE SIZE 512 KB included in CPU
•DISPLAY GA-601 4MB AGP VGA
•STORAGE Onboard IDE port (IBM DHEA 38451)
•O.S. Windows NT™4.0
•DRIVER Display Driver at 1024 x 768 x 256 colors x 75Hz
Triones Bus Master IDE Driver 3.60K
Intel PentiumII
Processor 333MHz (66 ×5) 350MHz (100
×
3.5)
Winbench98
CPU mark32 862 944
FPU Winmark 1720 1800
Business Disk 1900 1940
Hi-End Disk 4570 4690
Business Graphics 185 206
Hi-End Graphics 206 230
Winstone98
Business 33 35.1
Hi-End 38.6 39.3
6BXD
1-3
66/100MHz
8MHz
Floppy Port
3.3VEDO/SDRAM
DIMM Sockets

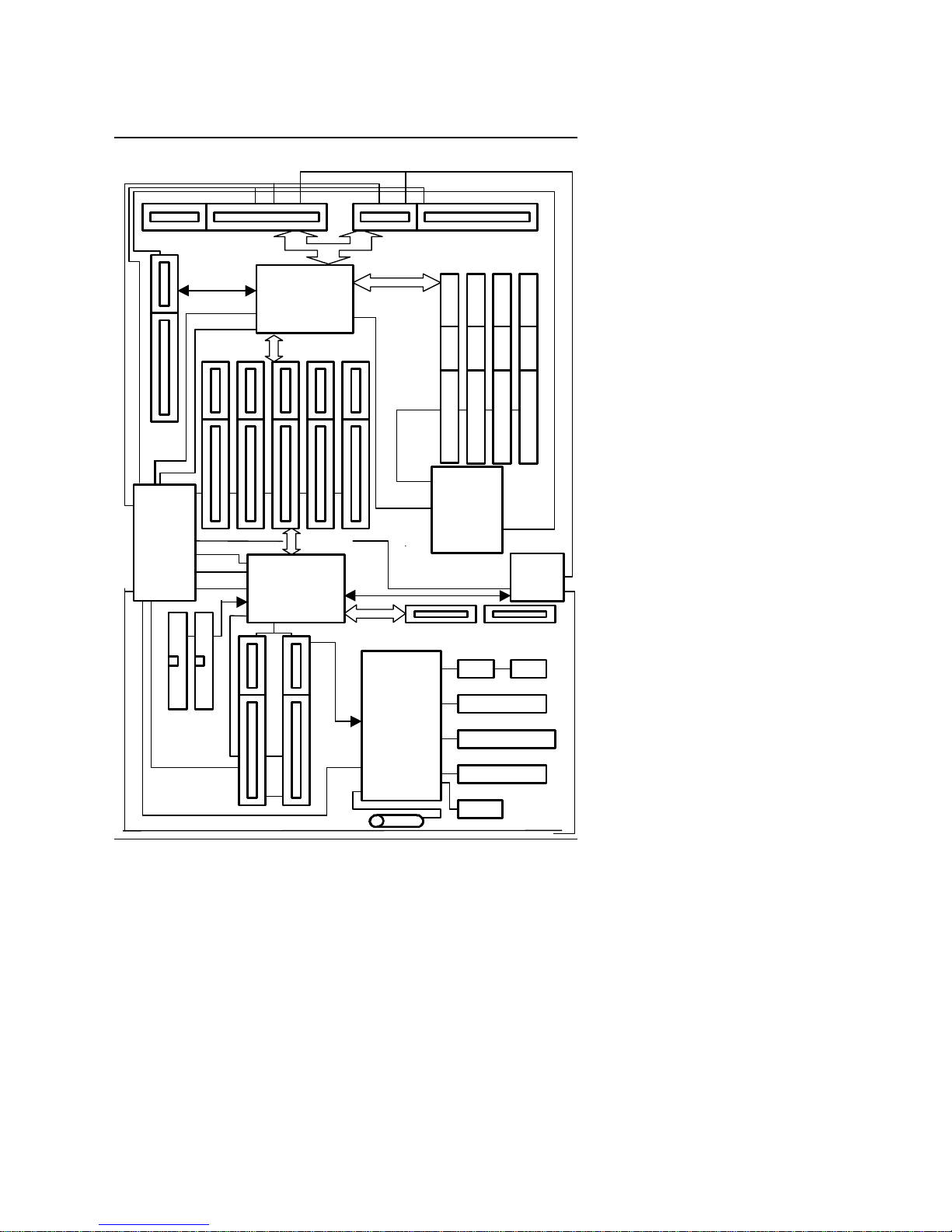

1.4. BLOCK DIAGRAM
14.318MHz
IDE Bus
ISA Bus
AGP
SLOT
SLOT 1 (CPU 2)
66MHz
PCI Bus
PCI Bus
66/100MHz
LPT Port
USB #2
PS/2 Keyboard
COM Ports
USB #1
DRAM
PS/2 Mouse
USB Bus
SLOT 1 (CPU 1)
AGP Bus
Host Bus
PAC
82443BX
CHIPSET
I/
O
83977TF
32.768KHz
48MHz
CLO
CK
G
EN
9148BF-10 33MHz
14.318MHz
33MHz
14.318MHz
CLOCK
GE
N
9179BF-01
48MHz I/O
APIC
PIIX4
CHIPSET
14.318MHz
33MHz
66/100MHz
66/100MHz
Introduction
1-4
1.5. INTRODUCE THE Pentium
II Processor

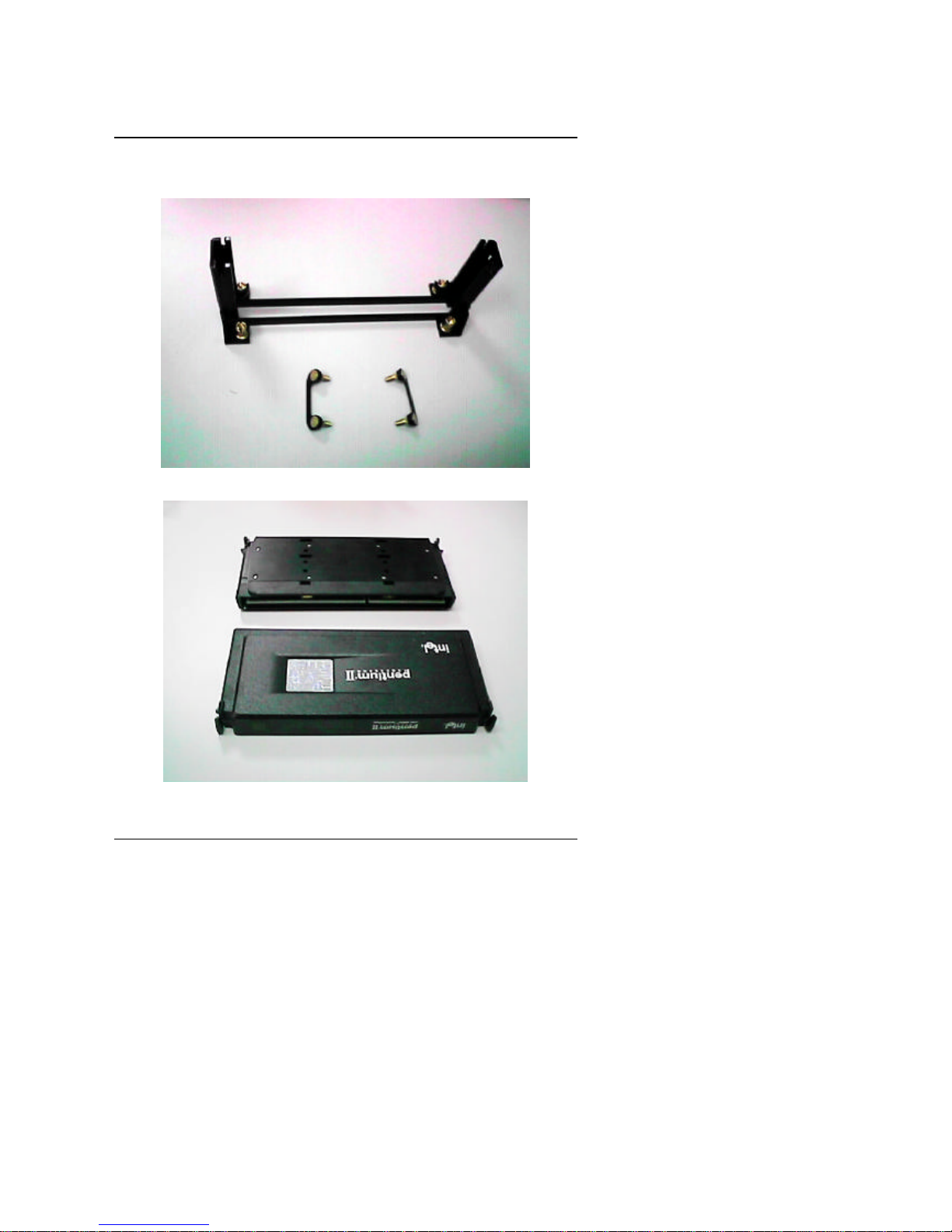

Figure 1:Retention Mechanism & attach Mount
Figure 2:OEM PentiumII Processor
6BXD
1-5
Figure 3:Heatsink / FAN & Heat sink support for OEM PentiumII Processor
Figure 4:Boxed PentiumII Processor & Heat sink support
Introduction
1-6
1.6. WHAT IS AGP
?
The Accelerated Graphics Port (AGP) is a new port on the Host-To-PCI
bridge device that supports an AGP port. The main purpose of the AGP port
is to provide fast access to system memory.
The AGP port can be used either as fast PCI port (32-bits at 66MHz vs. 32-
bits at 33MHz) or as an AGP port which supports 2x data-rate, a read queue,
and side band addressing. When the 2x-data rate is used the port can
transmit data at 533Mb/sec (66.6*2*4). The read-queue can be used to
pipeline reads –removing the effects of the reads-latency. Side band
addressing can be used to transmit the data address on a separate line in
order to further speed the transaction.
6BXD
2-1
2. SPECIFICATION
2.1. HARDWARE
•CPU −Dual PentiumII processor 200 –633 MHz.
−Dual 242 pins 66/100MHz slot1 on board.
•PROTECTION −PC Speaker Alarm when detect "CPU FAN Failure"
or “CPU Overheat”.
−Automatically slow down CPU speed when "CPU
FAN Failure" or "CPU Overheat".
−Intel LDCMsupport.
−H/W monitor power status (±5V, ±12V, CPU
voltage & CMOS battery voltage).
•SPEED −66 / 100MHz system speed.
−66 MHz AGP bus speed. (133MHz 2*mode)
−33 MHz PCI-Bus speed.
−8 MHz AT bus speed.
•DRAM MEMORY −4 banks 168 pins DIMM module sockets on board.
−Use 8 / 16 / 32 / 64 / 128 / 256 MB 50~60 ns DIMM
module DRAM.
−8 M ~ 1 GB DRAM size.
−Support 3.3V SDRAM / EDO type DRAM.
−Support ECC or Non-ECC type DRAM.
•CACHE MEMORY −32 KB 1st cache memory included in CPU.
−256KB/512 KB 2nd cache in CPU.
−Support DIB speed mode for L2 Cache.
•I/O BUS SLOTS −1 66 / 133MHz AGP BUS.
−5 33MHz Master / Slave PCI-BUS.
−2 8MHz 16 bits ISA BUS.
•IDE PORTS −2 Ultra DMA/33 Bus Master IDE channels on
board.(Using IRQ14,15)
−Backward Support Mode 3,4 IDE & ATAPI CD -
Specification
2-2
ROM.
•I/O PORTS −Supports 2 16550 COM ports. (Using IRQ4, 3)
−Supports 1 EPP/ECP LPT port. (Using IRQ7 or 5
and DMA3)
−Supports 1 1.44/2.88 MB Floppy port. (Using DMA2
& IRQ6)
−Supports 2 USB ports.
−Supports PS/2 Mouse. (Using IRQ12 )
−Supports PS/2 Keyboard. (Using IRQ1 )
•GREEN FUNCTION −Suspend mode support.
−Green switch, Green LED & ACPI LED support.
−IDE & Display power down support.
−Monitor all IRQ / DMA / Display / I/O events.
•BIOS −2M Bits FLASH EEPROM.
−Supports Plug & Play, DMI, ACPI Function.
•DIMENSION −ATX Form Factor, 4 layers PCB.
2.2. SOFTWARE
•DRIVER −Intel LDCMOptional.
−Health monitor Utility.
−Bus Master IDE Driver.
−Suspend to HD utility.
•BIOS −Licensed AWARD BIOS.
−AT CMOS Setup, BIOS / Chipset Setup, Green
Setup, Hard Disk Utility included.
−Monitor Health status.
•O.S. −Operation with MS-DOS, Windows95,
WINDOWSNT, OS/2, NOVELL and SCO UNIX.
2.3. ENVIRONMENT
•Ambient Temp. −0°C to +50°C (Operating).
•Relative Hum. −0 to +85% (Operating).
•Altitude −0 to 10,000 feet (Operating).
•Vibration −0 to 1,000 Hz.
•Electricity −4.9 V to 5.2 V.
