B360M D2V

User's Manual

Rev. 1001

Feb. 23, 2018

Motherboard

B360M D2V

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

ChangestothespecicationsandfeaturesinthismanualmaybemadebyGIGABYTEwithoutpriornotice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or

by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

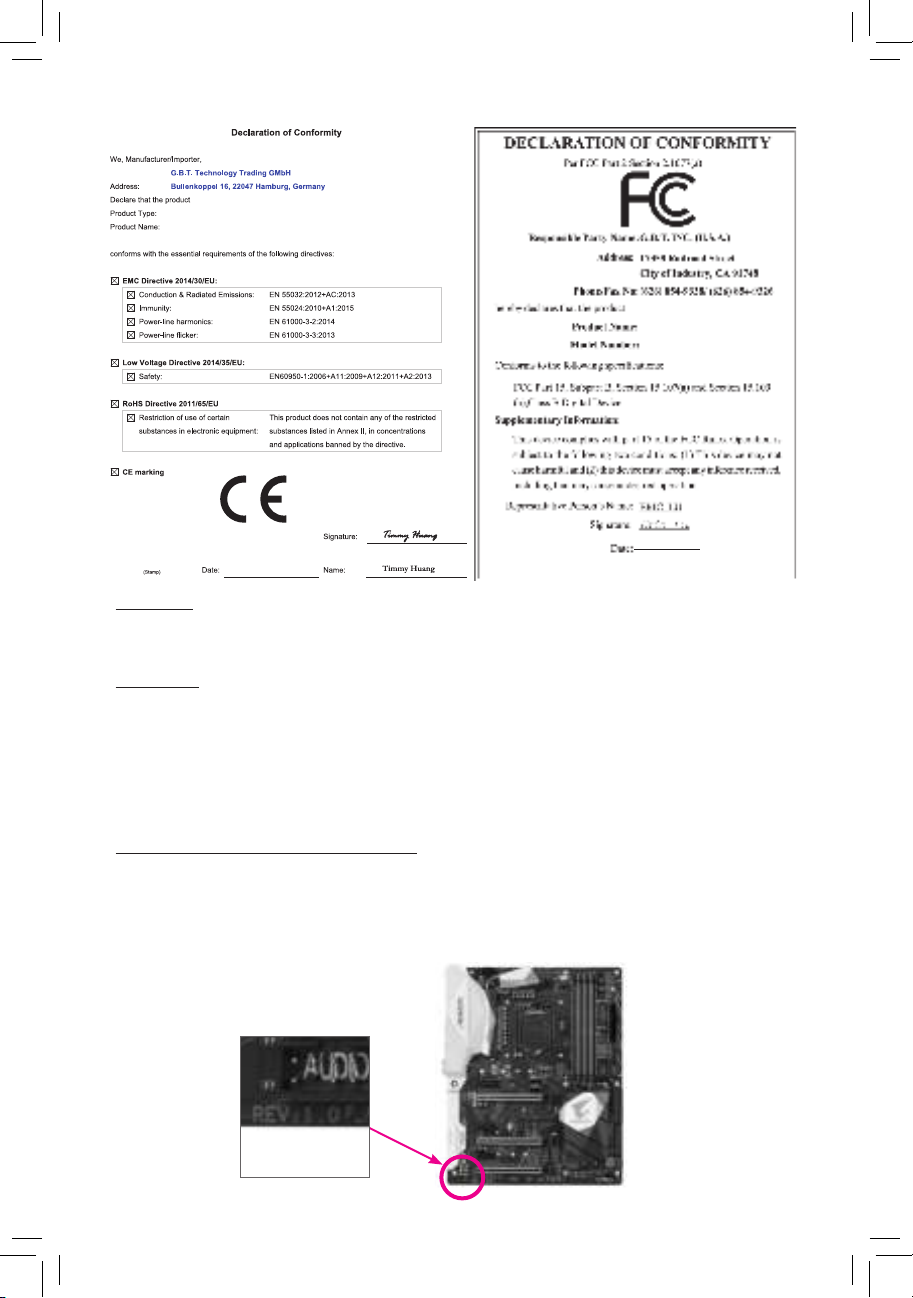

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means

the revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard

BIOS, drivers, or when looking for technical information.

Example:

Feb. 23, 2018

Motherboard

B360M D2V

- 3 -

Table of Contents

B360M D2V Motherboard Layout....................................................................................4

Chapter 1 Hardware Installation .....................................................................................5

1-1 Installation Precautions.................................................................................... 5

1-2 ProductSpecications...................................................................................... 6

1-3 Installing the CPU ............................................................................................ 9

1-4 Installing the Memory....................................................................................... 9

1-5 Installing an Expansion Card ......................................................................... 10

1-6 Back Panel Connectors.................................................................................. 10

1-7 Internal Connectors........................................................................................ 12

Chapter 2 BIOS Setup ..................................................................................................19

2-1 Startup Screen ............................................................................................... 19

2-2 The Main Menu .............................................................................................. 20

2-3 M.I.T. .............................................................................................................. 21

2-4 System ........................................................................................................... 27

2-5 BIOS............................................................................................................... 28

2-6 Peripherals..................................................................................................... 31

2-7 Chipset........................................................................................................... 34

2-8 Power............................................................................................................. 35

2-9 Save & Exit..................................................................................................... 37

Chapter 3 Appendix ......................................................................................................38

3-1 Installing an Intel®Optane™Memory.............................................................. 38

3-2 Drivers Installation.......................................................................................... 39

Regulatory Statements.............................................................................................. 40

Contact Us ................................................................................................................ 44

- 4 -

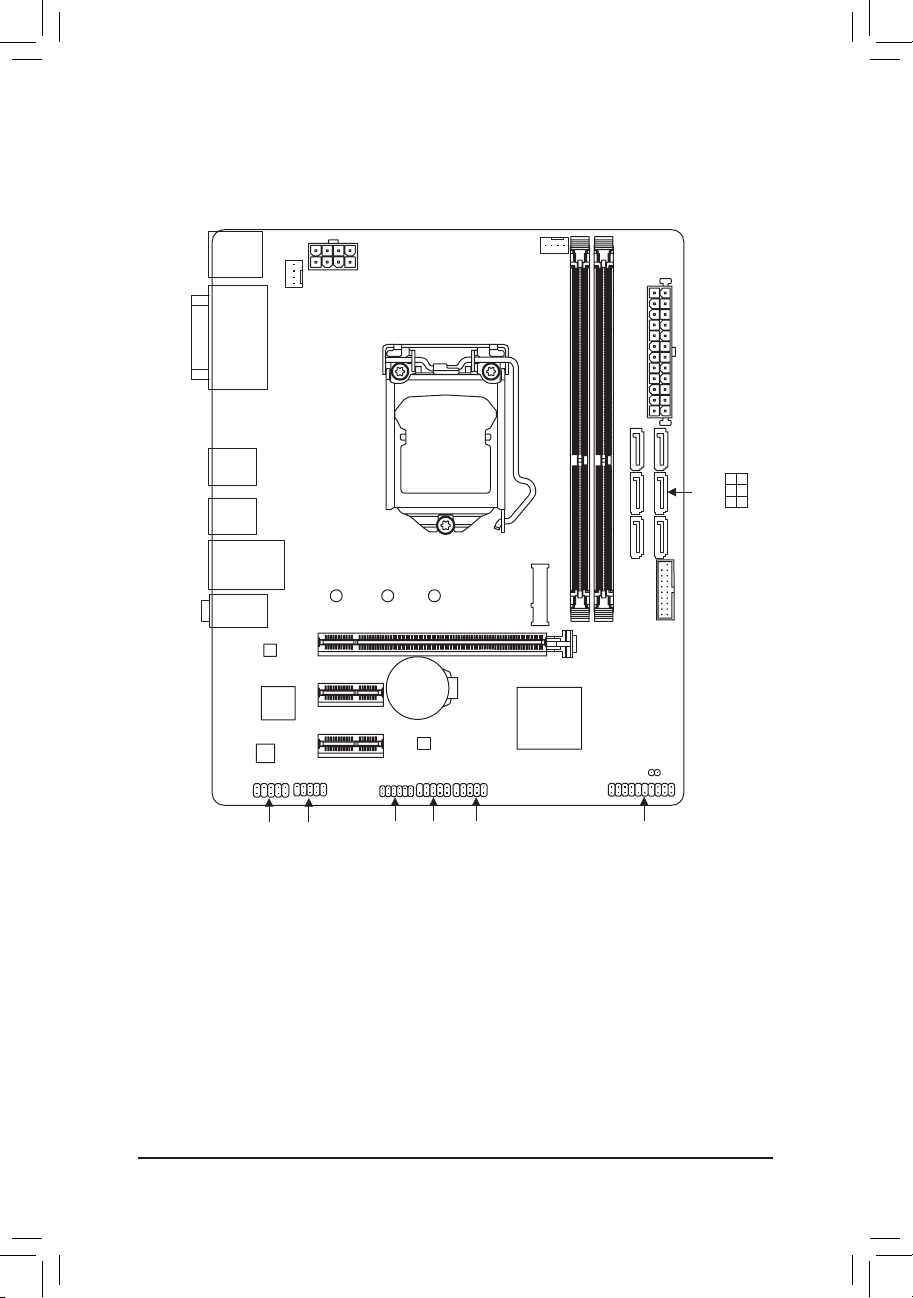

B360M D2V Motherboard Layout

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Box Contents

5B360M D2V Motherboard 5Two SATA cables

5Motherboard driver disk 5I/O Shield

5User's Manual

KB_MS

CPU_FAN

SYS_FAN

LGA1151

ATX

B360M D2V

F_AUDIO

AUDIO

BAT

ATX_12V_2X4

Intel®B360

R_USB30_1

CODEC CLR_CMOS

BIOS

VGA

USB_LAN

PCIEX16

PCIEX1_1

PCIEX1_2

iTE®

Super I/O

Realtek®

GbE LAN

F_USB1F_USB2 F_PANEL

SATA3

5 4

3 2

1 0

DVI

COM

F_USB30

R_USB30_2

TPM

DDR4_1

DDR4_2

M2M_32G

6080 42

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product,pleaseconsultacertiedcomputertechnician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

- 5 -

1-2 ProductSpecications

CPU Support for 8th Generation Intel®Core™i7 processors/Intel®Core™i5 processors/

Intel®Core™i3 processors/Intel®Pentium®processors/

Intel®Celeron®processors in the LGA1151 package

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®B360 Express Chipset

Memory 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory

Dual channel memory architecture

Support for DDR4 2666/2400/2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in

non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

SupportforExtremeMemoryProle(XMP)memorymodules

* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel®

Core™i7/i5 processor.

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor-Intel®HD Graphics support:

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

Maximum shared memory of 1 GB

Audio Realtek®ALC887 codec

HighDenitionAudio

2/4/5.1/7.1-channel

* Tocongure7.1-channelaudio,youhavetouseanHDfrontpanelaudiomodule

and enable the multi-channel audio feature through the audio driver.

LAN Realtek®GbE LAN chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x16 slot, running at x16

2 x PCI Express x1 slots

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

Storage Interface Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe

x4/x2 SSD support)

- 6 x SATA 6Gb/s connectors

* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA

connectors.

Intel®Optane™Memory Ready

USB Chipset:

- 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through

the internal USB header)

- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through

the internal USB headers)

- 6 -

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

6 x SATA 6Gb/s connectors

1 x M.2 Socket 3 connector

1 x front panel header

1 x front panel audio header

1 x USB 3.1 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S

module only)

1 x serial port header

1 x Clear CMOS jumper

Back Panel

Connectors

1 x PS/2 mouse port

1 x PS/2 Keyboard port

1 x D-Sub port

1 x DVI-D port

4 x USB 3.1 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS 1x128Mbitash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functions of each application may also vary depending on motherboard specications.

- 3D OSD

- @BIOS

- AutoGreen

- Cloud Station

- EasyTune

- Fast Boot

- Game Boost

- ON/OFF Charge

- Platform Power Management

- RGB Fusion

- 7 -

Unique Features - Smart Backup

- Smart Keyboard

- Smart TimeLock

- Smart HUD

- System Information Viewer

- USB Blocker

- V-Tuner

Support for Q-Flash

Support for Xpress Install

Bundled

Software Norton®Internet Security (OEM version)

Operating

System Support for Windows 10 64-bit

Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm

* GIGABYTEreservestherighttomakeanychangestotheproductspecicationsandproduct-relatedinformationwithout

prior notice.

Please visit GIGABYTE's website for support lists of CPU, memory modules, SSDs, and M.2

devices.

Please visit the Support\Utility List page on GIGABYTE's website to download the latest

version of apps.

- 8 -

1-3 Installing the CPU

Read the following guidelines before you begin to install the CPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•SettheCPUhostfrequencyinaccordancewiththeCPUspecications.Itisnotrecommended

thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheCPU,graphics

card, memory, hard drive, etc.

Installing the CPU

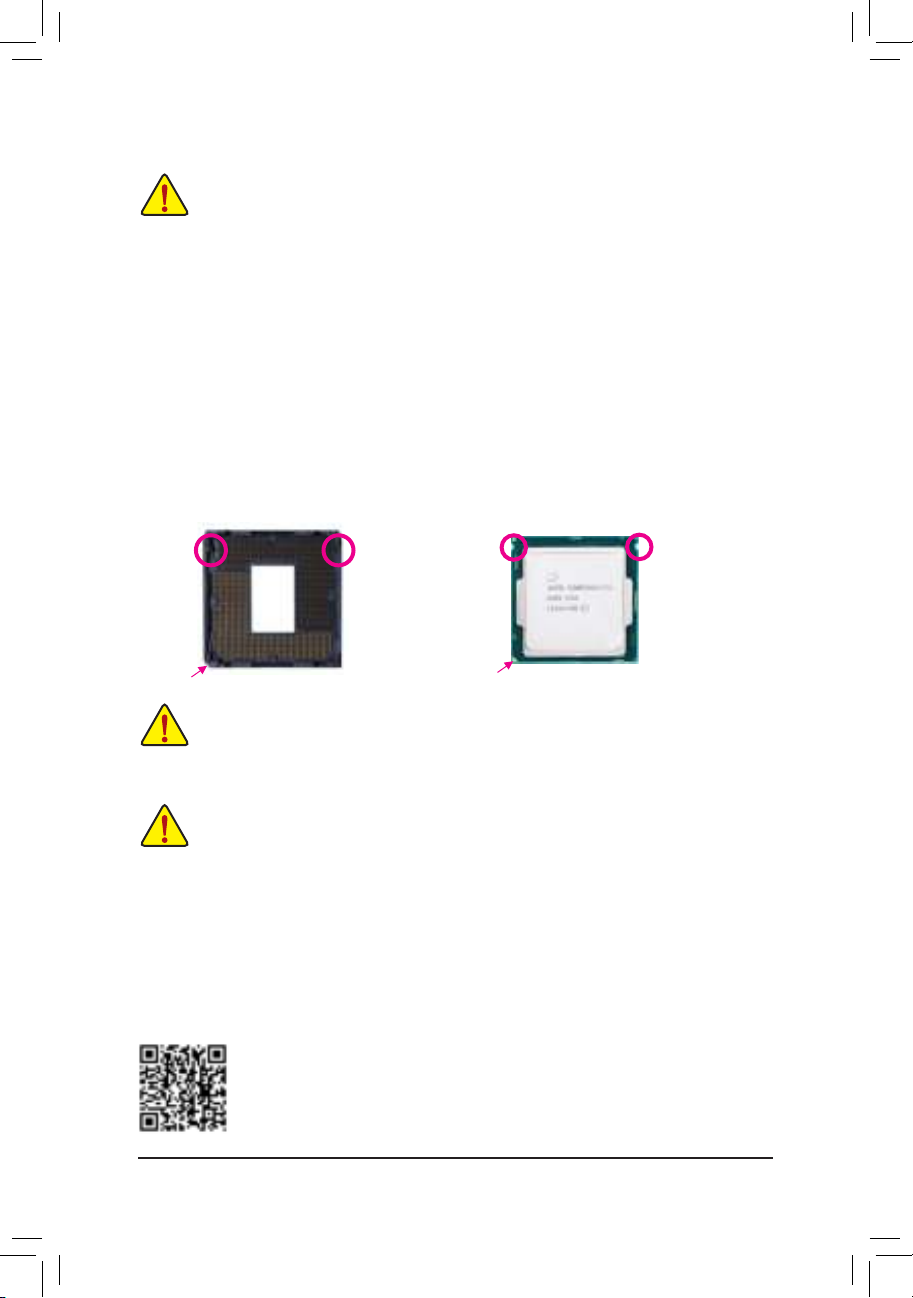

Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load

plate automatically during the process of re-engaging the lever after you insert the CPU.

Alignment

Key

Alignment

Key

LGA1151 CPU Socket

Pin One Corner of the CPU Socket

LGA1151 CPU

Triangle Pin One Marking on the CPU

Notch

Please visit GIGABYTE's website for details on hardware installation.

1-4 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the same

capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

DualChannelMemoryConguration

This motherboard provides two memory sockets and supports Dual Channel Technology. After the memory

isinstalled,theBIOSwillautomaticallydetectthespecicationsandcapacityofthememory.EnablingDual

Channel memory mode will double the original memory bandwidth.

- 9 -

1-5 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing an

expansion card to prevent hardware damage.

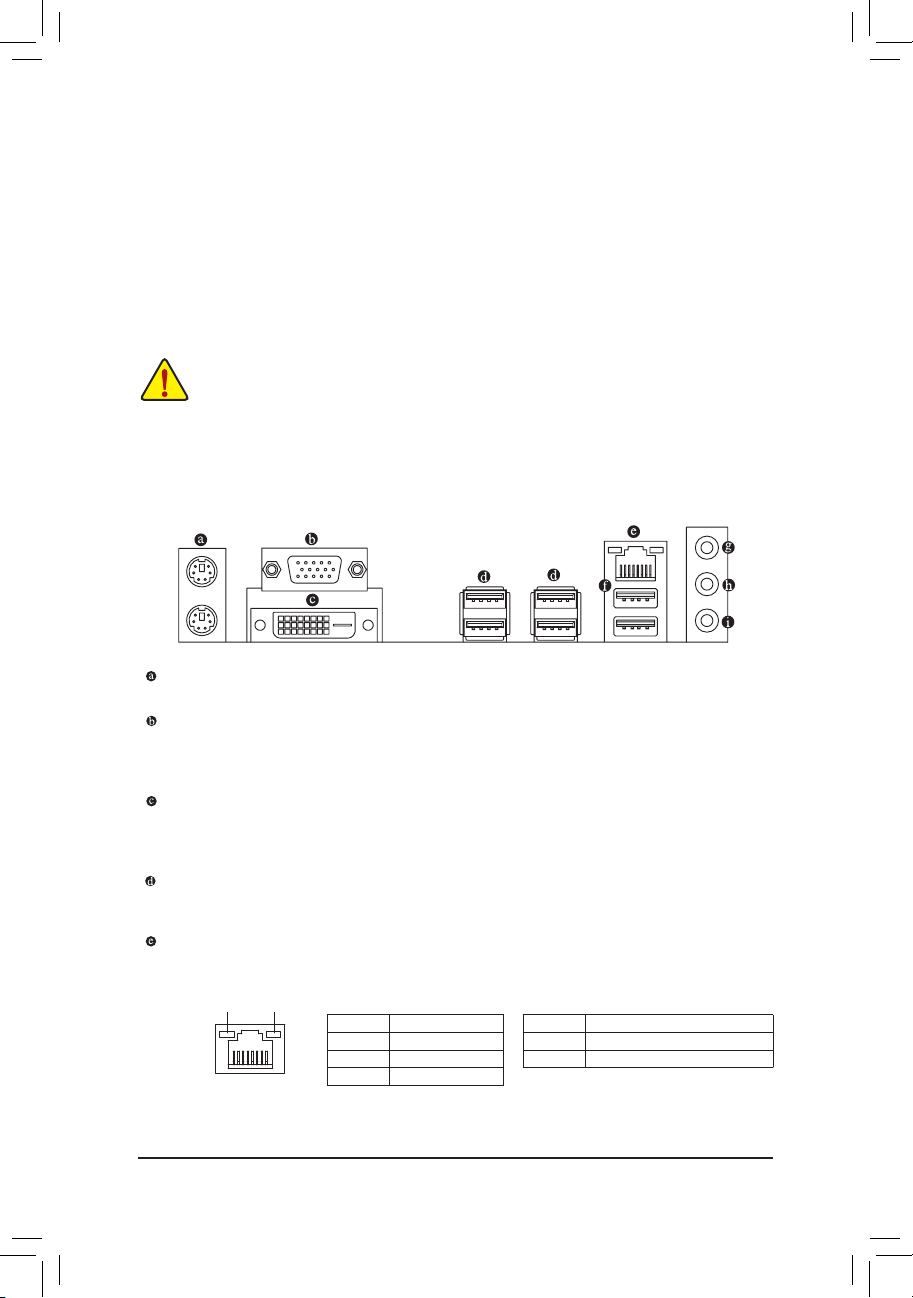

1-6 Back Panel Connectors

PS/2 Keyboard and PS/2 Mouse Port

Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2 keyboard.

D-Sub Port

The D-Sub port supports a 15-pin D-Sub connector and supports a maximum resolution of 1920x1200@60 Hz

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports D-Sub

connection to this port.

DVI-D Port (Note)

TheDVI-DportconformstotheDVI-Dspecicationandsupportsamaximumresolutionof1920x1200@60Hz

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports DVI-D

connection to this port.

USB 3.1 Gen 1 Port

TheUSB3.1Gen1portsupportstheUSB3.1Gen1specicationandiscompatibletotheUSB2.0

specication.UsethisportforUSBdevices.

RJ-45 LAN Port

The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following

describes the states of the LAN port LEDs.

(Note) The DVI-D port does not support D-Sub connection by adapter.

Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.

1. Dual Channel mode cannot be enabled if only one memory module is installed.

2. When enabling Dual Channel mode with two memory modules, it is recommended that memory of

the same capacity, brand, speed, and chips be used.

The two DDR4 memory sockets are divided into two channels and each channel has one memory socket as

following:

Channel A: DDR4_1

Channel B: DDR4_2

Activity LED

Connection/Speed LED Activity LED:Connection/Speed LED:

State Description

Orange 1 Gbps data rate

Green 100 Mbps data rate

Off 10 Mbps data rate

State Description

Blinking Data transmission or receiving is occurring

Off

No data transmission or receiving is occurring

- 10 -

Inhaltsverzeichnis

Andere Gigabyte Hauptplatine Handbücher

Gigabyte

Gigabyte H81M-H M.2 Bedienungsanleitung

Gigabyte

Gigabyte AMD Socket AM2 Motherboard GA-3PXSL-RH Bedienungsanleitung

Gigabyte

Gigabyte GA-P55-UD3R Bedienungsanleitung

Gigabyte

Gigabyte GA-E6010N Bedienungsanleitung

Gigabyte

Gigabyte GA-8I915P-D Bedienungsanleitung

Gigabyte

Gigabyte GA-B150M-D2V DDR3 Bedienungsanleitung

Gigabyte

Gigabyte GA-EP45C-UD3 Bedienungsanleitung

Gigabyte

Gigabyte G1.Sniper H6 Bedienungsanleitung

Gigabyte

Gigabyte GA-7BESH-RH Bedienungsanleitung

Gigabyte

Gigabyte GA-M55plus-S3G Bedienungsanleitung

Gigabyte

Gigabyte GA-G41MT-USB3 Bedienungsanleitung

Gigabyte

Gigabyte Z790 AORUS Elite AX Bedienungsanleitung

Gigabyte

Gigabyte Z790 UD AX Bedienungsanleitung

Gigabyte

Gigabyte GA-7ZXC Bedienungsanleitung

Gigabyte

Gigabyte 586SG Bedienungsanleitung

Gigabyte

Gigabyte GA-Z270-Gaming K3 Bedienungsanleitung

Gigabyte

Gigabyte X299-WU8 Bedienungsanleitung

Gigabyte

Gigabyte GA-H170-HD3 Bedienungsanleitung

Gigabyte

Gigabyte GA-EP35-DS3 Bedienungsanleitung

Gigabyte

Gigabyte GA-870-UD3P Bedienungsanleitung

Gigabyte

Gigabyte GA-X79-UD7 Bedienungsanleitung

Gigabyte

Gigabyte B660M GAMING AC DDR4 Bedienungsanleitung

Gigabyte

Gigabyte GA-8I865GMFK-775 Bedienungsanleitung

Gigabyte

Gigabyte GA-8IEML-T Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
