B650M GAMING X AX

B650M DS3H

User's Manual

Rev. 1101

For more product details, please visit GIGABYTE's website.

https://www.gigabyte.com/Motherboard/B650M-GAMING-X-AX-rev-10?m=ma#kf

https://www.gigabyte.com/Motherboard/B650M-DS3H-rev-10?m=ma#kf

GIGABYTE will reduce paper use in order to fulll the responsibilities of a global citizen.

Also, to reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without

prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

For detailed product information, carefully read the User's Manual.

For quick set-up of the product, refer to the Quick Installation Guide on GIGABYTE's

website.

https://download.gigabyte.com/FileList/Manual/mb_manual_quick-guide_am5.pdf?m=sw

For product-related information, check on our website at: https://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

Chapter 1 Product Introduction.......................................................................................4

1-1 Motherboard Layout......................................................................................... 4

1-2 Box Contents.................................................................................................... 6

Chapter 2 Hardware Installation .....................................................................................7

2-1 Installation Precautions.................................................................................... 7

2-2 Product Specications...................................................................................... 8

2-3 Installing the CPU and CPU Cooler ............................................................... 11

2-4 Installing the Memory..................................................................................... 14

2-5 Installing an Expansion Card ......................................................................... 15

2-6 Back Panel Connectors.................................................................................. 16

2-7 Internal Connectors........................................................................................ 18

Chapter 3 BIOS Setup ..................................................................................................29

Chapter 4 Installing the Operating System and Drivers................................................31

4-1 Operating System Installation ........................................................................ 31

4-2 Drivers Installation.......................................................................................... 32

Chapter 5 Appendix ......................................................................................................33

5-1 Conguring a RAID Set.................................................................................. 33

Regulatory Notices.................................................................................................... 34

Contact Us ................................................................................................................ 37

- 4 -

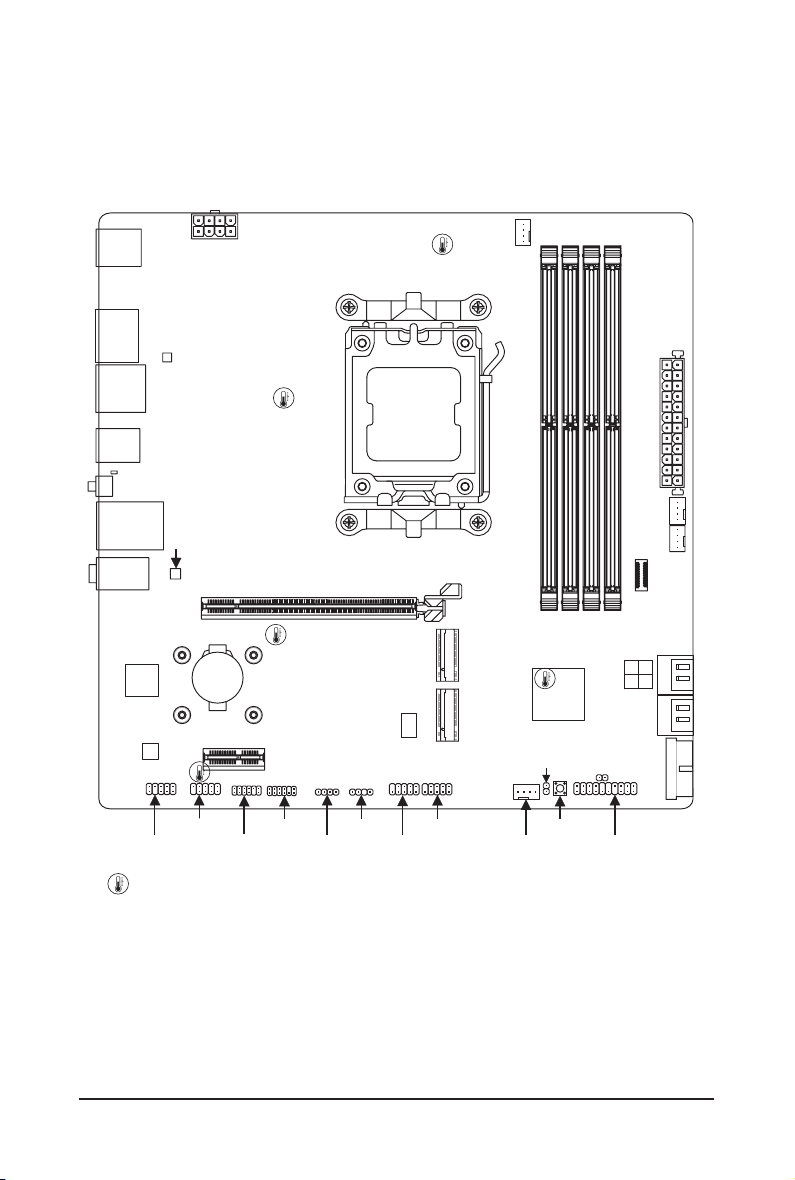

1-1 Motherboard Layout

Chapter 1 Product Introduction

USB 2.0 Hub

KB_MS_USB

CPU_FAN

ATX

B650M GAMING X AX

F_AUDIO

AUDIO

BAT

ATX_12V

CODEC

CLR_CMOS

RST

U32_LAN

PCIEX16

iTE®

Super I/O

Realtek®

2.5GbE LAN

D_LED F_USB1 RST_SW

SYS_FAN1 F_PANEL

SATA3 2 0

3 1

USB_HDMI

110

M_BIOS

ESPI_DB

SPI_TPM

QFLASH_PLUS

F_U32C

F_U32

U32G2

U32G2C

M2B_CPU M2A_CPU

DDR5_A2

DDR5_A1

DDR5_B1

DDR5_B2

LED_C

M2_WIFI

SYS_FAN2

F_USB2

QFLED

PCIEX1

DUAL_DP

COM

Socket AM5

AMD

Chipset

SYS_FAN3

Temperature sensor

- 5 -

USB 2.0 Hub

KB_MS_USB

CPU_FAN

ATX

B650M DS3H

F_AUDIO

AUDIO

BAT

ATX_12V

CODEC

CLR_CMOS

RST

U32_LAN

PCIEX16

iTE®

Super I/O

Realtek®

2.5GbE LAN

D_LED F_USB1 RST_SW

SYS_FAN1 F_PANEL

SATA3 2 0

3 1

USB_HDMI

110

M_BIOS

ESPI_DB

SPI_TPM

QFLASH_PLUS

F_U32C

F_U32

U32G2

U32G2C

M2B_CPU M2A_CPU

DDR5_A2

DDR5_A1

DDR5_B1

DDR5_B2

LED_C

SYS_FAN2

F_USB2

QFLED

PCIEX1

DUAL_DP

COM

Socket AM5

AMD

Chipset

SYS_FAN3

Temperature sensor

- 6 -

1-2 Box Contents

5B650M GAMING X AX or B650M DS3H motherboard

5User's Manual

5I/O Shield k

5Two SATA cables

5One antenna j

5M.2 screw/standoff j

5M.2 screws k

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

jOnly for B650M GAMING X AX.

kOnly for B650M DS3H.

- 7 -

2-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

Chapter 2 Hardware Installation

- 8 -

2-2 ProductSpecications

CPU AMD Socket AM5, support for:

AMD Ryzen™7000 Series Processors

(Go to GIGABYTE's website for the latest CPU support list.)

Chipset AMD B650

Memory Support for DDR5 5200/4800/4400 MHz memory modules

4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)

of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

 Support for AMD EXtended Proles for Overclocking (AMD EXPO™) and Extreme

Memory Prole (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor:

- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 1.4 version and HDR.

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.0 version and HDCP 2.3.

(Graphics specications may vary depending on CPU support.)

Support for up to 3 displays at the same time

Audio Realtek®Audio CODEC

High Denition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To congure

7.1-channel audio, access the audio software for audio settings.

LAN Realtek®2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless

Communication

Modulej

AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.2

- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Intel®Wi-Fi 6E AX210 (For PCB rev. 1.1)

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)

Expansion Slots CPU:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

Chipset:

- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

jOnly for B650M GAMING X AX.

- 9 -

Storage Interface CPU:

- 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD

support)

Chipset:

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB CPU:

- 1 x USB Type-C®port on the back panel, with USB 3.2 Gen 2 support

- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

CPU + USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports on the back panel

Chipset:

- 1 x USB Type-C®port with USB 3.2 Gen 2 support, available through the

internal USB header

- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available

through the internal USB header)

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C®header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI

2.0 module only)

1 x serial port header

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper

- 10 -

Back Panel

Connectors

4 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

2 x SMA antenna connectors (2T2R)j

2 x DisplayPorts

1 x HDMI 2.0 port

1 x USB 3.2 Gen 2 Type-A port (red)

1 x USB Type-C®port, with USB 3.2 Gen 2 support

1 x Q-Flash Plus button

1 x RJ-45 port

2 x USB 3.2 Gen 1 ports

3 x audio jacks

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you

install.

BIOS 1 x 256 Mbit ash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions

of each application may also vary depending on motherboard specications.

Support for Q-Flash

Support for Q-Flash Plus

Bundled

Software

Norton®Internet Security (OEM version)

LAN bandwidth management software

Operating

System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

&Please visit GIGABYTE's website for support lists of CPU, memory modules, SSDs, and M.2 devices.

https://www.gigabyte.com/Motherboard/B650M-GAMING-X-AX-rev-10?m=dl#support-dl

https://www.gigabyte.com/Motherboard/B650M-DS3H-rev-10?m=dl#support-dl

&Please visit the SERVICE/SUPPORT\Utility page on GIGABYTE's website to download the latest version

of apps.

https://www.gigabyte.com/Support/Utility/Motherboard?m=ut

jOnly for B650M GAMING X AX.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Gigabyte Hauptplatine Handbücher

Gigabyte

Gigabyte Z790 AORUS PRO X Bedienungsanleitung

Gigabyte

Gigabyte GA-6VMML Bedienungsanleitung

Gigabyte

Gigabyte GA-8IRX Bedienungsanleitung

Gigabyte

Gigabyte GA-880GM-UD2H Bedienungsanleitung

Gigabyte

Gigabyte GA-8I865PE-TW Bedienungsanleitung

Gigabyte

Gigabyte GA-SBCAP3350 Bedienungsanleitung

Gigabyte

Gigabyte GA-MA790GP-DS4H Bedienungsanleitung

Gigabyte

Gigabyte GA-H110M-S2H-GSM Bedienungsanleitung

Gigabyte

Gigabyte GA-H81M-DS2 Plus Bedienungsanleitung

Gigabyte

Gigabyte GA-945PL-S3E Bedienungsanleitung

Gigabyte

Gigabyte G1.Sniper 5 Bedienungsanleitung

Gigabyte

Gigabyte B360M GAMING HD Bedienungsanleitung

Gigabyte

Gigabyte GA-Z87P-D3 Bedienungsanleitung

Gigabyte

Gigabyte X570 UD Bedienungsanleitung

Gigabyte

Gigabyte GA-8IAX Bedienungsanleitung

Gigabyte

Gigabyte GA-A320-DS3 Bedienungsanleitung

Gigabyte

Gigabyte GA-890FXA-UD7 Bedienungsanleitung

Gigabyte

Gigabyte GA-7VTXE+ Bedienungsanleitung

Gigabyte

Gigabyte A520M AORUS ELITE Bedienungsanleitung

Gigabyte

Gigabyte AMD Socket AM2 Processor Motherboard... Bedienungsanleitung

Gigabyte

Gigabyte GA-965GM-DS2 Bedienungsanleitung

Gigabyte

Gigabyte GA-F2A88XM-DS2 Bedienungsanleitung

Gigabyte

Gigabyte Z390 AORUS ULTRA Bedienungsanleitung

Gigabyte

Gigabyte GA-H61M-D2H Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
