X570 UD

User's Manual

Rev. 1001

12ME-X57UD-1001R

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without prior

notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any

form or by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: https://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means

the revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard

BIOS, drivers, or when looking for technical information.

Example:

Motherboard

X570 UD

Jul. 20, 2019

Motherboard

X570 UD

- 3 -

Table of Contents

X570 UD Motherboard Layout.........................................................................................4

Chapter 1 Hardware Installation .....................................................................................5

1-1 Installation Precautions.................................................................................... 5

1-2 ProductSpecications...................................................................................... 6

1-3 Installing the CPU ............................................................................................ 9

1-4 Installing the Memory....................................................................................... 9

1-5 Installing an Expansion Card ......................................................................... 10

1-6 Back Panel Connectors.................................................................................. 10

1-7 Internal Connectors........................................................................................ 12

Chapter 2 BIOS Setup ..................................................................................................20

2-1 Startup Screen ............................................................................................... 20

2-2 The Main Menu .............................................................................................. 21

2-3 M.I.T. .............................................................................................................. 22

2-4 System ........................................................................................................... 26

2-5 BIOS............................................................................................................... 27

2-6 Peripherals..................................................................................................... 30

2-7 Chipset........................................................................................................... 33

2-8 Power............................................................................................................. 34

2-9 Save & Exit..................................................................................................... 36

Chapter 3 Appendix ......................................................................................................37

3-1 ConguringaRAIDSet.................................................................................. 37

3-2 Drivers Installation.......................................................................................... 39

RegulatoryStatements.............................................................................................. 40

Contact Us ................................................................................................................ 44

- 4 -

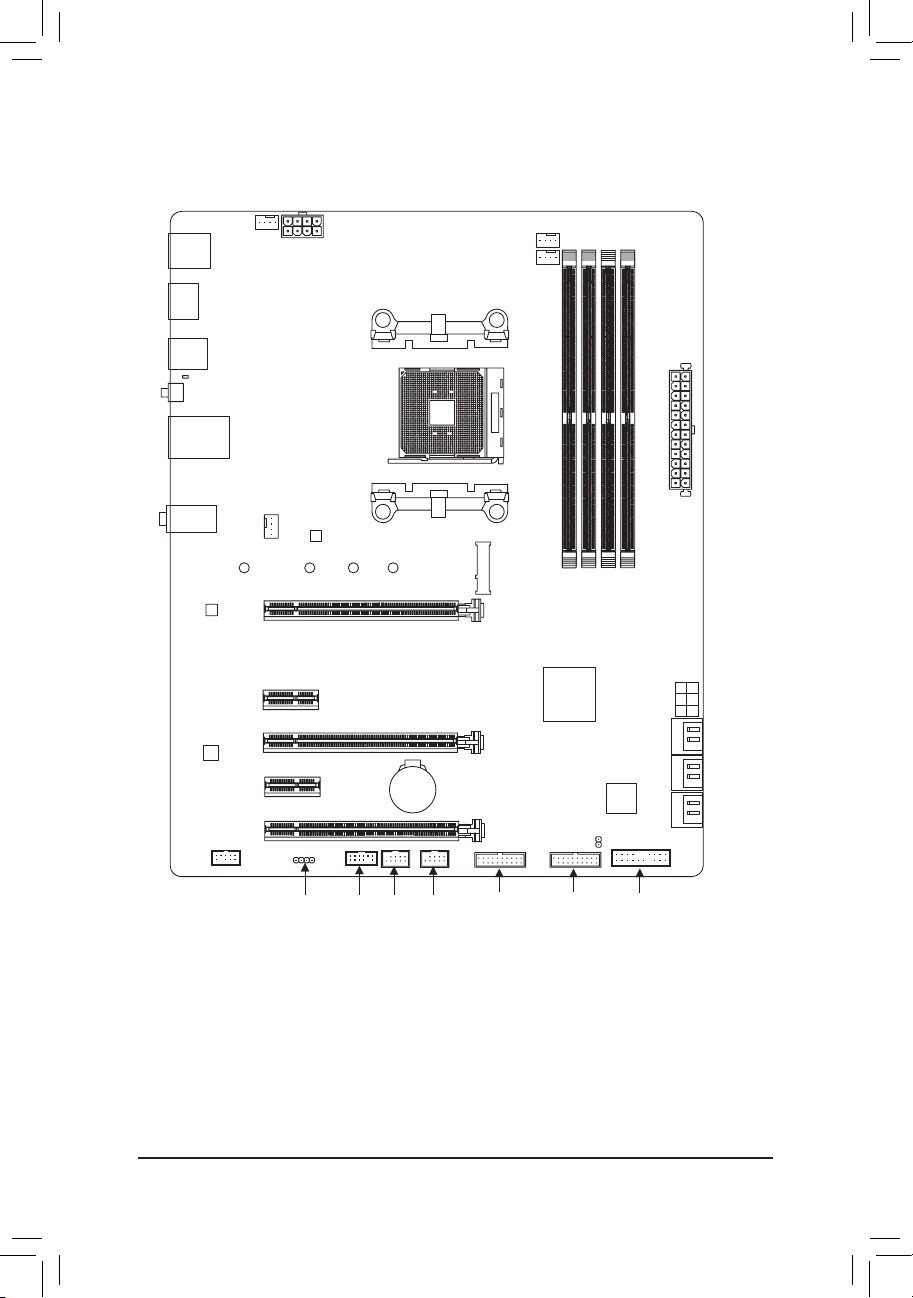

X570 UD Motherboard Layout

* The box contents above are for reference only and the actual items shall depend on the product package you

obtain. The box contents are subject to change without notice.

Box Contents

5X570 UD motherboard 5Two SATA cables

5Motherboard driver disk 5I/O Shield

5User's Manual

KB_MS_USB

R_USB30

HDMI

USB30_LAN

Socket AM4

ATX

AUDIO

ATX_12V

AMD X570

CLR_CMOS

M_BIOS

PCIEX1_1

PCIEX4_1

PCIEX16

PCIEX1_2

PCIEX4_2

M2A_SOCKET

CODEC

X570 UD

F_PANELF_USB2 F_USB1LED_C1

QFLASH_PLUS

QFLED

F_AUDIO

F_USB30_1F_USB30_2TPM

SYS_FAN1

SYS_FAN2

CPU_FAN

CPU_OPT

iTE®Super

I/O

426080110

SATA3

420

531

BAT

Realtek®

GbE LAN

DDR4_A2

DDR4_B2

DDR4_A1

DDR4_B1

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product,pleaseconsultacertiedcomputertechnician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

- 5 -

1-2 ProductSpecications

CPU AMD Socket AM4,

support for:

3rd Generation AMD Ryzen

™

processors/

2ndGenerationAMDRyzen

™

processors/

2ndGenerationAMDRyzen

™

withRadeon

™

Vega Graphics processors/

AMDRyzen

™

withRadeon

™

Vega Graphics processors

(Go to GIGABYTE's website for the latest supported memory speeds and

memory modules.)

Chipset AMD X570

Memory 3rdGenerationAMDRyzen™processors:

- SupportforDDR43200/2933/2667/2400/2133MHzmemorymodules

2ndGenerationAMDRyzen™processors/2ndGenerationAMDRyzen™withRadeon™

VegaGraphicsprocessors/AMDRyzen™withRadeon™Vega Graphics processors:

- SupportforDDR42933/2667/2400/2133MHzmemorymodules

4xDDR4DIMMsocketssupportingupto128GB(32GBsingleDIMMcapacity)

of system memory

Dual channel memory architecture

SupportforECCUn-bufferedDIMM1Rx8/2Rx8memorymodules

Supportfornon-ECCUn-bufferedDIMM1Rx8/2Rx8/1Rx16memorymodules

SupportforExtremeMemoryProle(XMP)memorymodules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics (Note 1)

Integrated Graphics Processor:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* SupportforHDMI2.0version,HDCP2.2,andHDR.

Maximum shared memory of 16 GB

Audio Realtek®ALC887 codec

HighDenitionAudio

2/4/5.1-channel

LAN Realtek®GbE LAN chip (10/100/1000 Mbit)

Expansion Slots Integrated in the CPU (PCIEX16):

3rdGenerationAMDRyzen™processors:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

2ndGenerationAMDRyzen™processors:

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

* For optimum performance, if only one PCI Express graphics card is to be installed,

be sure to install it in the PCIEX16 slot.

2ndGenerationAMD Ryzen™with Radeon™Vega Graphics processors/AMD

Ryzen™withRadeon™Vega Graphics processors:

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8

Integrated in the Chipset (PCIEX4/PCIEX1):

- 2 x PCI Express x16 slots, supporting PCIe 4.0 (Note 2)/3.0 and running at x4

(PCIEX4)

- 2 x PCI Express x1 slots, supporting PCIe 4.0 (Note 2)/3.0

(Note1) For2ndGenerationAMDRyzen™withRadeon™VegaGraphicsprocessors/AMDRyzen™withRadeon™

Vega Graphics processors only.

(Note2) For3rdGenerationAMDRyzen™processors only.

- 6 -

Multi-Graphics

Technology (Note 3) Support for AMD Quad-GPU CrossFire™and 2-Way AMD CrossFire™technologies

Storage Interface Integrated in the CPU:

3rdGenerationAMDRyzen™processors:

- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and

PCIe 4.0 x4/x2 SSD support)

2ndGenerationAMDRyzen™processors/2ndGenerationAMDRyzen™withRadeon™

VegaGraphicsprocessors/AMDRyzen™withRadeon™Vega Graphics processors:

- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and

PCIe 3.0 x4/x2 SSD support)

Integrated in the Chipset:

- 6 x SATA 6Gb/s connectors

- SupportforRAID0,RAID1,andRAID10

USB Integrated in the CPU:

- 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

- 4 x USB 3.2 Gen 1 ports available through the internal USB headers

- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through

the internal USB headers)

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

2 x system fan headers

1xRGBLEDstripheader

6 x SATA 6Gb/s connectors

1 x M.2 Socket 3 connector

1 x front panel header

1 x front panel audio header

2 x USB 3.2 Gen 1 headers

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S

module only)

1 x Clear CMOS jumper

Back Panel

Connectors

1 x PS/2 keyboard/mouse port

1 x HDMI port

4 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x Q-Flash Plus button

1xRJ-45port

3 x audio jacks

I/O Controller iTE®I/O Controller Chip

(Note3) For3rdGenerationAMDRyzen™processors/2ndGenerationAMDRyzen™processors only.

- 7 -

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Watercoolingowratedetection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the fan you install.

BIOS 1x128Mbitash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functionsofeachapplicationmayalsovarydependingonmotherboardspecications.

- @BIOS

- Ambient LED

- EasyTune

- Fast Boot

- Game Boost

- ON/OFF Charge

- Smart Backup

- System Information Viewer

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

Bundled

Software

Norton®Internet Security (OEM version)

Realtek®8118 Gaming LAN Bandwidth Control Utility

Operating

System Support for Windows 10 64-bit

Form Factor ATX Form Factor; 30.5cm x 24.4cm

* GIGABYTEreservestherighttomakeanychangestotheproductspecicationsandproduct-relatedinformationwithout

prior notice.

Please visit GIGABYTE's website

for support lists of CPU, memory

modules, SSDs, and M.2 devices.

Please visit the Support\Utility List

page on GIGABYTE's website to

download the latest version of apps.

- 8 -

1-4 Installing the Memory

Readthefollowingguidelinesbeforeyoubegintoinstallthememory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the same

capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

DualChannelMemoryConguration

This motherboard provides four memory sockets and supports Dual Channel Technology. After the memory

isinstalled,theBIOSwillautomaticallydetectthespecicationsandcapacityofthememory.EnablingDual

Channel memory mode will double the original memory bandwidth.

Please visit GIGABYTE's website for details on hardware installation.

1-3 Installing the CPU

ReadthefollowingguidelinesbeforeyoubegintoinstalltheCPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly.

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•SettheCPUhostfrequencyinaccordancewiththeCPUspecications.Itisnotrecommended

thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheCPU,graphics

card, memory, hard drive, etc.

Installing the CPU

Locate the pin one (denoted by a small triangle) of the CPU socket and the CPU.

AM4 Socket

A Small Triangle Marking

Denotes Pin One of the

Socket AM4 CPU

A Small Triangle Marking

Denotes CPU Pin One

- 9 -

The four memory sockets are divided into two channels and each channel has two memory sockets as following:

ChannelA:DDR4_A1,DDR4_A2

ChannelB:DDR4_B1,DDR4_B2

Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.

1. Dual Channel mode cannot be enabled if only one memory module is installed.

2. When enabling Dual Channel mode with two or four memory modules, it is recommended that memory

of the same capacity, brand, speed, and chips be used. For optimum performance, when enabling

DualChannelmodewithtwomemorymodules,werecommendthatyouinstallthemintheDDR4_A2

andDDR4_B2sockets.

1-5 Installing an Expansion Card

Readthefollowingguidelinesbeforeyoubegintoinstallanexpansioncard:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing an

expansion card to prevent hardware damage.

1-6 Back Panel Connectors

USB 2.0/1.1 Port

TheUSBportsupportstheUSB2.0/1.1specication.UsethisportforUSBdevices.

PS/2 Keyboard/Mouse Port

Use this port to connect a PS/2 mouse or keyboard.

HDMI Port (Note 1)

The HDMI port supports HDCP 2.2 and Dolby TrueHD and DTS HD Master

Audio formats. It also supports up to 192KHz/24bit 8-channel LPCM audio

output. You can use this port to connect your HDMI-supported monitor. The maximum supported

resolution is 4096x2160@60 Hz, but the actual resolutions supported are dependent on the monitor

being used.

After installing the HDMI device, make sure to set the default sound playback device to HDMI.

(The item name may differ depending on your operating system.)

DualChannelMemoryCongurationsTable

DDR4_A1 DDR4_A2 DDR4_B1 DDR4_B2

2 Modules - - DS/SS - - DS/SS

DS/SS - - DS/SS - -

4 Modules DS/SS DS/SS DS/SS DS/SS

(SS=Single-Sided, DS=Double-Sided, "- -"=No Memory)

USB 3.2 Gen 1 Port

TheUSB3.2Gen1portsupportstheUSB3.2Gen1specicationandiscompatibletotheUSB2.0

specication.UsethisportforUSBdevices.

(Note1) For2ndGenerationAMDRyzen™withRadeon™VegaGraphicsprocessors/AMDRyzen™withRadeon™

Vega Graphics processors only.

- 10 -

Inhaltsverzeichnis

Andere Gigabyte Hauptplatine Handbücher

Gigabyte

Gigabyte GA-H110M-S2HP Bedienungsanleitung

Gigabyte

Gigabyte GA-Z87X-UD4H Bedienungsanleitung

Gigabyte

Gigabyte GA-K8A480M-9 Bedienungsanleitung

Gigabyte

Gigabyte 6CXC Bedienungsanleitung

Gigabyte

Gigabyte GA-EG31MF-S2 Bedienungsanleitung

Gigabyte

Gigabyte 6ZMA Bedienungsanleitung

Gigabyte

Gigabyte B760M AORUS ELITE AX Bedienungsanleitung

Gigabyte

Gigabyte H610I Bedienungsanleitung

Gigabyte

Gigabyte GA-H77N-WIFI Bedienungsanleitung

Gigabyte

Gigabyte GA-8SRX Bedienungsanleitung

Gigabyte

Gigabyte GA-6VXD7 Bedienungsanleitung

Gigabyte

Gigabyte GA-H81M-Gaming 3 Bedienungsanleitung

Gigabyte

Gigabyte GA-8S648FX-775(-C) Bedienungsanleitung

Gigabyte

Gigabyte GA-F2A88XM-DS2 Bedienungsanleitung

Gigabyte

Gigabyte 6GXU Bedienungsanleitung

Gigabyte

Gigabyte GA-8I915P-D Bedienungsanleitung

Gigabyte

Gigabyte MNNM1PI Bedienungsanleitung

Gigabyte

Gigabyte GA-EX58-EXTREME Bedienungsanleitung

Gigabyte

Gigabyte MZ73-LM0 Bedienungsanleitung

Gigabyte

Gigabyte GA-945P-S3 Bedienungsanleitung

Gigabyte

Gigabyte B550 VISION D Bedienungsanleitung

Gigabyte

Gigabyte GA-586TX Bedienungsanleitung

Gigabyte

Gigabyte GA-P67-DS3-B3 Bedienungsanleitung

Gigabyte

Gigabyte GA-5YASV-RH Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
