Contents

Motherboard Layout ...........................................................................5

1. Product Introduction ....................................................................6

1.1. Feature Summary ..........................................................................6

1.2. I/O Back Panel and Connectors&Jumper Setting ..........................7

1.2.1. I/O Back Panel .....................................................................................7

1.2.2. Connectors&Jumper Setting ..............................................................7

2. Hardware Installation .................................................................11

2.1. Installation of a Socket 754 CPU and Fan Sink ...........................11

2.2. Installation of Memory ..................................................................12

2.3. Installation of the Graphics Card .....

............................................13

3. BIOS Setup ..............................................................................14

3.1. Setup Screen Features (BIOS version:D2) ..................................14

3.2. Standard CMOS Features ............................................................15

3.3. Advanced BIOS Features ....

.........................................................17

3.4. Integrated Peripherals ...........................................

......................18

3.5. Power Management Setup ..........................................................20

3.6. PnP/PCI Configurations ...................

............................................22

3.7. PC Health Status ........................................................

.................23

3.8. Frequency/Voltage Control ...........................................................24

3.9. Load Fail-Safe Defaults ......................

.........................................26

3.10. Load Optimized Defaults .............................................................26

3.1 1. Set Supervisor/User Password ...................................................26

3.12. Save & Exit Setup ..............................................

...........................26

3.13. Exit Without Saving .......................................................................26

4. Driver Installation .......................................................................27

5. Installation of SATA RAID Disks .................................................29

www.DataSheet4U.com

5.1. Configuring the System BIOS for the SATA Channel ....................29

5.2. Creating RAID 0 ...........................................................................31

5.3. Creating RAID 1 ..

.........................................................................35

5.4. Deleting RAID Array ..........................

............................................39

5.5. Selecting Boot Array .......................................................

..............40

5.6. Viewing Serial Number ................................................................40

5.7. Making the SATA RAID Driver Disk ....................

............................41

5.8. Loading the VIA 8237 Serial A T A Driver .........................................41

www.DataSheet4U.com

English

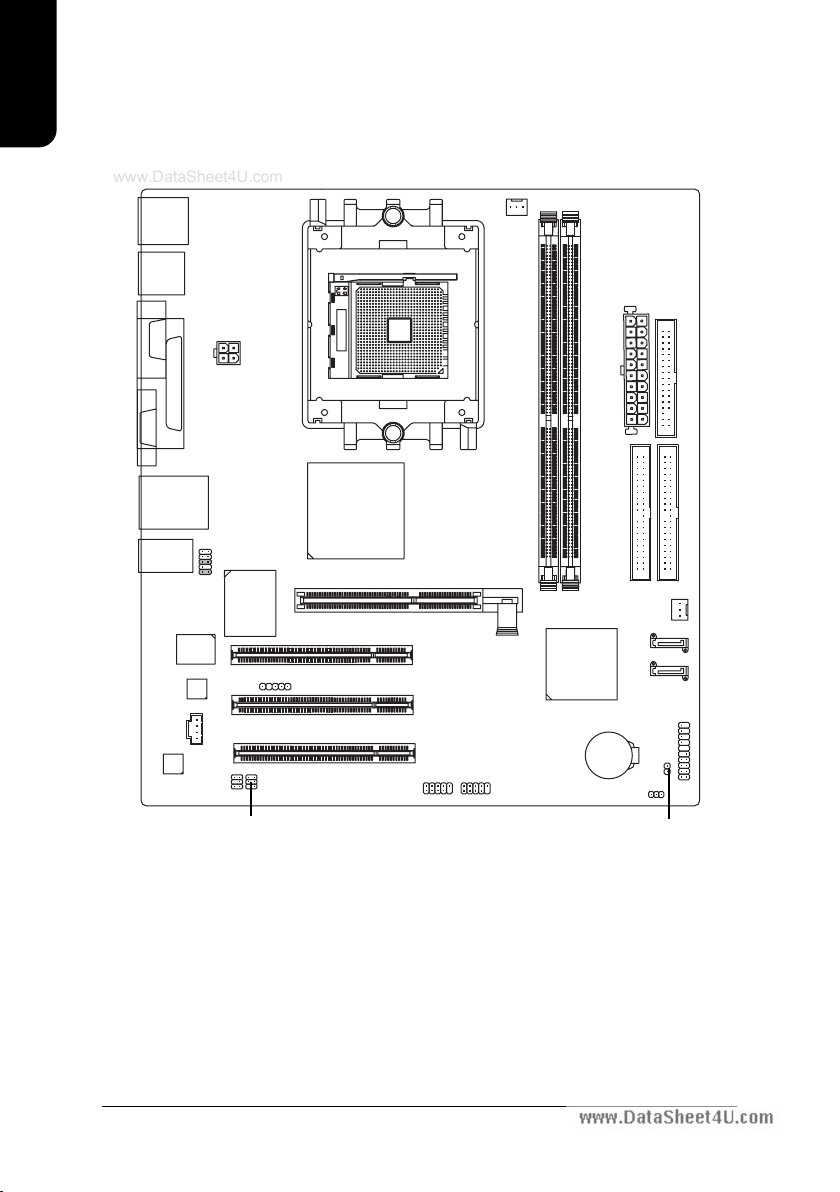

Motherboard Layout

ATX

MS/KB

LPT

COMA

ATX_12V

Socket 754

R_USB

DDR2

DDR1

CODEC

IT8705

VIA 8237R

BIOS PCI1

PCI2

F_USB2

F_USB1

CLR_CMOS

SATA1

SYS_FAN

XP-M8VM800

F_PANEL

PCI3 BAT

F_AUDIO

CD_IN

VIA 6103L

AGP

PWR_LED

FDD

IDE2 IDE1

CPU_FAN

AUDIO

USB

LAN

VGA

SATA0

SUR_CEN

SPDIF_IO

VIA K8M800

www.DataSheet4U.com

English

1. Product Introduction

The user manual provides steps related to quick installation. If you wish to view complete

product information, please select the " ",Open User Manual button located on the driver

CD or link to our website at http://www.axper.com to received the most up-to-date information.

1.1. Feature Summary

C P U Socket 754 for AMD AthlonTM

64 processor (K8)

1600MHz system bus

Chipset Northbridge:VIA K8M800

Southbridge:VIA 8237R

Memory 2 184-pin DDR DIMM sockets, supports up to 2GB DRAM (Max.)

Supports DDR400(Note 1) /DDR333/DDR266 DIMM

Supports only 2.5V DDR SDRAM

Slots 1 A G P slot device support

3 PCI slots support 33MHz & PCI 2.2 compliant

On-Board IDE 2 IDE controller provide IDE HDD/CD-ROM with PIO, Bus Master

(Ultra DMA33/ATA66/ATA100/ATA133) operation modes

Can connect up to 4 IDE devices

On-Board Floppy 1 Floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M and

2.88M bytes

On-Board SATA 2 SATA ports support 2 SATA devices with up to 150MB/s transfer

rate and can support data striping (RAID 0) and mirroring (RAID 1)

On-Board Peripherals 1 Parallel port supports Normal/EPP/ECP mode

1 Serial port (COMA), 1 VGA port

8 USB 2.0/1.1 ports (4 x Rear, 4 x Front by cable)

1 Front Audio connector

1 PS/2 Keyboard

1 PS/2 Mouse

On-Board VGA Built-in VIA K8M800 chip

On-Board LAN Built-in VIA6103L chip

1 RJ45 port

On-Board Sound ALC655 CODEC

Supports 2/4/6 channel

Line Out / Line In / Mic In

CD In

BIOS Licensed A W ARD BIOS

Supports BIOSNow!

I/O Control IT8705

Hardware Monitor CPU/System fan revolution detect

CPU/System temperature detect

System voltage detect

Form Factor Micro-ATX size form factor, 24.4cm x 21cm

www.DataSheet4U.com

English

1.2. I/O Back Panel and Connectors&Jumper Setting

1.2.2. Connectors&Jumper Setting

FDD (Floppy Disk Drive Connector)

The FDD connector is able to connect a single floppy disk drive via a FDD cable. Usually one

edge of the FDD cable is marked in red, please attach this marked edge to position 1 on the

connector.

IDE1/IDE2 (IDE Connector)

The IDE connector is able to connect two IDE devices via an IDE cable and requires checking

of the IDE jumper setting.

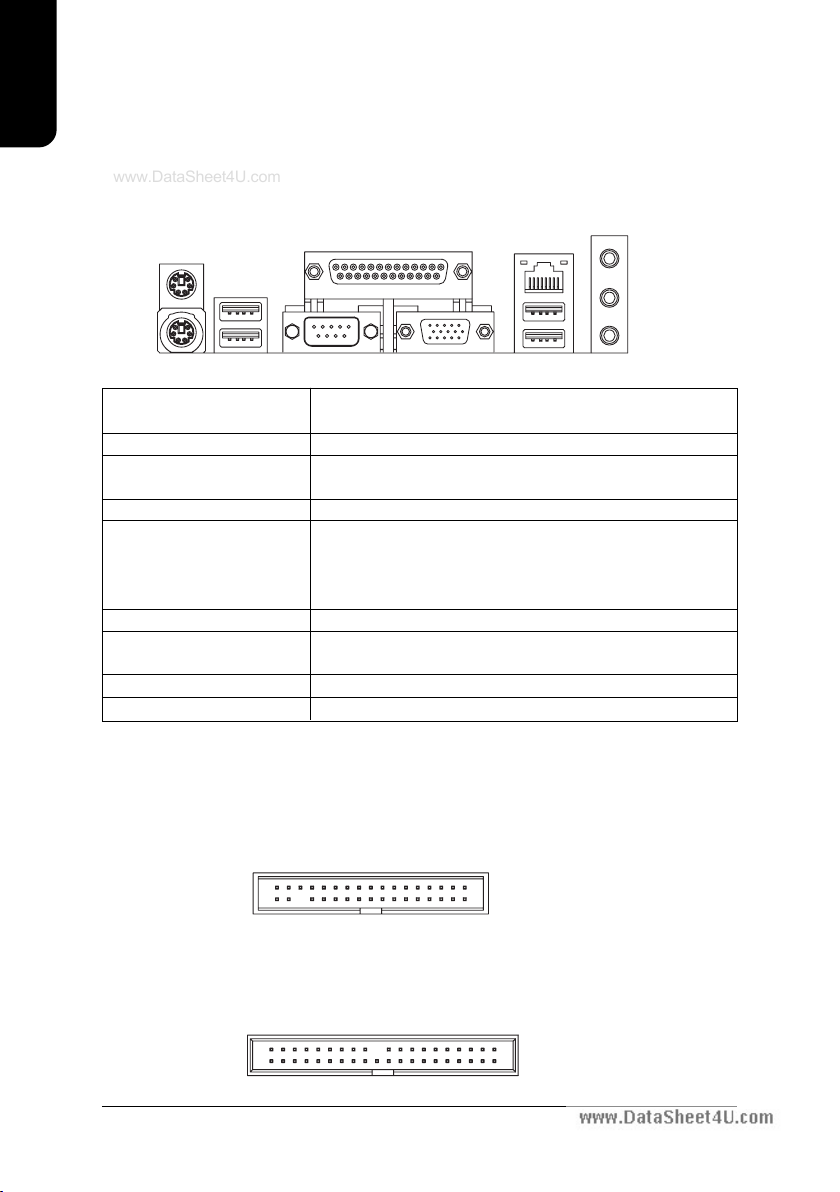

1.2.1. I/O Back Panel

PS/2 Mouse LAN

Parallel Port

PS/2 Keyboard

R_USB

VGACOMA

Line Out

Line In

MIC In

USB

139

240

342

(Note 1) Due to CPU limitations, if you wish to install DDR400 memory modules, install either one

double-sided or two single-sided DDR400 memory modules. The DDR400 speed will slow down

to DDR333 if two double-sided or three single-sided DDR400 memory modules are installed.

PS/2 Keyboard Connects PS/2 standard keyboard and PS/2 standard

PS/2 Mouse connector mouse

Parallel port (LPT) Connects to printer

COMA(Serial port) Connects to serial-based mouse or data processing de-

vices

VGA port Connects to 15pin D-Sub device such as a monitor

U S B Prior to use, please make sure that your system as well

(Universal Serial Bus Port) as the connected attachments support the USB interface.

If driver installation is required, please consult the USB

section of the user manual.

LAN (RJ45 LAN Port) Internet connection with speed of up to10/100Mbps

Line In Connects to optical devices, CD players and other audio

input devices

Line Out Connects to speakers or headphones

MIC In Connects to microphone

www.DataSheet4U.com

English

A TX_12V (+12V Power Connector)

The A TX_12V power connector provides power to the CPU. If this connector is not Attached,

the system will not start.

A TX (ATX Power Connector)

The A TX power connector provides power to the motherboard. Prior to connection, please

make sure that the power supply is disconnected.

CPU_FA N SYS_FA N

PIN SIGNAL

1 GND

2 GND

3 +12V

4 +12V

PIN SIGNAL

1 3.3V

2 3.3V

3 GND

4 VCC

5 GND

6 VCC

7 GND

8 Power Good

9 5VSB

(stand by +5V)

10 +12V

PIN SIGNAL

11 3.3V

12 -12V

13 GND

14 PS_ON

(soft on/off)

15 GND

16 GND

17 GND

18 -5V

19 VCC

20 VCC

CPU_FAN (CPU Fan Power Connector); SYS_FAN (System Fan Power Connector)

The cooler fan power connector supplies a +12V power voltage via a 3-pin power connector and possesses

a fool-proof connection design.

Most coolers are designed with color-coded power connector wires. A red power connector wire indi-

cates a positive connection and requires a +12V power voltage. The black connector wire is the

ground wire (GND).

Please remember to connect the power to the cooler to prevent system overheating and failure.

Caution!

Please remember to connect the power to the CPU fan to prevent CPU overheating and failure.

F_PANEL (Front Panel Control Connector)

The F_Panel Control Connector connects to certain connectors on the front panel of the

system casing such as IDE Hard Disk Active LED, speaker, reset, and power on/of f connectors.

Y ou can use the schematic diagram below as the basis for connection.

PIN SIGNAL

H D IDE Hard Disk Active LED

S P K Speaker Connector

R E S Reset Switch

P W Soft Power Connector

M S G Message LED/Power/Sleep LED

NC NC

HD-

HD+

RES+

RES-

SPK-

MSG-

MSG+

PW-

PW+

SPK+

PIN SIGNAL

1 GND

2 +12V

3 Sense

www.DataSheet4U.com

English

F_AUDIO (Front Audio Connector)

Connects to the audio connector located on the front panel of the system casing

(dependent on case design). When use of the front panel audio connector is required,

please remove the 5-6 pin, 9-10 pin jumper.

Please note that use of only the front panel audio connector or the rear panel audio connector

is permitted. PIN SIGNAL

1 MIC

2 GND

3 MIC_BIAS

4 POWER

5 Front Audio (R)

PIN SIGNAL

6 Rear Audio (R)

7 Reserved

8 NO PIN

9 Front Audio (L)

10 Rear Audio (L)

S ATA0/SATA1 (Serial A T A Connector)

The SATA0/1 connector is able to connect a single Serial A TA device via a SATA cable.

For the connected SATA hard disk to work correctly , please check the related BIOS setting

and install proper driver for the SA T A controller .

PIN SIGNAL

5 RXN

6RXP

7 GND

PIN SIGNAL

1 GND

2 TXP

3 TXN

4 GND

CD_IN (Optical Drive Audio Connector)

Connects CD-ROM or DVD-ROM audio connector.

PIN SIGNAL

1 CD_L

2 GND

3 GND

4 CD_R

F_USB1 / F_USB2 (Front USB Connector)

Connects to the USB connector located on the front panel of the system casing (dependent on

case design). Note: Please make sure that each USB connection matches its designated

position. If connections are made incorrectly, the result can lead to inability to use the function

or even damage. PIN SIGNAL

6 USB Dy+

7 GND

8 GND

9 NO PIN

10 N C

PIN SIGNAL

1 POWER

2 POWER

3 USB Dx-

4 USB Dy-

5 USB Dx+

210

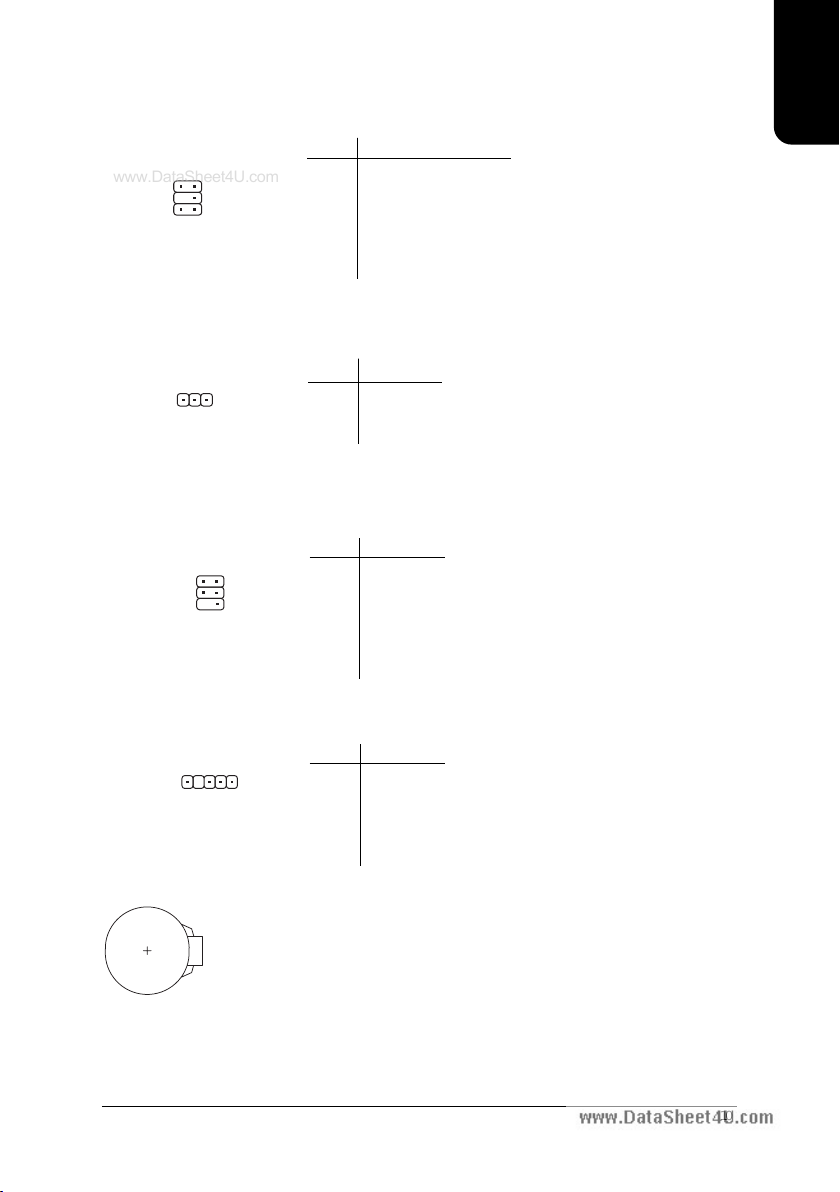

CLR_CMOS (Clear CMOS)

Y ou can clear the motherboard CMOS with the jumper to return your system to its initial

status. To prevent improper usage, the jumper does not include the jumper plug. If you wish

to use the Clear CMOS function, please short circuit the 1-2 Pin.

Short : Clear CMOS

Open : Normal

www.DataSheet4U.com

English

SUR_CEN (Surround Center Connector)

Please contact the place of purchase for the optional SUR_CEN cable.

PIN SIGNAL

1 SUR OUTL

2 SUR OUTR

3 GND

4 No Pin

5 CENTER_OUT

6 BASS_OUT

PWR_LED

Connects to the system power LED indicator whereby the power is indicated as ON or OFF.

However, the indicator will flash when the system is suspended.

PIN SIGNAL

1 MPD+

2 MPD-

3 MPD-

PIN SIGNAL

1 Power

2 No PIN

3 SPDIF

4 SPDIFI

5 GND

6 GND

SPDIF_IO

Be careful with the polarity of the SPDIF_IO connector. Check the pin assignment carefully

while you connect the SPDIF cable. Incorrect connection between the cable and connector

will make the device unable to work or even damage it. For optional SPDIF cable, please

contact your local dealer.

Be careful with the polarity of the IR connector while you connect the IR. Please contact your

nearest dealer for optional IR device.

PIN SIGNAL

1 Power

2 No PIN

3 IR RX

4 GND

5 IR TX

B AT(Battery) The improper removal of the battery can result in harm. When replacing a

battery, please make sure you use one that is of similar brand and model

number.

For information related to battery specifications and precautions, please refer

to the manufacturer instructions.

If you wish to delete the data stored in the CMOS, please follow the steps

below:

1. Please turn of f your computer and unplug the power.

2. Remove the battery from the motherboard.

3. Wait 10 minutes and then replace the battery onto the motherboard.

4. Plug in the power supply and turn on your system.

www.DataSheet4U.com

Inhaltsverzeichnis

Andere Gigabyte Hauptplatine Handbücher

Gigabyte

Gigabyte GA-8I955X Royal Bedienungsanleitung

Gigabyte

Gigabyte GA-8IRX Bedienungsanleitung

Gigabyte

Gigabyte GA-H67A-D3H-B3 rev. 1.0 Bedienungsanleitung

Gigabyte

Gigabyte H510M S2 Bedienungsanleitung

Gigabyte

Gigabyte GA-P61-USB3P Bedienungsanleitung

Gigabyte

Gigabyte GA-M61PME-S2 Bedienungsanleitung

Gigabyte

Gigabyte GA-A320M-HD2 Bedienungsanleitung

Gigabyte

Gigabyte GA-8I945P Dual Graphic Bedienungsanleitung

Gigabyte

Gigabyte GA-MA790X-DS4 Handbuch

Gigabyte

Gigabyte A620M GAMING X AX Bedienungsanleitung

Gigabyte

Gigabyte GA-945G-DS3 Bedienungsanleitung

Gigabyte

Gigabyte GA-8I925XC-G Bedienungsanleitung

Gigabyte

Gigabyte GA-EX38-DS5 Bedienungsanleitung

Gigabyte

Gigabyte GA-B85M-D3PH Bedienungsanleitung

Gigabyte

Gigabyte GA-7N400E Bedienungsanleitung

Gigabyte

Gigabyte GA-8IE800 Bedienungsanleitung

Gigabyte

Gigabyte TRX40 AORUS PRO WIFI Bedienungsanleitung

Gigabyte

Gigabyte GA-7IXE Bedienungsanleitung

Gigabyte

Gigabyte GA-8IRX Bedienungsanleitung

Gigabyte

Gigabyte 7CN700ID Bedienungsanleitung

Gigabyte

Gigabyte GA-890FXA-UD5 Bedienungsanleitung

Gigabyte

Gigabyte GA-K8VT800 Bedienungsanleitung

Gigabyte

Gigabyte GA-B85M-D2V Bedienungsanleitung

Gigabyte

Gigabyte GA-P35-DS3L Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
