IMPORTANT : READ & UNDERSTAND THESE INSTRUCTIONS BEFORE USE.

WARNINGS

This symbol indicates important

installation, operational or

maintenance instructions.

Always follow these

instructions very closely.

ENVIRONMENT

Please help to conserve the

environment by recycling

the cardboard packaging

of this product.

This product should NOT be

disposed of in normal household

waste. It should be disposed of

separately. Please take it to an

electrical waste collection point.

PRECAUTIONS

This product has been designed with

the highest concern for safety. However,

any electrical device if used improperly

has the potential to cause harm. To help

ensure risk-free operation please pay

attention to the following guidelines:

• Use only as intended. This is a

precision product, handle with care.

• Contains small parts. Not suitable for

children under three years of age.

• Store in a dry and dust free area.

• Do not store in areas of extreme

heat or cold, and avoid direct sunlight

or heat sources e.g. heaters.

• Do not allow the product to get wet

or dirty; doing so may cause damage.

• Do not clean with benzene,

paint thinner, acetone, alcohol,

or other such solvents.

• Do not take the product apart; doing

so will void your warranty and may

cause electrical shock on your console.

FOR ADDITIONAL CUSTOMER SUPPORT &

TO VIEW THIS MANUAL ONLINE VISIT:

WWW.GIOTECK.COM

EX6UNI-wireless-manual-book.indb 1 11/09/2013 10:24

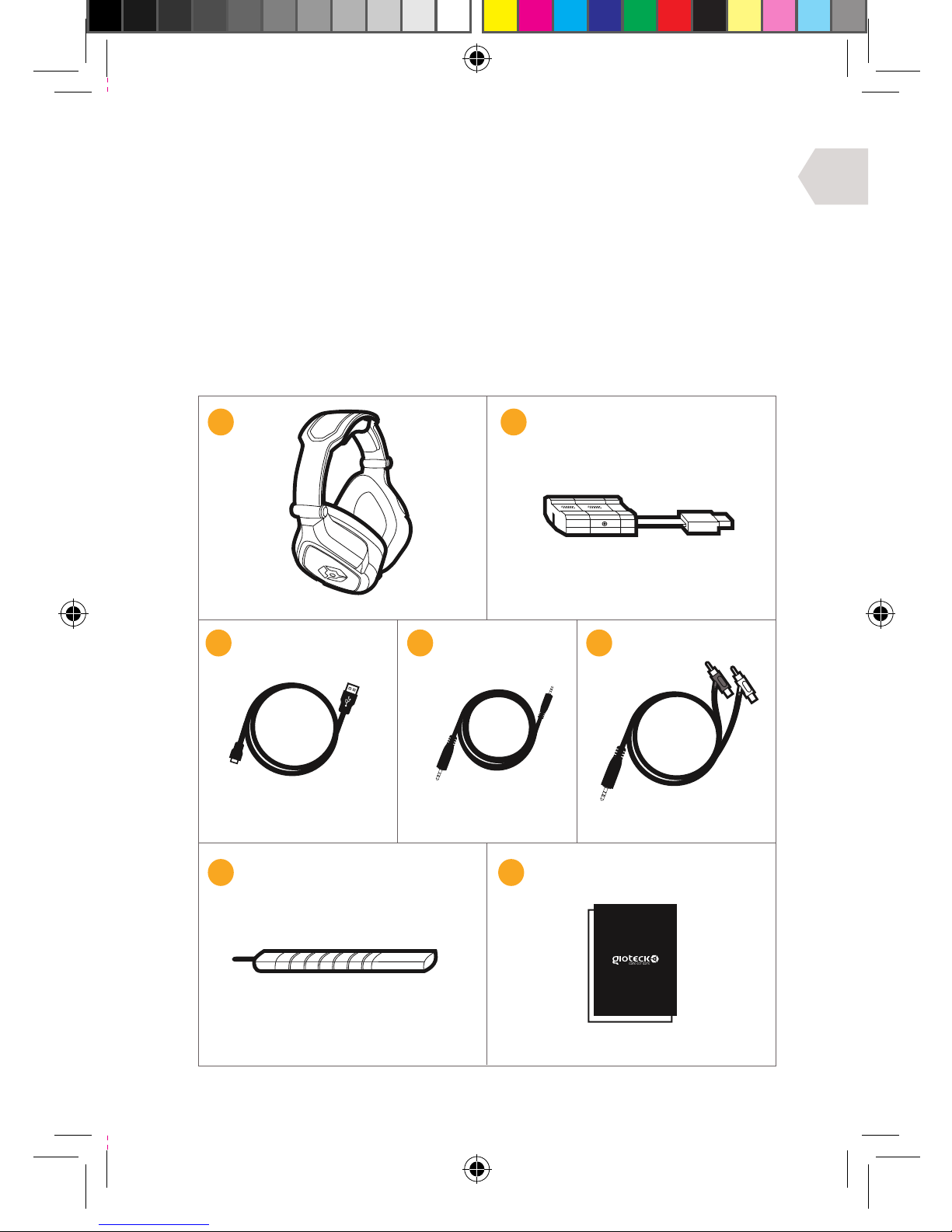

PARTS LIST

i] Headset

ii] Wireless Transmitter

iii] USB Charging Cable

iv] Audio / Xbox Chat Cable

v] RCA to Audio Cable

vi] Removable Mic Boom

vii]User Manual

iii

iii iv

vii

EX6UNI-wireless-manual-book.indb 2 11/09/2013 10:24

PRODUCT DETAILS

HEADSET

01 | Headband Adjusters

02| Removable Mic Boom

03| Xbox Chat Input

04| Mute/Pairing Button

05| Chat Volume –/+

06| Game Volume –/+

07 | Surround sound button

08| Power Button

09| LED Indicator

10 | Mic Boom Port

11 | USB Charging Port

WIRELESS TRANSMITTER

12 | LED Indicator

13 | Audio input

1312

04 07

05 06

EX6UNI-wireless-manual-book.indb 3 11/09/2013 10:24

GETTING STARTED

CHARGING

It is recommended to fully charge the headset before ﬁrst use.

1] Plug the small connector end of the charging cable into

the charging port on the headset and the other end into

a port on the front of your console, PC or MAC.

2] The LED on the headset will turn RED while charging and be OFF

when fully charged. The headset will take approximately 4-5 hours

to fully recharge from a drained state. The charging cycle will

take longer If the headset is in use during charging.

When there is only 20 minutes of battery le, the LED on the

headset will ﬂash blue continuously. This will continue until the

headset is charged or until the battery is completely drained.

QUICK-START SETUP

1] Connect the Wireless Transmitter into a USB port on your

console, PC or MAC. The Transmitter LED will ﬂash Red.

2] Turn the headset ON by pressing the Power Button and the LED will ﬂash

blue. Connection between the transmitter and headset has been successful

if the Headset LED turns solid blue and the Transmitter LED is solid red.

3] Turn the headset OFF by pressing the Power Button

and the LED will turn o.

Please read the next few pages for more in-depth set-up instructions.

PAIRING

The headset should pair automatically. However, if your

headset has not paired successfully the LED on the Headset

and the Wireless Transmitter will ﬂash intermittently.

To re-pair your headset, press and hold the mute button on the headset

until the LED on the headset and the LED on the transmitter both turn solid.

The headset should pair automatically on the next usage.

WIRELESS RANGE

The headset is eective up to a distance of 20-30 metres.

PLEASE NOTE: You may need to make some adjustments

to your TV/Monitor’s settings to enable the audio to

come through the headset (Consult your TV manual).

EX6UNI-wireless-manual-book.indb 4 11/09/2013 10:24

AV MULTI OUT

AV RCA CABLE

(SUPPLIED WITH

PS3 CONSOLE)

YELLOW/

VIDEO

CONNECT INTO

THE FRONT

OF PS3

TV / MONITOR

AUDIO OUT

CONNECTION GUIDE

PS3 SET UP : WITH A/V CABLES (WITHOUT HDMI)

1] Connect the AV RCA cable into the back of your PS3.

2] Connect the RED/WHITE connectors from the AV RCA Cable into the

corresponding RED/WHITE sockets on the RCA to Audio cable.

3] Connect the yellow VIDEO connector into the

Video IN socket of your TV/Monitor.

4] Connect the the wireless transmitter into an available

USB port on the front of your PS3 console.

5] Connect the audio cable into the wireless transmitter.

6] Turn on your PS3 console.

7] Turn your Headset ON by pressing the Power Button. Pairing with the

wireless transmitter should happen automatically. However, if pairing is

unsuccessful, please refer to the Pairing section in ‘Getting Started’.

8] Make sure that microphone mute is OFF.

9] Go to Settings > Accessory Settings > Audio Device Settings

and select EX-06 Headset for both the Input and Output.

You will be able to hear yourself talking into the microphone

through the headset earcups. Set the desired volume level

10] Go to Settings > Sound Settings > Audio Output Settings,

choose Audio Input Connector/ Scart / AV Multi.

EX6UNI-wireless-manual-book.indb 5 11/09/2013 10:24

TV/MONITOR

HDMI INPUT

HDMI OUTPUT AV MULTI OUT

AV RCA CABLE

(SUPPLIED WITH

PS3 CONSOLE)

HDMI CABLE

(NOT SUPPLIED)

CONNECT INTO

THE FRONT

OF PS3

0201

PS3 SET UP : WITH HDMI (OPTION A)

1] Connect the HDMI lead between the PS3 console and your TV/Monitor.

2] Connect the AV RCA cable into the back of your PS3.

3] Connect the RED/WHITE connectors from the AV RCA Cable into the

corresponding RED/WHITE sockets on the RCA to Audio cable.

4] Connect the the wireless transmitter into an available

USB port on the front of your PS3 console.

5] Connect the audio cable into the wireless transmitter.

6] Turn on your PS3 console.

7] Turn your Headset ON by pressing the Power Button. Pairing with the

wireless transmitter should happen automatically. However, if pairing is

unsuccessful, please refer to the Pairing section in ‘Getting Started’.

8] Make sure that microphone mute is OFF.

9] Go to Settings > Accessory Settings > Audio Device Settings

and select EX-06 Headset for both the Input and Output. You

will be able to hear yourself talking into the microphone through

the headset earcups. Set the desired volume level.

10] Go to Settings > Sound Settings > Audio Output Settings,

choose Audio Input Connector/ Scart / AV Multi.

EX6UNI-wireless-manual-book.indb 6 11/09/2013 10:24

RED

WHITE

HDMI OUTPUT CONNECT INTO

THE FRONT

OF PS3

HDMI CABLE

(NOT SUPPLIED)

TV/MONITOR

HDMI INPUT

TV / MONITOR

AUDIO OUT

PLEASE NOTE: Your TV/Monitor will need to have Audio Out (RED/WHITE) sockets.

Most, but not all TVs/Monitors have RED/WHITE Audio IN and YELLOW Video IN sockets

but not all TV’s, and even fewer monitors have RED/WHITE Audio OUT sockets.

PS3 SET UP : WITH HDMI (OPTION B)

1] Connect the HDMI between the PS3 console and TV/Monitor.

2] Connect the RED/WHITE connectors on the RCA to Audio cable

into the Audio OUT RED/WHITE sockets on your TV/Monitor.

3] Connect the the wireless transmitter into an available

USB port on the front of your PS3 console.

4] Connect the audio cable into the wireless transmitter.

5] Turn on your PS3 console.

6] Turn your Headset ON by pressing the Power Button. Pairing with the

wireless transmitter should happen automatically. However, if pairing is

unsuccessful, please refer to the Pairing section in ‘Getting Started’.

7] Make sure that microphone mute is OFF.

8] Go to Settings > Accessory Settings > Audio Device Settings

and select EX-06 Headset for both the Input and Output. You

will be able to hear yourself talking into the microphone through

the headset earcups. Set the desired volume level.

9] Go to Settings > Sound Settings > Audio Output Settings,

choose Audio Input Connector/ Scart / AV Multi.

EX6UNI-wireless-manual-book.indb 7 11/09/2013 10:24

AV MULTI OUT USB PORT

AV RCA CABLE

(SUPPLIED WITH

XBOX CONSOLE)

YELLOW/

VIDEO

TV / MONITOR

AUDIO OUT

01 04

XBOX SET UP : WITH A/V CABLES (WITHOUT HDMI)

1] Connect the AV RCA Cable into the back of your Xbox.

2] Connect the RED/WHITE connectors from the AV RCA Cable into the

corresponding RED/WHITE sockets on the RCA to Audio cable.

3] Connect the yellow VIDEO connector into the

Video IN socket on your TV/Monitor.

4] Connect the the wireless transmitter into an available

USB port on the front of your Xbox console.

5] Connect the audio cable into the wireless transmitter.

6] Turn on your Xbox and make sure that your controller is wirelessly

connected to your console (do not leave the controller charging

or it will transfer electrical noise into your headset).

7] Turn your Headset ON by pressing the Power Button. Pairing with the

wireless transmitter should happen automatically. However, if pairing is

unsuccessful, please refer to the Pairing section in ‘Getting Started’.

8] Make sure that microphone mute is OFF.

9] Go to chat set up.

EX6UNI-wireless-manual-book.indb 8 11/09/2013 10:24
