Gioteck EX-0S Bedienungsanleitung
EX-05
WIRELESS XB3
QUICK SETUP GUIDE
Set Up
CHARGING THE WIRELESS CONTROL BOX
Page 1 of 11
The Wireless Control Box contains a rechargeable Lithium-ion battery. It is
strongly recommended to fully charge the battery for 3 hours before first use.
1To charge the Wireless Control Box plug the mini jack connector (of the
supplied mini jack to USB cable) into the socket on the ‘game’ side of the
Wireless Control Box.
2Plug the USB connector into a spare USB port on your XBOX.
3The LED will glow red when charging. (Note: the XBOX must be turned on and
not in standby mode for the headset to charge).
1
2
3
HEADSET
CONNECTOR
2
USB
Set Up
XBOX 360® WITH A/V CABLES
(Without HDMI)
1Connect the AV RCA Cable into the back of your XBOX console.
2Plug the USB connector of the Gioteck Wireless Receiver into a spare
USB port on your console.
3Connect the Mini Jack end of the provided RCA/Mini Jack Cable into the
corresponding socket on the Gioteck Wireless Receiver.
4Connect the AV RCA RED/WHITE connectors into the corresponding sockets
on the RCA/Mini Jack Cable coming from the Gioteck Wireless Receiver.
5Plug the Yellow VIDEO connector into the Video IN socket of your TV/Monitor.
6Turn on your console and make sure that your controller is wirelessly
connected to your console (do not leave the controller charging or it may
transfer electrical noise into your headset).
See next page for chat set up
3
Page 2 of 11
You need the following cable for this set up option:
1. AV RCA CABLE (which came with the console)
YELLOW/
VIDEO
1
4
5
AV MULTI OUT
AV RCA CABLE
(SUPPLIED WITH
XBOX CONSOLE)
TV/MONITOR
AUDIO/VIDEO
INPUTS
Set Up (continued)

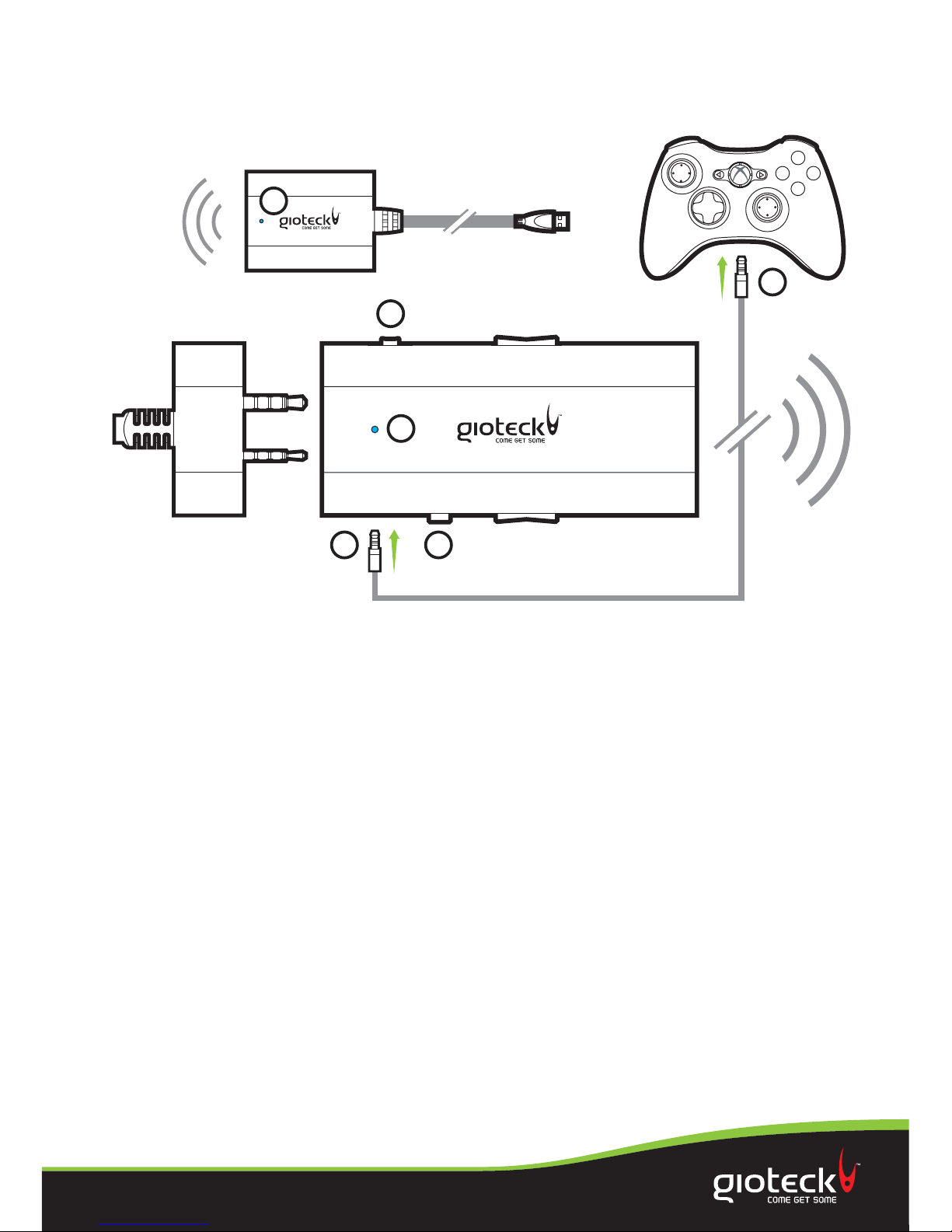

PAIRING AND CHAT SET UP
7Plug the short Mini Jack Cable into the corresponding socket on the
Wireless Control Box.
8Plug the other end of the short Mini Jack Cable into your controller.
9Turn the Wireless Control Box ON
(The power switch is on the ‘game’ side of the Wireless Control Box).
10 Press and hold the mute button for 5 seconds.
11 The Wireless Receiver (A) and Wireless Control Box (B) LEDs will flash
repeatedly until paired – solid LED.
12 Make sure the microphone is not set to mute.
13 Go to XBOX Dashboard > Settings > Preferences > Voice.
14 Set the desired volume for the Game Sounds and Voice.
15 Set Voice Output to: Play through Headset.
16 You should now hear the sounds made by the XBOX through your headset.
17 To test the microphone go to messages and record and play back a message.
8
710
9
Page 3 of 11
HEADSET
CONNECTOR
B
A
Set Up
XBOX 360® SLIM WITH A/V CABLES
(Without HDMI)
1Connect the AV RCA Cable to the back of your XBOX console.
2Plug the USB connector of the Gioteck Wireless Receiver into a spare
USB port on your console.
3Connect the Mini Jack end of the provided RCA/Mini Jack Cable into the
corresponding socket on the Gioteck Wireless Receiver.
4Connect the Mini Jack end of the provided RCA/Mini Jack Cable into the
corresponding socket on the Gioteck Wireless Receiver
5Plug the Yellow VIDEO connector into the Video IN socket of your TV/Monitor.
6Turn on your console and make sure that your controller is wirelessly
connected to your console (do not leave the controller charging or it may
transfer electrical noise into your headset).
See next page for chat set up
1
4
3
2
AV MULTI OUT
USBAV RCA CABLE
(SUPPLIED WITH
XBOX CONSOLE)
Page 4 of 11
You need the following cable for this set up option:
1. AV RCA CABLE (which came with the console)
YELLOW/
VIDEO
5
TV/MONITOR
AUDIO/VIDEO
INPUTS
Page 5 of 11
Set Up (continued)
PAIRING AND CHAT SET UP
7Plug the short Mini Jack Cable into the corresponding socket on the
Wireless Control Box.
8Plug the other end of the short Mini Jack Cable into your controller.
9Turn the Wireless Control Box ON
(The power switch is on the ‘game’ side of the Wireless Control Box).
10 Press and hold the mute button for 5 seconds.
11 The Wireless Receiver (A) and Wireless Control Box (B) LEDs will flash
repeatedly until paired – solid LED.
12 Make sure the microphone is not set to mute.
13 Go to XBOX Dashboard > Settings > Preferences > Voice.
14 Set the desired volume for the Game Sounds and Voice.
15 Set Voice Output to: Play through Headset.
16 You should now hear the sounds made by the XBOX through your headset.
17 To test the microphone go to messages and record and play back a message.
8
710
9
HEADSET
CONNECTOR
B
A
Set Up
XBOX 360® WITH HDMI CABLE
(HDMI Option 1)
Page 6 of 11
You need the following cables for this set up option:
1. HDMI CABLE (not supplied) 2. AV RCA ADAPTOR (not supplied)
Unfortunately the design of the AV cable supplied with the XBOX does not allow for the
simultaneous use with an HDMI cable because the shape of the AV connector covers the
HDMI socket. Microso produces a cable adaptor such as the one shown in this link to solve
this problem: http://www.amazon.co.uk/Microsoft-Audio-Cable-Adaptor-Xbox/dp/
B004S5EH6Q/ref=sr_1_5?s=electronics&ie=UTF8&qid=1320753739&sr=1-5
AV MULTI OUT
USBAV RCA ADAPTOR
(NOT SUPPLIED)
HDMI CABLE
(NOT SUPPLIED)
TV/MONITOR
HDMI INPUT
HDMI OUTPUT
14
3
5
2
1Connect the HDMI lead between the XBOX and your TV/Monitor.
2Connect the AV RCA Adaptor Cable into the XBOX.
3Plug the Gioteck Wireless Receiver USB connector into a spare USB port on
your XBOX.
4Connect the Mini Jack end of the provided RCA/Mini Jack Cable into the
corresponding socket on the Gioteck Wireless Receiver.
5Plug the RED/WHITE connectors from the RCA/Mini Jack Cable into the
corresponding sockets of the AV RCA Adaptor Cable.
6Turn on your console and make sure that your controller is wirelessly
connected to your console (do not leave the controller charging or it may
transfer electrical noise into your headset).
See next page for chat set up
Page 7 of 11
Set Up (continued)
PAIRING AND CHAT SET UP
7Plug the short Mini Jack Cable into the corresponding socket on the
Wireless Control Box.
8Plug the other end of the short Mini Jack Cable into your controller.
9Turn the Wireless Control Box ON
(The power switch is on the ‘game’ side of the Wireless Control Box).
10 Press and hold the mute button for 5 seconds.
11 The Wireless Receiver (A) and Wireless Control Box (B) LEDs will flash
repeatedly until paired – solid LED.
12 Make sure the microphone is not set to mute.
13 Go to XBOX Dashboard > Settings > Preferences > Voice.
14 Set the desired volume for the Game Sounds and Voice.
15 Set Voice Output to: Play through Headset.
16 You should now hear the sounds made by the XBOX through your headset.
17 To test the microphone go to messages and record and play back a message.
PLEASE NOTE: There are no settings in the XBOX preferences to redirect or stop the audio signal
coming through the HDMI output. To stop the audio playing through your TV/Monitor whilst you are
using the headset, you will have to place your TV/Monitor in mute mode.
8
710
9
HEADSET
CONNECTOR
B
A
Set Up
XBOX 360® WITH HDMI CABLE
(HDMI Option 2)
Page 8 of 11
You need the following cable for this set up option:
1. HDMI CABLE (not supplied)
N.B. Your TV/monitor will need to have Audio Out (RED/WHITE) sockets. Most, but not all TVs/
Monitors have RED/WHITE Audio IN and YELLOW Video IN sockets but not all TV’s,and even
fewer monitors have RED/WHITE Audio OUT sockets!
1Connect the HDMI lead between your XBOX Console and TV/Monitor.
2Plug the Gioteck Wireless Receiver USB connector into a spare USB port on
your XBOX 360.
3Connect the Mini Jack end of the provided RCA/Mini Jack Cable into the
corresponding socket on the Gioteck Wireless Receiver.
4Plug the RED/WHITE Connectors of the provided RCA/Mini Jack Cable into
the Audio OUT RED/WHITE sockets on your TV/Monitor
Please note that you may need to make some adjustments to your TV/Monitor’s
settings to enable the audio to come through the headset (Consult your TV
manual)
Then proceed as HDMI Option 1, Instructions 6 –17.
USB
3
4
HDMI OUTPUT
TV / MONITOR
HDMI INPUT
TV / MONITOR
AUDIO OUT
2
RED
WHITE
1HDMI CABLE
(NOT SUPPLIED)
Set Up
XBOX 360® SLIM WITH HDMI CABLE
(HDMI Option 1)
Page 9 of 11
You need the following cables for this set up option:
1. HDMI CABLE (not supplied) 2. AV RCA ADAPTOR (not supplied)
Unfortunately the design of the AV cable supplied with the XBOX does not allow for the
simultaneous use with an HDMI cable because the shape of the AV connector covers the
HDMI socket. Microso produces a cable adaptor such as the one shown in this link to solve
this problem: http://www.amazon.co.uk/Microsoft-Audio-Cable-Adaptor-Xbox/dp/
B004S5EH6Q/ref=sr_1_5?s=electronics&ie=UTF8&qid=1320753739&sr=1-5
AV MULTI OUT
USBAV RCA ADAPTOR
(NOT SUPPLIED)
HDMI CABLE
(NOT SUPPLIED)
TV/MONITOR
HDMI INPUT
HDMI OUTPUT
14
3
5
2
1Connect the HDMI lead between the XBOX and your TV/Monitor.
2Plug the AV RCA Adaptor into the back of your XBOX console.
3Plug the Gioteck Wireless Receiver USB connector into a spare USB port
on your XBOX console.
4Connect the Mini Jack end of the provided RCA/Mini Jack Cable into the
corresponding socket on the Gioteck Wireless Receiver.
5Plug the RED/WHITE Connectors of the provided RCA/Mini Jack Cable into
the corresponding sockets of the AV RCA Adaptor.
6Turn on your console and make sure that your controller is wirelessly
connected to your console (do not leave the controller charging or it may
transfer electrical noise into your headset).
See next page for chat set up
