Global Phoenix MID M1060W Bedienungsanleitung

Tablet of Contents

Specifications………………………………………………………………….1

What‟s inside the box…………………………………………………………2

Tablet Parts……………………………………………………………………2

Getting started………………………………………………………………...2

Connection to Internet………………………………………………………..6

Task Bar………………………………………………………………………..8

Install and Uninstall……………………………………………………………9

Camera……………………………………………………………………….10

HDMI………………………………………………………………………….11

Trouble Shooting……………………………………………………………11

Specifications

Display: 10.1 inch 1024X600 Resolution Capacitive screen

CPU: Boxchip A10

RAM: 1GB DDR

Internal Storage: 4GB

Expansion Storage: USB & TF card(Micro SD card), 32GB Max.

Built-In Wireless: 802.11b/g Adapter

ACAdapter: DC 5V-2A

Operating System: Android 4.0

Battery: 5000mAh

What’s Inside The box

Tablet –1pc

Power Adapter -1pc

User manual -1pc

Tablet Parts

1. Headset Port 7. Home button

2. HDMI Port 8. Camera

3. DC Jack 9. Power ON/OFF button

4. 5Pin USB Port 10. Volume

5. TF card slot(Micro SD card) 11. Volume

6. USB Port

Getting Started

Battery Charging

The tablet has a built-in rechargeable Li-polymer battery.

1. To charge connect the AC power adapter to the DC jack on the right

side of the tablet.

2. The LED indicator will illuminate to show the battery is charging. The

LED indicator will turn “OFF” when it‟s fully charged.

3. The tablet can be used even if the battery is being charged.

Power ON/OFF

ON:

1. Press and hold the power button until the tablet turns “ON”.

OFF:

1. Press and hold the power button until device optional

2. Select power off

3. Select OK to power off the tablet

Screen Lock/Unlock:

This feature locks the screen, at the same time turn OFF the screen‟s

backlight after a few seconds.

Screen locks when:

1. System is idle.

2. Manually activated by pressing the Power button once.

Soft Keyboard

The tablet has a soft keyboard which will automatically show up when

you tap the place on screen where text or number is to be entered.

USB Keyboard*

The unit support external USB keyboard to input text and number.

Some buttons on the unit and some function keys on keyboard may not

work if an external USB keyboard was connected.

*Note: The external USB keyboard is optional. If you use USB keyboard

case, do not to put the USB plug between the screen and the keyboard

when you close the case. It may damage the screen.

Touch Screen

The touch screen responds to finger touch.

Note: don‟t place any object on the touch screen for it may damage or

crush the screen.

Single Click: single click one icon to choose the icon or option you want.

Long Press: press and hold one icon to choose the icon and you can drag

it to the bottom shortcut bar.

Drag: drag on the screen and you can move between magic cube sides or

drag the application icons into the shortcut bar.

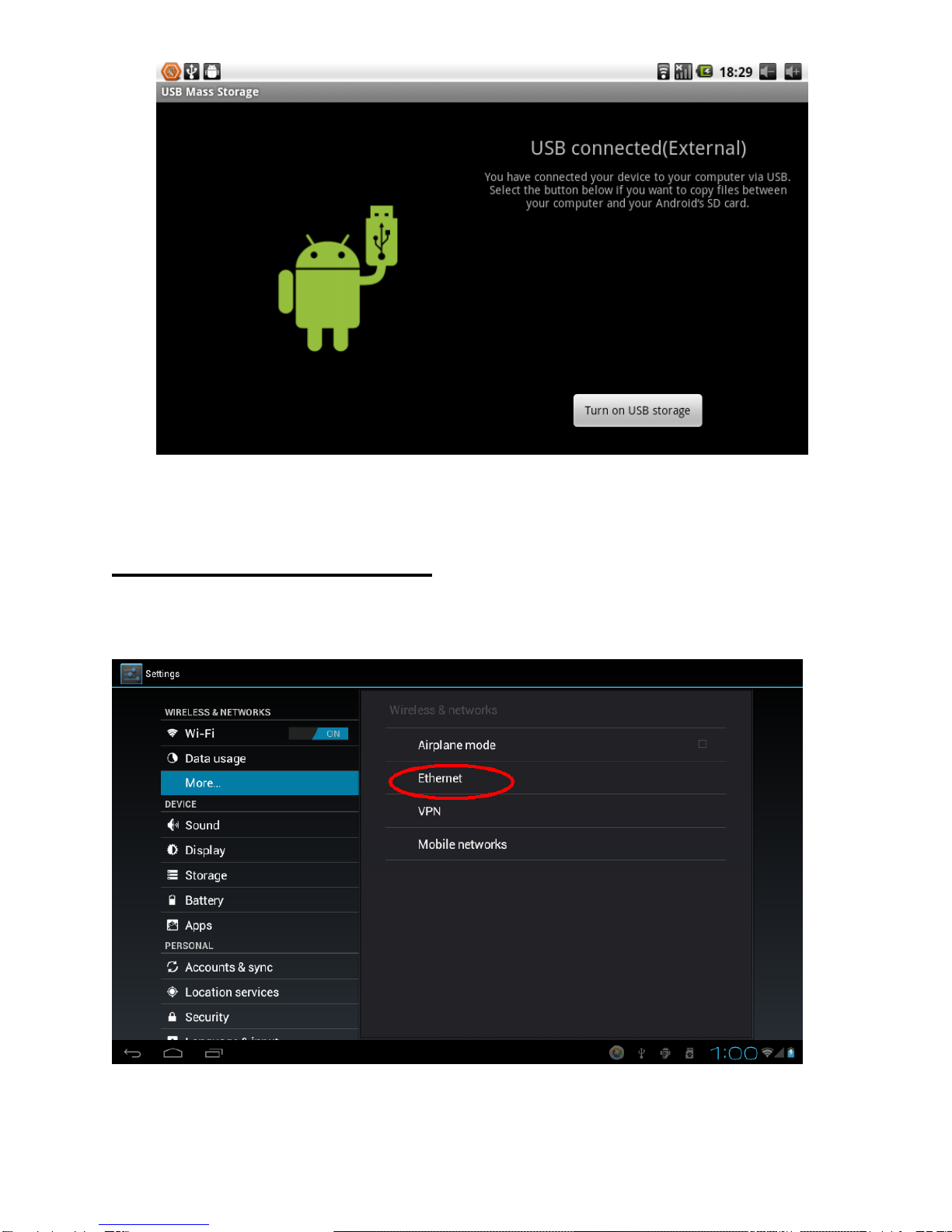

How to connect with computer

Note: First, the switch should put to „Device‟status,

Before transporting documents, firstly you must set store mode for your

tablet.

1. Use USB cable to connect tablet with computer. Notice bar will appear

notice cue.

2. Press Menu button to pop up Menu option, and click on Notice.

3. In the notification panel, click on the USB connection, then click

Loading USB Storage Device.

4. Then the USB connection has been successfully.

Connection to Internet

Ethernet:

1. Connect the Ethernet cable to the Ethernet port of the tablet.

2. Select “Settings”and Select “More…” then Select “Ethernet”

Wireless:

1. Select “ Settings”

2. Select “Wi-Fi” and slide OFF to ON status.

3. All detected wireless networks in the area will be listed, Click to select

desired wireless connection.

4. Enter network key (password of the wireless router) if necessary.

5. Once connected to a wireless network, settings will be saved.

6. Wireless icon will appear on the taskbar when connected

successfully.

Note: when the tablet detects the same wireless network in the future, a

pop-up notification with the name of the wireless network will appear.

Click “connect” to re-establish the connection or “Forget” to remove the

network from the list.

Web Browsing

Connect to the internet via Ethernet or wireless and click the browser.

Task Bar

The Task Bar will show the following: SD card, Battery, Time, Return/Back,

Desktop, Menu and Wireless

SD card

Battery

Time

Return/Back

Destktop

Wifi network

How to Use TF card (Micro SD card)

Note: The TF card (Micro SD card) is not included in the package. You

need the micro SD card only when you need extra storage space or

transfer files from other devices. You can get the TF card in the electronic

department of many stores.

1. Insert the TF card into the TF card slot. Gently push TF card into slot

until it clicks into place.

2. On the screen, you will see “ Preparing SD card “

Removing TF card (Micro SD card)

1. Close all applications and documents which have been opened from

the TF card.

2. Select “Setting” and find “ Storage” then click “Unmount SD card”.

3. on the screen, you will see “ SD card safe to remove”

4. Gently press the TF card to remove and pull out the TF card.

Note: Insert the TF card in correct position, otherwise it will damage the

card and the slot.

Install and Uninstall

Install from memory card or USB drive

Please go to APK Manager，Select “Install” and then select the file

with the extension name .apk in the memory card. Select “Install” to install

the software.

Install application from internet

You can use App Market to search any application you want, after

download finish it will automatic install

** Go to http://Android.com/market or use MARKET application

on disktop to find more application for you Tablet**

After installation, you can run the software right away or run the

software on the subcategory interface.

Uninstall

If you want to uninstall the software from a third party, please go to

APK Manager, Select the software that you want to uninstall. You will see

the following options: run, extract, uninstall and search. Click “uninstall” to

uninstall the software.

Camera

Touch the icon to enter camera mode and the interface is shown

as follows:

1.Touch the icon at the bottom right and you can save your photos

in DCIM/Camera directory in TF card.

2. Move the icon on the right and you can switch camera mode to film

mode.

3. touch the icon on the top right to see the previous picture and you

can also delete, share, set it as the wallpaper or contact profile. Click

finish button to exit camera interface.

Note: this tablet supports video talking function
