Global Phoenix MID M860 Bedienungsanleitung
Table of Contents
Basic Introduction...................................................................1
Quick Start ..........................................................................1
Battery management and charging .........................................1
Boot and Shutdown..........................................................2
Connect with PC.............................................................3
Interface Introduction...............................................................4
Bottom bar of the Interface..................................................4
The HOME Screen menu ...................................................4
Desktop.......................................................................5
Basic Operation.....................................................................5
Date and time settings:......................................................6
Display settings..............................................................6
Wireless Connection:........................................................7
Applications install and uninstall ............................................8
Browser .......................................................................8
Video player:................................................................10
Music player:................................................................10
Photo Browser ..............................................................11
Camera ......................................................................12
Sound Recorder ............................................................13
Market........................................................................14
Frequently Asked Questions ......................................................14
Important Safety Precautions .....................................................15
System: Android 4.0
Processor: Rockchip
Basic Introduction
�CPU: Rockchip RK2918 Cortex A8 1.2Ghz
�LCD Screen: 8 " 800 * 600 TFT LCD
�Camera: Build-in 1.3 M pixel camera
�Operating System: Google Android 4.0
�Network Connection: Built-in 802.11b/g/n wireless
�Audio format: MP3,WMA,MP2,OGG,AAC,M4A ,FLAC,APE, WAV
�Video format: max 1080p full HD video （AVI,3GP,
MP4, MPG, RM, RMVB, MOV,FLV, WMV,MKV)
�Touch Panel: Capacitive Multi-touch
�Language: support multiple language
�Ports: mini USB*1(OTG) , mini HDMI*1,Earphone * 1, TF card slot *
1,DC IN*1,MIC*1
�Buttons: Back/Home/Menu/Power/Reset/Vol+/Vol-
Quick Start
Battery management and charging
Before using this device, please charge it fully. Put the charger adapter into the DC jack,
the device will start to charge.
【TIPS】:
�This device adopts built-in polymer battery. Only the specified charger should
be used.
when it is charging, the icon of battery will be rolling.
when the charging finish, the battery icon will turn green and stop rolling.
�If you do not use this device for a long time, please charge/release it
once per month to avoid deep discharge.
1
�When it is power off because of low battery, connect to the charger, the
device will indicate “low power” or “charging”, please wait for a second until the
machine can turn to the main interface once the power is enough.
�The built-in polymer battery should be charged regularly. The damage
caused by battery over-consuming is not included in the warranty.

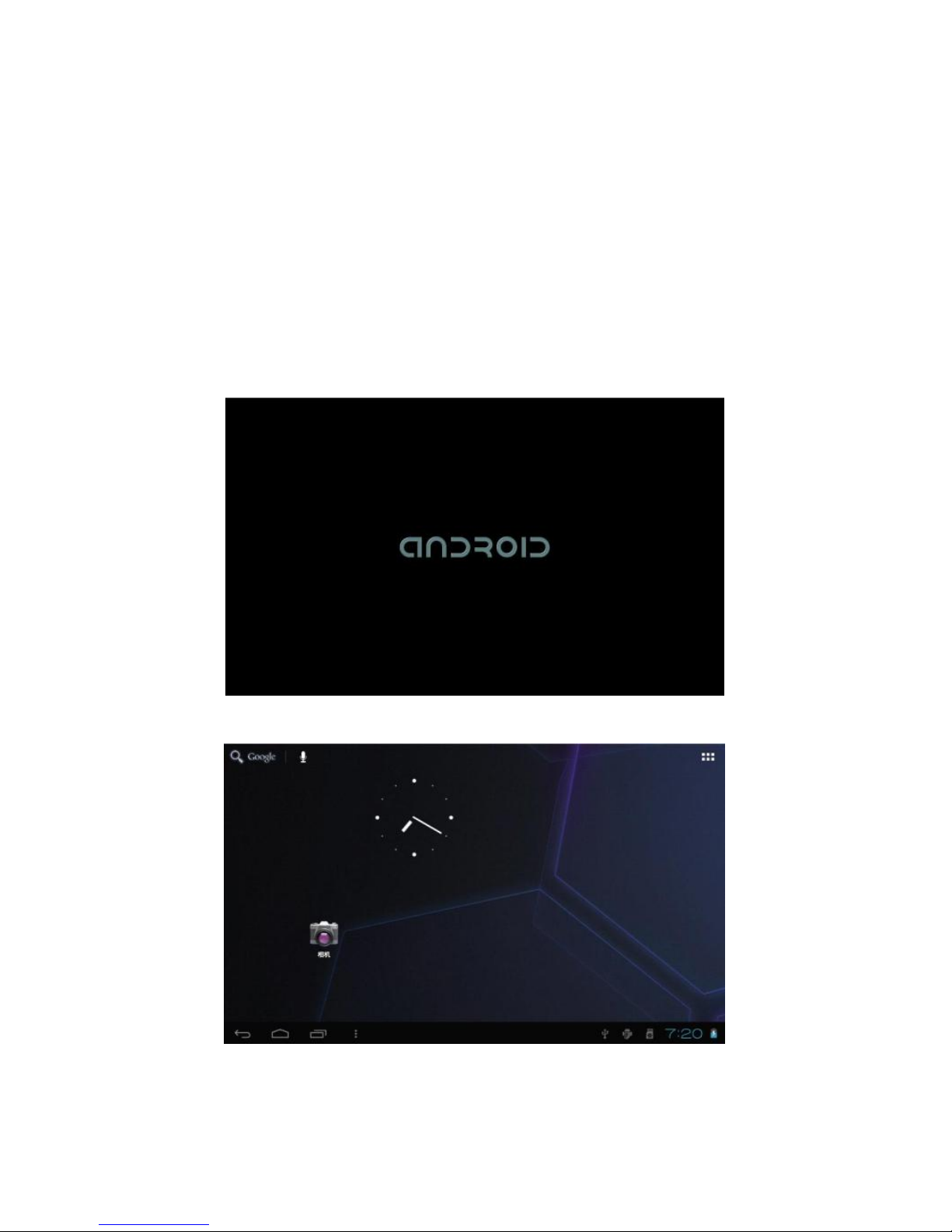

Boot and Shutdown
Boot: Press and hold the power button, the system will enter the boot
process System has been started, entering the Android system:
The system enters the default home interface.
Shutdown: Press the power button, pop-up device options, select
Power off, Click OK, you can safely shut down.
2
Connect with PC
By mini USB (OTG) interface of the device, you can connect with PC by mini USB
cable attached with the device. USB Data transferring is available. You can operate the
files through the PC.
When your device is connected successfully, to pull up the notification area of the status
bar, can see the following icon
Then click to enter the next
Click , Then the device can transmission data with PC.
Note: The device also supports the FAT32 format for external devices, for
example U disk, Micro SD card to Transfer data.
3
Interface Introduction

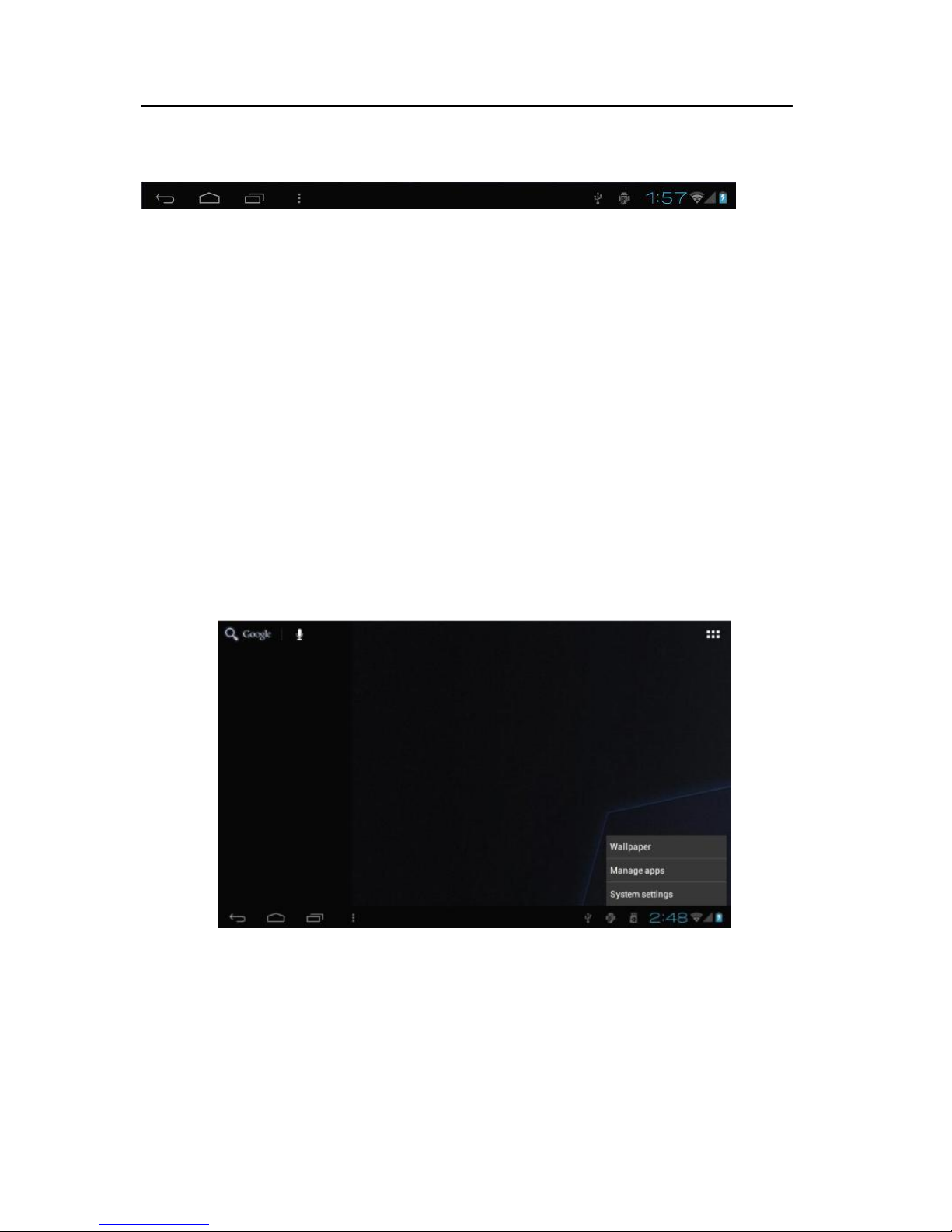

Bottom bar of the Interface
A. WIFI signal status icon: If connected to the WIFI wireless network, the icon
will be displayed
B. OTG connect icon: If the device connected to the PC, will show the OTG
connected icon.
C. Time display: Display the time of the current system, which has been set.
D. Battery status icon: Displays the current battery level and the
charging status. E. Menu, Home, Back, virtual buttons
The HOME Screen menu
Press the menu icon on the device, it will display a home screen menu as
following,
Wallpaper: Users can replace the wallpaper with you wishes.
Manage apps: It can quickly open a list of all applications.
System Settings: Fast access to system settings, user can choose “Wireless &
networks”, “Display”, “Date & time” etc, for personalized settings.
4
Desktop
When sliding around with your finger to switch the main screen, the desktop
fixed on the main screen, will not move. User could drag the application icon
placed on the desktop area in the main screen.
Basic Operation
Click the "Settings" icon in the main applications area, you can open the system
setting interface, as shown below,
Select the appropriate operation of the relevant items, such as: wireless and
network, Display, date and time settings, about Device, etc.
5

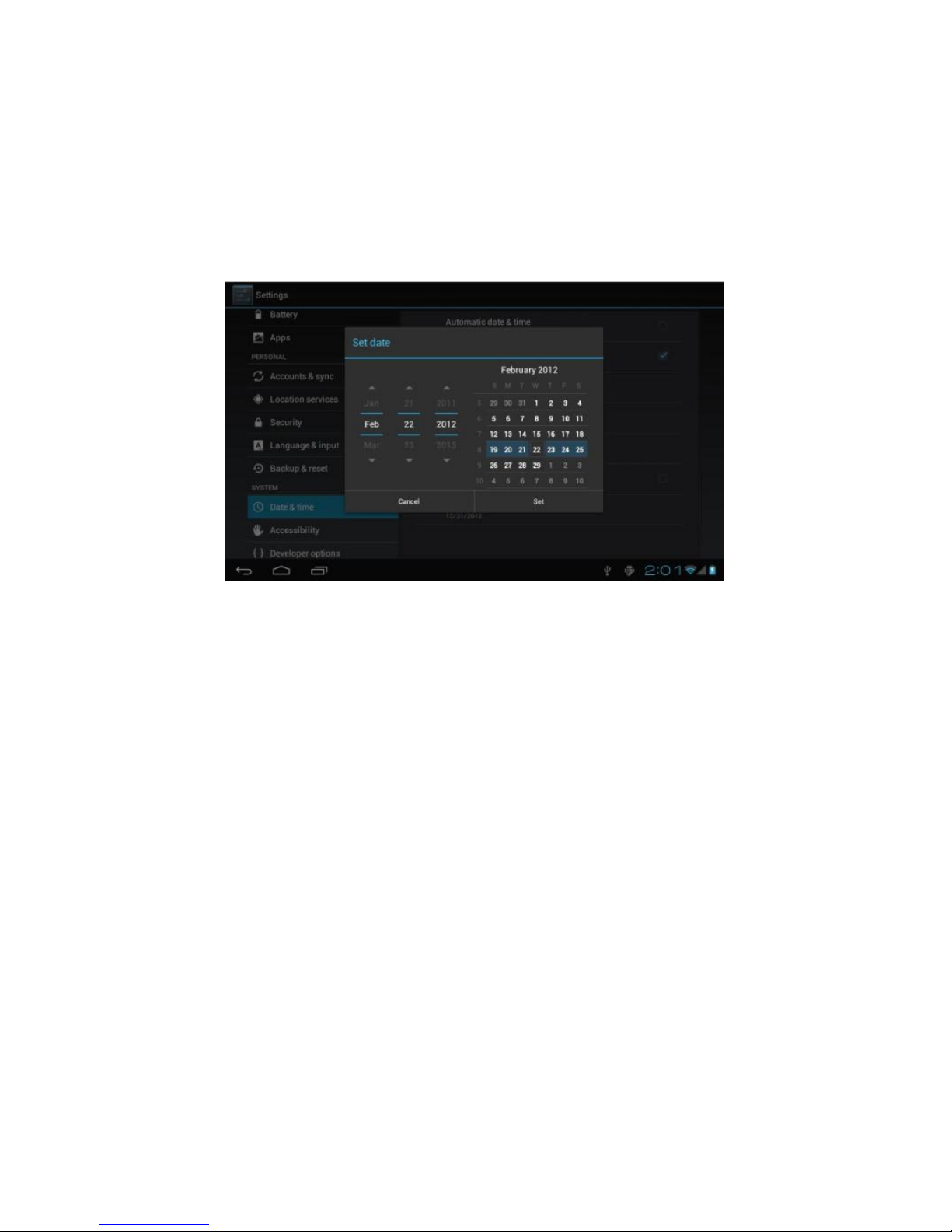

Date and time settings:
Click "Date & time" to enter the Date and time settings interface:
Select to set the date, select the time zone, set the time, time format, date
format and other information.
For example, choose to set the date, as follows:
Select +: that the increase of 1 unit,
Select - : that the reduction of 1 unit.
Also you can choose the number, enter the input mode. Directly entering
the desired number, then click “Done” to set the Date.
Display settings
In the settings interface choose "Display" to enter the display settings interface, select
"Brightness", Pull the progress bar to adjust the brightness, as below interface,
6
Click Sleep, adjust the inactivity time of the device. You can press power key to activate the
device. When display "Screen locked" interface, follow the prompts to unlock it
Wireless Connection:
Click the main menu "Settings" icon, go to "Settings" screen, click on "Wireless and
networks" into the "Wireless and networks settings" interface. Turn on Wi-Fi switch, the Wi-
Fi module built-in the device will search AP lists automatic , click the searched AP can be
used, will pop up settings dialog, please follow the prompts to complete the WIFI network
links. Some encrypted network, need to enter a valid key. As shown below,
7
According to the above method to connected Wi-Fi, as shown below,
Applications install and uninstall
Install applications
1. First you should select the Unknown sources which allow installation of non-Market
apps.
8
2. Copy the APK installer software to Micro SD or NAND FLASH.
3. Click Apk Installer to find the app directory, then Select applications to
install. Users can "Android market" online installation, or download via the
computer, or online through the machine built-in browser to download and
install.
Uninstall applications
Click on the item "Settings –Apps –Downloaded,”select the appropriate
application has been installed, click the applications which you need to uninstall
Browser
When the network connected, open the Web browser enter the URL, you can quickly
9
