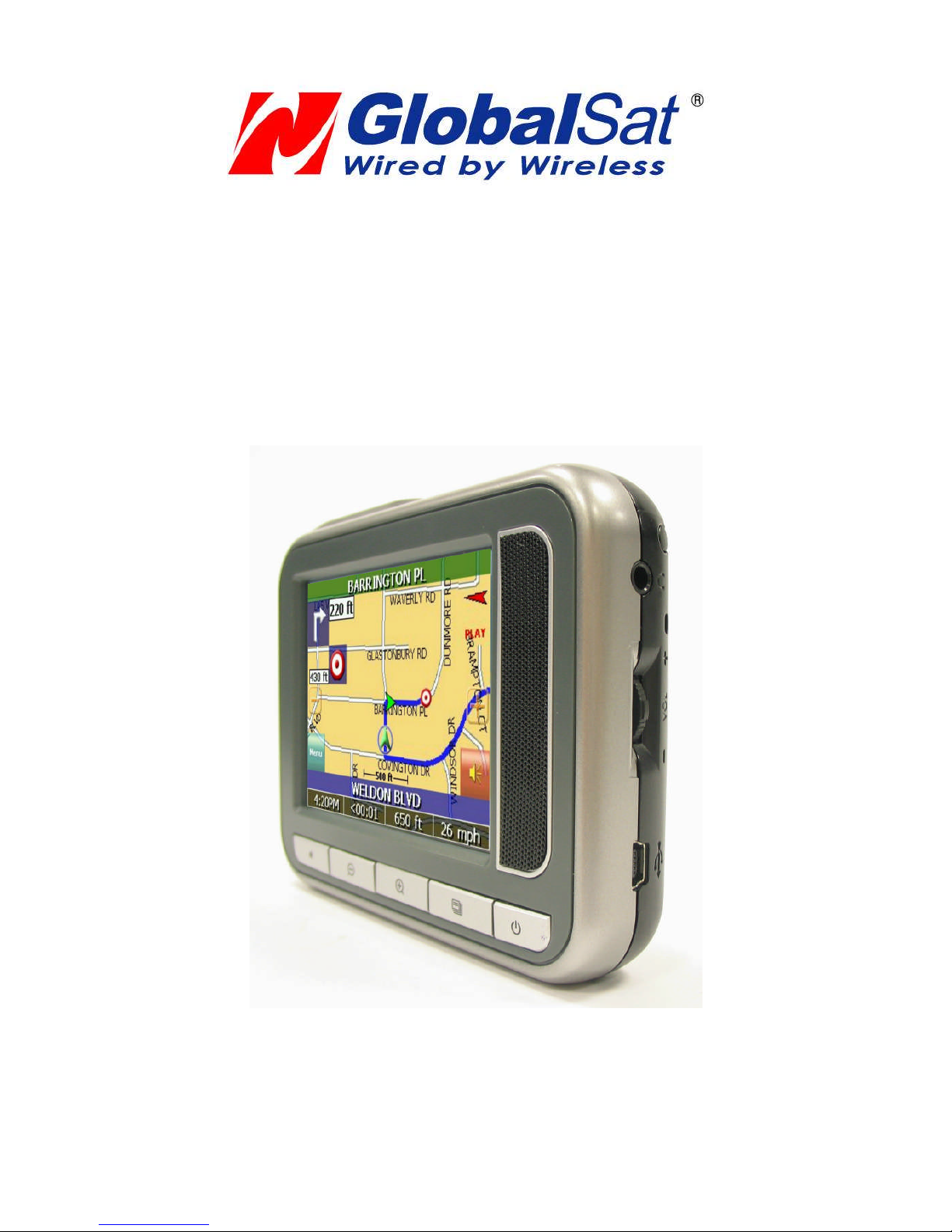

Global Sat GV-370 Bedienungsanleitung

GV-370

User Manual

Version 1.32

Table of Content

Chapter 1 Features and Specification .................................................4

Features.......................................................................................4

Specification...............................................................................5

Accessories.................................................................................8

Overview.....................................................................................9

Detailed Hardware Functions...................................................10

Chapter 2 Getting Started .................................................................11

Download Application onto the SD Card.................................11

Attaching GV-370 to the Mount/Cradle ...................................17

Charging your GV-370 .............................................................18

Chapter 3 Software Application........................................................19

System Menu............................................................................19

Photo View................................................................................19

Movie Playback........................................................................21

MP3 Player ...............................................................................22

Setup.........................................................................................24

Chapter 4 Navigation Application....................................................27

Starting Intellinav .....................................................................27

Getting GPS Signal...........................................................27

Car Cursor.........................................................................27

Entering Data on the Intellinav System............................28

Moving Through the Screens............................................28

Resetting the GV-370........................................................28

Working with the Map..............................................................29

Map View..........................................................................29

Maneuver Detail ...............................................................29

Panning the Map...............................................................29

Route List..........................................................................30

Location Information........................................................30

POI Information................................................................31

Planning Your Route.................................................................31

Setting a Single Destination..............................................31

Using Shortcuts.................................................................40

Managing Your Favorites List ..................................................41

Setting Your Options.................................................................42

Display Options ................................................................42

Route Options...................................................................43

Speed Alert........................................................................44

Localization ......................................................................45

GPS Information...............................................................46

System Information ..........................................................46

Navigation Software License Agreement.................................47

Chapter 5 Troubleshooting ...............................................................48

►If the GV-370 does not boot up successfully or does not

function properly ..............................................................48

►Reset ............................................................................48

►Safely Remove Hardware............................................49

►Update the firmware of GV-370 ..................................50

Chapter 1

Features and Specification

Features

• A complete vehicle navigation solution in one box

• Simple touch-screen operation

• 3.5” screen, 65536 colors, bright TFT LCD

• Fast and easy to use::

- Attach, turn it on and go!

- Large screen icons for easy touch-screen access

- User-friendly keypads and menus

- Clear voice-guidance instruction

- Built-in rechargeable battery and adapter to power/charge from cigarette lighter

- Easily mounted and can be removed quickly. Completely portable

• Built-in antenna with optional MMCX-type connector for external antenna use

• SD storage card expansion slot

• Supports MP3 and movie files (dat and mpg format)

• Supports Photo viewing (.jpg)

Specification

►System

Electrical Characteristics

Processor Samsung S3C2410-266MHz

OS WinCE.NET 4.2 core

ROM Memory 64MB (NAND Flash Memory)

SDRAM Memory 64MB

Memory Card Slot SD/MMC

GPS Receiver SiRF StarⅢHigh sensitivity chipset – 20 Channel

USB Connector Mini USB (5 pins)

USB Version Ver 1.1 (Active Sync)

Operation time 2.5 hrs

Charge time 4 hrs

DISPALY

Display Size H*W 3.5” (Diagonal)

Pixels H*W 240*320 (QVGA)

Display Type COLOR TFT Daylight LCD

Color Number 65536 colors

Backlight Type LED*6

Brightness Typ. 320 cd/m²

Touch Screen 20% Haze film

Backlight Keypad Blue color

AUDIO Internal Speaker Mono (1W / 8ohms)

Codec IIS interface

Amplifier 1W @5V

Earphone Jack 3.5mm Stereo

POWER SOURCE

Power Source Mini USB : DC 5.0V/1A

Power Switch Slide Switch (Battery ON/OFF)

BatteryBattery Cell Type Built-in Lithium-ion rechargeable Battery

Battery Capacity 1400mAh

ANTENNA

GPS Antenna Type Built-in ceramic patch antenna

External GPS Antenna Active external antenna (MMCX)

KEY BUTTON Power Press the power button to turn on the device, press it again

to close any open windows and turn it off (enter a standby

mode)

Menu Press Menu button to go back to System menu

Zoom In Press Zoom In button to zoom in (Car Navigation Only)

Zoom Out Press Zoom Out button to zoom out (Car Navigation Only)

Mute Press Mute button to mute voice, press button again to go

back to normal.

Roll rock Roll up to make volume up; roll down to make volume down

Reset Use the stylus tip to press down the reset button through the

hole to reset the system.

LEDs Power status Solid Red – Battery Low

Solid Amber – Battery is being charged

Solid Green – Battery full charged

Key Button Backlight Solid Blue – When 4.5V~5.5V DC power is supplied through

Mini USB Connector and the device is turned

on.

Backlight On for 3 seconds then Off – When power is

supplied by Li-ion battery and the device is

turned on, and you press any button such as

Menu/Mute/Zoom I n/Zoom Out/Volume

Up/Volume Down buttons.

Mechanical Dimension 4.33 x 3.42 x 1.00 in. (110 x 86.8 x 25.5mm)

Weight 0.40 lbs (183g)

Stylus Pen 98.5mm * φ4.5mm

Temperature Operating 14° ~ 140°F (-10° ~ 60°C)

Storage -4° ~ 158°F (-20°C ~ 70°C)

Humidity Operational up to 95% non-condensing

Certification

FCC Approved, CE marked

►GPS Specification

Electrical Characteristics

GPS Chipset SiRF Star III

Frequency L1, 1575.42 MHz

C/A Code 1.023 MHz chip rate

Channels 20 channel all-in-view tracking

ACCURACY

Position Horizontal 10 meters, 2D RMS

1-5 meters 2D RMS, WAAS corrected

Velocity 0.1m/sec

Time 1 micro-second synchronized to GPS time

DATUM Datum Default: WGS-84

ACQUISITION RATE

Hot start 1 sec., average

Warm start 38 sec., average

Cold start 42 sec., average

Reacquisition 0.1 sec. average

PROTOCOL GPS Protocol Default: NMEA 0183 (Secondary: SiRF binary)

GPS Output format GGA(1sec), GSA(1sec), GSV(5sec), RMC(1sec), GLL, VTG

is optional

DYNAMIC CONDITION

Acceleration Limit Less than 4g

Altitude Limit 18,000 meters (60,000 feet) max.

Velocity Limit 515 meters/sec. (1,000 knots) max.

Jerk Limit 20 m/sec**3

System UI language Navigation software UI and voice

command

English, German, French, Italian,

Spanish, Dutch English, Spanish, French

Accessories

GV-370 Main Unit USB Cable

DC charger AC adapter

Cradle Mount

DVD (user manual, driver, map data 2GB SD card (optional)

Note: If any item is missing or damaged, please contact with your local retailer.

Overview

Reset

button

System menu

Zoom in

Mute

SD card slot

Stylus

External antenna

connector

Earphone jack

Volume control

Power button

Status indicator

Speaker

USB

connector

Zoom out

Master Switch

Detailed Hardware Functions

Power button Press the power button to turn on the GV-370, press it again to

close any open windows and turn it off (enter a standby mode).

NOTE: The GV-370 device needs about 2 seconds to enter the

standby mode or come back to normal operating state.

Thus, the power button may not function well if you

continue to press it again within 2 seconds.

Main Control Buttons System Menu

Mute

Zoom Out (Car Navigation Only)

Zoom In (Car Navigation Only)

Status Indicator Charging: orange.

Charging completed: green.

battery low: red.

SD card slot The PC applications and map data can be stored in the SD card.

RESET button Use the stylus tip to press down the reset button through the hole

to reset the system.

Earphone jack Plug the earphone or headset to the socket, you can listen to the

navigation voice guide or enjoy your favorite MP3 music.

External antenna

connector For you to connect an optional MMCX-type external antenna.

Speaker Allow the MP3 and Voice Navigation through the built-in speaker

in the back side of the device.

Stylus You can use the stylus pen instead of your finger to tap or input

on the screen.

USB connector Connect the GV-370 to PC via an USB cable for data transfer

and battery charging.

Master switch Slide the master switch to “OFF” position to prevent from

accidentally turning on the device by touching the power button.

If you want to use this device, be sure to slide the master switch

to the “ON” position.

On the back of the GV-370 is a master slide switch to cut off

power to the unit. It is used to disable the unit in transit from the

factory and if the unit will be in storage for long periods of time.

Be sure that the master slide switch is in the “ON” position when

you remove the unit from the box. The GV-370 will NOT charge

if the master slide switch is in the “OFF” position

Volume control Control the volume up and volume down.
