SD-502 SDIO GPS Receiver

User Manual

page 2

SD-502 SDIO GPS Receiver User Manual, version 1.2

1. SD-502 at a glance

GPS Antenna

LED

Cover

page 3

SD-502 SDIO GPS Receiver User Manual, version 1.2

Electrical Characteristics (Receiver)

Chipset SiRF Start III

Frequency L1, 1575.42 MHz

C/A Code 1.023 MHz chip rate

Channels 20 channel all-in-view tracking

Accuracy

Position Horizontal 10 meters, 2D RMS

1~5 meters, 2D RMS with WAAS corrected

Velocity 0.1 m/sec

Time 1 micro-second synchronized to GPS time

Datum

Datum WGS-84 (default)

Acquistion Rate

Hot start 1 sec., average

Warm start 38 sec., average

Cold start 42 sec., average

Reacquisition 0.1 sec., average

Protocol

GPS Protocol NMEA 0183 (default)

SiRF binary (secondary)

GPS Output format GGA (1 sec), GSA (1 sec), GSV (5 sec), RMC (1 sec).

GLL and VTG are optional.

Dynamic Condition

Acceleration Limit Less than 4g

Altitude Limit 18,000 meters (60,000 feet) max.

Velocity Limit 515 meters/sec (1,000 knots) max.

Jerk Limit 20 m/sec**3

Temperature

Operating -10°C ~ +70°C

Humidity 5 ~ 95% non-condensing

Power

Voltage 3.3 V

Power Consumption 110 mA

Physical Characteristics

Dimension 95 mm x 30 mm x 13 mm

Weight approximately 30 grams

Memory Size 512 MB

SDIO Specication

• Compliant with SDIO Card Specication Ver. 1.00

• Base on Bsquare SDIO Now!

2. System Specication

page 4

SD-502 SDIO GPS Receiver User Manual, version 1.2

3. Introduction

SD-502 is a GPS Receiver with SDIO (Security Digital Input/Output) interface and an integrated

built-in memory, which provides an impressive data capacity. The built-in 512 MB memory allows

you to easily organize, store, and share les or documents. It also allows for tracking signals and

large map data according to the mapping software usage. It’s sleek and stylish design of look can

go with any kind of the Pocket PC. With light and handy appearance, it is convenient for you to put

it in pocket and bring it to anywhere you go. Just plug it into your Pocket PC, and use it to receive

the GSP signal right away! Its cylindrical antenna can receive the signal from all directions by 360

degree. It satises a wide variety of applications, including car navigation, personal touring navigation

or tracking and even marine navigation purpose. With our professional manufacturing technology

along with the cutting edge, SiRF Star III chipset, this receiver has provided higher sensitivity, lower

power usage and more rapid time-to-x!

3.1 Features

• SiRF Star III high performance and low power consumption chipset

• Built-in high sensitivity GPS antenna

• LED to show GPS x or not x

• Built-in super capacitor to reserve system data for rapid satellite acquisition

• SDIO interface

• Operating platform: Pocket PC 2003, Win CE.Net, WM2003

• Base on Bsquare SDIO Now!

• Built-in memory size: 512 MB

3.2 Package

Before you start up, make sure that your package includes the following items. If any item is

missing or damaged, contact your dealer immediately.

• SDIO GPS Receiver and its cover.

• A CD (including the User Manual, Driver and the Testing Program.)

3.3 LED Function

GPS Status LED (Green):

• Blinking — GPS position is xed

• Steady light — GPS position is not xed

page 5

SD-502 SDIO GPS Receiver User Manual, version 1.2

3.4 Compatible Device

• Dell Axim X3 Pocket PC

• Dell Axim X30 Pocket PC

• Dell Axim X50 Pocket PC

• Dell Axim X50V Pocket PC

• Dell Axim X51V Pocket PC

• HP iPAQ h1930 Pocket PC

• HP iPAQ h1940 Pocket PC

• HP iPAQ h1950 Pocket PC

• HP iPAQ h2210 Pocket PC

• HP iPAQ h2750 Pocket PC

• HP iPAQ h4150 Pocket PC

• HP iPAQ hx2410 Pocket PC

• HP iPAQ hx4700 Pocket PC

• HP iPAQ h6315 Pocket PC

• HP iPAQ rx3115 Pocket PC

• Eten M500

• Fujitsu Loox 720

• Asus MyPal 730

• T-Mobile MDA compact

Devices listed above have been tested and proved to be compatible with SD-502.

page 6

SD-502 SDIO GPS Receiver User Manual, version 1.2

4. Install Driver

You have to install the driver before you can use the SD-502 GPS receiver with your Pocket PC. The

driver will be installed into the Pocket PC via the ActiveSync program. So, before you start, please

make sure the ActiveSync has been installed and the Pocket PC is connected to your desktop

PC.

(1). Put the CD into CD-ROM drive. The AutoRun will start the installation program automatically.

Click on the “Install Driver for WinCE” button to install the driver. (or you can manually install it

by double click the “GlobalSatSDGPS.exe” from the root directory of the CD. )

(2). Click the Next button on the Welcome dialog box and click Yes button on the End User

License Agreement dialog box.

page 7

SD-502 SDIO GPS Receiver User Manual, version 1.2

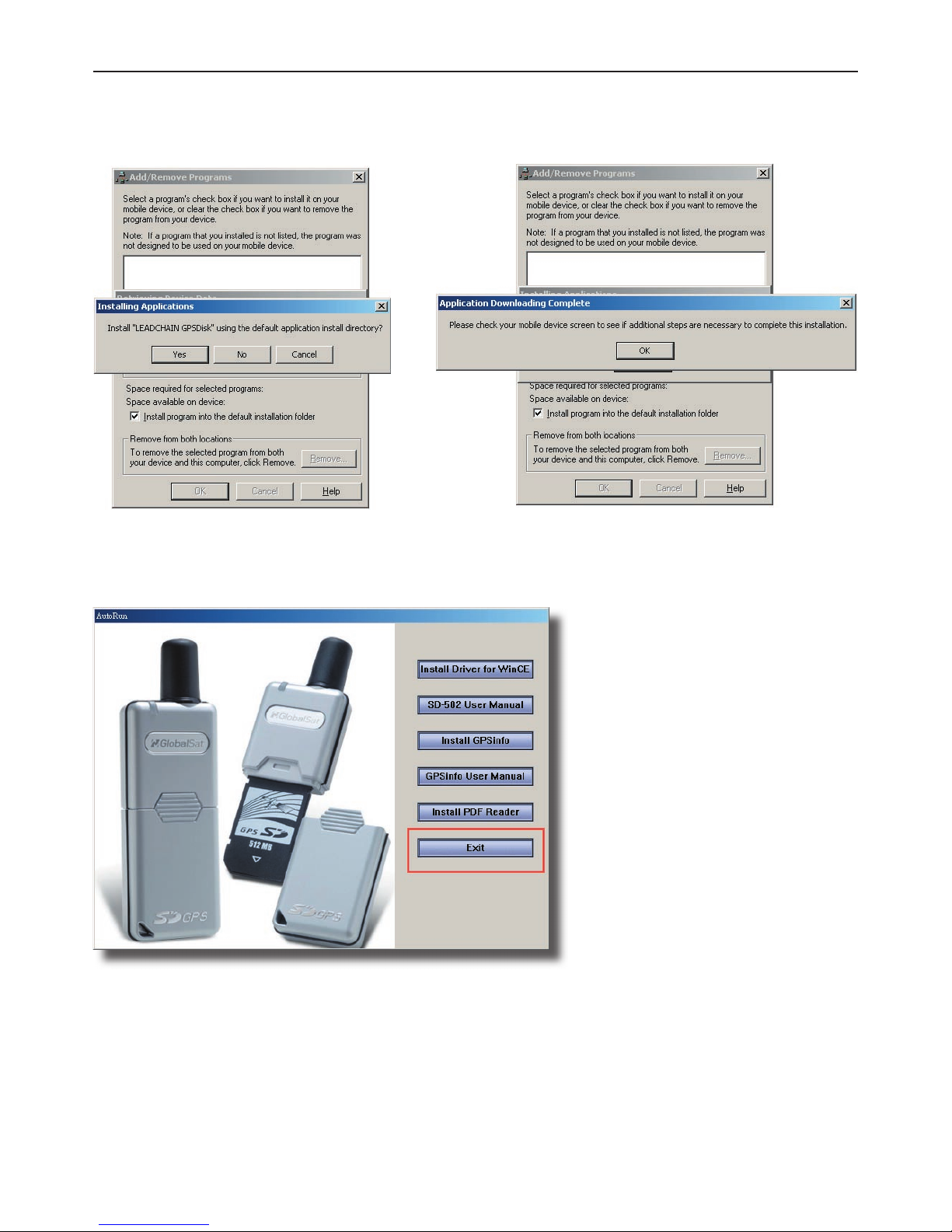

(3). Click Yes and OK on next 2 dialog boxes. Now the driver has been installed in your PDA.

(4). Click Exit button to close the AutoRun program.

page 8

SD-502 SDIO GPS Receiver User Manual, version 1.2

(5). If you want to check whether the driver has been properly installed or not, please do the

following steps. In your PDA, tap Start / Settings, tap System tab and then Remove Programs

icon. You will see the driver “LEADCHAIN GPSDisk” is on the list.

(6). If you want to check version information of the installed driver. Please tap Start / Programs

/ File Explorer, go to “My Device / Windows” folder and open the “GPSDiskVersion.txt”. You will

see the driver’s version information.

page 9

SD-502 SDIO GPS Receiver User Manual, version 1.2

5. Test the SD-502 GPS Receiver

You can use the testing program to see if the GPS Receiver is working correctly or not. The testing

program only supports the Microsoft Windows CE and Pocket PC based PDA platform.

(1). Put the CD into CD-ROM drive. The AutoRun will start the installation program automatically.

Click on the “Install GPSinfo” button to install the testing program. (or you can manually install it

by double click the “GPSinfo.exe” from the root directory of the CD.)

(2). Click the Next button to continue.

Note : For more detail about this GPSinfo testing program, please refer to the GPSinfo

User Manual, you can  nd it in the root of CD. (GPSinfo_User_Manual_Eng.pdf)

To install the testing program, please follow the steps below:

page 10

SD-502 SDIO GPS Receiver User Manual, version 1.2

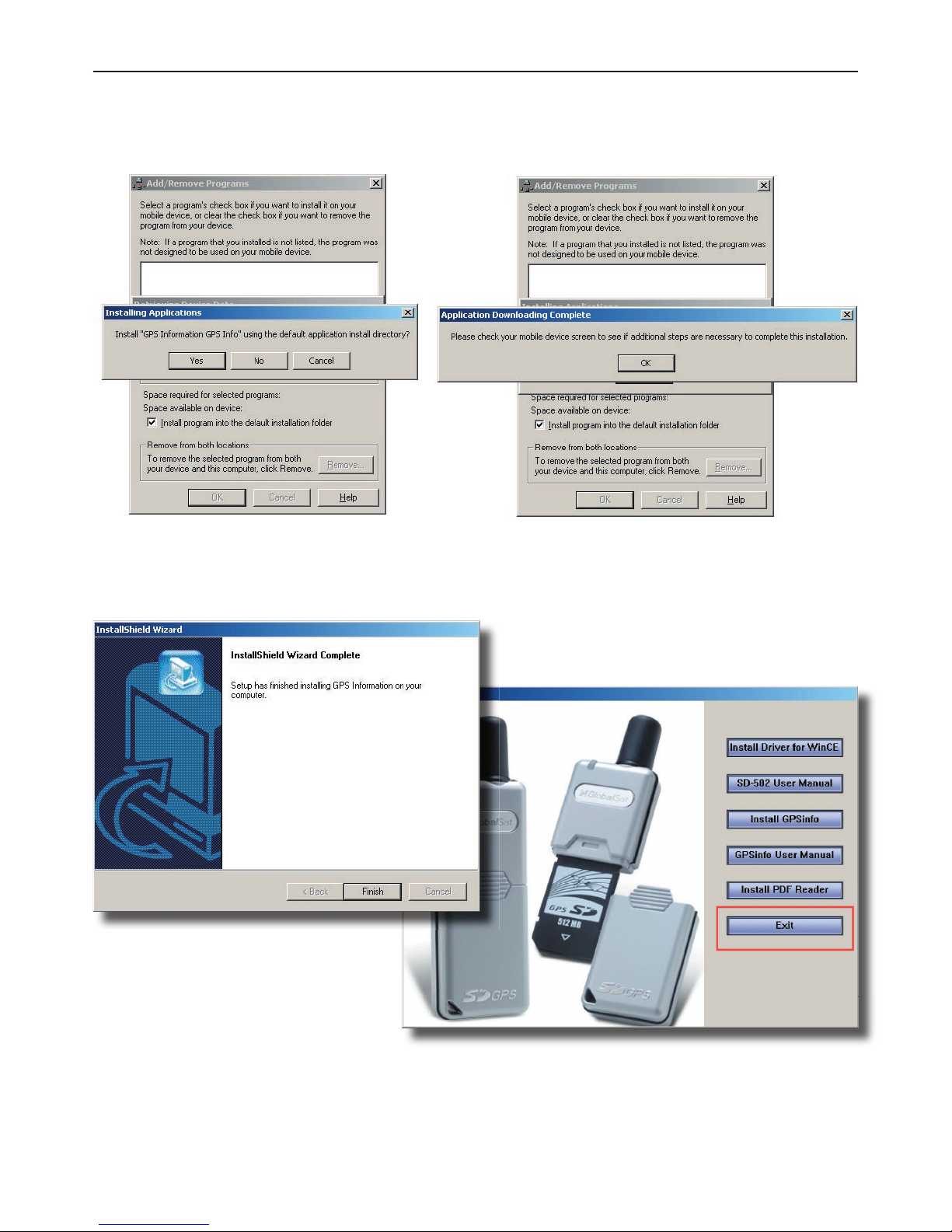

(3). Click Yes and OK on next 2 dialog boxes. Now the GPSinfo program has been installed in

your PDA.

(4). Click Finish button and  nish the installation and click Exit button to close the AutoRun

program.
