GO4 Vega N1 user guide

Settings

: "Operating Guide"

(

Contents

Introduction

Where Stuff is At (The Layout)

Getting Started

Your microSD Card and You

You Got the Power: Charging the Battery

The Button

Resolution: Choosing It

Seeing how cool you are (Playback)

Playback on a Computer

HDMI & Composite Video Playback

The Remote Control

Showing your Quality

Shooting Your Troubles

Technically Speaking (Specifications)

Warranty l Helpdesk

Important) Legal Mumbo Jumbo 2

Rear Cover

GO4 Vega N1 user guide

You've gone and done it now. Really taken the cake. You've bought

a 1080p Waterproof GO4 Vega N1 - miniature,waterproof,easy to use.

You've nabbed yourself a camera that's

perfect for capturing your insane antics

and displays of immense skill.

lt's great for recording biking , skating,

skiing or snowboarding , surfing or

throwing yourself out of a perfectly

good aircraft . Or just about anything

else you can think of!

Strap it to your head, arms, legs, butt , bike , board , gear, rigging or

shoes. Or you can think outside the box .

Use it to capture video to show your

friends and share your videos online.

GO4 Vega N1 user guide

Power/ Record Button Heck,

we might as well call it "the

button" - it is all on its lonesome.

The Frontside

Rear Cap

Targeting Laser

Lasers make

everything cooler.

Lens

A bit of high-quality

gloss used to focus stuff.

Reset

Sets everything

back to the .

factory

defaults.

Indicator LED

The Backside USB Port

For charging, computers and

composite video output.

1080p / 720p Switch

Choose between 720p (nice) and

1080p (seriously nice).

microSD Card Slot

For inserting a microSD card

and nothing else.

Mini-HDMI Port

Pure awesomeness in one output.

Infrared Sensor (for Remote)

GO4 Vega N1 user guideGO4 Vega N1 user guide

Right. So, you've got the SportsCam. lt's Friday afternoon, and you're

headed out skating on Saturday morning and you want to get the

SportsCam setup and ready to rock and/or roll.

1. Charge the battery.

Short version: Plug the little end of the USB cable into the SportsCam,

and the big end into the included power adapter. Plug the power

adapter into a wall socket. Wait two to three hours. Bam!

Check out page 8 for the long version on getting yourself some power.

2. Jam a microSD card in it. Gently.

Short version: Ensure there's nothing on the microSD card you want

to keep, as we'II be formatting it in a moment (that erases all the data

and preps it for recording video). The SportsCam shoots high-def video,

so grab yourself a decently big card - we reckon that 8GB is a realistic

minimum, with 16GB or 32GB cards recommended.

Check out page 7 for the long version regarding microSD cards.

3. Set up your Camera using the On-Screen Menus

Short version: Connect the SportsCam to a television or monitor using

either the mini-HDMI output or the COMPOSITE VIDEO output (that's

the weird USB to RCA cable - one end goes into the USB port on the

SportsCam and the other to the VIDEO IN on a TV). Use the Remote

Control to access the menus see(“The Remote Control" on page 1 4).

We think the best course of action is to:

Choose your recording format (PAL or NTSC).

Format your microSD card.

Set the Date and Time.

Choose your Resolution.

Choose your Quality settings.

GO4 Vega N1 user guide

Choosing a microSD card:

The SportsCam will accept a microSD card up to 32GB in capacity.

You can store between 7— 30 minutes worth of video per gigabyte

(GB). Check out page 17 for more information on recording times

versus quality settings.

We recommend using cards of at least 8GB to ensure that the SportsCam

won't run out of storage space whilst you're filming, 16GB or 32GB are

recommended for recording in 1080p at high quality.

Of course, if you only want to record ten minutes at a time, you could

get away with a much smaller card. But remember, when it runs out -

that'II be all she wrote!

For reliable performance, we strongly suggest that you

use a card with a speed rating of “Class 4”or higher.

Hold the SportsCam so that the rear panel is facing you, and

the power/record button is facing up.

Orient the microSD card so that the text is facing up.

Gently push the microSD card into the slot. Be careful that it

goes in correctly - if it misses the slot or is inserted at an angle,

it could become jammed.

The card will "click" into place once fully inserted.

To remove the card, simply push it in. This will release the

locking mechanism, and the card will spring out. Be careful when

removing the microSD card - the little spring that pushes it

out is quite powerful.

Look for these symbols:

Inserting a microSD card:

GO4 Vega N1 user guide

The SportsCam charges via the mini USB socket on the rear panel.

◇Insert the mini-USB plug on the USB adapter or USB cable in to

the USB socket on the rear of the SportsCam.

◇Connect one end of the USB adapter or cable to the USB port on

the included power adapter.

Under no circumstances ever connect the SportsCam to any

power source supplying anything other than 5V. lt's safe to

connect it to a USB port on a computer (see below!)

and the included power adapter.

The current supplied by most computer's USB ports (sv 500mA) is not

sufficient to properly charge the SportsCam.The SportsCam's battery

is small, but powerful, and it needs more juice to charge. The supplied

adapter (5V 1000mA) is perfect for the job, and you'II get much better

results using that.

While the SportsCam is charging, the LED on the rear panel

Will Light up. It will go out when the SportsCam is fully charged.

The LED will light up whenever the SportsCam is connected

to power.

red

gr een

As the and LEDs are located

very close to one another, you might

need to tilt the SportsCam slightly

relative to your eye to see what both of

them are doing!

green red

Computers don't cut it!

Charging Status Indicator LEDs

The LEDs

are here...

right here.

The SportsCam takes 2 hours to charge

using the included USB charger. It will

take much longer from a USB port,

if it charges at all.

GO4 Vega N1 user guide

Button, button, who's got the button? Oh, it's where we left it,

right in the middle on the top. Pretty obvious, really.

While the camera is off charged and disconne-

cted from any USB or HDMI connection (PC,

composite video, HDMI or charger) press and

hold the button down for approximately 2~3

seconds.The camera will beep three times.

The LED on the front of the camera will light

up for a moment,and will flash red while reco-

rding video. The targeting laser will come on

for a few seconds unless disabled, then auto-

matically go out.

While the camera is on, press the button and

hold for a quarter of a second and then release.

The targeting laser will come on for a few

seconds and then automatically switch off.

While the camera is recording, press and hold

the button for about three seconds.The camera

will beep twice, and the green LED will light up

for a moment.

When the SportsCam is turned OFF, insert the

cable associated with your desired outcome

(USB cable for a computer, USB-to-RCA cable

for Composite Video or the HDMI cable for

HDMI). Connect the other end of the cable to

the desired device (computer, monitor or TV,

as applicable).Press and hold the button for three

seconds to turn the camera on. The SportsCam

will automatically boot into the appropriate

mode for the cable connected.

Things that Pressing The Button will do

Turning the

Camera on

and

Recording

Video

Engage the

Targeting

Laser

Stop

Recording

and

Shutdown

Camera

Booting the

Camera into

HDMI,

USB or

Composite

Video

Modes

T he But t on: "Ope rat ing Guide ”

GO4 Vega N1 user guide

Re s o l u t i o n : C h o o s i n g I t

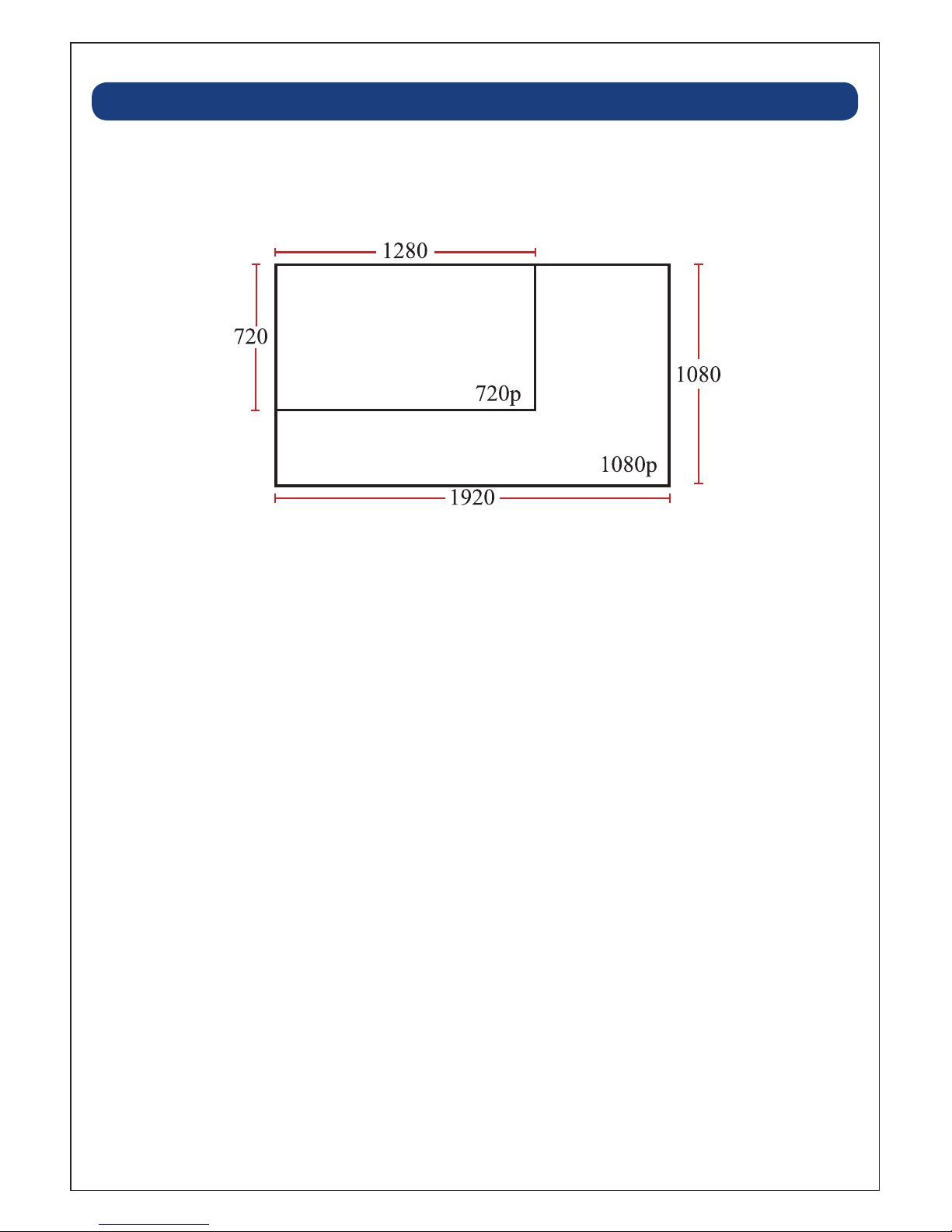

The SportsCam can record at two different resolutions: 720p (1280 x720)

and 1080p (1920 x 1080). To select your resolution, use the switch on

the rear panel of the camera.

Why would you want to record at a lower resolution? Believe it or not,

there are actually a few really good reasons to record at 720p. Here

are a couple, presented in reverse order of pretentiousness:

◇lt's very, very slightly more retro, and (ergo) cooler. (Hipsters only.)

◇Not everyone can playback 1080p - many TWs (even some

marked "HD" can't playback 1080p - most systems that can will

claim "Full HD" or "1080p" somewhere on the unit or the packaging

(most likely both).

◇If your TV supports 1080i but not 1080p (again, this will be written

on it somewhere), then playback of 720p may actually have a

slightly higher vertical resolution (720 lines versus 540) when d

isplaying rapid motion.

◇720p is often less prone to artefacting when recording rapid

motion than 1080p.

◇720p uses less space than 1080p - SO, if you're trying to get the

most possible out of your memory card, then it's a good option.

1080p requires approximately 8000～13000kbps, whereas 720p

uses 4000～8000kbps (it varies by your Quality setting). You'II get

about 40 minutes of 1080p to the same space as l hour of 720p.

GO4 Vega N1 user guide

Inhaltsverzeichnis

Andere GO4 IP-Kamera Handbücher

GO4

GO4 Vega I1 Eye One Bedienungsanleitung

Beliebte IP-Kamera Handbücher anderer Marken

FLIR

FLIR Exx series Bedienungsanleitung

Avigilon

Avigilon H4A-BO1-IR Bedienungsanleitung

Digital Watchdog

Digital Watchdog DWCA-C128-64 Bedienungsanleitung

ShareTech

ShareTech AV1 Bedienungsanleitung

Ezviz

Ezviz C6C Bedienungsanleitung

Melchioni

Melchioni UCAM 2015 Bedienungsanleitung

Geutebruck

Geutebruck G-Cam/ESD-4630 Bedienungsanleitung

Arecont Vision

Arecont Vision MegaBall AV3146DN-3310-D-LG Bedienungsanleitung

Mitel

Mitel 6800i Series Service-Handbuch

Vitek

Vitek VTC-IR403-212NP Bedienungsanleitung

THOMSON

THOMSON DSC - 323W Bedienungsanleitung

AVer

AVer FB2027 Bedienungsanleitung

ENFORCER

ENFORCER EV-T5105-N2SQ Bedienungsanleitung

Wansview

Wansview NC543 Bedienungsanleitung

Eneo

Eneo MCB-64A0003M0A Bedienungsanleitung

deView electronics

deView electronics CBDNI36F Bedienungsanleitung

Swann

Swann SwannEye Bedienungsanleitung

LevelOne

LevelOne IP CamSecure Bedienungsanleitung
