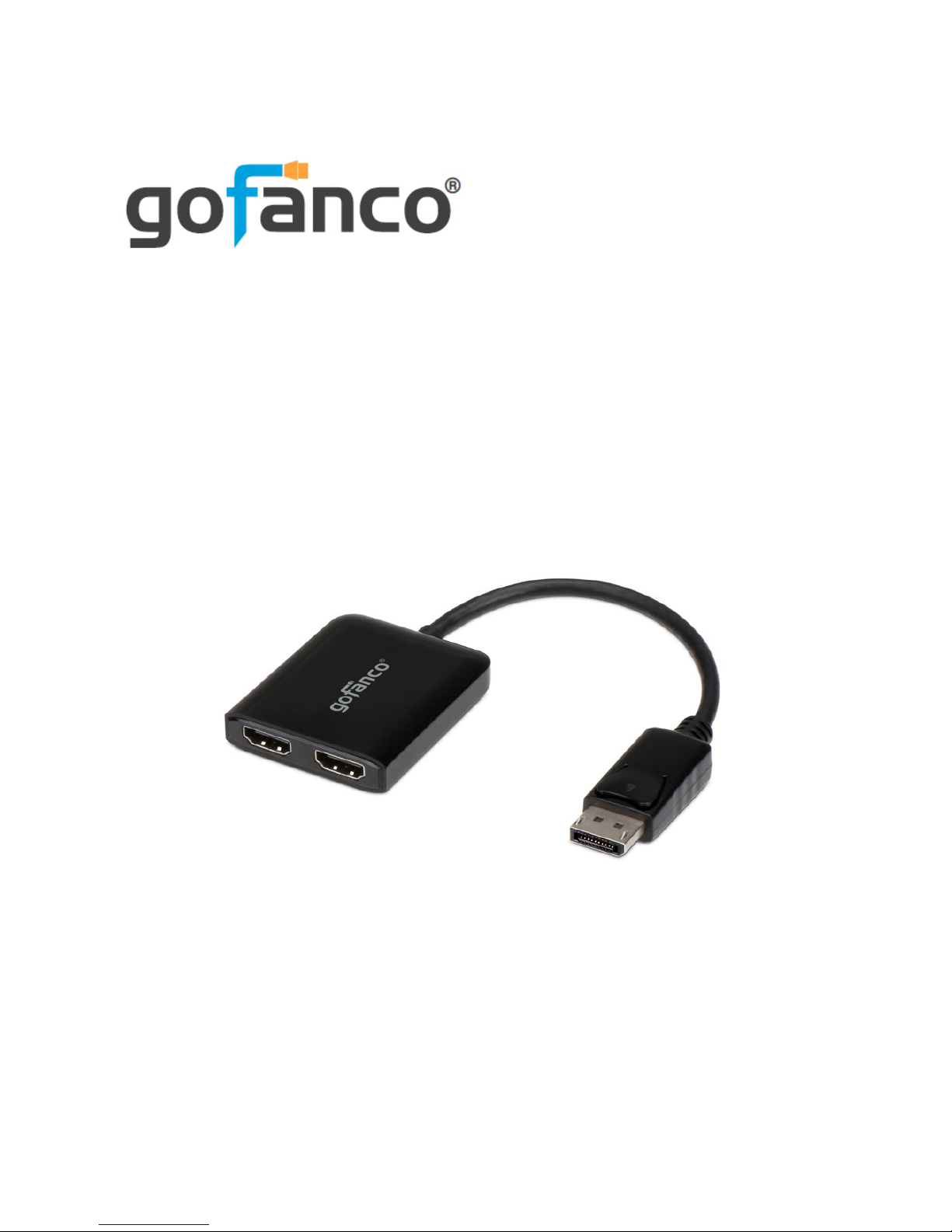

gofanco DPMST2HDMI Bedienungsanleitung
DisplayPort MST Hub to
2x HDMI
User's Guide
G4-0039A
P/N: DPMST2HDMI
2
Thank you for purchasing from gofanco. Our
products aim to meet all your connectivity needs
wherever you go. For optimum performance
and safety, please read the instructions carefully
and keep this User’s Guide for future reference.
If you need more information about our
products, please visit www.gofanco.com. For
technical support, please email us at
download, please go to www.gofanco.com/
download.
Important Safety Notices
Please read safety instructions carefully before
installation and operation.
• Please pay close attention to all warnings
and hints for this device
• Do not expose this unit to rain, heavy
moisture, or liquid
• Do not repair the device or open the
enclosure without professional guidance
to avoid electric shocks. Doing so may void
your warranty
• Keep the product in a well-ventilated
location to avoid damage from overheating
3
Introduction
gofancoDisplayPortMSTHubto2xHDMI(part#
DPMST2HDMI) enables you to connect with 2
external monitors to your DisplayPort enabled
computer for multitasking.
Specifications
PackageContents
•DisplayPort MST Hub to 2x HDMI
•Micro-USB Power Cable
•User's Guide
System Requirements
•PC with an available DisplayPort (DP 1.2
recommended)
•Windows®10 / 8.1 & 8 / 7 (32-/64-bit)
Output Signal HDMI
Ports 2
Compliance DP 1.2
Connectors Input: 1x DisplayPort, Male
Output: 2x HDMI, Female
Resolution Up to 3840x2160@30Hz
Audio 7.1-CH
4
Product Layout
Figure 1: Layout
•DP IN: Connect to PC's DisplayPort
•HDMI Output (x2): Connect to HDMI
displays with HDMI cables (not included)
OrconnecttoHDMIadapters(notincluded)
to DVI or VGA to use with DVI/VGA
displays
•Power Jack (Micro-USB): Connect to PC's
USB port for power with the included
Micro-USB power cable. *Note: This
connectionisrequiredtopowerthisadapter.
Power Jack (Micro-USB)
DP IN
HDMI Output (x2)
5
Hardware Installation
Important: If the source DP output doesn't
support DP 1.2, the Multiple Stream Transport
function will be disabled and this hub becomes
a Splitter, mirroring your video source across all
displays.
1. Power off all devices you plan to connect to
the unit.
2. Connect the unit to your PC's DisplayPort
connector.
3. Connect your HDMI monitors to the unit's
HDMI Outputs with HDMI cables (not
included).
4. Connect the unit's Power Jack to PC's USB
port for power source with the included
Micro-USB power cable.
5. Power on all of the connected devices.
6. It is ready for use.
6
Blank Page
7
Disclaimer
The product name and brand name may be
registered trademarks of related manufacturers.
TM and ® may be omitted on the user’s guide.
The pictures on the user’s guide are just for
reference, and there may be some slight
differences with the actual products.
We reserve the right to make changes without
prior notice to a product or system described
herein to improve reliability, function, or design.
Thank you for choosing gofanco
www.gofanco.com
