Gofanco DPMSTHub Bedienungsanleitung

DisplayPort 1.2 4-Port MST

Hub / Splitter - Black

G4-0021A

P/N: DPMSTHub

Congratulationsforowningagofancoproduct.Ourproducts

aim to meet all your connectivity needs wherever you go.

Have fun with our products!

Please read this manual carefully before first use.

If you need more information about our products, please

visit www.gofanco.com.

For technical support, please email us at support@gofanco.

com.

For drivers/manuals download, please go to http:// www.

gofanco.com/download.

Introduction

gofanco DisplayPort 1.2 4-Port MST Hub / Splitter - Black

(part#DPMSTHub) enables you toconnect with four external

monitors to your DP enabled computer for multitasking.

Specifications

Package Contents

• DisplayPort 1.2 4-Port MST Hub / Splitter - Black

• Micro-USB power cable

• User's guide

System Requirements

• PC with an available DisplayPort (DP 1.2 recommended)

• Windows®10 / 8.1 & 8 / 7 (32-/64-bit)

Output Signal DisplayPort

Ports 4

Compliance DP 1.2

Connectors Input: 1x DisplayPort, Male

Output: 4x DisplayPort, Female

Resolution Up to 3840x2160 @30Hz

Audio Yes (2-CH)

Layout

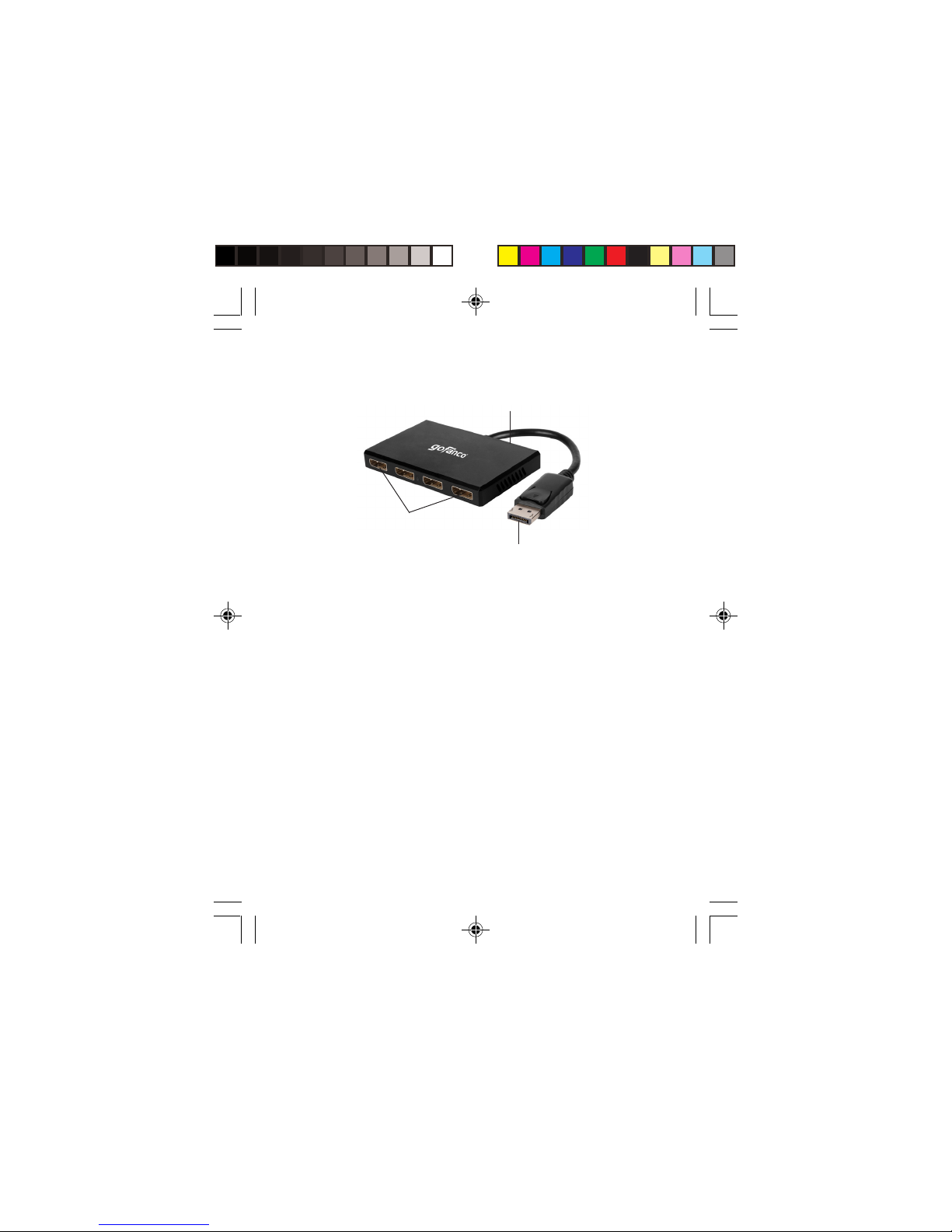

Figure 1: DisplayPort 1.2 4-Port MST Hub / Splitter - Black

DP IN

DP output (x4)

•DP IN: Connect to PC's DisplayPort

•DP output (x4): Connect to DisplayPort displays with DP

cables (not included)

Or connect to DP adapters (not included) to HDMI, DVI

or VGA to use with HDMI/DVI/VGA displays

•Powerjack (Micro-USB) : Connect to PC's USB3.0 port for

power with the included Micro-USB cable. *Note: This

connection is required to power this adapter.

Power jack (Micro-USB)

Hardware Installation

Important: If the source DP output doesn't support DP 1.2,

the Multiple Stream Transport function will be disabled and

this hub becomes a Splitter, mirroring your video source

across all displays.

1. Power off all devices you plan to connect to the unit.

2. Connect the unit to your PC's DisplayPort connector.

3. Connect your DisplayPort monitors to the unit's DP

outputs with DisplayPort cables (not included).

4. Connect the unit's power jack to PC's USB 3.0 port for

power source with the included cable.

5. Power on all of the connected devices.

6. It is ready for use.

Application

Add 4 external monitors to maximize productivity.

Figure 2

Monitors & resolutions support

The total bandwidth of 21.6 Gbps is shared among all

attached monitors. If the total bandwidth is consumed with

high resolutions by the first few monitors, the remaining

monitors will be disabled (no video output).

Please refer to the examples below:

Average resolution bandwidth allocation:

• 3840x2160 @30Hz - 40%

• 2560x1600 @60Hz - 38%

• 2560x1440 @60Hz - 35%

• 1920x1200 @60Hz - 30%

• 1920x1080 @60Hz - 22%

Note: When Screen 1 and 2 are set with resolution 3840 x 2160 @30Hz, the third

and fourth screens will be disabled.

Screen 1

Resolution

Screen 2

Resolu tion

Screen 3

Resolution

Screen 4

Resolution Total Bandwidth

1920 x 1080 @60Hz

(22%)

1920 x 1080 @60Hz

(22%)

1920 x 1080 @60Hz

(22%)

1920 x 1080 @60Hz

(22%) 88%

1920 x 1200 @60Hz

(30%)

1920 x 1080 @60Hz

(22%)

1920 x 1080 @60Hz

(22%)

1920 x 1080 @60Hz

(22%) 96%

3840 x 2160 @30Hz

(40%)

1920 x 1080 @60Hz

(22%)

1920 x 1080 @60Hz

(22%) OFF 84%

3840 x 2160 @30Hz

(40%)

1920 x 1200 @60Hz

(30%)

1920 x 1080 @60Hz

(22%) OFF 92%

For AMD Eyefinity Video Cards

Go to AMDRadeonSettings, and click Eyefinity foradvanced

display mode setup such as video wall.

Refer to your graphic card menu for more details.

Figure 3

Thank you for choosing gofanco

www.gofanco.com
