gofanco Matrix44HD2-LT Bedienungsanleitung
4x4 HDMI 2.0 Matrix LT
User's Guide
G4-0115A
P/N:Matrix44HD2-LT
2
Thank you for purchasing from gofanco. Our products
aim to meet all your connectivity needs wherever you
go. For optimum performance and safety, please read
the instructions carefully and keep this User's Guide for
future reference. If you need more information about
our products, please visit www.gofanco.com. For
For drivers or manual download, please go to
www.gofanco.com/downloads.
Important Safety Notices
Pleasereadsafetyinstructionscarefullybeforeinstallation
and operation.
• Please pay close attention to all warnings and hints
for this device
• Do not expose this unit to rain, heavy moisture, or
liquid
• Do not put any items into the device or attempt to
modify its operation
• Do not repair the device or open the enclosure
without professional guidance to avoid electric
shocks. Doing so may void your warranty
• Keep the product in a well-ventilated location to
avoid damage from overheating
• Shut off power and make sure environment is safe
before installation
• Do not plug the HDMI cables in/out when the
device is in use to avoid cable damage. Make sure
they are plugged into the correct ports
• Use the included 12VDC power adapter only. Make
sure the specification matches if using 3rd-party
DC power adapters
3
Introduction
The 4x4 HDMI 2.0 Matrix LT allows you to connect up to
four HDMI source devices and independently switch
any source to any of the four HDMI displays.
Features
• Supports up to 4K@60Hz YUV 4:4:4 8-bit, HDR (at
4K@60Hz YUV 4:2:0 10-bit), HDMI 2.0, HDCP 2.2/
1.4, 18Gbps
• SupportsHDdigitalaudio, LPCM 7.1, 24-bit, 96KHz,
Dolby Atmos
• 4K to 1080p auto downscaling to support mixed 4K
& 1080p outputs
• Control methods: Panel buttons, IR remote
• EDID management: Built-in EDID, EDID copy
• Firmware upgradable for expanded capability and
compatibility
Installation Requirements
• HDMI source devices (DVD player, set top box, PC,
etc.)
• HDMI displays (SDTV/Monitor, HDTV/Monitor,
projector, etc.)
• HDMI cables (not included)
PackageContents
• 4x4 HDMI 2.0 Matrix LT
• IR remote control
• Mounting accessories
• Power adapter, 12VDC/2A
• User's guide
4
Product Layout
Figure 1: Front Panel Layout
1. Micro USB Port: For firmware update
2. IR In: Receives IR signals from the included remote
control
3. Input LED: HDMI Input indicator for HDMI Out 1/
2/3/4 or EDID indicator for HDMI In 1/2/3/4
4. HDMI Out 1 Select Button: Press to select the
HDMI input device to display on HDMI Out 1
5. HDMI Out 2 Select Button: Press to select the
HDMI input device to display on HDMI Out 2
6. HDMI Out 3 Select Button: Press to select the
HDMI input device to display on HDMI Out 3
7. HDMI Out 4 Select Button: Press to select the
HDMI input device to display on HDMI Out 4
Select Button Functions
Select Button Operation Function
HDMI Out 1-4 Short press
1. Selects the HDMI Input device for
HDMI Out 1-4
2. Selects the EDID for HDMI Out 1-
4 when EDID management mode is
enabled
HDMI Out 1-4 Long press Enter/Exit EDID management mode
HDMI Out 1 + HDMI
Out 4
Long press
simultaneously Reset the Matrix to default settings
5
Figure 2: Rear Panel Layout
1. HDMI In (1-4): Connect to your HDMI sources
2. HDMI Out (1-4): Connect to your HDMI displays
3. PowerJack:Connects to theincludedpower adapter
Hardware Installation
1. Power off all devices including your HDMI
source(s) and HDMI display(s).
2. Connect your HDMI source devices to the Matrix's
HDMI In connectors with HDMI cables (HDMI
cables not included).
3. ConnectyourHDMIdisplays to the Matrix'sHDMI
Out connectors with HDMI cables (HDMI cables
not included).
4. Plug the included power adapter into the Matrix's
Power Jack, then plug the power adapter into a
reliable power outlet.
5. Power on all connected devices. The Matrix is
ready for use.
6
Application Diagram
The application diagram shows the most typical input
and output devices used with the 4x4 HDMI 2.0
Matrix LT.
Figure 3: Application Diagram
7
Matrix Device Control
Remote Control
Users can control the 4x4 HDMI 2.0 Matrix LT using the
included IR remote. Point the remote control towards the
Matrix's IR In window located on the front panel.
1. Standby: Press to place the Matrix into standby
mode. Press again to wake up the Matrix
2. Mute: Turns audio On/Off. Choose the output
first, then press M. Example: To mute output 1 -
press Output 1 button (see #4), then press M
3. Lock: Press to lock the remote control
4. Output 1/2/3/4: Selects an input source to display
on an output port. Example: To select Input 1
source to display on Output 1 port - Press Output
1 button, then press Input 1 button (see #8)
8
5. All:Selectsoneinputdevice to display on alloutputs.
Example: Press All button, then press Input 1/2/3/
4 (see # 8)
6. PTP (Port to Port): Press to assign all inputs and
outputs to their numerical counterparts. Examples:
Input 1 to Output 1, Input 2 to Output 2, Input 3 to
Output 3, Input 4 to Output 4
7. X: Turn off output port. Example: To turn off
display on Output 1 - Press Output 1 button (see
#4), then press X. To turn on the display, press
Output 1 + X again
8. Input Select: Press to select input 1/2/3/4
9. Next: Switch to the next input device. Example: To
switch Output 1 to the next input device - Press
Output 1 button (see #4), then press >. Note: If the
next input device is inactive it will automatically
skip to the next active input device
10. Last: Switch to the previous input device. Example:
To switch Output 1 to the previous input device -
Press Output 1 button (see #4), then press <. Note:
If the previous input device is inactive it will
automatically skip to the next active input device
Note: Allbuttons support shortpress, long press function
is not supported.
9
EDID Management
Allows you to choose the EDID for each input.
Supports built-in and EDID copy modes.
There are 8 EDID groups.

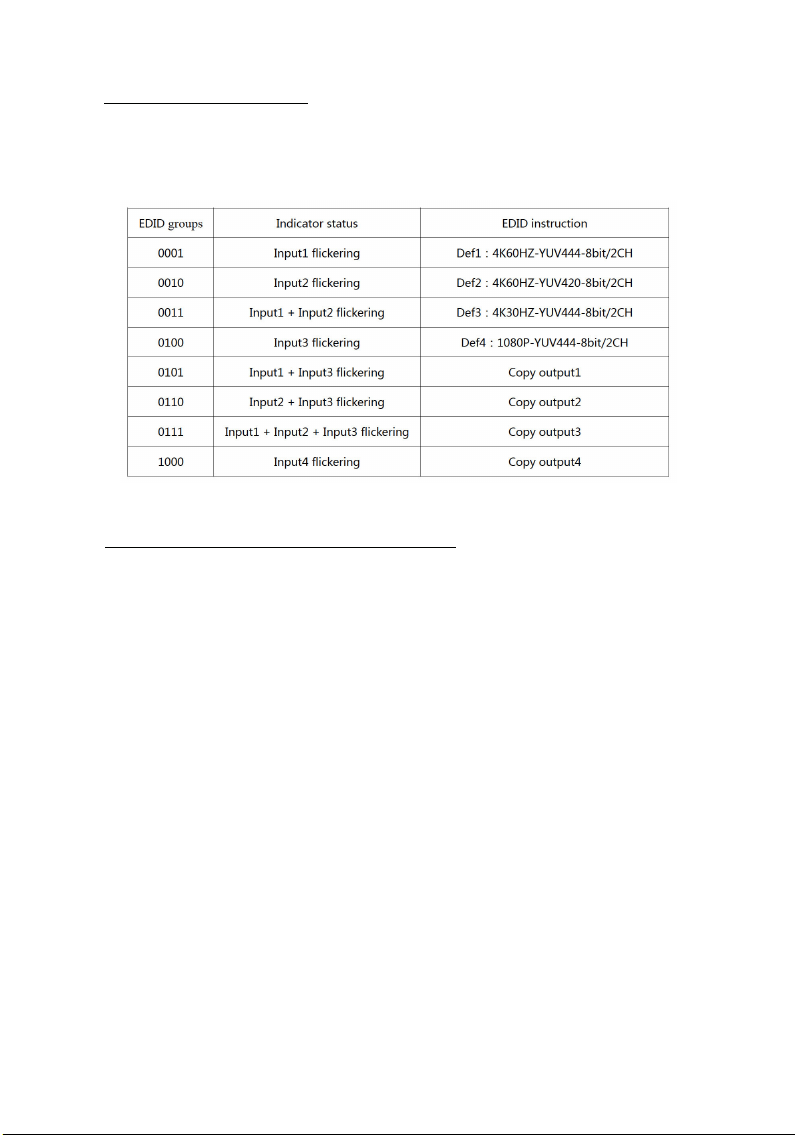

EDID Table
EDID Configuration Mode Setup
The Matrix's default EDID is 4K@60Hz YUV 4:4:4 8-bit 2-
ch (0,0,0,1). Do Not make any changes if the default EDID
works properly.
1. To change the EDID for Input 1, long press the
HDMI Out 1 Select button (on the Matrix's front
panel) for 1 second to enter EDID configuration
mode. Release the button when the HDMI Out 1
LED begin to flicker. Example: If only Input 1 LED
is flickering, it represents EDID Def1: 4K60Hz YUV
4:4:4 8-bit 2Ch (see Indicator status in EDID table on
page 9).
2. Quickpressthe HDMI Out 1 Select button to choose
the EDID setting (see Indicator status in EDID table
onpage9).Example: If only Input2LEDis flickering,
it represents EDID Def2: 4K60Hz YUV 4:2:0 8-bit
2Ch.Note: EDID switching sequence: Built-inEDID
> Copy EDID.
10
Specifications
HDMI Compliance HDMI 2.0
HDCP Compliance HDCP 2.2/1.4
Resolution
480p@60Hz, 576p@50Hz, 720p@60Hz,
1080p@24/50/60Hz, 4K@24/30Hz,
4K@60Hz YUV 4:2:0, 4K@60Hz YUV 4:4:4
Bandwidth 18Gbps
Input Video Signal 0.5 - 1.0 volts p-p
Input DDC signal 5 volts p-p (TTL)
Video Compatibility HDR10, HDR, Dolby Vision
Deep Color 8bit, 10bit, 12bit
Audio Output LPCM 7.1/24bit/ 96khz, Dolby Atmos,
DTS-X
Power Consumption 12.3W (max)
Operating Temperature 0 - 40 C (32 to 104 F)
Operating Humidity 5 to 90% RH (no condensation)
3. Long press the HDMI Out 1 Select button for about
1 second or wait 10 seconds to save your changes
and exit EDID mode.
4. Repeat steps 1-3 for each HDMI input if necessary.
