LS2 / LS3

2 and 3 Person Sauna

Owner’s Manual

CARBON MODEL SAUNAS

SAUNAS ARE FOR INDOOR USE ONLY

120VAC 15AMP Dedicated Circuit Required (2 Person Models)

120VAC 20AMP Dedicated Circuit Required (3 Person Models)

Carefully and thoroughly read this Owner’s Manual before using/operating

the sauna. We recommend keeping this Owner’s Manual for regular review

and future reference.

What Are Infrared Rays?

Infrared is the band of light we perceive as heat. We cannot see this band of light with

the naked eye, but we can feel this type of light in the form of heat. Our sun produces

most of its energy output in the infrared segment of the spectrum. Infrared rays heat your

body without having to heat the air in-between. This process is called conversion.

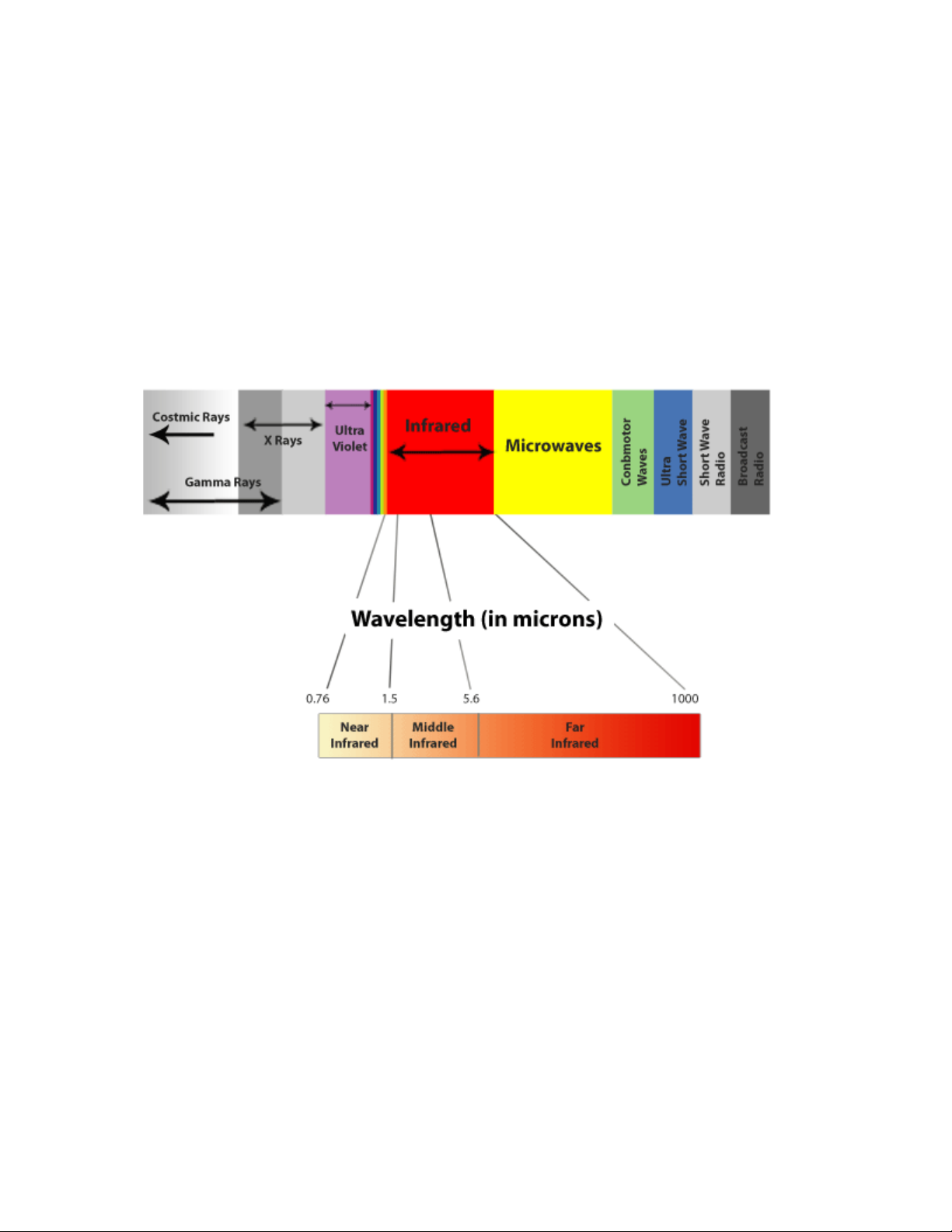

The infrared is divided into 3 segments by wavelengths measured in microns: Near

Infrared –0.76-1.5 microns; Middle Infrared –1.5-5.6 microns; and Far Infrared –5.6-

1000 microns. Among these segments, Far Infrared penetrates organic substances such

as the human body two to three inches so that the warming effect is very uniform.

Health Benefits

Because infrared rays penetrate the body through conversion, there is a deep heating

effect in both the muscle tissues and internal organs without putting too much burden on

the heart.

Our body reacts to the increased heating through the natural cooling process of

perspiring. Through the perspiration process, acid and waste residue like toxins,

sodium, alcohol, nicotine, cholesterol, and the potentially carcinogenic heavy metals are

removed from the cells (especially zinc, lead, nickel, cadmium, etc.). The pores of our

skin open and discharge waste products shedding any old skin cells leaving the skin

glowing and clean, with improved tone, elasticity, texture, and color.

Health Benefits Include, But Are Not Limited To:

*Pain relief from Rheumatoid Arthritis

*Relaxes muscle spasms

*Increases blood circulation

*Cardiovascular conditioning

*Clears rashes, acne

*Reduces cellulite

*Removes toxins and mineral waste

*Reduces stress and fatigue

*Enhances skin tone

DISCLAIMER

The infrared rays emitted by your sauna are reported to offer a wide range of possible

therapeutic benefits based on research completed over the last 40 years from all around

the world. These benefits are presented for reference purposes only and no implication

of infrared saunas creating a cure for or treating any disease is implied nor should it be

inferred. If you have a medical/health condition, are taking prescription drugs, or have

acute joint injuries, please consult with your medical physician before using the sauna.

Persons with surgical implants (metal pins/rods, artificial joints, silicone, or other types of

surgical implants) typically do not experience any adverse effects, but should also

consult their medical physician or surgeon before using the sauna room.

What are electric and magnetic fields?

Electric and magnetic fields are a basic force of nature (like gravity), generated by

electricity. They are found almost everywhere. Electric and magnetic fields are found in

nature, where they are created by such things as lightning and static electricity.

Manmade

fields are found wherever people use electricity, such as near powerlines and electrical

appliances. Like sound, electric and magnetic fields are made of a mixture of

components

and so can be described in many different ways. Both have wave-like properties

such as strength and “frequency” (how often they cycle back and forth). Sound can be

loud (strong) or soft (weak), high or low pitched (different frequencies), suddenly loud or

constant in tone, and pure or jarring. Similarly, electric and magnetic fields are a mixture

of components. They can be strong or weak, have a high or low frequency, have sudden

increases in strength (“transients”) or a constant strength, and consist of one pure

frequency or several (called “harmonics”). For example, the strength of a field can be

weak and constant, as in most nighttime home environments, or it can be strong and

vary from high to low every few seconds, as from an electric blanket set on high.

Powerlines and wiring in buildings and appliances generate 50 and 60 Hertz fields,

sometimes referred to as “power frequency” fields. Hertz is the unit for measuring the

frequency of fields in the number of wave cycles each second. The lower the frequency

of a field, the lower its energy. Power frequency fields are low frequency fields and have

low energy levels. Microwave and x-ray fields are high frequency fields and have high

energy levels. Below are some EMF measurements.

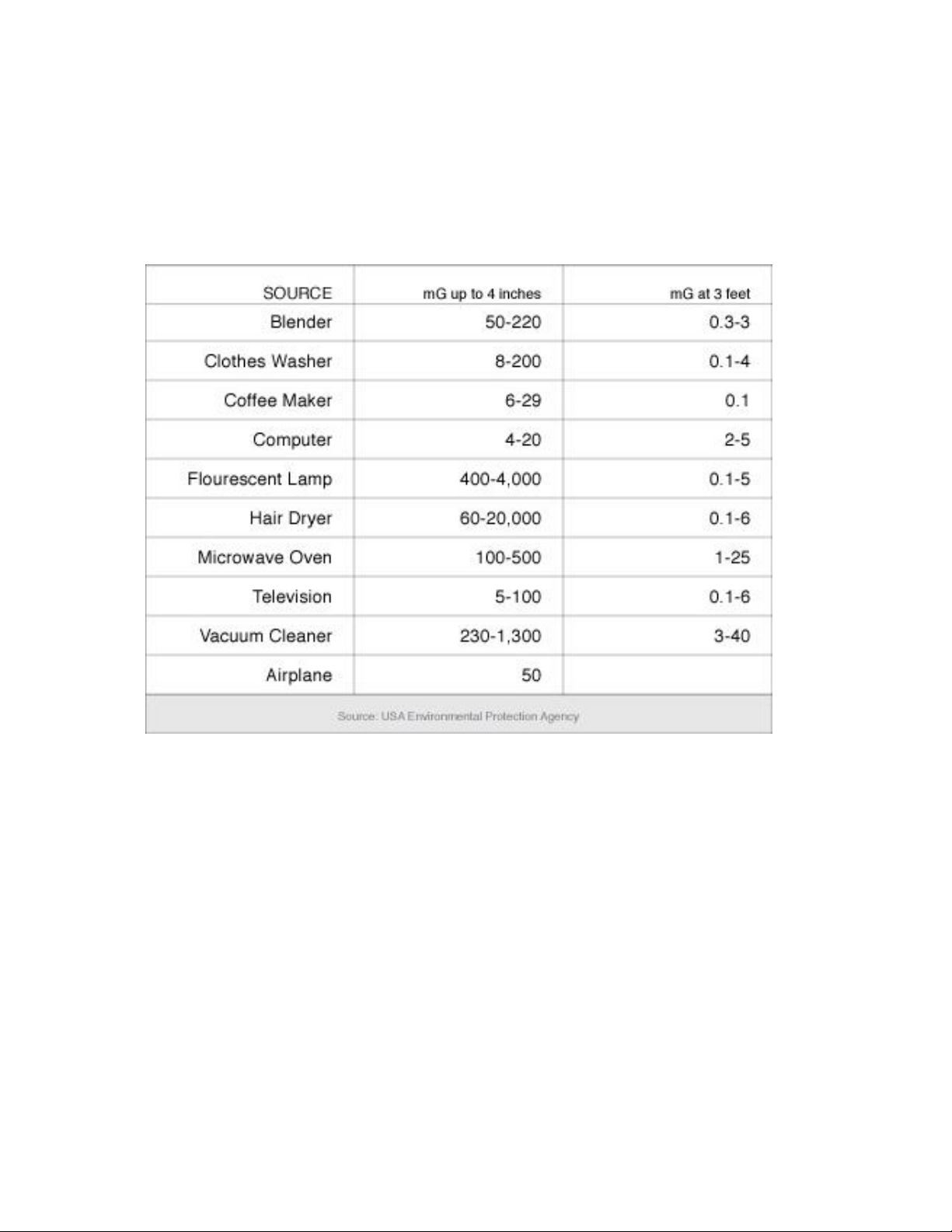

EMF Levels from Common Homes Sources

After many years and numerous studies on EMF exposure, no government body

including the Occupational Safety and Health Administration (OSHA) have established

permissible exposure limits (PEL). Currently, there is no consensus on the potential

health hazard from any exposure to EMF. The mainstream scientific evidence suggests

that low-power, low-frequency, electromagnetic radiation associated with household

currents like that of the infrared sauna does not constitute a short or long term health

hazard.

Sauna Maintenance

Since infrared saunas do not require hot rocks, water, or steam to operate, they require

very little maintenance. You can simply wipe it down with water –use a damp, soft, and

clean cloth. Do not use any chemical based cleaning agents as they can be

absorbed into the wood and be released into your sauna during use.

*PLEASE READ INSTRUCTIONS BEFORE

ASSEMBLY*

LS2

*The above assembly diagrams are for quick

reference

visual guides

only. All sauna models are not shown. Parts and accessories may

vary.

Parts subject to change.

*PLEASE READ INSTRUCTIONS BEFORE

ASSEMBLY*

LS3

*The above assembly diagrams are for quick

reference

visual guides only.

All sauna models are not shown. Parts and accessories may

vary. Parts

subject to change.

TABLE OF CONTENTS

Product Introduction 7

Parts Description 8

Assembly Instructions 12

Operating the Sauna 16

Tips for Using Your Sauna 19

Safety Instructions 19

Safeguards for Your Sauna 20

Troubleshooting Guide 21

Warranty 23

Warranty Card 25

WARNING: Visually inspect all heaters before assembly to make sure they are

not damaged. Any excessive vibrations during transport could cause damage

to the heating elements. DO NOT START the sauna if damage is detected!

Contact your dealer or manufacturer for troubleshooting and replacement

parts.

1. Product Introduction

The infrared sauna room is composed of a wood cabin, infrared heat emitters, and a

control system. The wood cabin includes a FRONT PANEL, REAR PANEL, LEFT

SIDE PANEL, RIGHT SIDE PANEL, BENCH, BENCH EMITTER PANEL, FLOOR

PANEL, ROOF PANEL, and ROOF COVER. The infrared sauna

comes with control panels, a drink shelf (optional), a reading lamp/color light, and

infrared heat emitters.

NOTE: Your model sauna has been completely assembled and tested prior to

packaging. The rear wall panel is intentional warped as part of the overall design.

Two adults will be needed to assemble the sauna room. Please note that

backrests are sold separeately.

CAUTION: Exit Sauna Immediately If You Feel Dizzy, Sleepy,

Or Any Discomfort.

PARTS DESCRIPTION

LS2

LS3

(optional)

*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*

I. Power Supply

The POWER SUPPLY BOX is the control center of the sauna room. It is installed on the ROOF PANEL and

has input/outputs connected to it. (see figure 3)

Figure 3

II. MP3 Auxiliary Socket (optional on models with Bluetooth)

The MP3 Auxiliary Socket allows you to connect a MP3 player or radio (with auxiliary out function) to the

speakers for your listening pleasure. (see figure 4)

Figure 4

III. Component Labeling

The wiring harness and heater cords are labeled. Use the labeling to identify the different connections

IV. Buckles

A. External Buckles

The external buckles are used to connect the wall panels together. (see figure 5)

Figure 5

V. Panel Descriptions

For easier installation, please understand and distinguish the differences between each panel.

A. Floor Panel

When the floor panel faces upward, you will find (2) raised short moldings on the sides and

(2) raised long moldings on the front and rear for LSIF-02. You will find (2) long moldings on

the front and rear for LSIF-03 (front and rear are the same). (see figure 7)

LS2 LS3

Front Of Sauna Room

Figure 7

B. Understanding The Difference Between The Top And Bottom Of The Wall Panels

The (4) panels are in the upright position when the moldings are at the top. The moldings will

face inward. (see figure 8)
